Matrix Well Mate 8-Channel Dispenser Liquid Handling Unit 240V Used Lab Equipment 988

Product Information

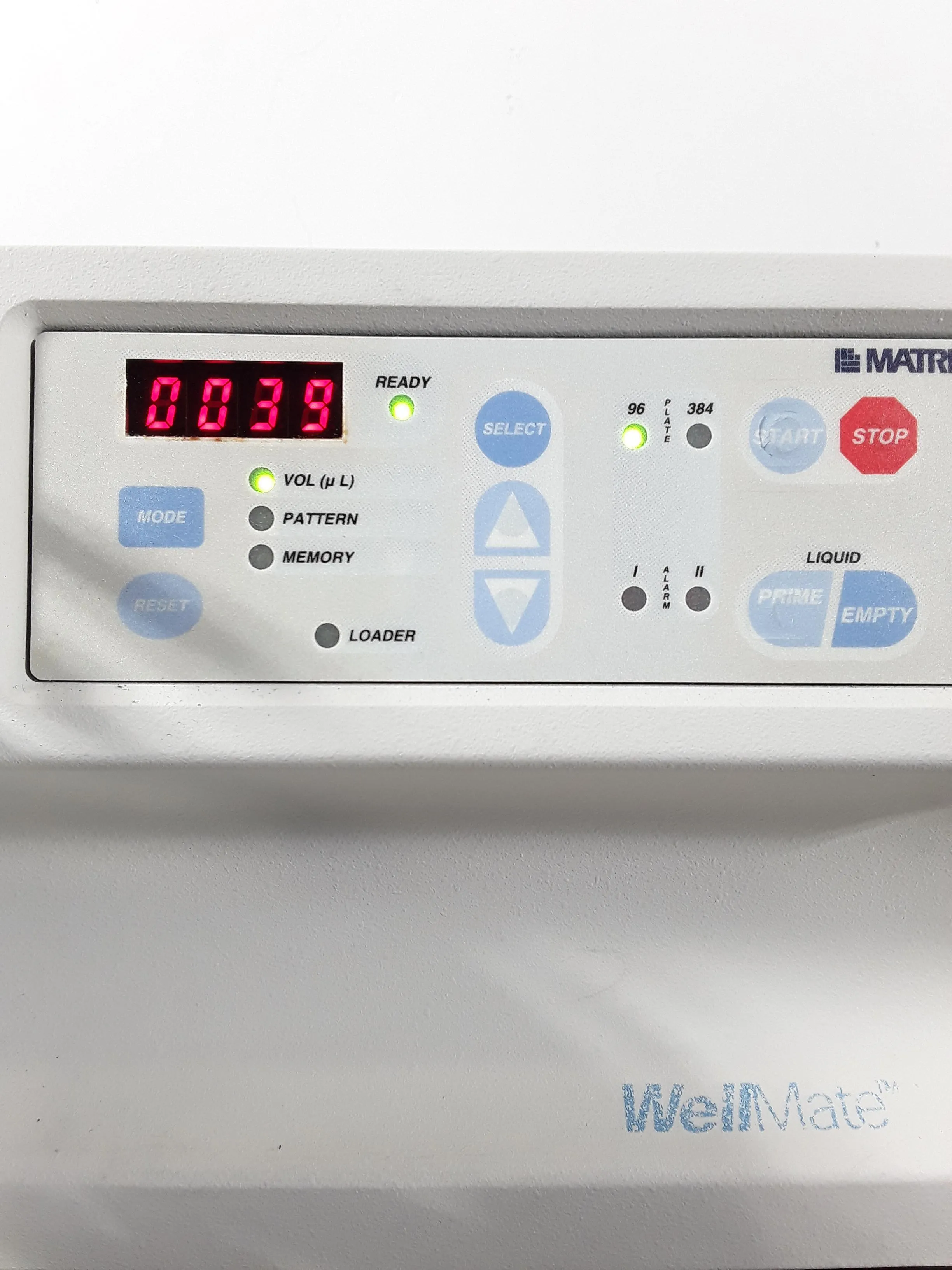

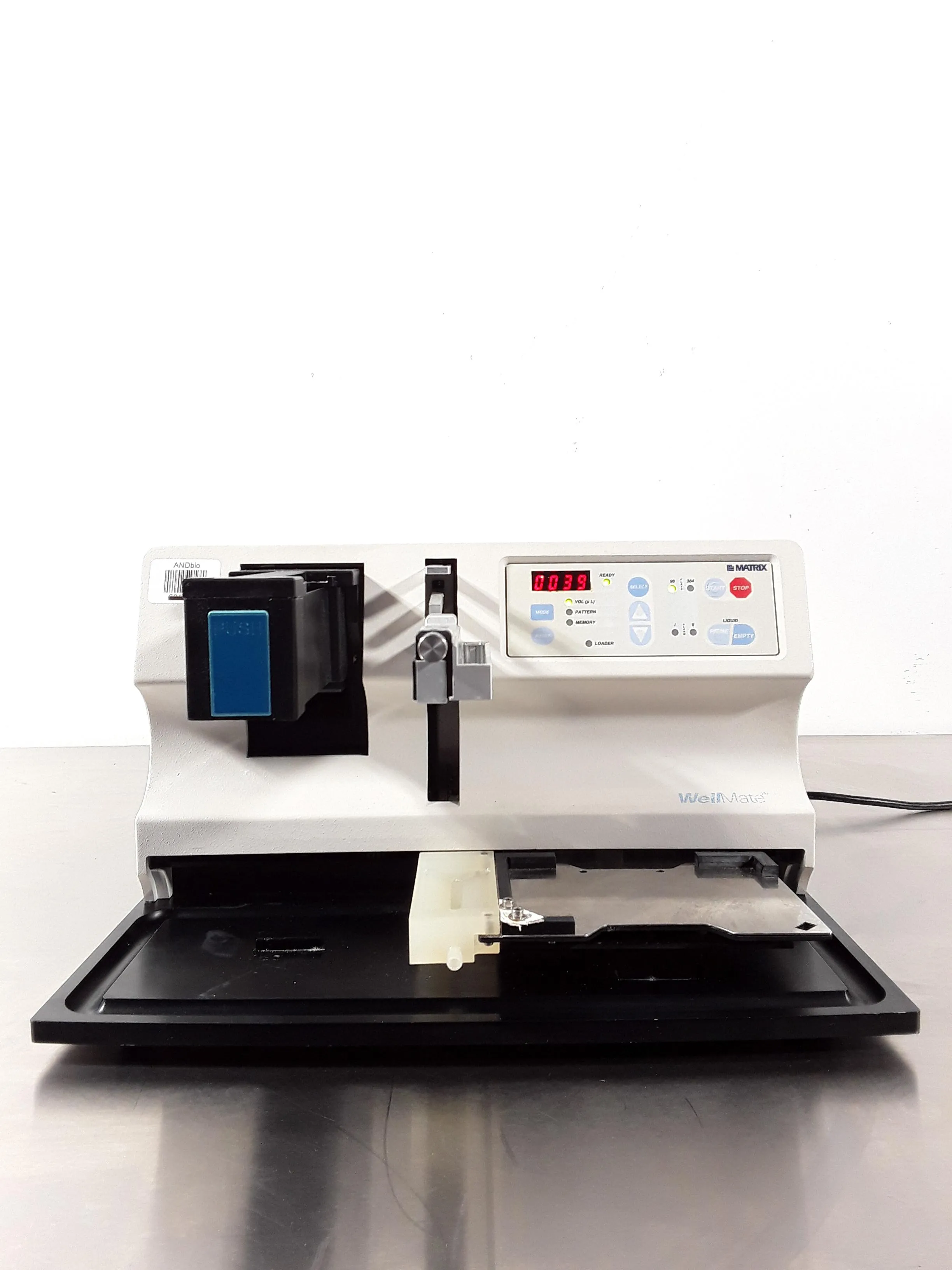

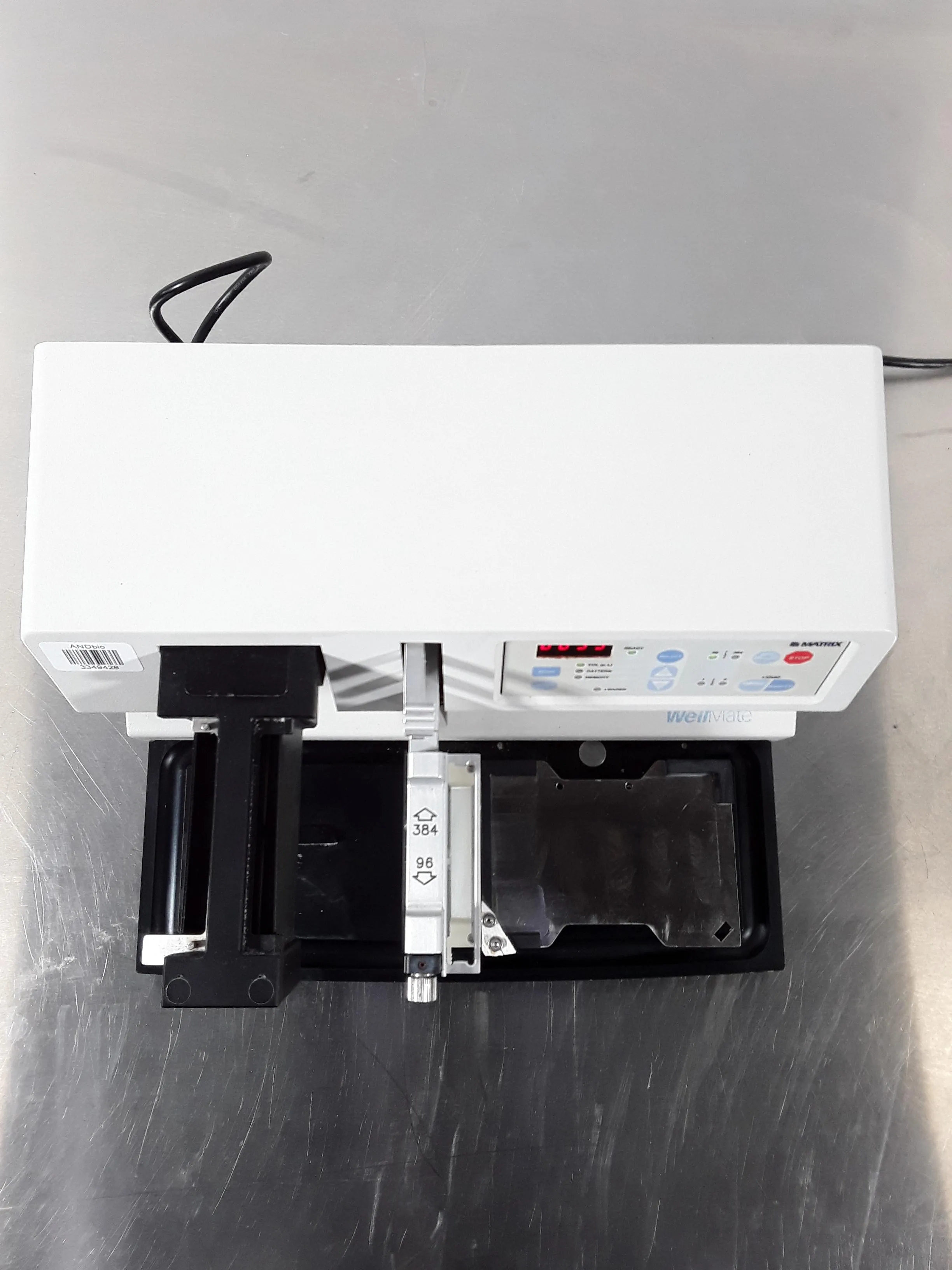

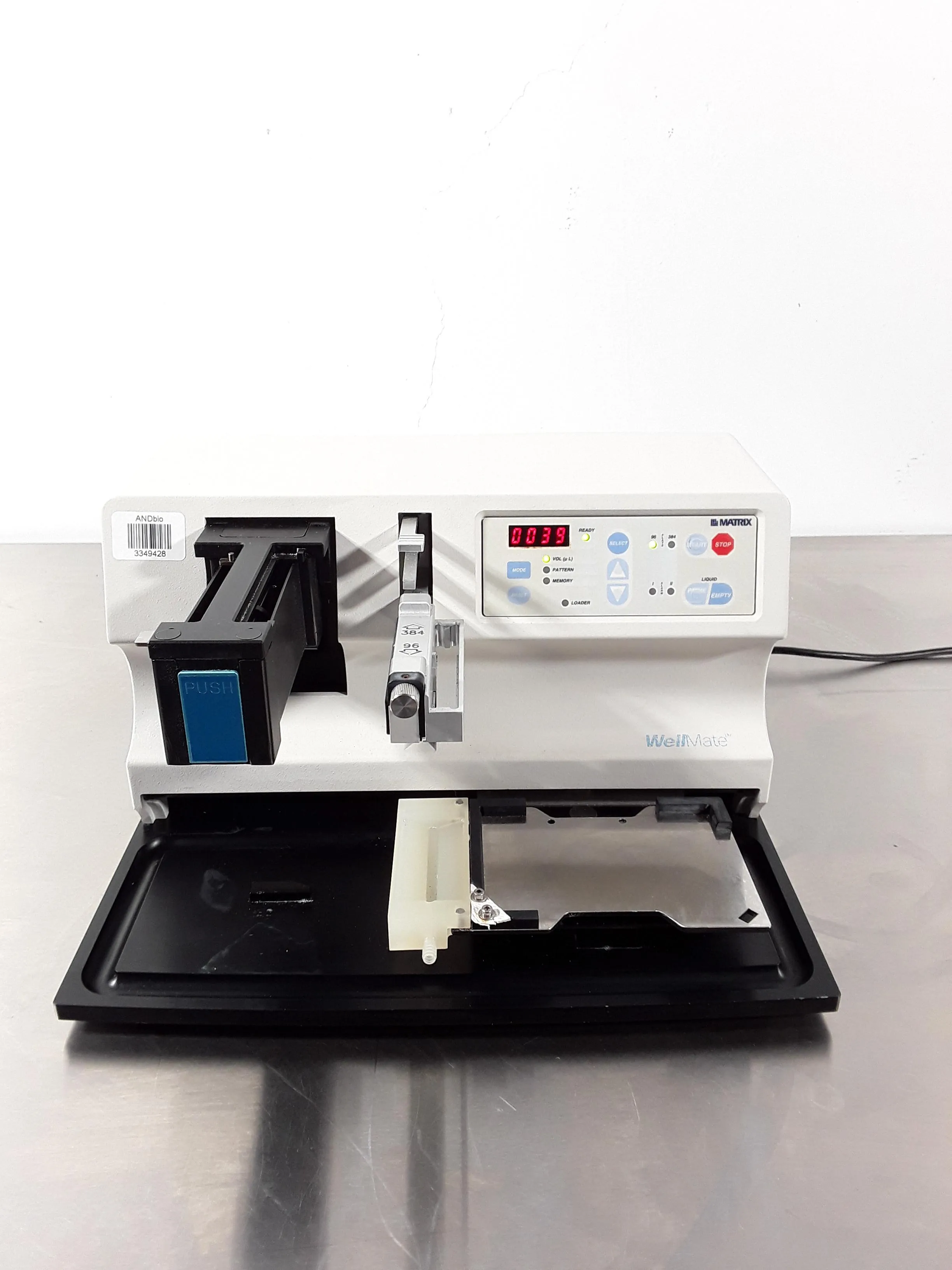

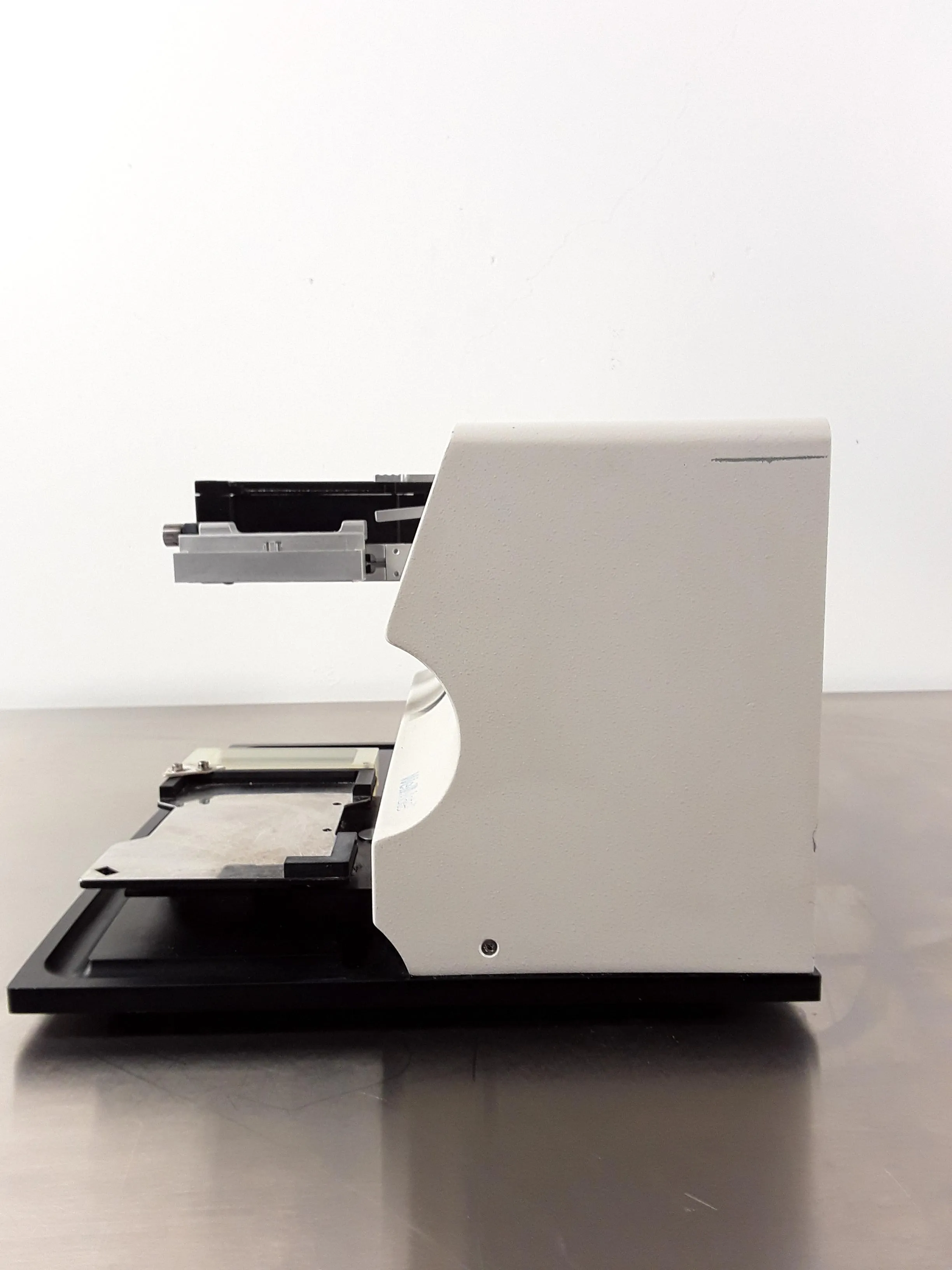

The WellMate instrument from Matrix Technologies is a highspeed, small footprint, 8-channel fluid dispenser for 96- and 384-well microplates. It repetitively dispenses samples and reagents into the plates, with high accuracy and efficiency. You can program the WellMate unit with dispensing protocols, setting dispense volumes, plate type, and more. The WellMate instrument dispenses samples and reagents efficiently through use of a peristaltic pump mechanism and a unique, disposable tubing cartridge. Operators can adjust nozzle height to customize use of the instrument for different plate configurations. The instrument's high-resolution, stepper-motor technology allows fast, accurate dispensing with a dynamic dispense volume range and low-cost, replaceable tubing cartridges. The power supply is rated at AC 100-240V, 50/60Hz 40VA. Its compact design and adaptability make it a key tool for sterile plate filling, enhanced dispense precision, and other applications.

• High-resolution stepper-motor technology for fast, accurate dispensing
• Peristaltic pump mechanism with a unique, disposable tubing cartridge
• Dynamic dispense volume range programmable in 1.0L increments
• Adjustable nozzle height for different plate configurations

• Height-adjustable dispense head, accommodating shallow- and deep-well plates and blocks
• 18 memory-storage capacity for different dispensing protocols

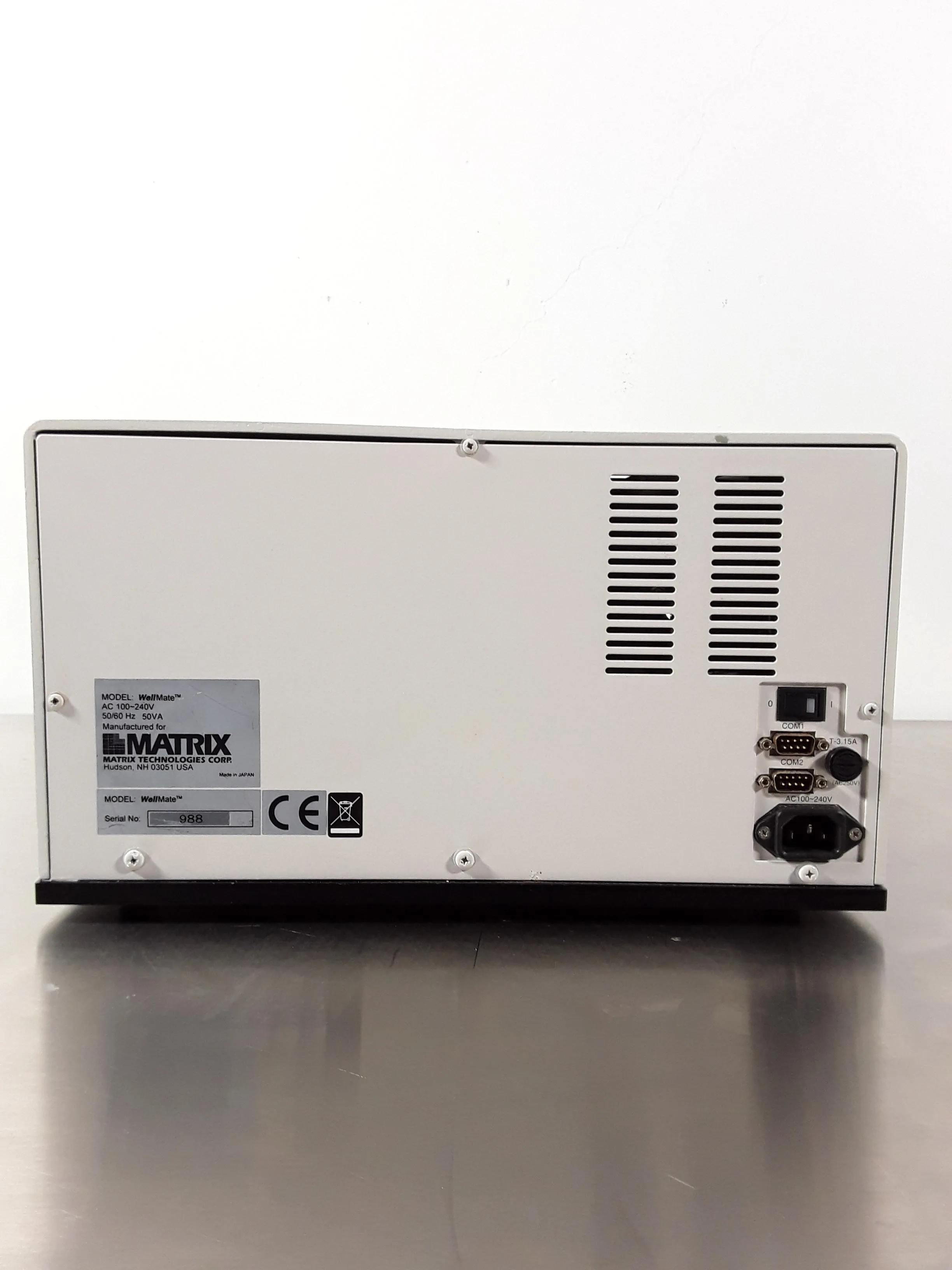

• Full RS-232 programming for ease of integration

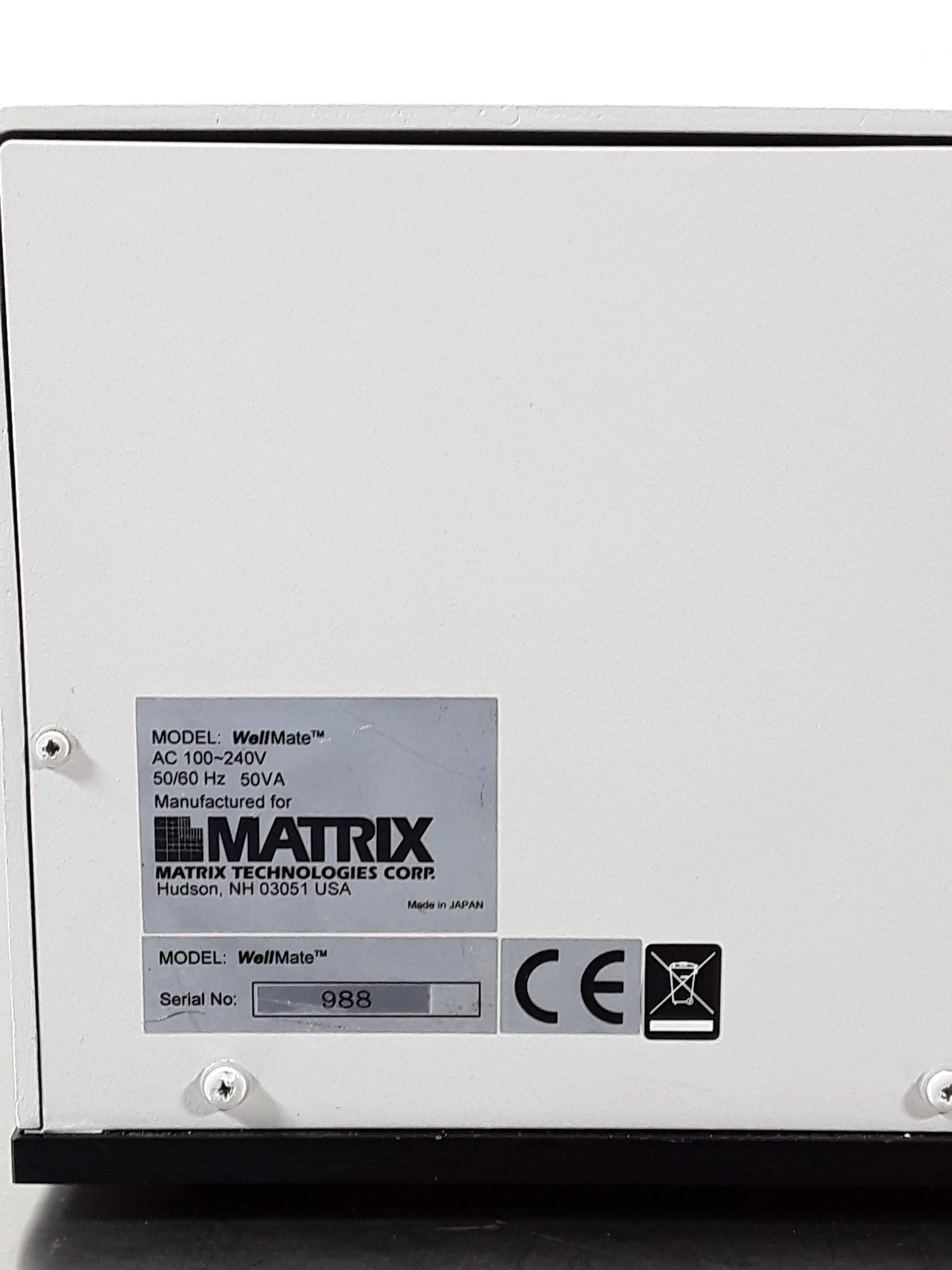

• AC 100-240V, 50/60Hz 40VA power supply
• {'Standard-bore Tubing Cartridge': {'Description': '8-channel, pre-sterilized, standard-bore disposable tubing cartridge. Inner diameter nozzle orifice = 0.023in (0.58mm)', 'Recommended Dispense Volumes': '20L to 2000L', 'Recommended Uses': 'With 96-well (shallow- or deep-well) plates, for: Sterile plate filling, Dispensing of volumes 20-2000L, Dispensing of cellular materials, Dispensing of viscous fluids', 'Dispense Accuracy/Precision': '+/-2.0% or 1.0L', 'Precision Limit': '1000 96-well microplates processed with 100L dispense volume'}}
• {'Small-bore Tubing Cartridge': {'Description': '8-channel, pre-sterilized, small-bore disposable tubing cartridge. Inner diameter nozzle orifice = 0.015in (0.38mm)', 'Recommended Dispense Volumes': '2L to 200L', 'Recommended Uses': 'With 96-well or 384-well (shallow- or deep-well) plates, for: Sterile plate filling, Enhanced dispense precision, Dispensing of high vapor pressure fluids', 'Dispense Accuracy/Precision': '+/- 4.0% or 0.4L: < 20L; +/- 2.0%: > 20L', 'Precision Limit': '1000 96-well microplates processed with 100L dispense volume'}}

Metric: 14.9696 kg
Imperial: 33 lbs

Metric: 30.48 cm x 30.48 cm x 30.48 cm
Imperial: 12 in x 12 in x 12 in

902790

902790 - Other instruments and apparatus for physical or chemical analysis, for measuring or checking viscosity, porosity, expansion, surface tension or capillary attraction, or for measuring or checking heat, sound or light, nesoi
