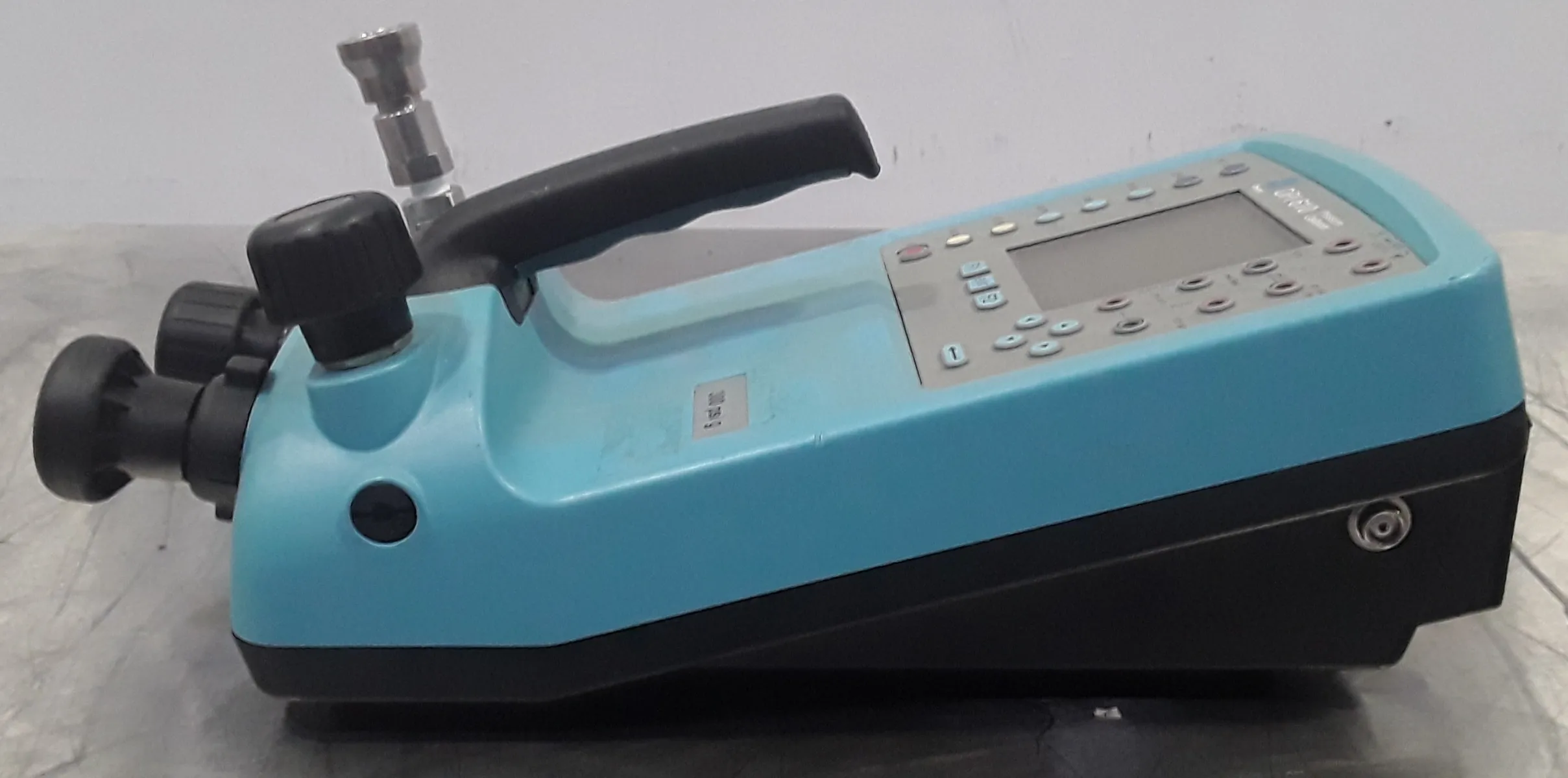

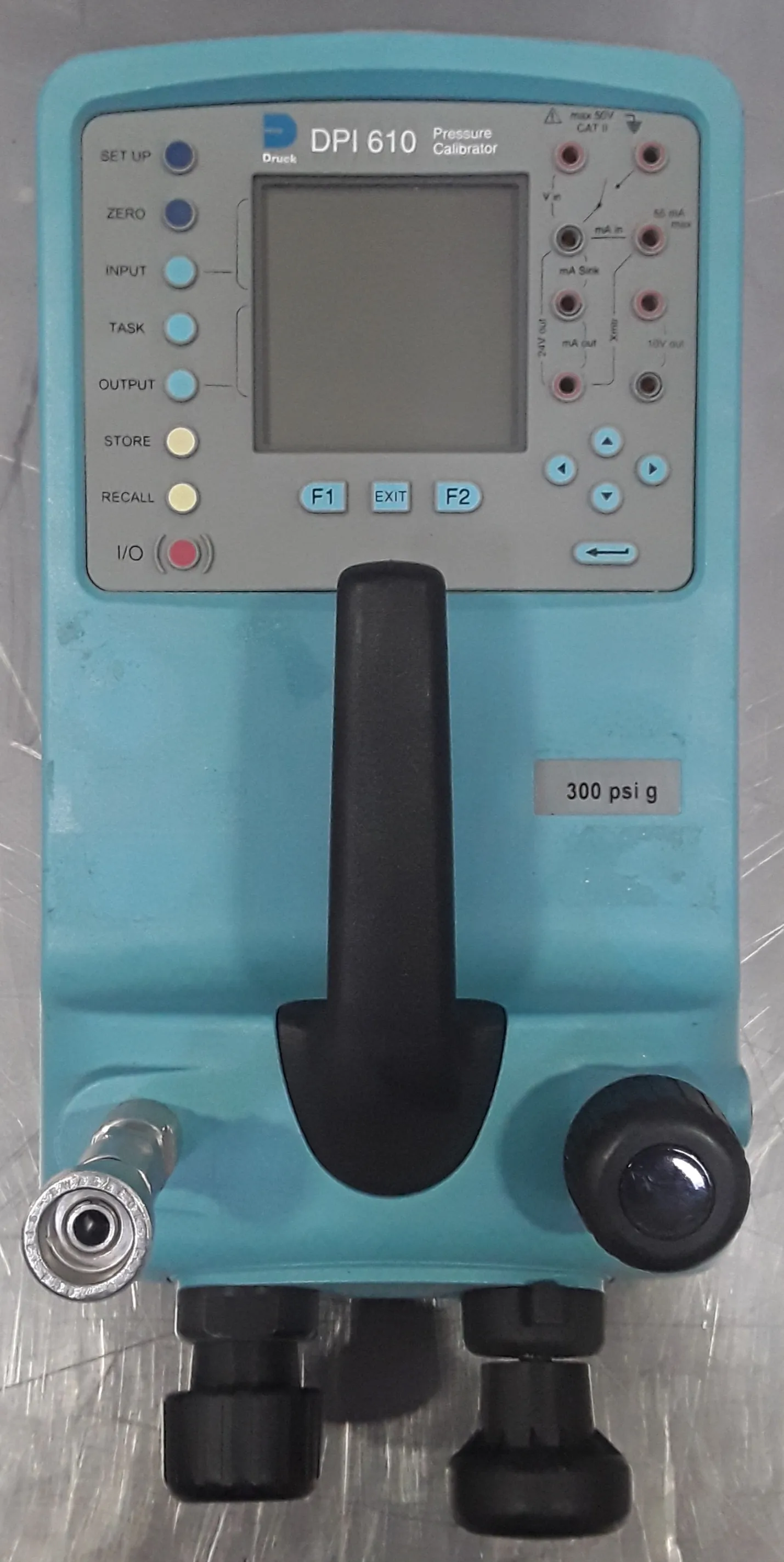

Druck DPI 610 Portable Pressure Calibrator

Product Information

Our portable pressure calibrator is the ideal solution for technicians and engineers in the field. The Druck DPI 610 portable calibrator by GE is a masterpiece of engineering, design, and functionality. Offering a self-contained, battery-powered design, this pressure calibrator is packed with features such as a pressure generator, fine pressure control, device energizing, and output measurement capabilities. The rugged weatherproof design allows for operation and test lead connection without compromising visibility. The calibrator includes mA step and ramp outputs, a built-in continuity tester, and facilities for 4 to 20 mA loop testing and data storage.

• Battery-powered portable pressure calibrator
• Pressure generator and fine pressure control
• Device energizing and output measurement capabilities
• Rugged weatherproof design, ideal for field use
• Built-in continuity tester and 4 to 20 mA loop testing facilities

• Accuracy: 0.025% FS for all pressure ranges
• Pressure Ranges: -14.7 to 10,000 psi including gauge, absolute, and differential versions
• Integral pneumatic pressure/vacuum source: -22 inHg to 300 psi
• Integral hydraulic pressure source: 0 to 6000 psi
• Measurement: Pressure, mA, V, switch state (open/closed), and ambient temperature
• Source: Pressure, mA step, mA ramp, mA value
• Energizing supplies: 10 and 24 Vdc
• Data storage: Up to 10,000 values
• Remote pressure sensors: Up to 10 digitally characterized sensors per calibrator

Metric: 6.803885 kg
Imperial: 15 lbs

Metric: 38.1 cm x 27.94 cm x 25.4 cm
Imperial: 15 in x 11 in x 10 in

9026202000

Apparatus for measuring or checking pressure of liquids or gases, nesoi. This code is used to classify pressure calibrators, as it specifically relates to pressure measurement and checking equipment.
