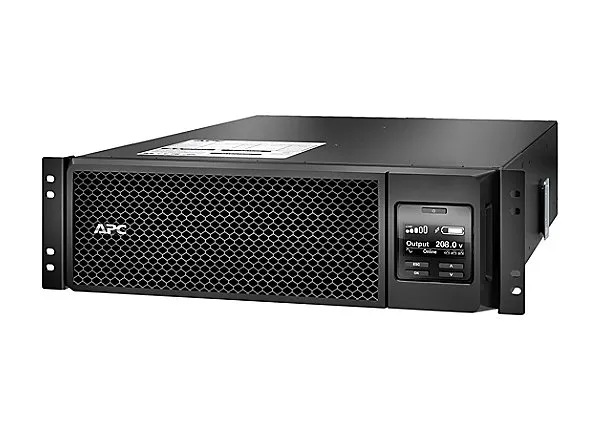

APC SRT5KRMXLT UPS

Product Information

Introducing the APC SRT5KRMXLT UPS. This is a Class 1, brand new Smart-UPS On-Line that provides high density, true double-conversion on-line power protection. It is capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, making it suitable for servers, voice/data networks, medical labs, and light industrial applications. Recent model extensions also support power hungry blade servers or heavily loaded equipment racks. The Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands, making it ideal for business-critical systems requiring runtime in hours, not minutes. It has an extremely wide input voltage window, very tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction. This UPS comes with integrated management and remote options, providing a reliable source of uninterruptible power even in demanding environments. The included PowerChute management software enables unattended graceful shutdown of network operating systems. In addition to the aforementioned, this UPS includes the following features: - Includes: Documentation CD, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, USB cable, User Manual, Warranty card, Web/SNMP Management - Output power capacity: 4.8kWatts /5.0kVA - Rack Height: 3U - Output Connections: (2) NEMA L6-20R (Battery Backup), (2) NEMA L6-30R (Battery Backup) - Nominal Output Voltage: 208V - Nominal Input Voltage: 208V - Input Connections: NEMA L6-30P - Cord Length: 10ft (3.05meters) - Technology: Double Conversion Online - Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof - Communicative: Interface Port(s), Control panel, Audible Alarm, Emergency Power Off (EPO) - Surge Energy Rating: 480Joules - Physical Dimensions: Maximum Height: 5.1inches, Maximum Width: 17.0inches, Maximum Depth: 28.32inches - Color: Black - Environmental features: Audible noise at 1 meter from surface of unit - 55.0dBA, Online thermal dissipation - 1047.0BTU/hr - Protection Class: IP 20

• High density, double-conversion on-line power protection
• Scalable runtime
• Integrated Network Management Card for remote management
• Extremely wide input voltage window, tight output voltage regulation
• PowerChute management software for unattended graceful shutdown of network operating systems

• Output power capacity: 4.8kWatts /5.0kVA
• Rack Height: 3U

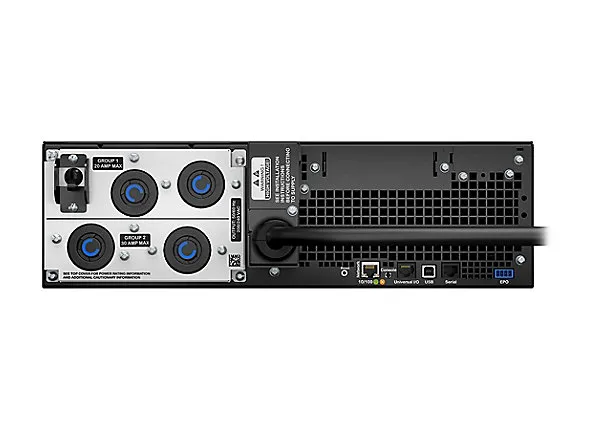

• Output Connections: (2) NEMA L6-20R (Battery Backup), (2) NEMA L6-30R (Battery Backup)
• Nominal Output Voltage: 208V
• Nominal Input Voltage: 208V
• Input Connections: NEMA L6-30P
• Cord Length: 10ft (3.05meters)
• Technology: Double Conversion Online
• Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Communicative: Interface Port(s), Control panel, Audible Alarm, Emergency Power Off (EPO)
• Surge Energy Rating: 480Joules
• Physical Dimensions: Maximum Height: 5.1inches, Maximum Width: 17.0inches, Maximum Depth: 28.32inches
• Color: Black
• Environmental features: Audible noise at 1 meter from surface of unit - 55.0dBA, Online thermal dissipation - 1047.0BTU/hr
• Protection Class: IP 20

Metric: 78.47 kg
Imperial: 173 lbs

Metric: 72.4 cm x 43.2 cm x 13.1 cm
Imperial: 28.5 in x 17.0 in x 5.1 in

8504409580

The harmonized code 8504409580 applies to electrical transformers and inductors, with a power handling capacity not exceeding 1 kVA. It is used for the classification and taxation of goods for international trade and customs purposes. This code has been chosen based on the input product model and intended use of the APC SRT5KRMXLT UPS.
