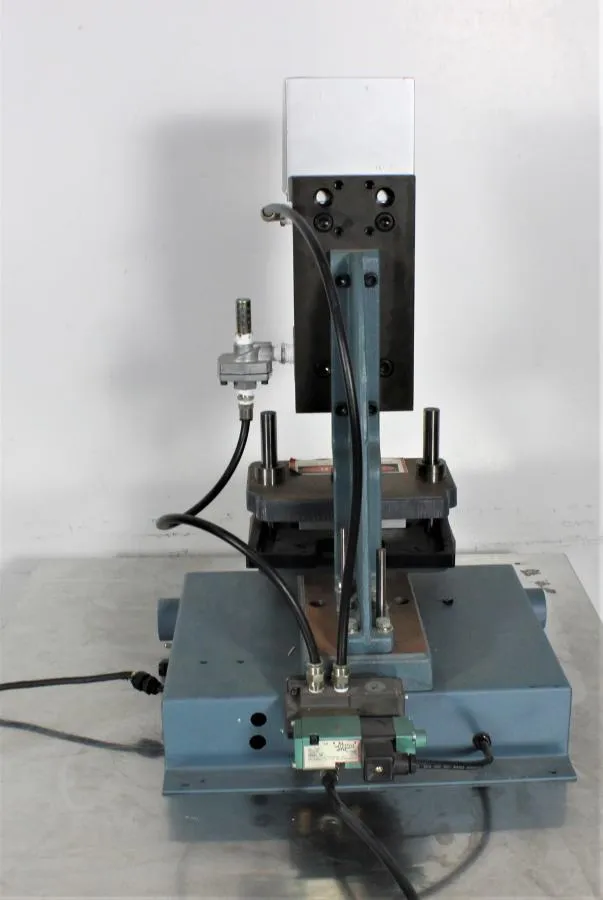

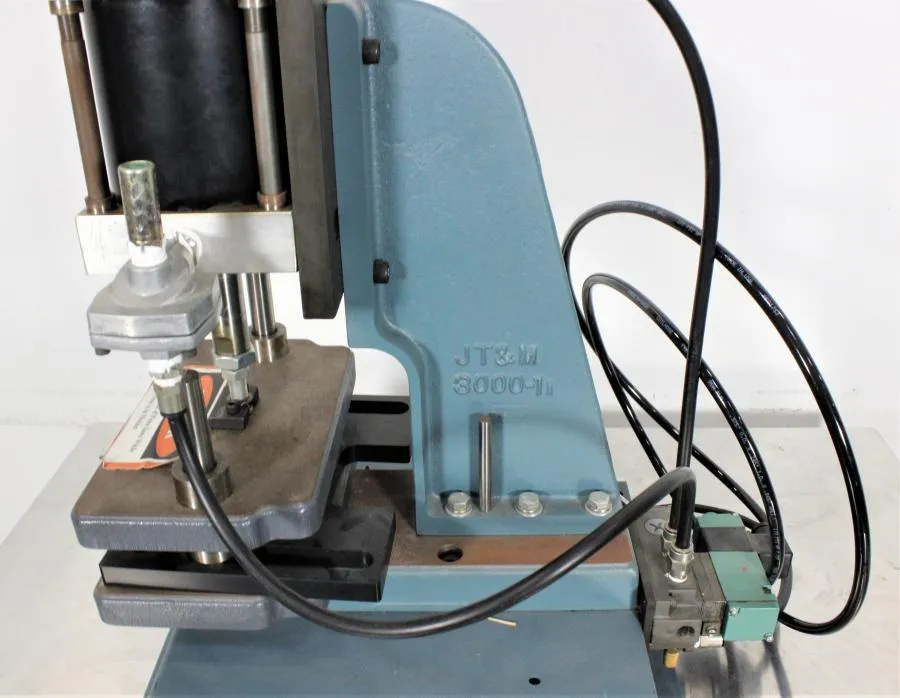

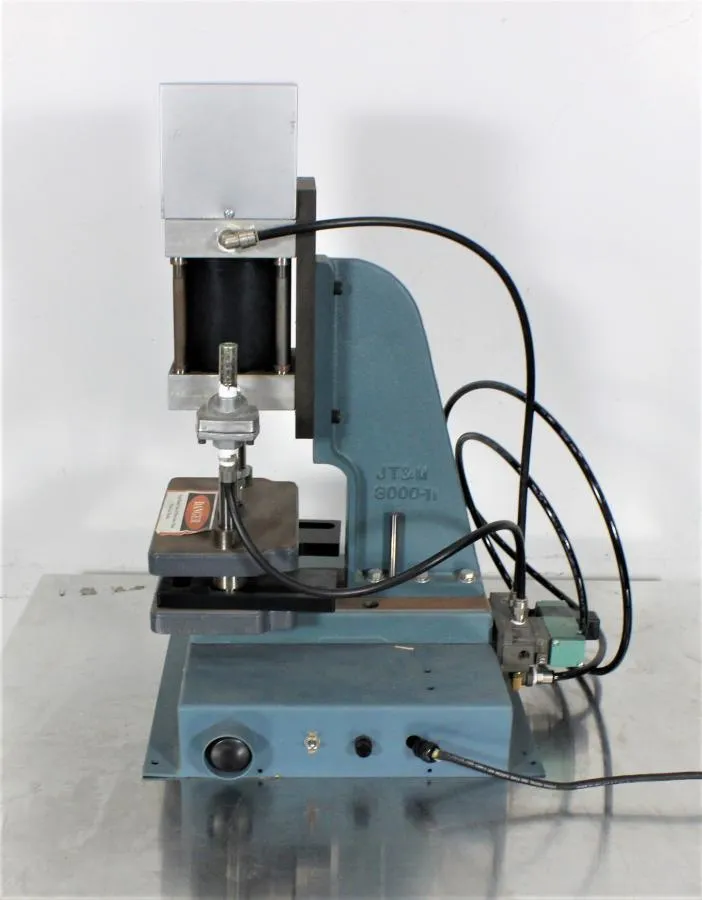

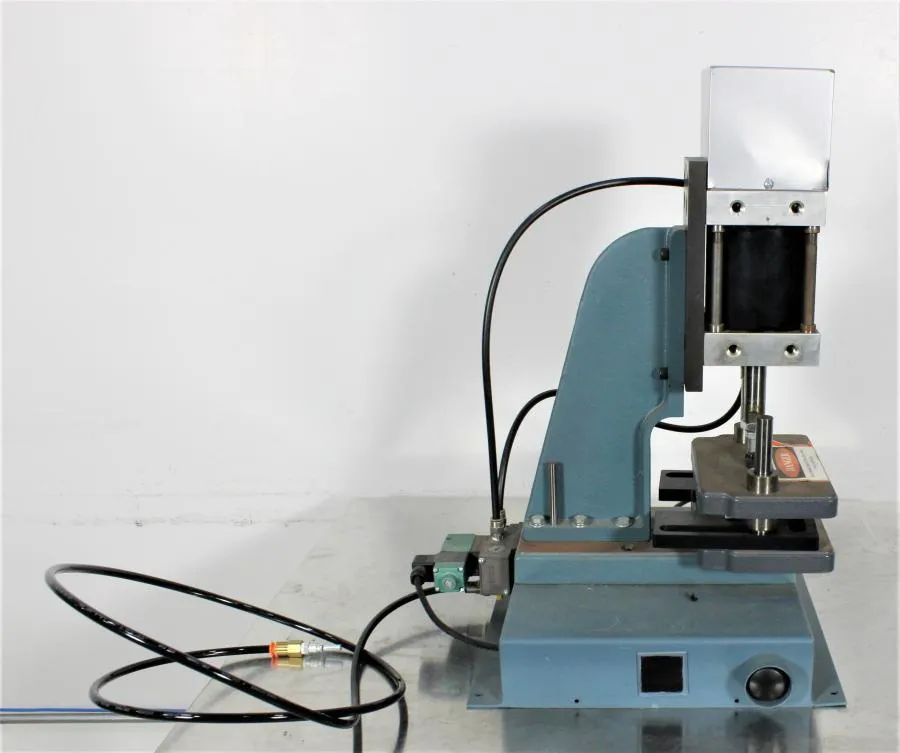

A-3151 3/4 Ton Adjustable Precision Pneumatic Press CLEARANCE! As-Is

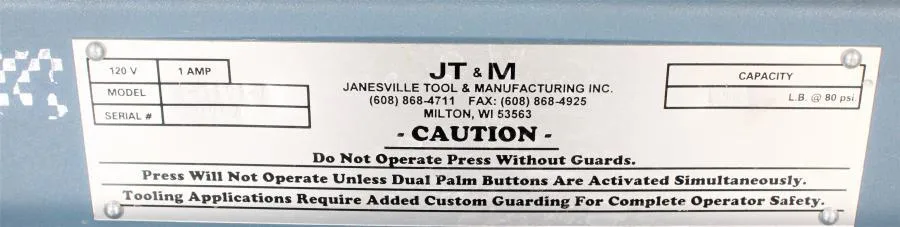

- Make JT
- Hertz 50Hz/60Hz

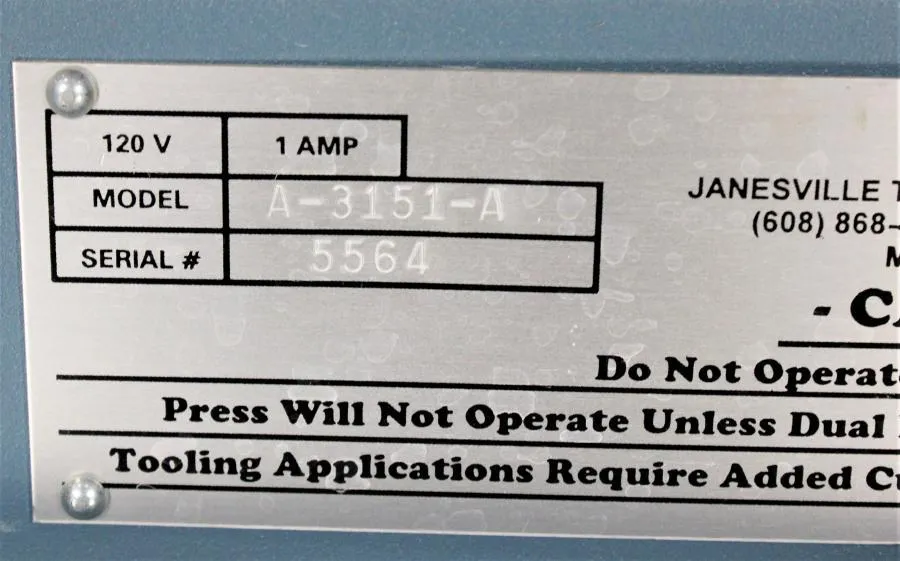

- Model A-3151-A
- Serial 5564
- Weight 90
- Voltage 120V/220V
- Working Working

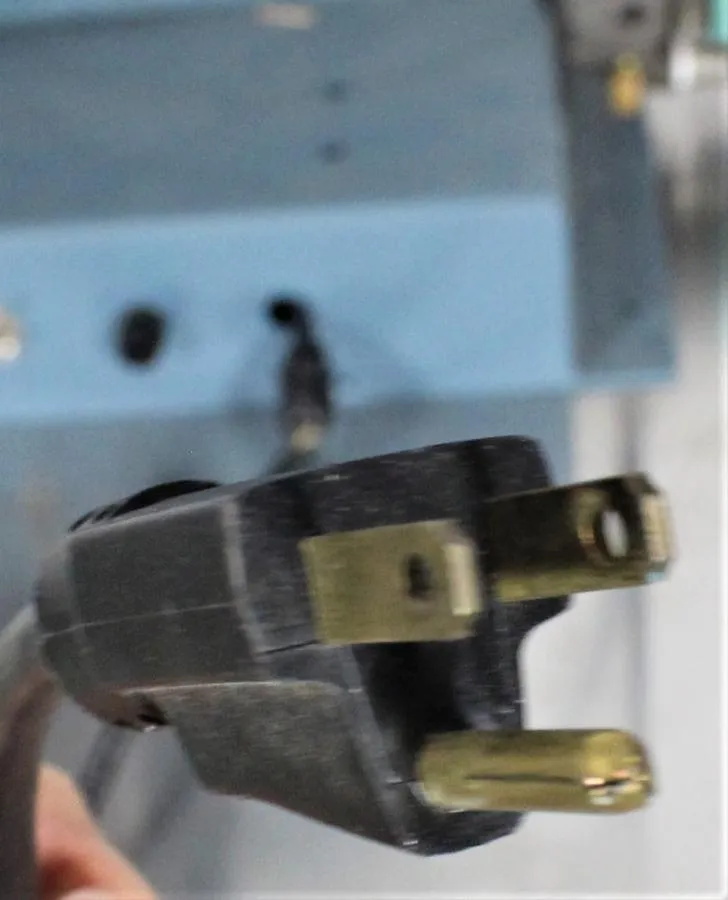

- Includes Power Cord
- Warranty AS-IS
- Dimensions 27×29×34 in
- Shipping Type Freight
- Item Condition Pre-owned
- Manufacturing Date N/A
The A-3151 3/4 ton arbor air press allows the user height adjustment of the cylinder in 1.875" increments. This press is ideal for assembly, punching, shearing, and staking of metal or plastic.

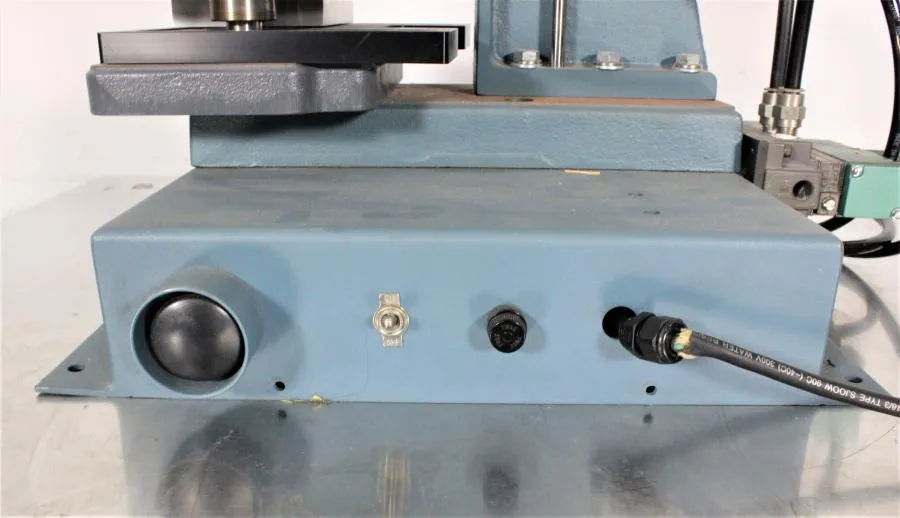

The column height can be increased by adding a riser block between the base and the column on special request. The A-3151 half ton pneumatic press comes equipped with dual hand anti-tie-down/anti-repeat controls, a three inch stroke length, T-Slot Table, as well as an adjustable down stop/anti-rotate mechanism.
Manufacture Specifications:
| Force capacity | 3/4 tons | ||
|---|---|---|---|
| Force at 60 psi | 906 lbs | ||
| Force at 80 psi | 1,208 lbs | ||
| Force at 100 psi | 1,510 lbs | ||
| Cylinder diameter | 4.50" | ||
| Throat depth | 4.81" | ||
| Base length | 7" | ||
| Base width | 12" |
