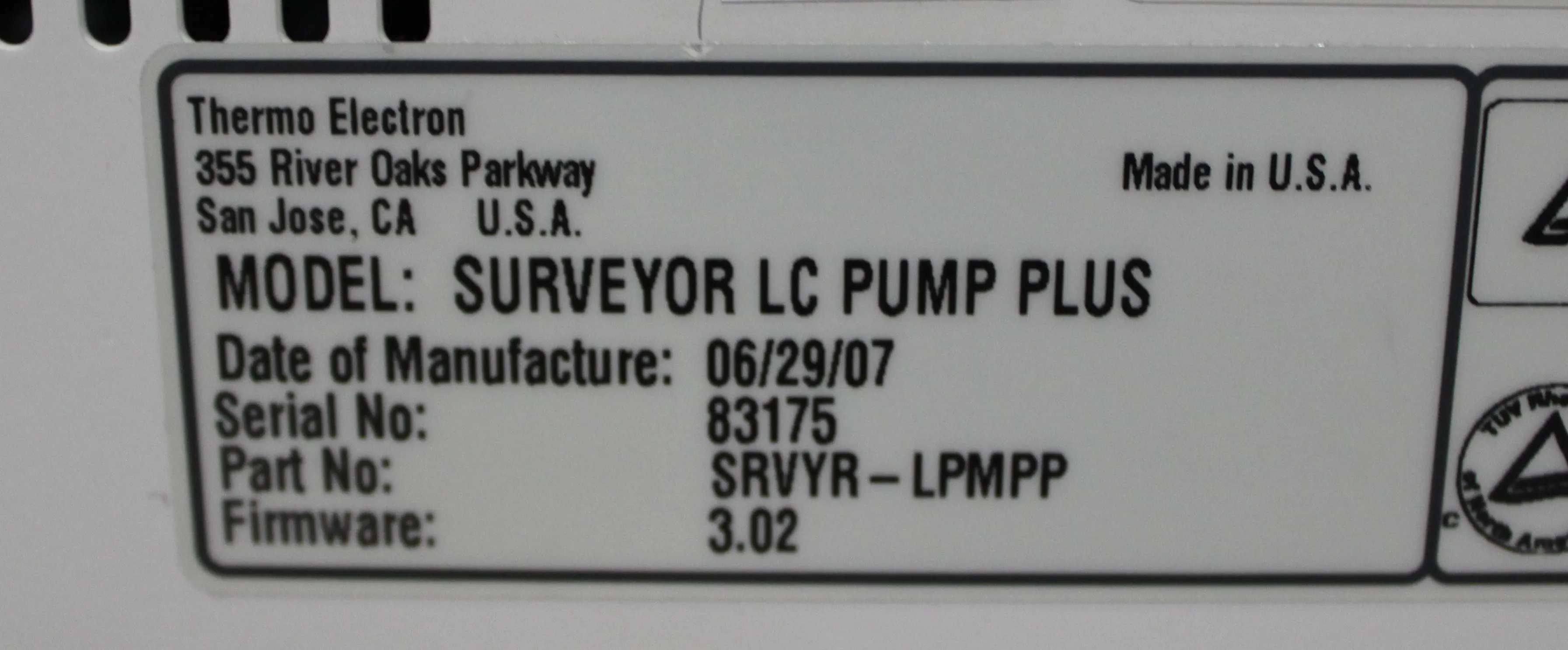

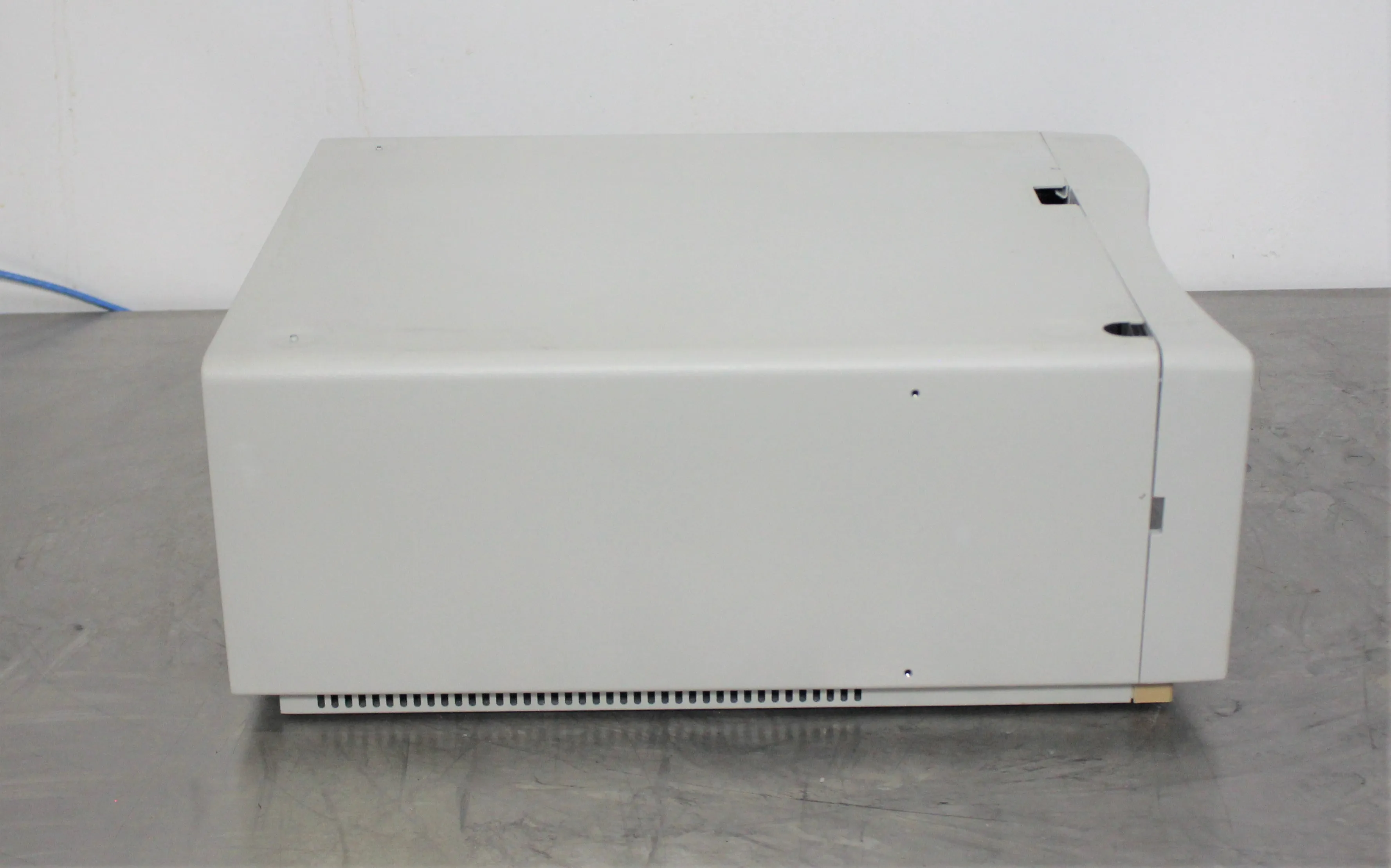

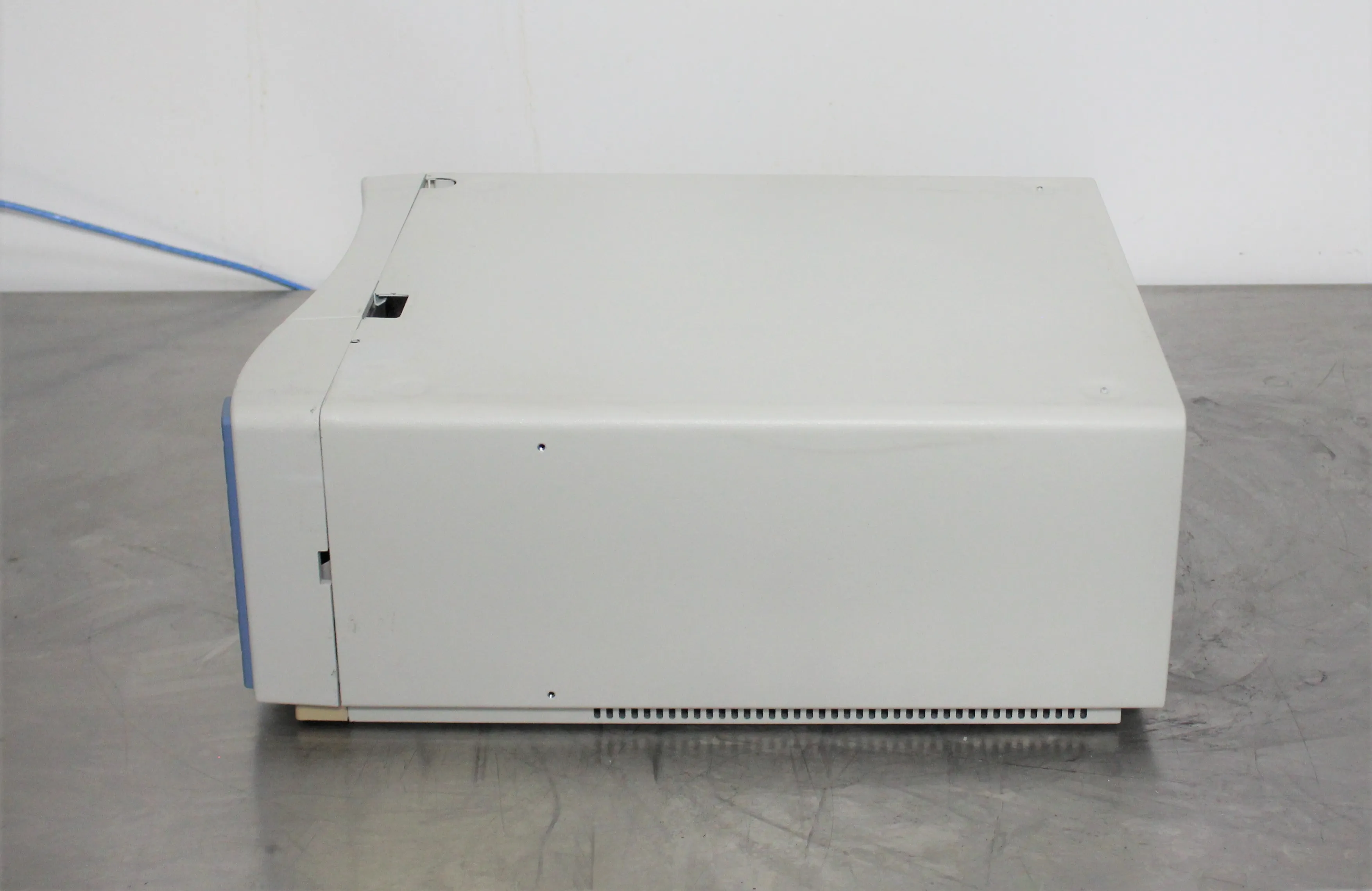

Thermo Finnigan Surveyor LC Plus HPLC Pump, Pumping System with Vacuum Degasser and Pulse Dampener

Product Information

***Turns on but lights do not work*** The Thermo Finnigan Surveyor LC Pump Plus is a quaternary, low-pressure mixing pump with built-in solvent degassing and pulse dampening systems. The pumping system provides optimum performance in the lower flow rate ranges needed for mass spectrometry. You can run precise gradients from 25 to 2000 uL/min. An extremely low gradient delay volume of 80 uL ensures minimum system cycle times. The integral vacuum degasser offers superb solvent degassing efficiency with less than 500 uL of volume, and the pulse dampener produces stable flow rates with only 3 uL of delay volume. Specifications: Minimum Flow Rate: 0.2 uL/min isocratic, 25 uL/min gradient Maximum Flow Rate: 2000 uL/min Flow Rate Resolution: 0.1 uL/min Pressure Range: 0 to 400 bar (0 to 5800 psi) Operating Range: 40 to 400 bar (588 to 5800 psi) Pressure Resolution: 0.01 bar (0.15 psi) Solvent Capacity: Quaternary Composition Accuracy: +/- 1% at a flow rate of 200 uL/min Piston Volume: 24 uL Delay Volume: 80 uL Degasser Type: Vacuum membrane Degasser Capacity: 4 channels Degasser Volume: < 500 uL per channel Pulse Dampener: 3 uL, dynamic Wetted Parts: 316 stainless steel, titanium, PEEK, sapphire, TZP-ceramic,FEP, GFP, ruby Remote Controls: Start, RS232 serial interface for Xcalibur software Dimensions (HxWxD): 18 x 36 x 47 cm Power Requirements: 100/120 V ac or 220/240 V ac, 50 to 60 Hz, 500 VA max Operating Temp: + 10 C to + 40 C Storage Temp: - 40 C to + 70 C Operating Humidity: 5 to 95% relative, non-condensing

• Low-pressure mixing pump
• Solvent degassing and pulse dampening systems
• Remote controls and RS232 serial interface for Xcalibur software

• Minimum Flow Rate: 0.2 uL/min isocratic, 25 uL/min gradient
• Maximum Flow Rate: 2000 uL/min
• Flow Rate Resolution: 0.1 uL/min
• Pressure Range: 0 to 400 bar (0 to 5800 psi)
• Operating Range: 40 to 400 bar (588 to 5800 psi)
• Pressure Resolution: 0.01 bar (0.15 psi)
• Solvent Capacity: Quaternary
• Composition Accuracy: +/- 1% at a flow rate of 200 uL/min
• Piston Volume: 24 uL
• Delay Volume: 80 uL
• Degasser Type: Vacuum membrane
• Degasser Capacity: 4 channels
• Degasser Volume: < 500 uL per channel
• Pulse Dampener: 3 uL, dynamic
• Wetted Parts: 316 stainless steel, titanium, PEEK, sapphire, TZP-ceramic,FEP, GFP, ruby
• Remote Controls: Start, RS232 serial interface for Xcalibur software
• Dimensions (HxWxD): 18 x 36 x 47 cm
• Power Requirements: 100/120 V ac or 220/240 V ac, 50 to 60 Hz, 500 VA max
• Operating Temp: + 10 C to + 40 C
• Storage Temp: - 40 C to + 70 C
• Operating Humidity: 5 to 95% relative, non-condensing

Metric: 18.5 kg
Imperial: 40.8 lbs

Metric: 18 cm x 36 cm x 47 cm
Imperial: 7.09 in x 14.17 in x 18.5 in

9027200000

The chosen harmonized code is for chromatographs and electrophoresis instruments, which encompass certain laboratory equipment often used in conjunction with pumps. It covers specialized instruments, each with distinctive purposes that have a general range of applications suitable for life sciences, while being essential for laboratory analysis, research, and experimentation.
