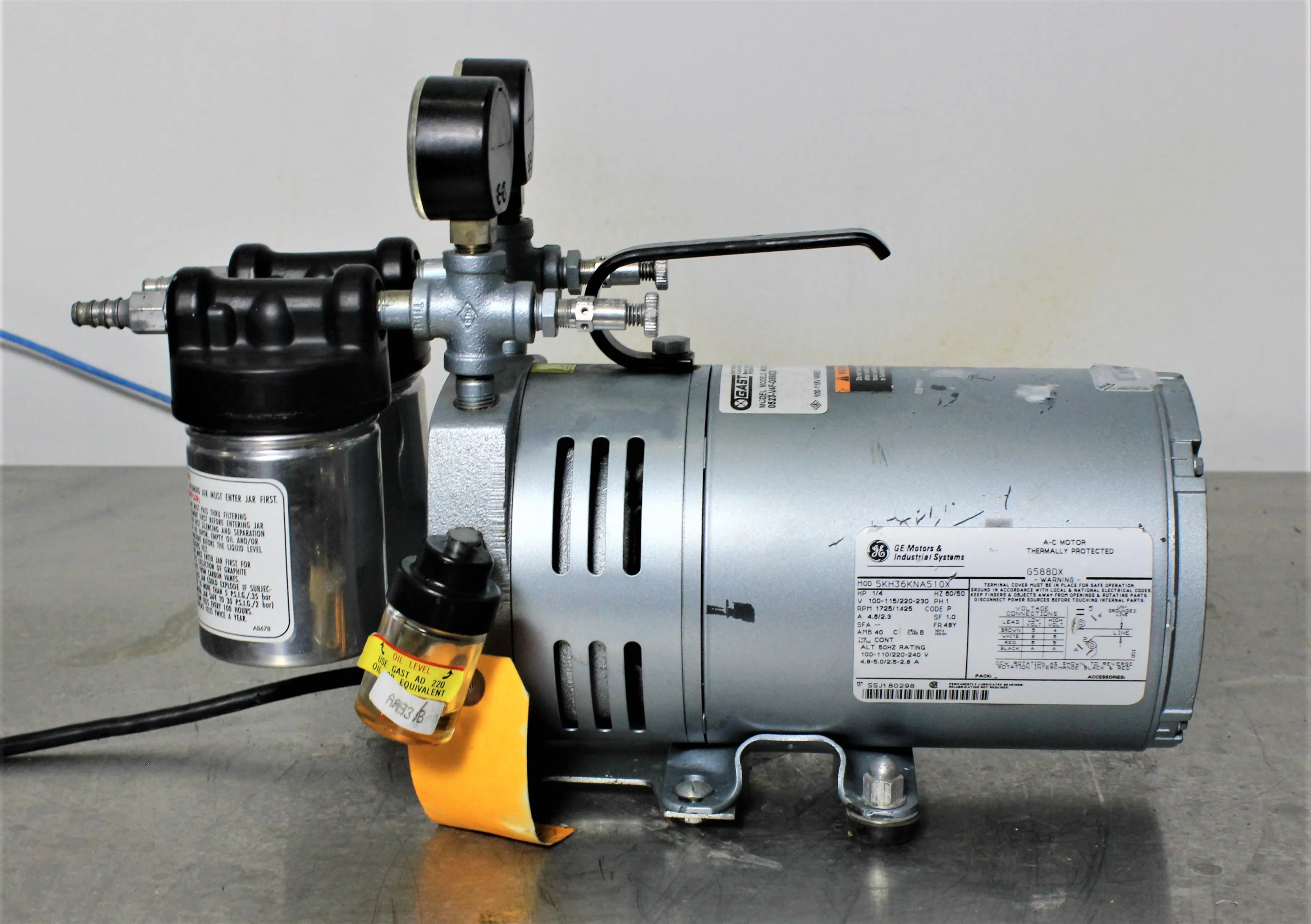

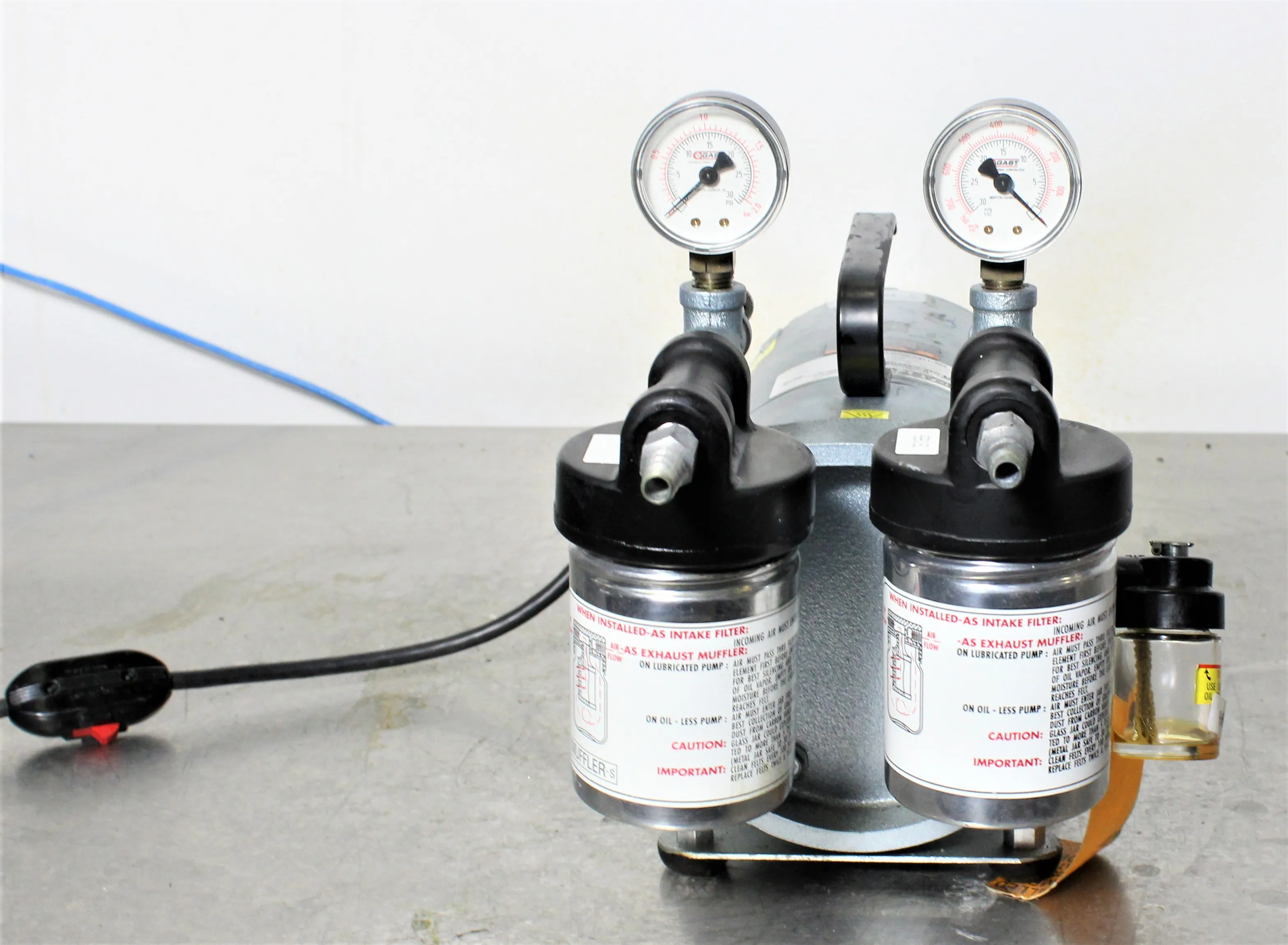

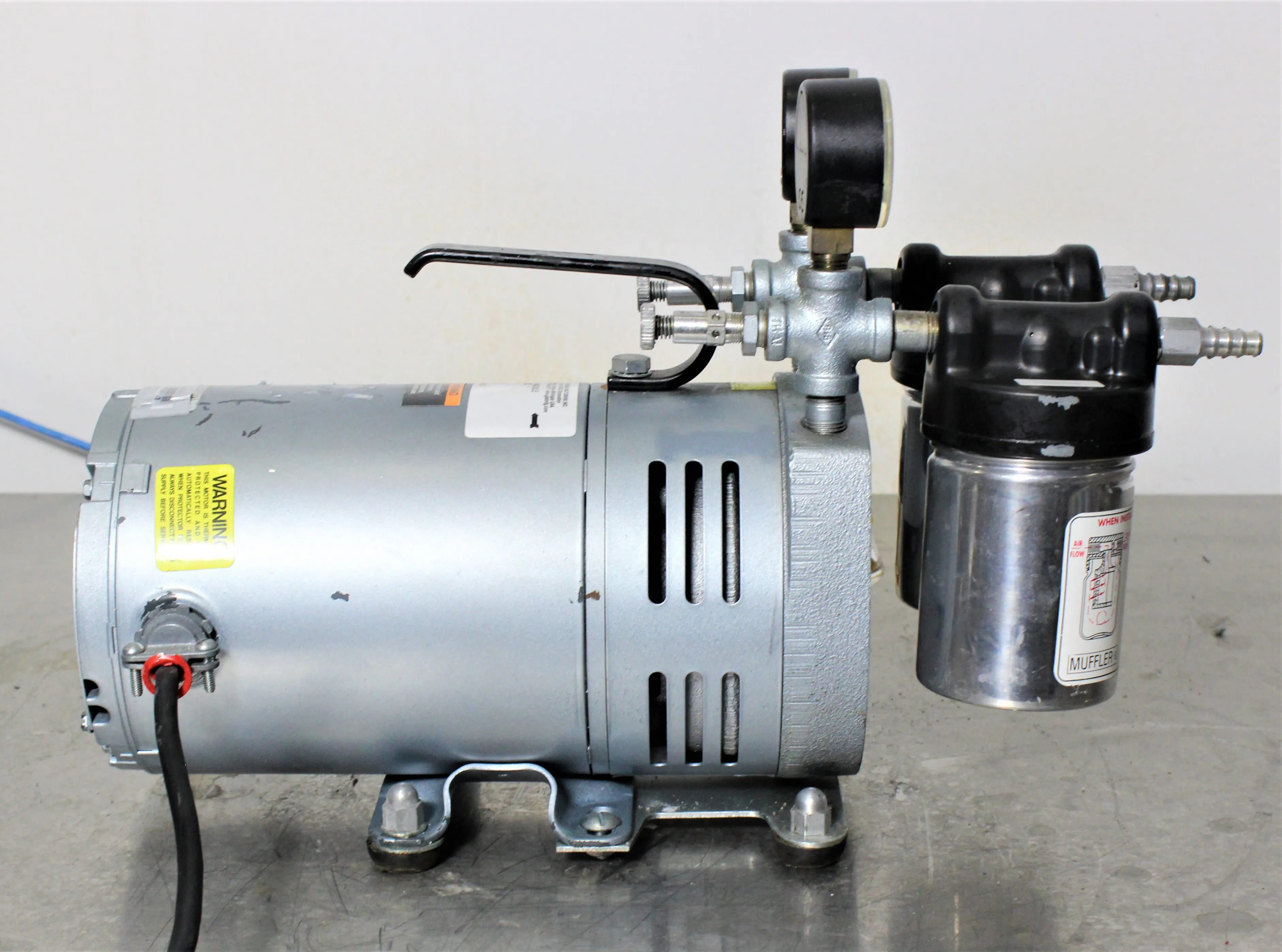

Gast 0523-V4F-G588DX Vacuum Pump

Product Information

Ideal for general continuous-duty vacuum and low-pressure applications. Has an integral muffler and filter.Permanently lubricated and sealed bearings. Self-adjusting, self-lubricating vanes. The Gast 0523-V4F-G588DX Vacuum Pump is widely used for tasks such as vacuum filtration, vacuum ovens, and general laboratory vacuum applications. It provides a reliable and continuous vacuum source. This model is known for its low maintenance requirements and durability. Whether you work in a research laboratory, academic institution, or industrial setting, this pump's versatility makes it a valuable addition to any workspace. Fun Fact: The rotary vane design of this pump dates back to the 1880s, making it a tried and true technology that continues to be a staple in laboratories worldwide.

• Integral muffler and filter for quiet operation
• Self-adjusting and self-lubricating vanes
• Permanently lubricated and sealed bearings
• Designed for general continuous-duty vacuum and low-pressure applications
• Versatile voltage and hertz range (115/208-230V, 60Hz)

• HP: 1/4
• Compressor Type: Rotary Vane
• Voltage: 115/208-230
• Hz: 60
• Phase: 1
• Full Load Amps: 4.5
• Inlet Size: 1/4" NPT
• Outlet Size: 1/4" NPT
• Max. Vacuum: 26" Hg
• Free Air CFM @ 0 In. Hg: 4.2
• Free Air CFM @ 10 In. Hg: 2.8
• Free Air CFM @ 20 In. Hg: 0.1
• RPM: 1725
• Housing: Cast Iron

Metric: 18.6 kg
Imperial: 41.0 lbs

Metric: 22.0 cm x 17.0 cm x 19.0 cm
Imperial: 8.66 in x 6.69 in x 7.48 in

841410

Vacuum pumps of a kind used in refrigerating equipment
