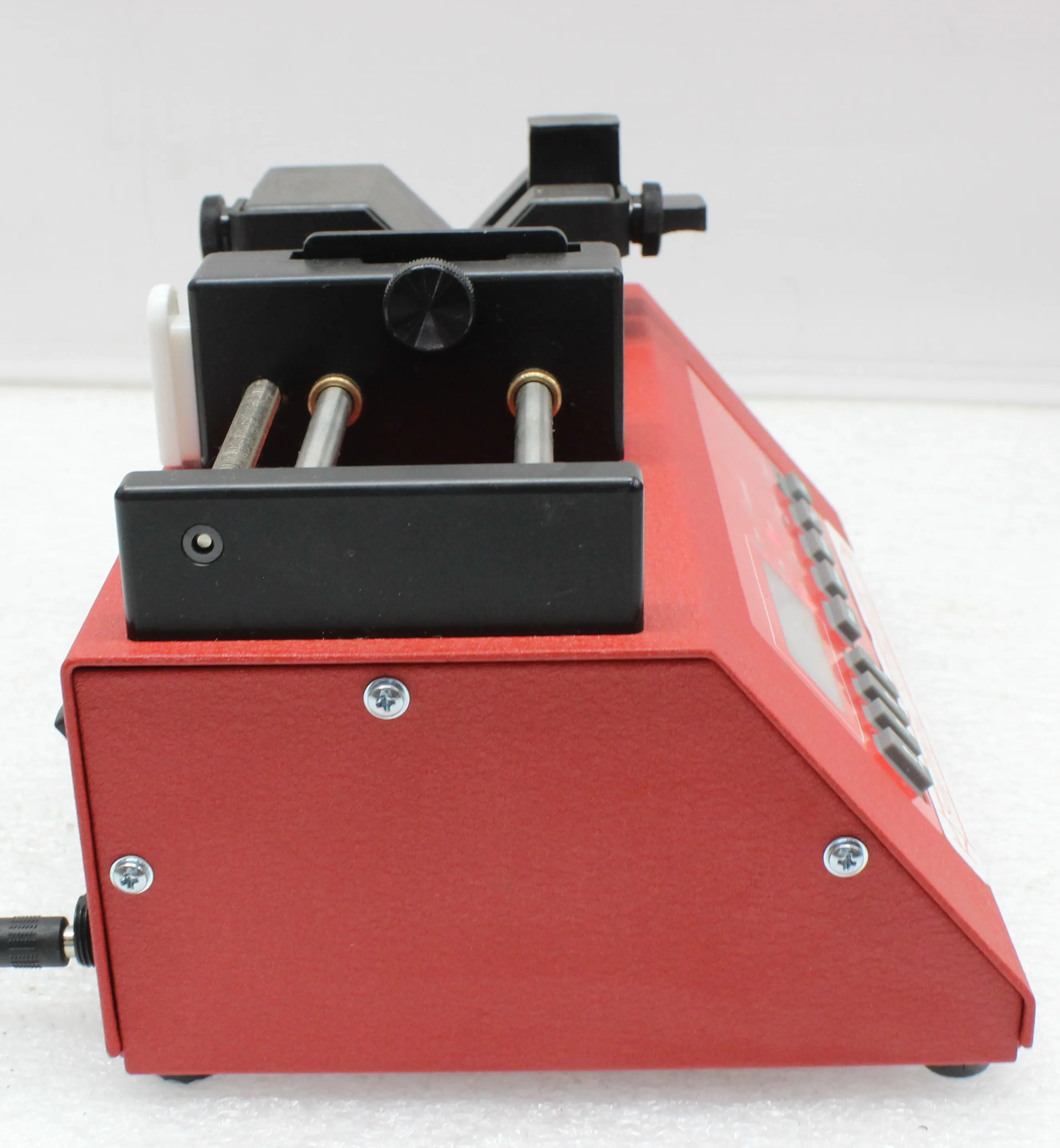

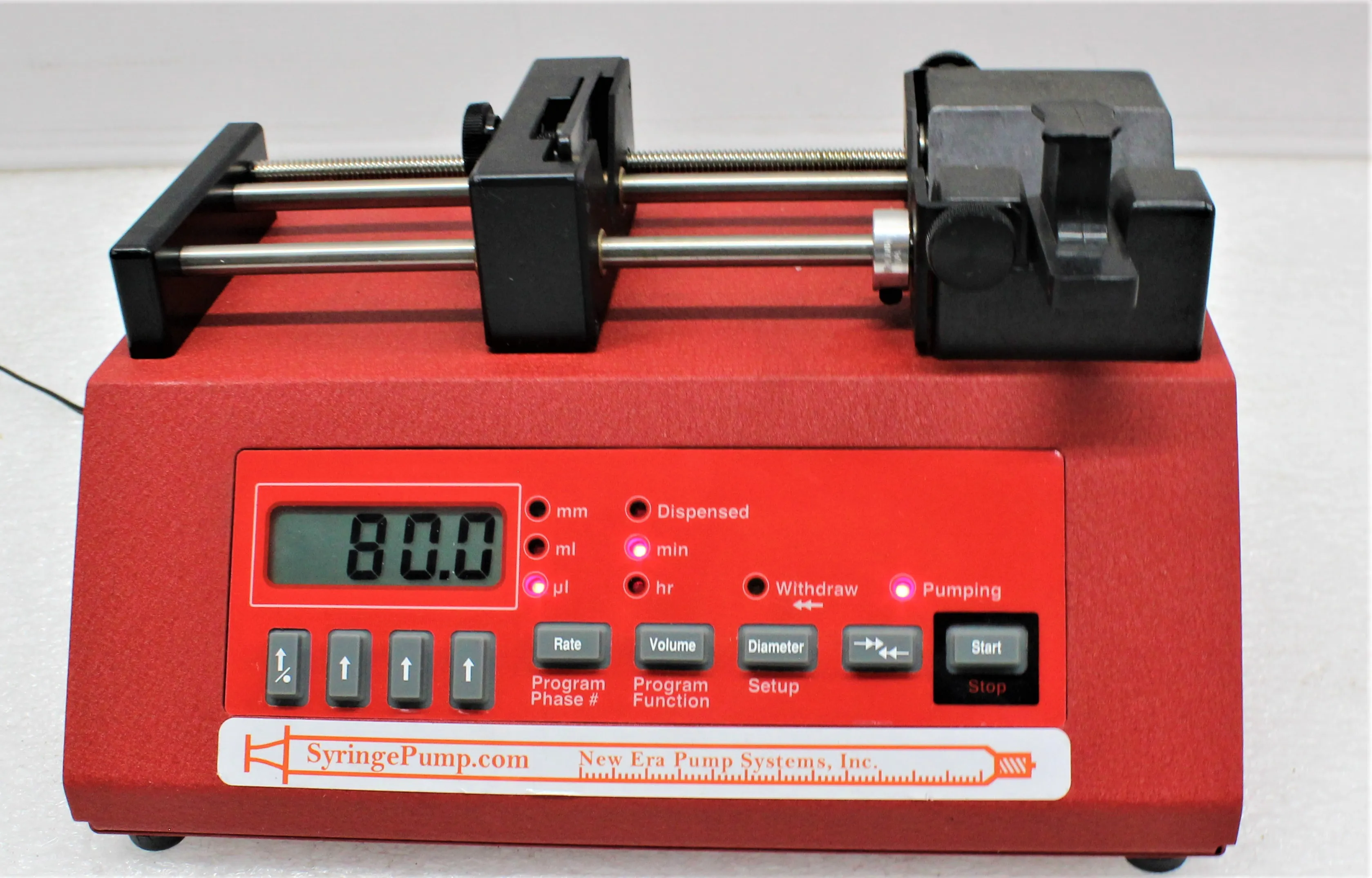

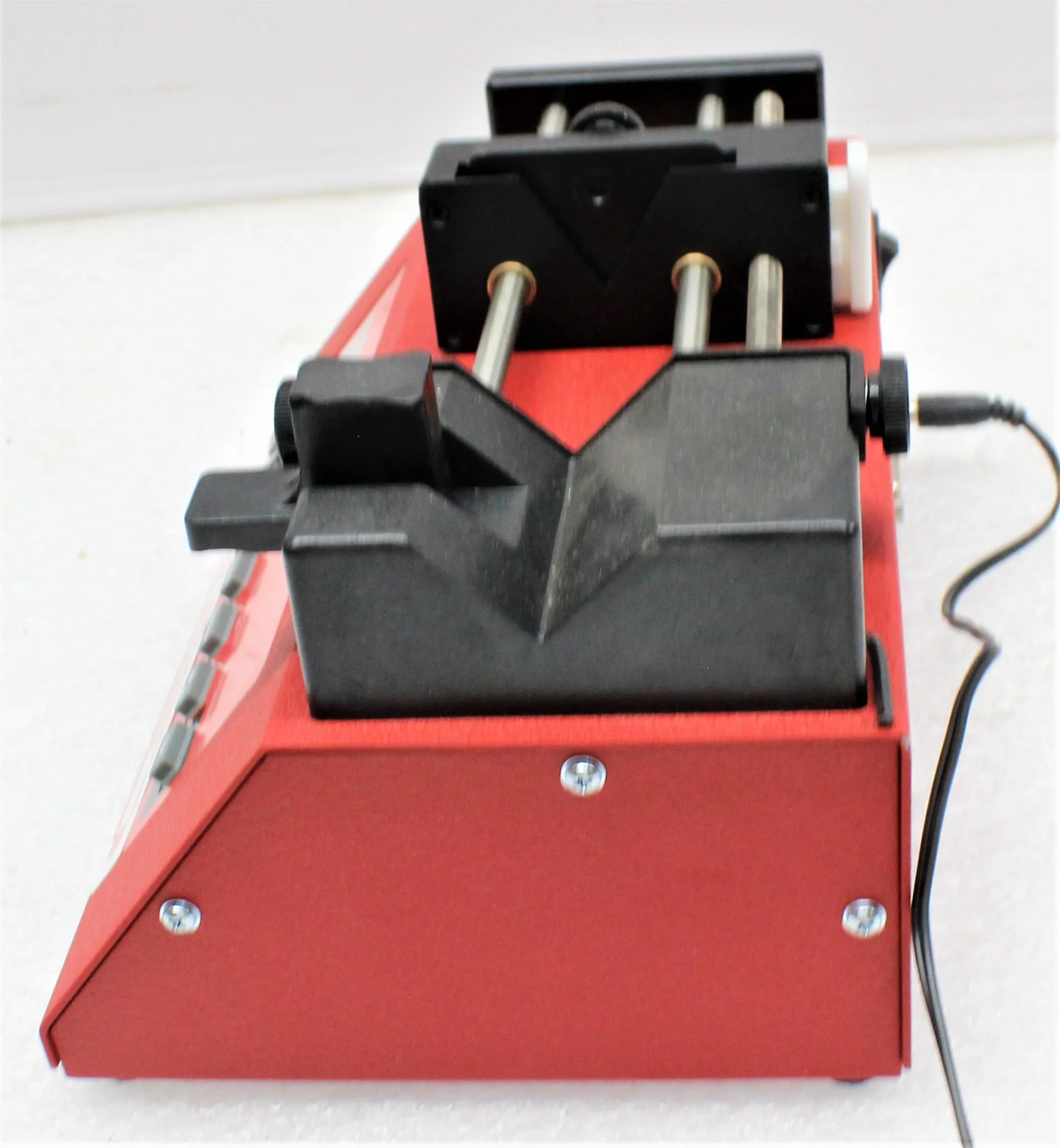

NE-1000 Syringe Pump by New Era Pump Systems

Product Information

The NE-1000 by New Era Pump Systems is a syringe pump that accepts a wide range of syringe sizes, from the smallest size available up to 60 mL. It offers versatile pumping rates, making it an ideal choice for various laboratory applications such as microfluidics, drug delivery, and chemical synthesis. The NE-1000 features a step motor, with a motor type of step motor and 400 motor steps per revolution. The product is part of the Class 3 - Service condition, and it is primarily used as a used equipment. The applications of NE-1000 can range from small-scale precise liquid handling to large-scale fluid delivery in research and manufacturing processes. Here, scientists can exercise their creativity and push the boundaries of fluid dynamics with this intriguing piece of lab equipment.

• Accepts syringe sizes up to 60 mL
• Versatile pumping rates for precise control
• Step motor with 400 motor steps per revolution

• Syringe sizes: Up to 60 mL (140 mL partially filled)
• Number of syringes: 1
• Motor type: Step motor
• Motor steps per revolution: 400
• Microstepping: 1/8 to 1/2 depending on motor speed
• Advance per step: 0.2126 uM to 0.8504 uM depending on motor speed
• Motor to drive screw ratio: 15/28
• Drive screw pitch: 20 revolutions/

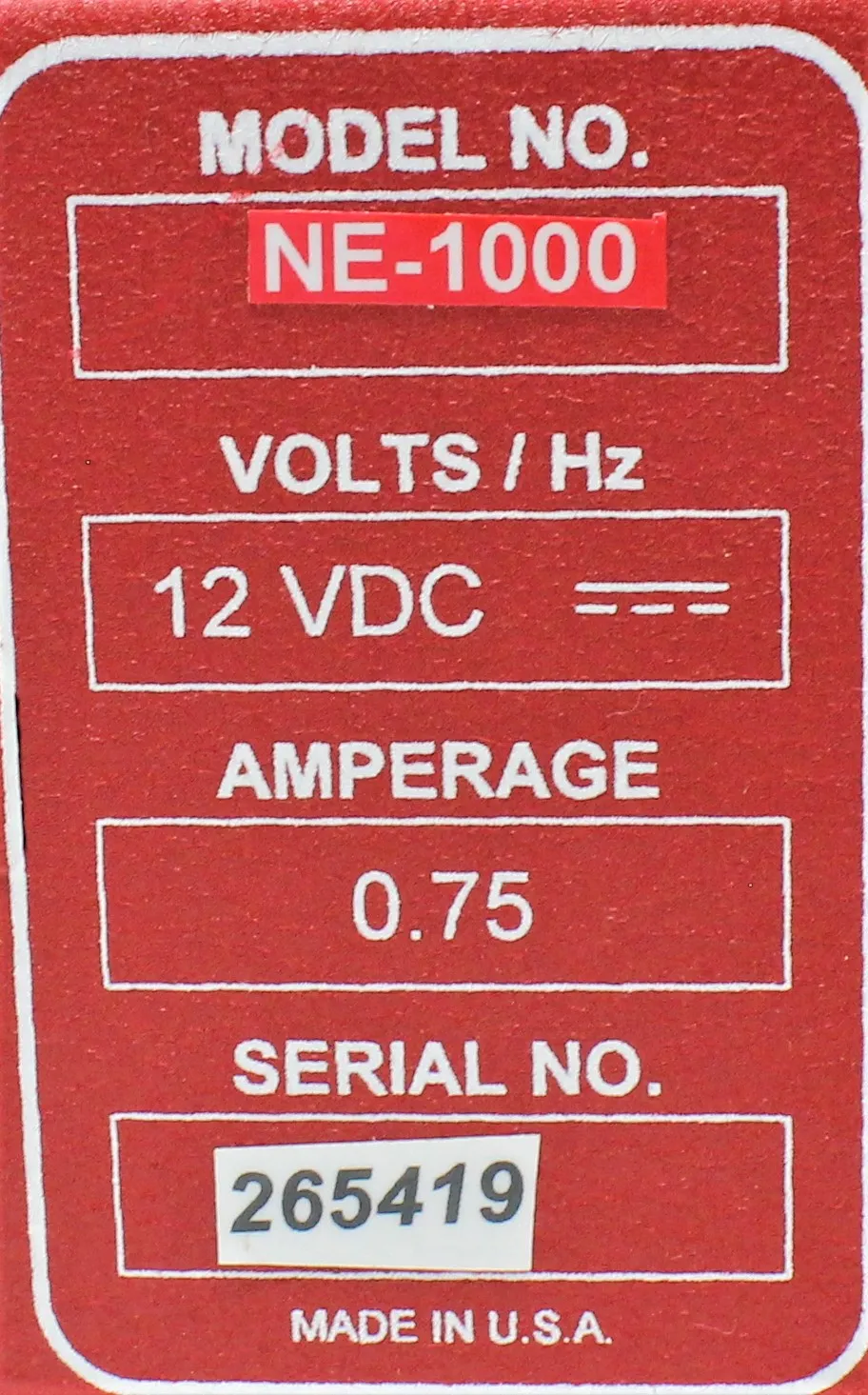

• DC connector: 2.1 mm, center positive
• Voltage at DC connector: 12V DC at full load
• Amperage: 750 mA at full load
• Power supply type: Unregulated linear external wall adapter, country and power source specific
• Power supply output rating: 12V DC @ 800 mA
• Maximum speed: 5.1005 cm/min
• Minimum speed: 0.004205 cm/hr
• Maximum pumping rate: 1699 mL/hr with a B-D 60 cc syringe
• Minimum pumping rate: 0.73 L/hr with a B-D 1 cc syringe
• Maximum force: 35 lbs. at minimum speed, 18 lbs. at maximum speed
• Number of Program Phases: 41

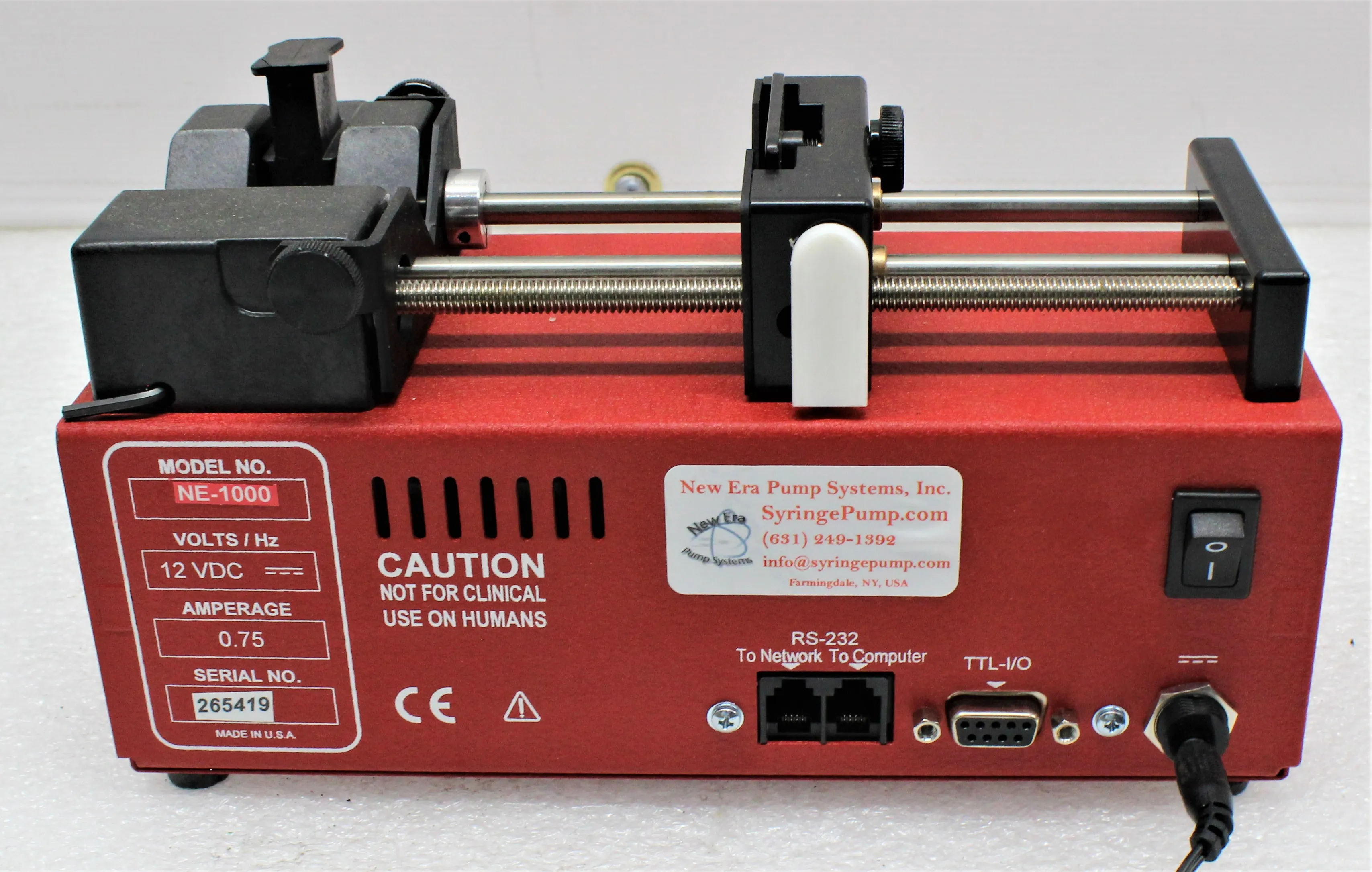

• RS-232 pump network: 100 pumps maximum
• RS-232 selectable baud rates: 300, 1200, 2400, 9600, 19200
• Syringe inside diameter range: 0.100 to 50.00 mm

Metric: 5.9 kg
Imperial: 13.0 lbs

Metric: 17.78 cm x 22.86 cm x 30.48 cm
Imperial: 7 in x 9 in x 12 in

901890

This code is used for instruments and appliances used in medical, surgical, dental, or veterinary sciences, including scintigraphic apparatus, other electro-medical devices, and sight-testing instruments.
