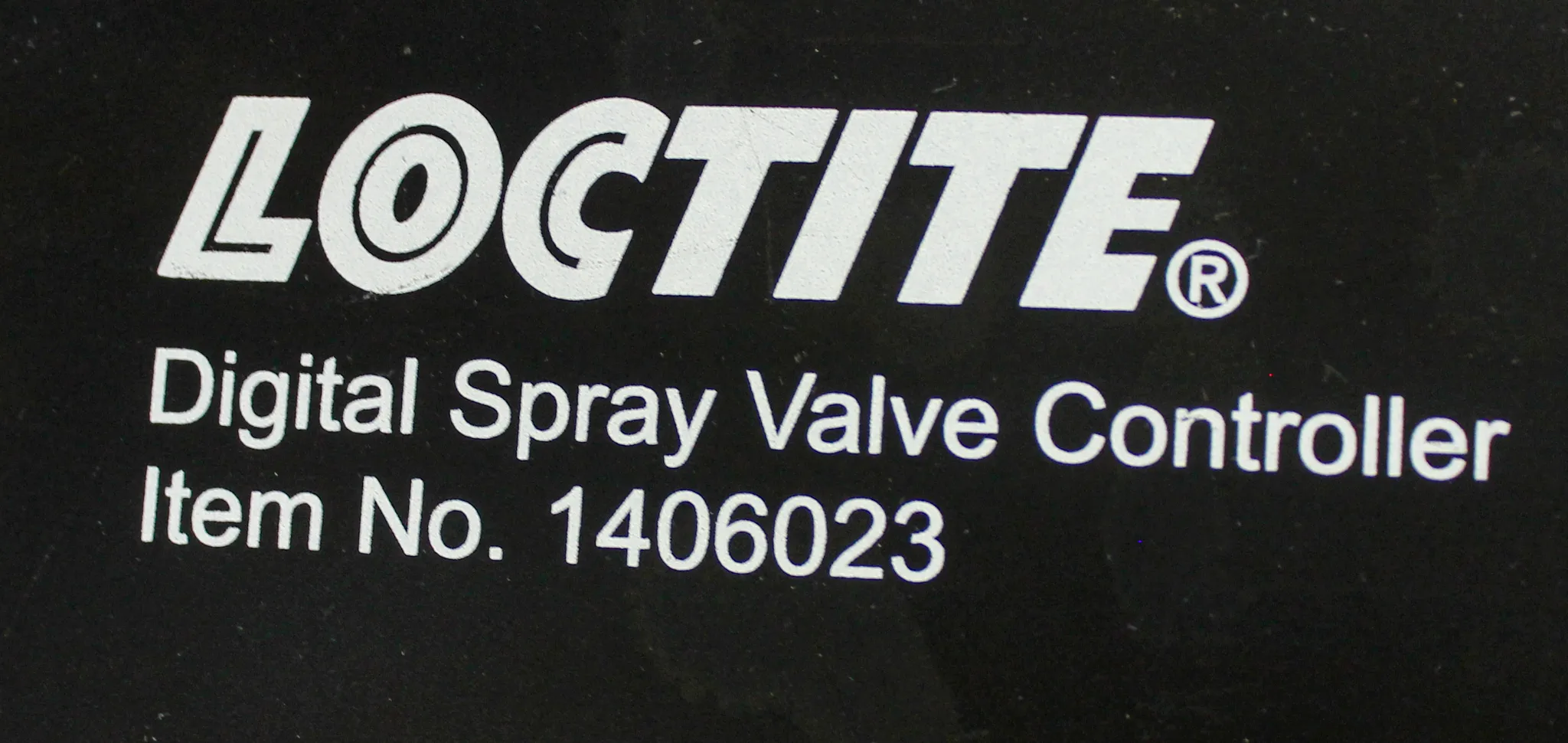

LOCTITE 1406023 Digital Spray Valve Controller

Product Information

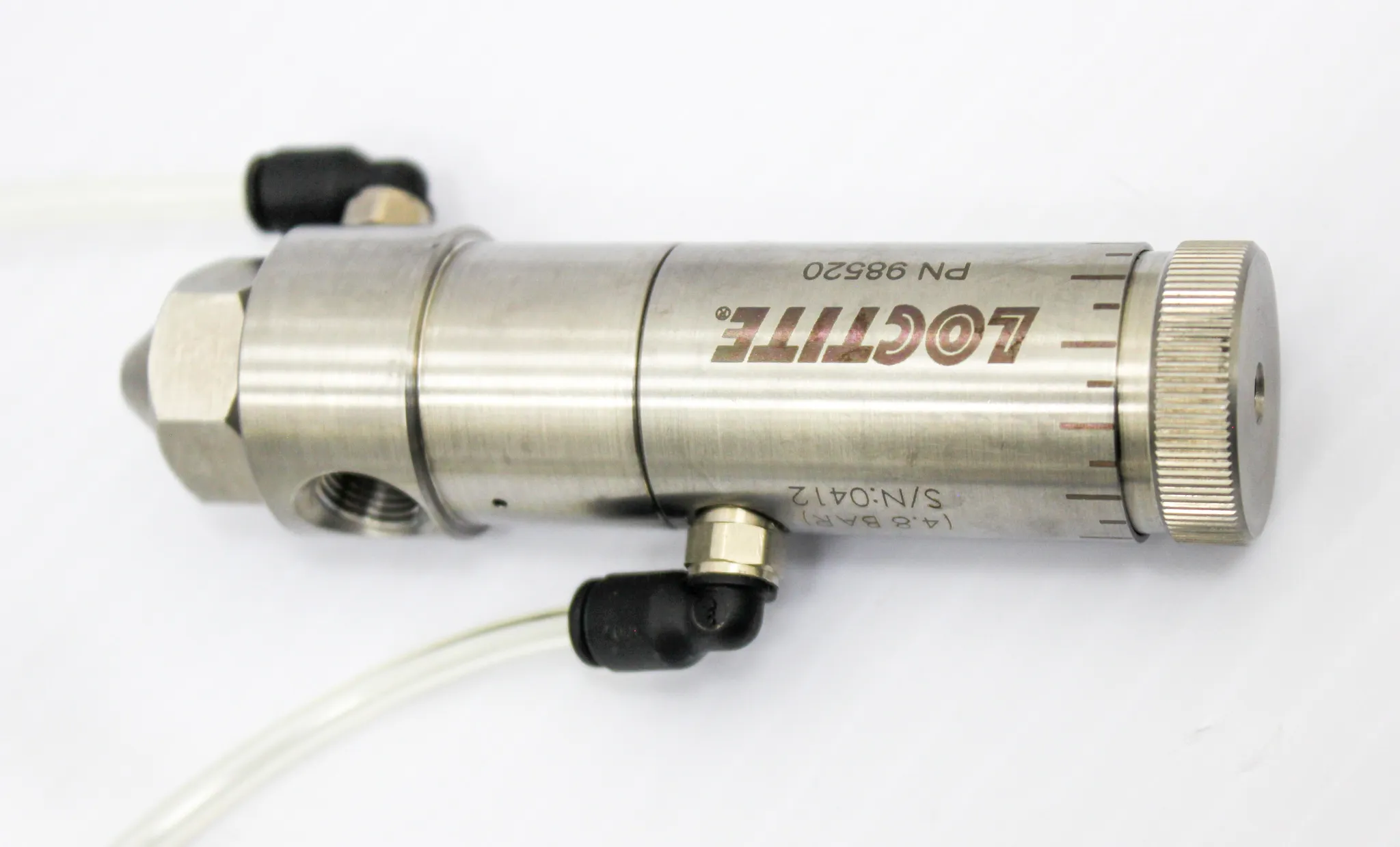

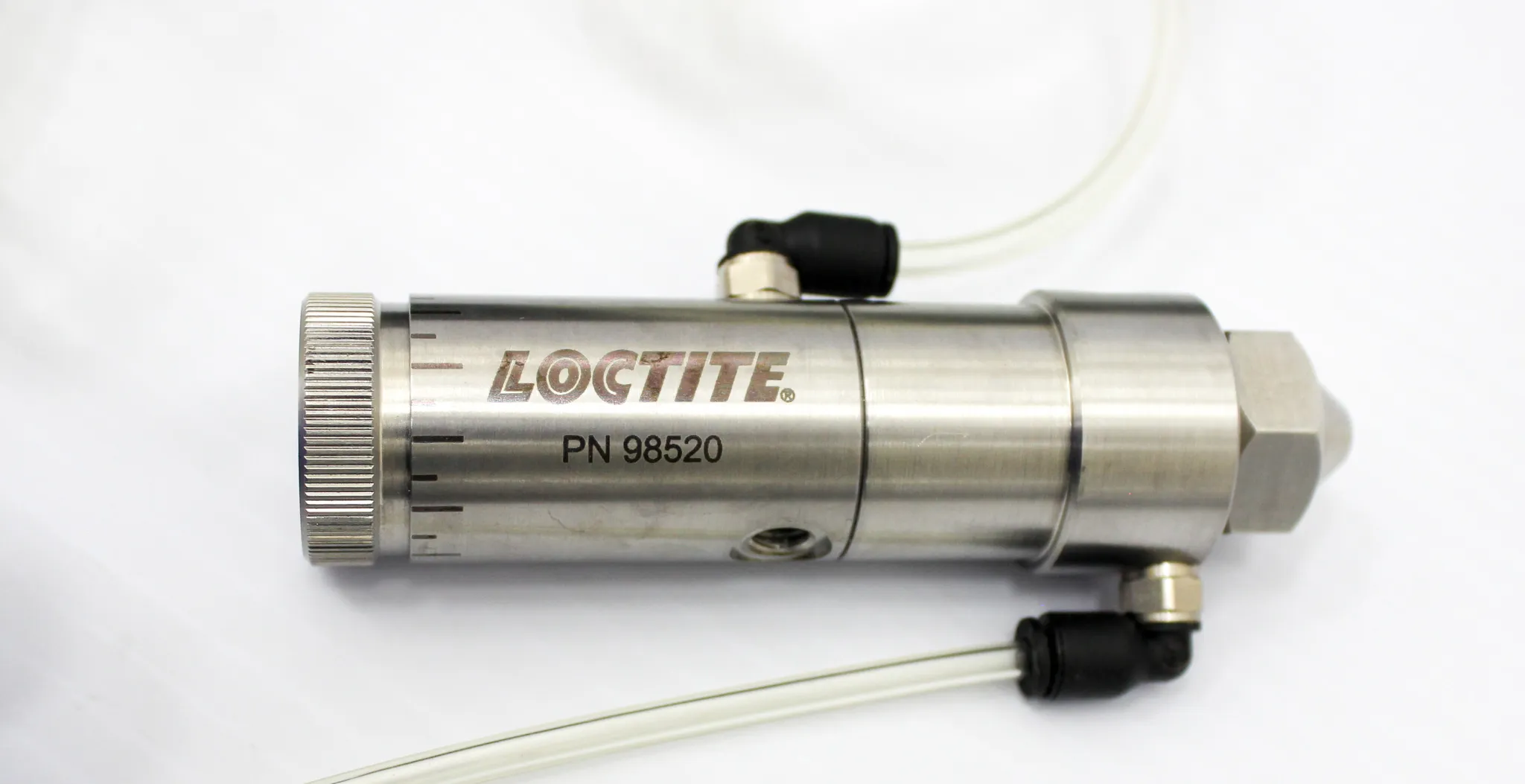

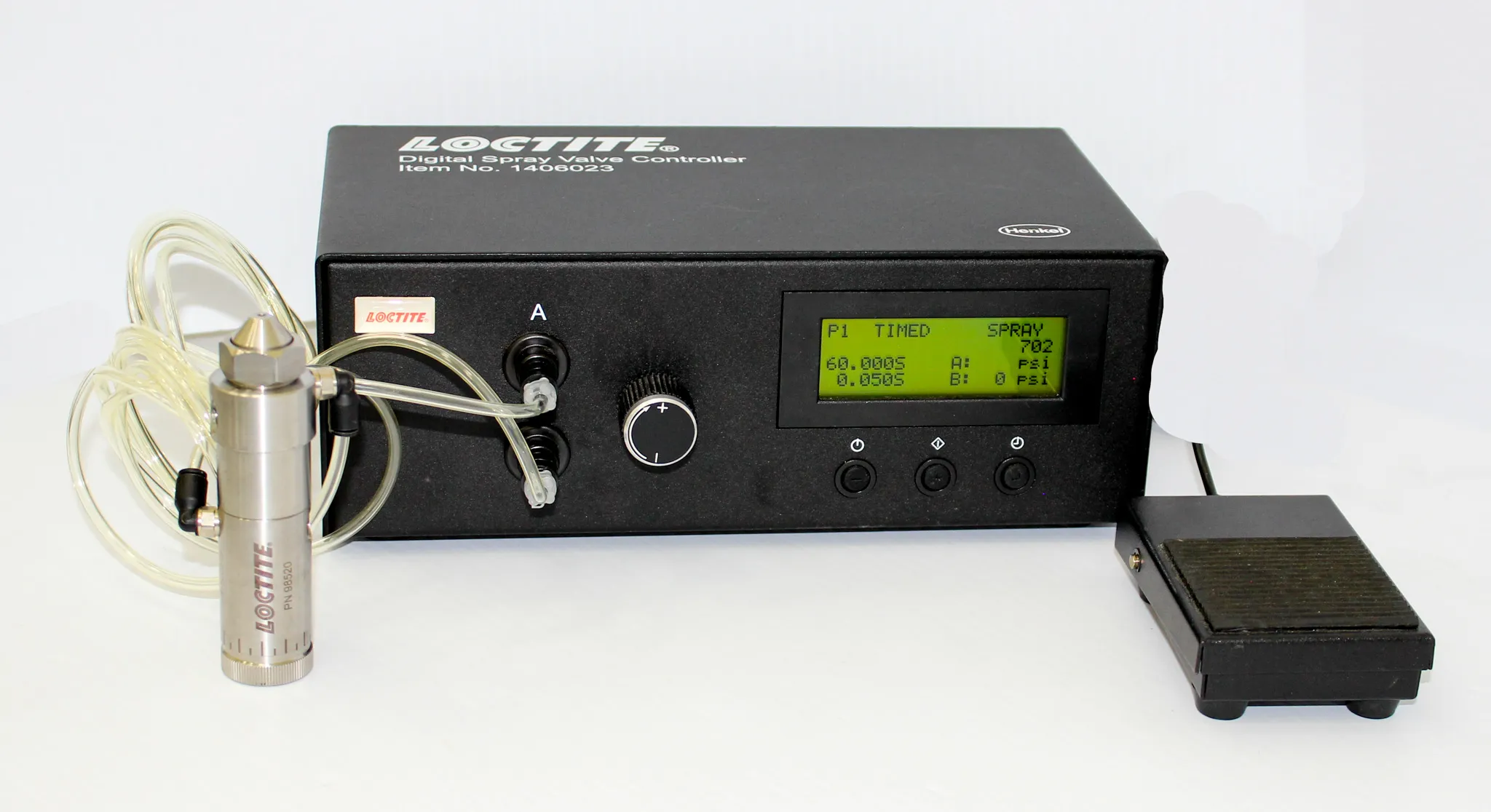

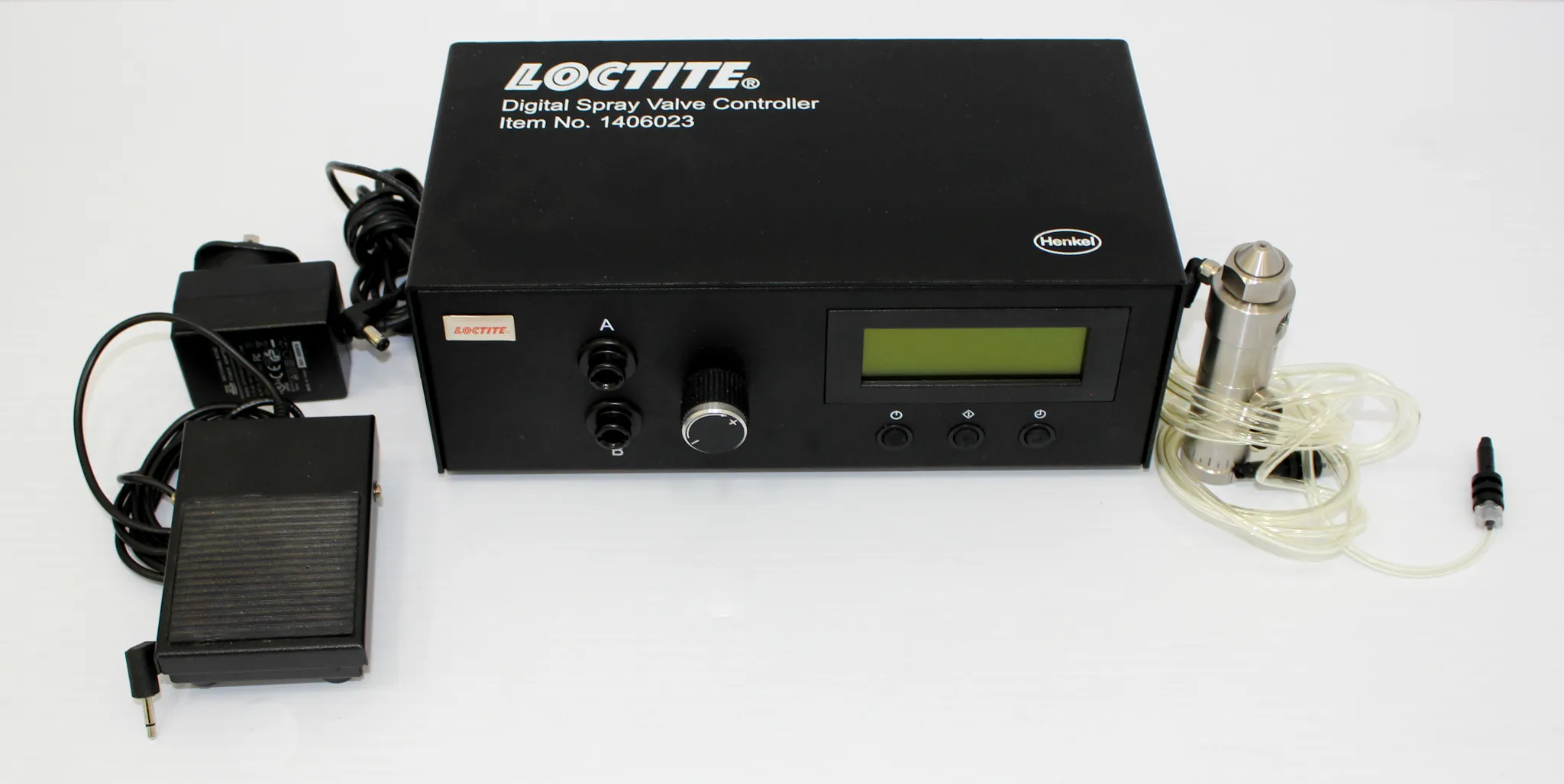

The LOCTITE 1406023 is a valve controller for automatic spraying of low viscosity primers, accelerators, and activators. It ensures precise and reliable spraying with consistent performance over various operating conditions. The microprocessor-based timed controller provides effective control with separate timed sequences and a timed or manual mode with foot pedal control. It is designed for use with the Loctite Spray Valve and comes with an AC power adapter, foot pedal, air supply line with filter, and operation manual. This unit has been tested to specifications, exhibits slight cosmetic blemishes from normal use, and is backed by a 30-Day Warranty, 100% Parts and Labor.

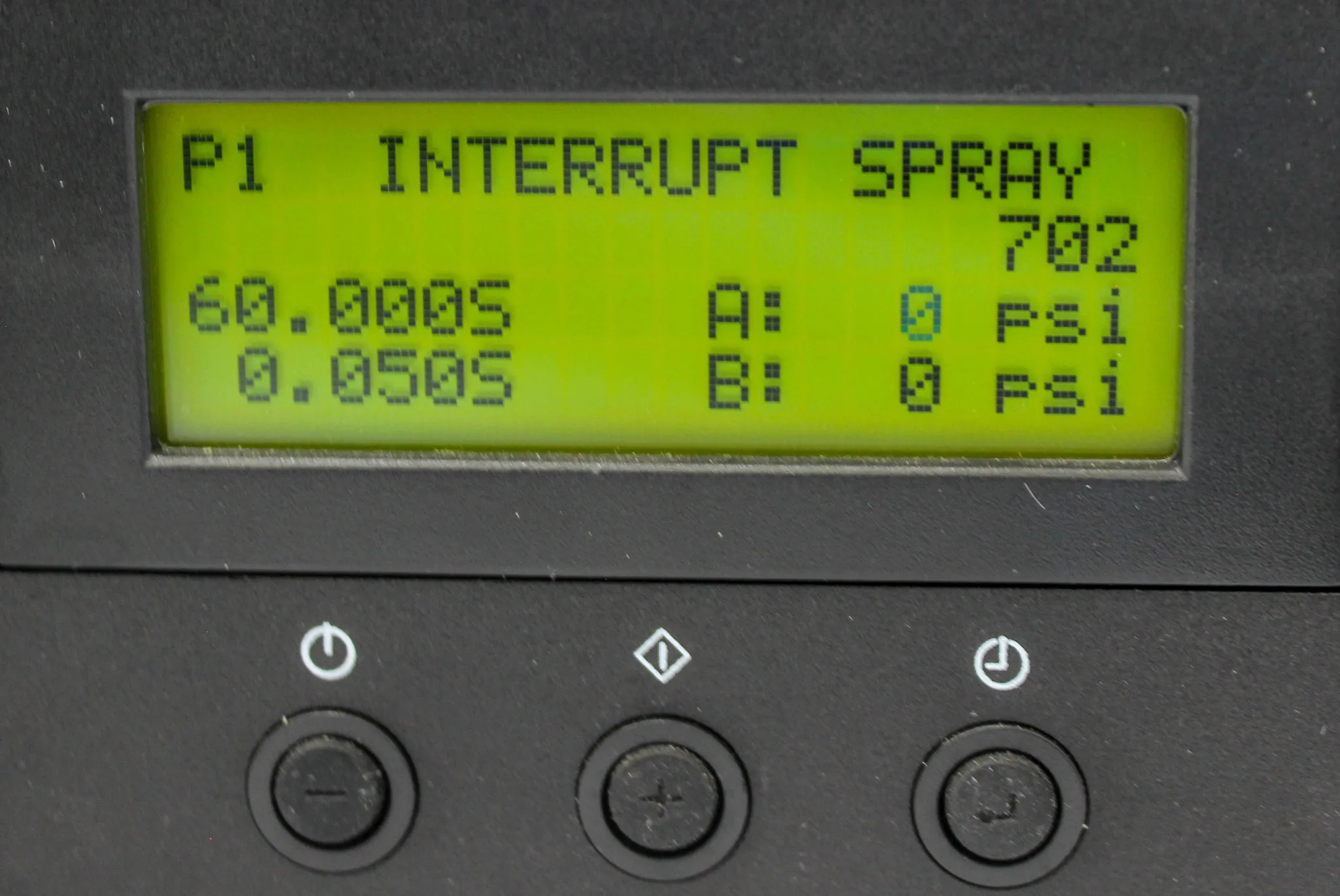

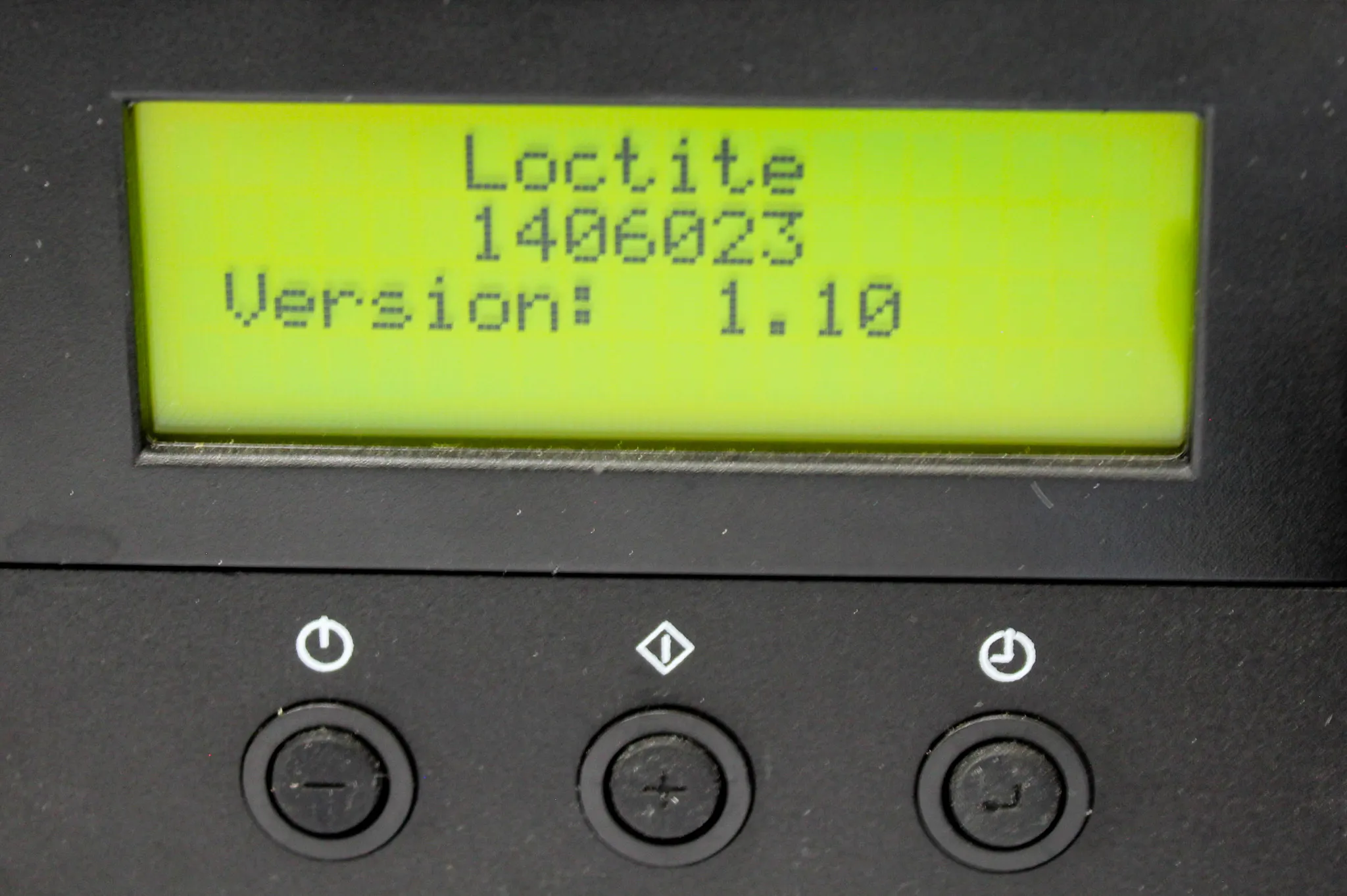

• Microprocessor-based timed controller
• Fully independent valve open/close and atomization air supply

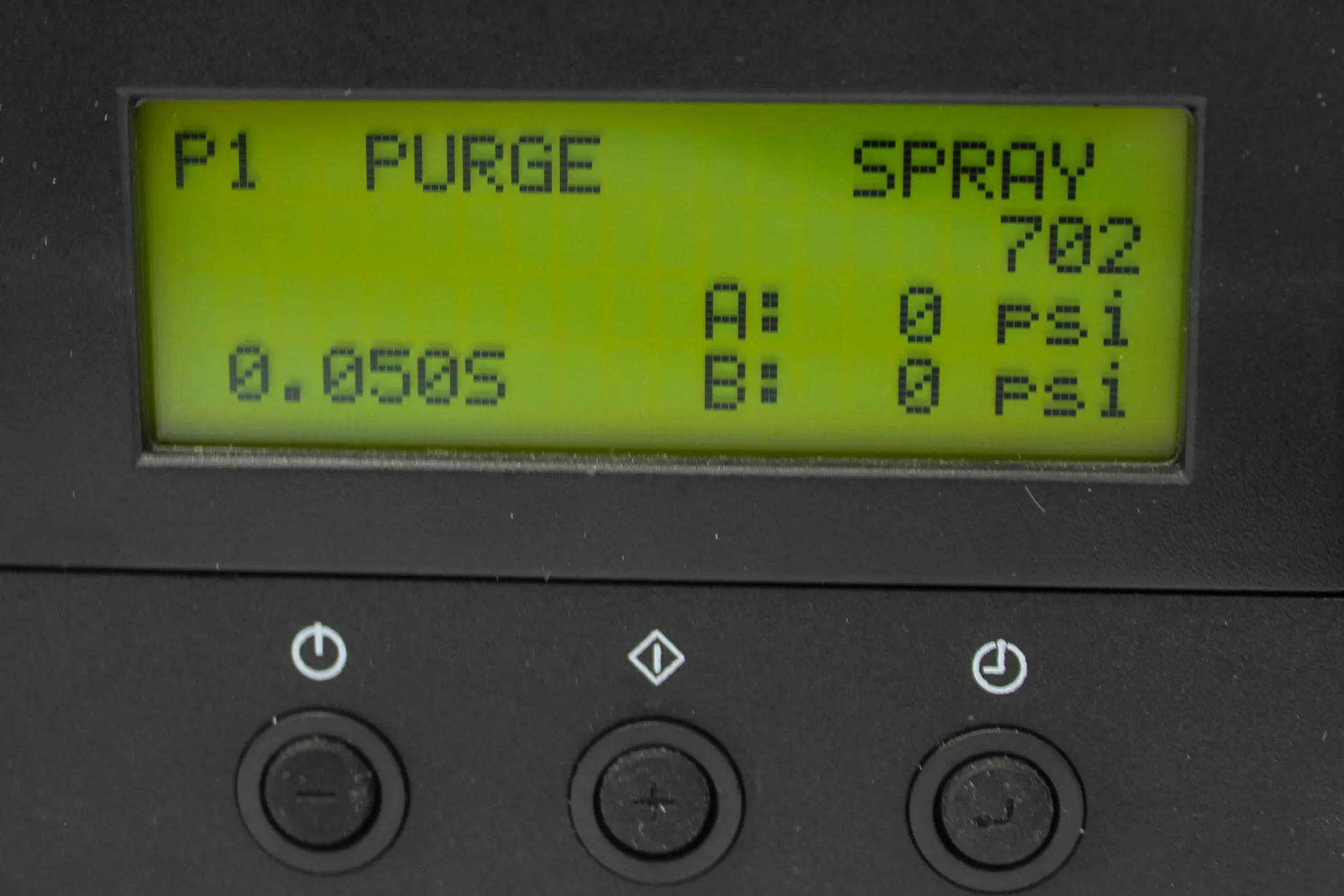

• Three separate timed sequences: pre-spray, valve on, post-spray/valve off
• Timed or manual mode with foot pedal control
• All time modes maintained in memory when AC power is disconnected

• Accessory Type: Valve Controller
• For Use With: Automatic Spraying of Low Viscosity Primers, Accelerators and Activators
• Brand: Loctite
• Length: 10in
• Width: 7.5in
• Depth: 4in
• Maximum Storage Temperature: 140°C
• Minimum Storage Temperature: 14°C

Metric: 5.89 kg
Imperial: 13.0 lb

Metric: 25.4 cm x 19.05 cm x 10.16 cm
Imperial: 10.0 in x 7.5 in x 4.0 in

901380

The harmonized code 901380 is for devices and apparatus for automatically dispersing, spraying, and aerosolizing chemicals. It is used for products such as valves, controllers, and atomizers, making it a suitable code for the LOCTITE 1406023 Digital Spray Valve Controller.
