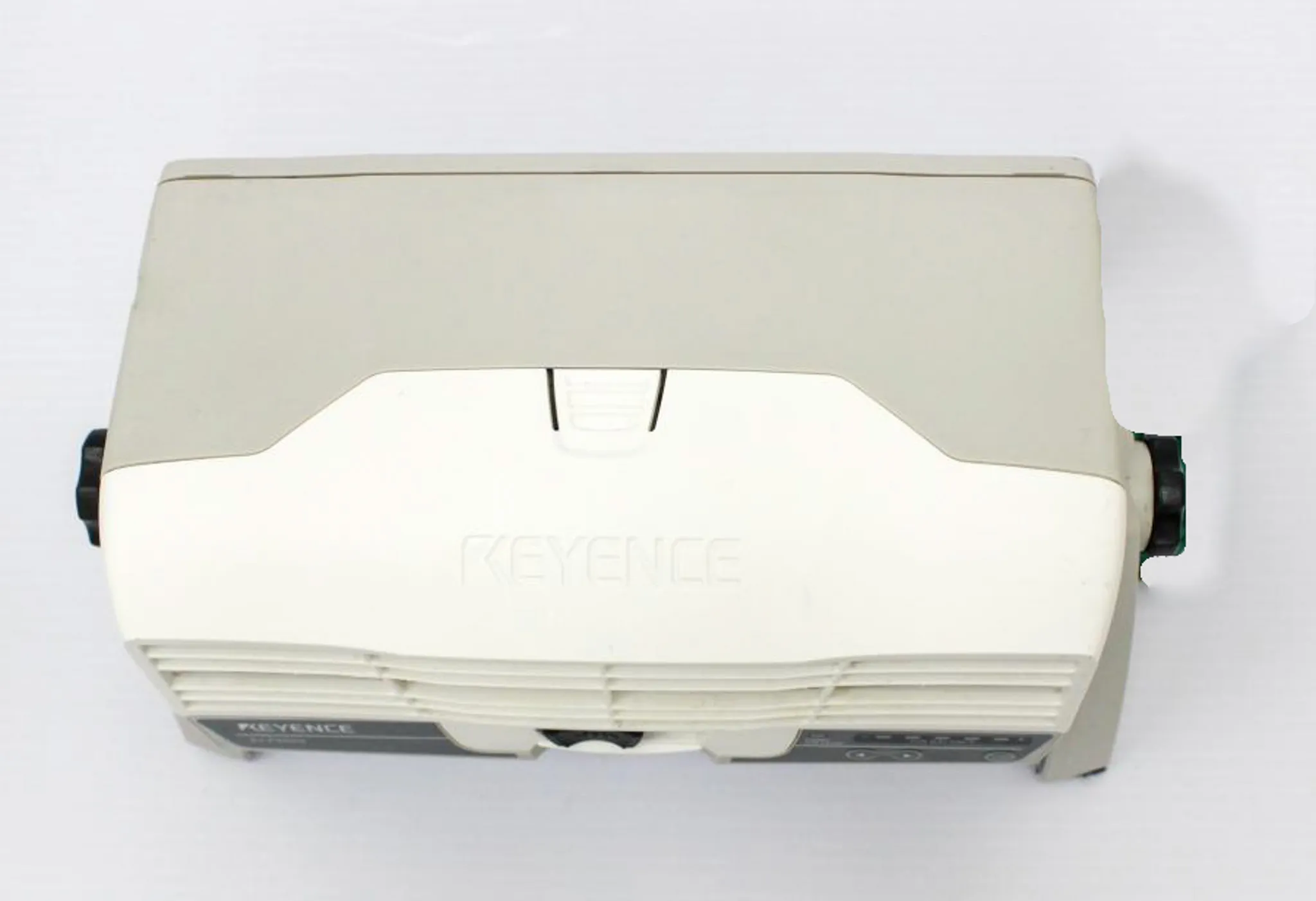

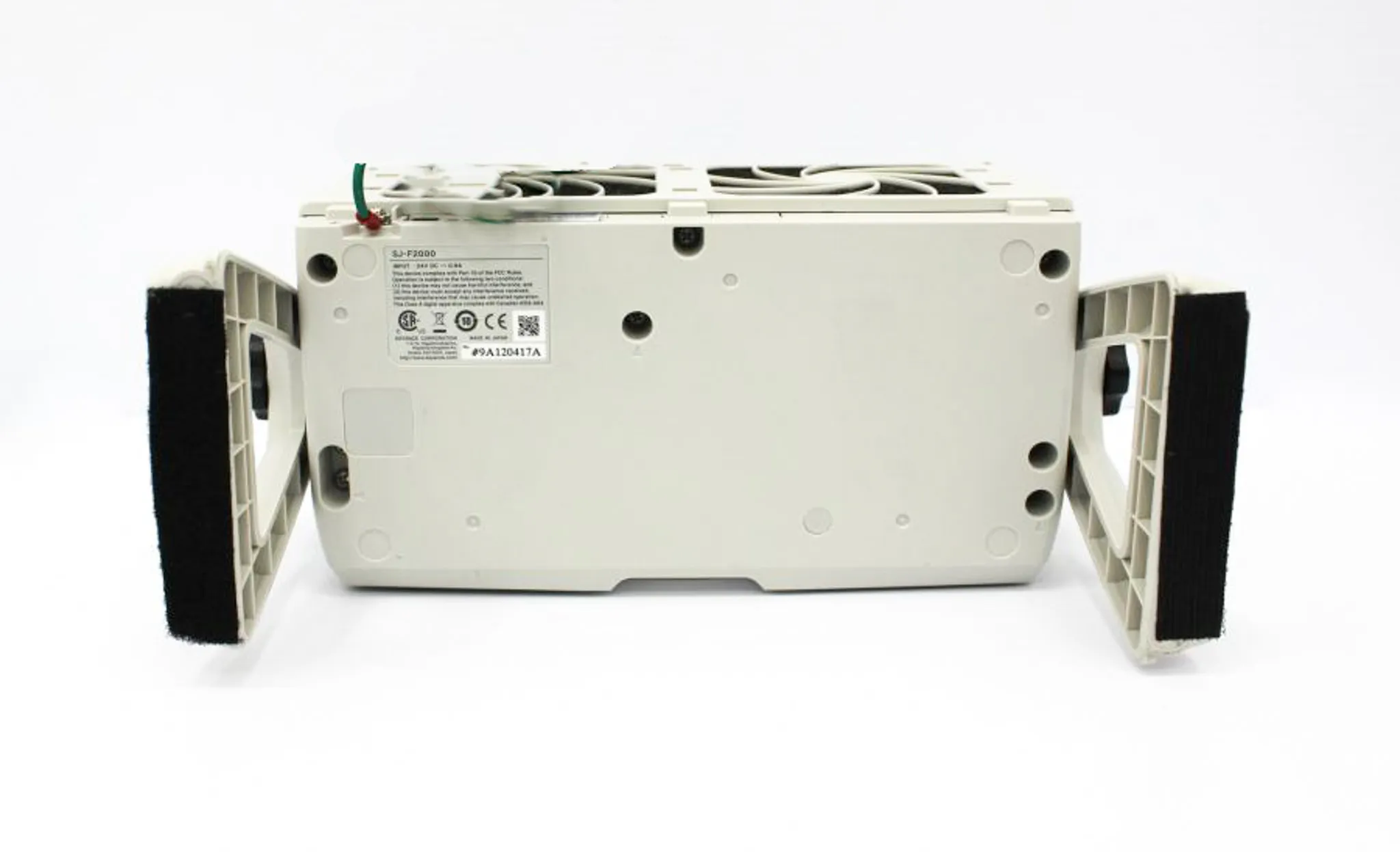

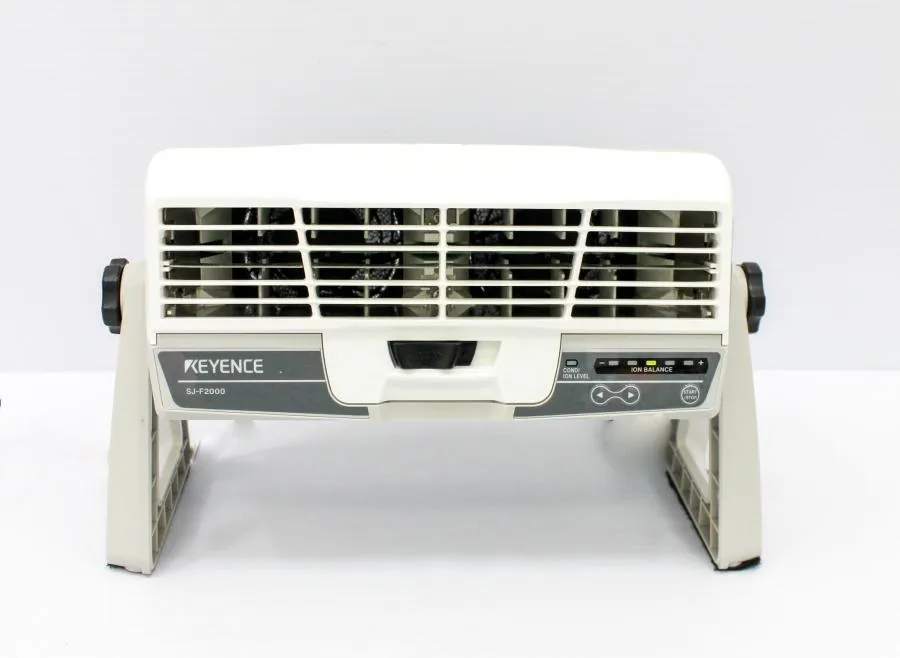

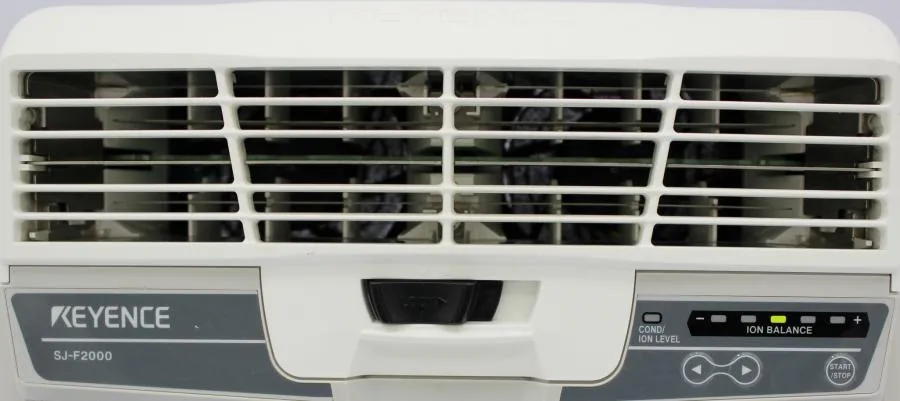

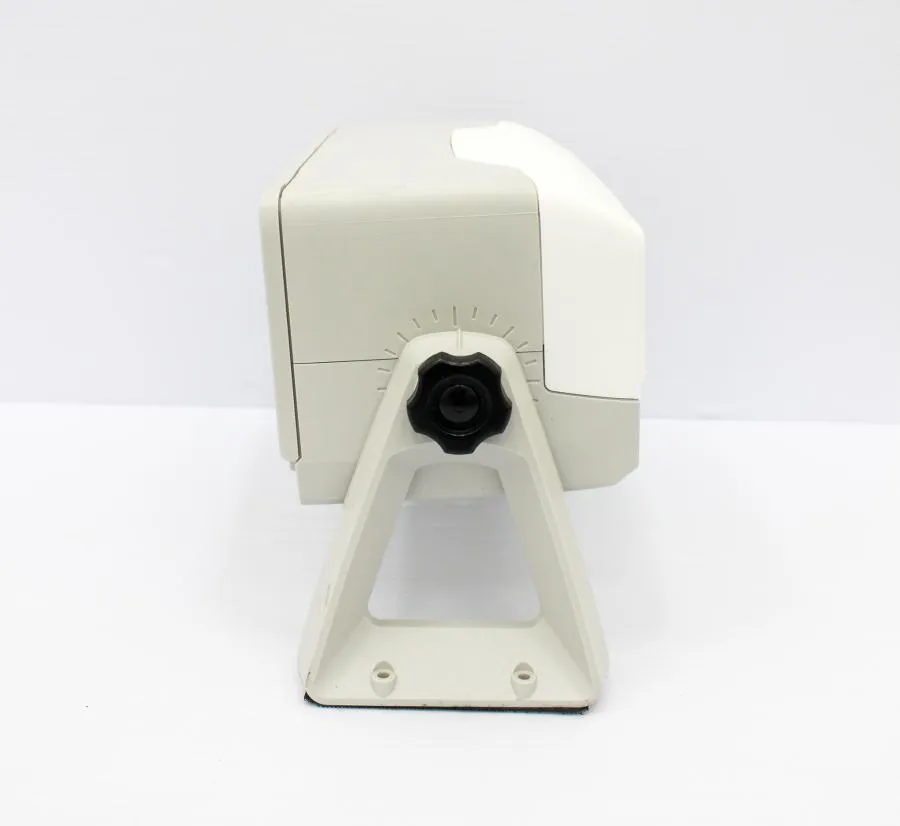

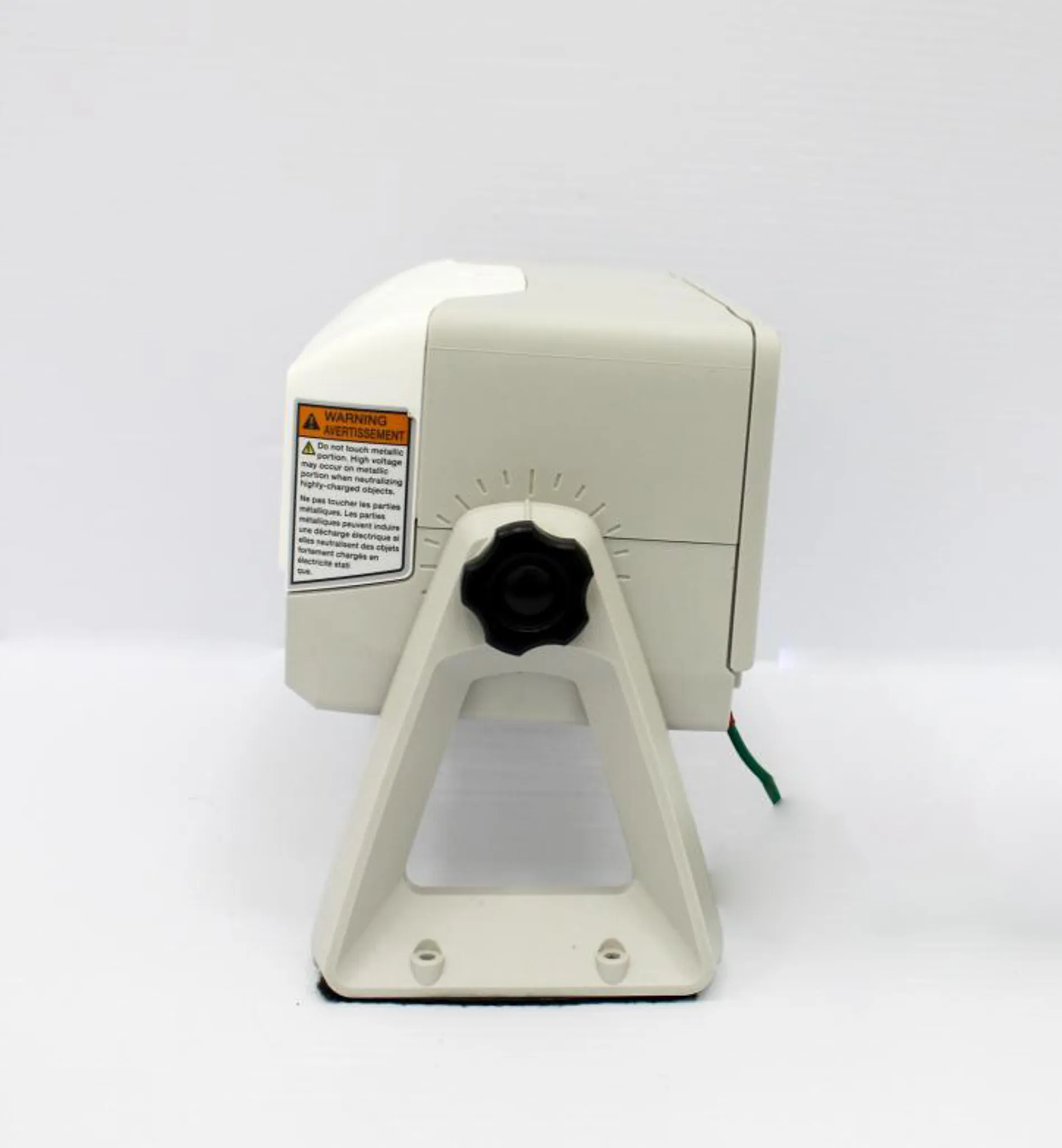

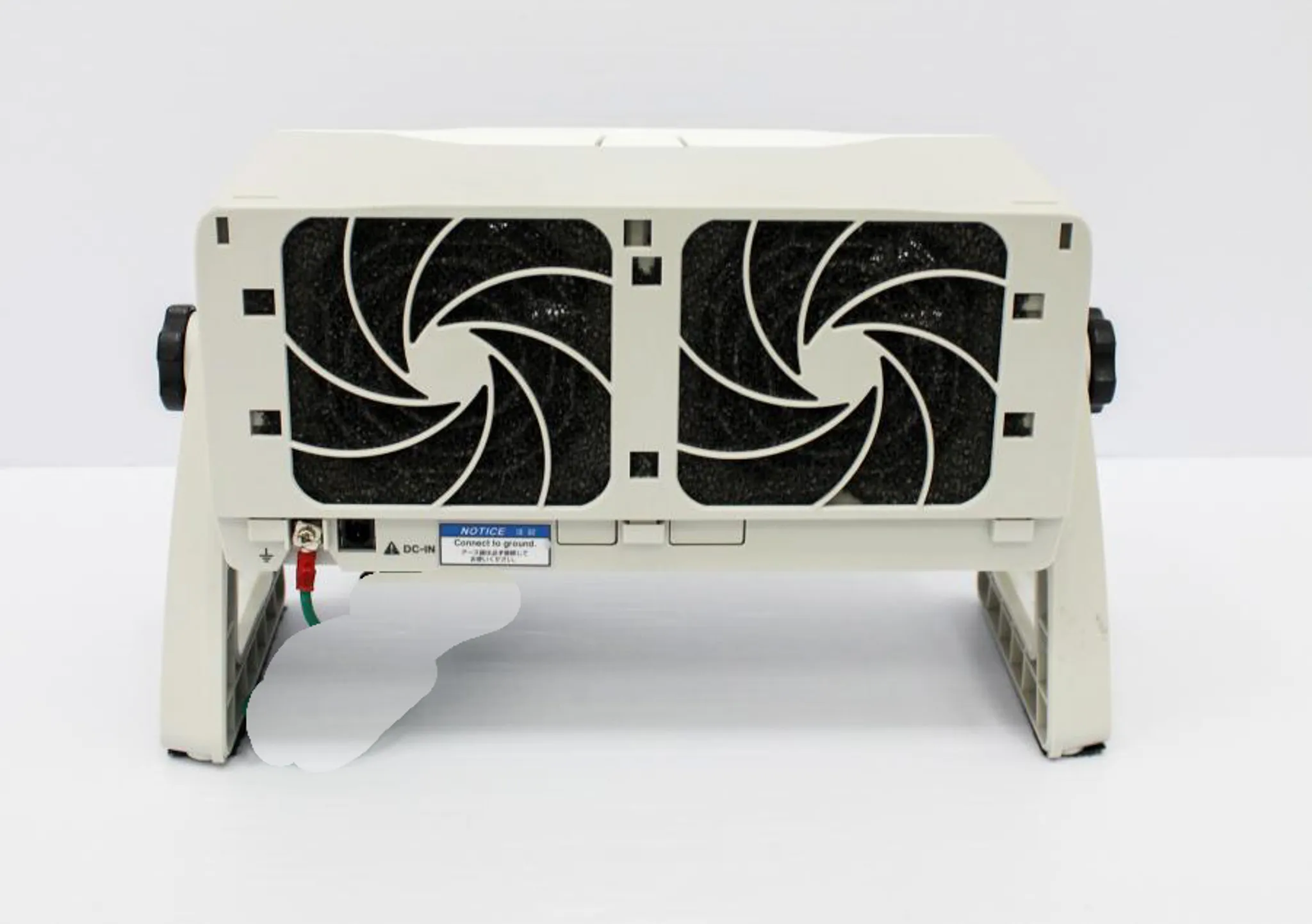

Keyence SJ-F2000 Ionizing Equipment

Product Information

As a remarkably high-speed, high-precision, wide-area static elimination blower, the Keyence SJ-F2000 is the go-to machine for removing static and maintaining a static-free environment. You can rely on the Keyence SJ-F2000 to supply precise, high-speed performance, delivering solutions for static-induced problems in a wide range of laboratory and manufacturing settings. Manufactured by Keyence and sporting a model number of SJ-F2000, this blower and static elimination machine was made with high-precision ion balance and an easily adjustable range of airflow, ensuring that the environment is free of static. In addition to its high-speed, high-precision performance, the unit is known for its wide sensing capabilities, effectively neutralizing static effects on products, human bodies, and peripheral parts. While this particular unit has been lightly used and may exhibit minor cosmetic blemishes, it has been thoroughly tested to meet the necessary specifications. Key applications include static elimination and removal, and it can also support a static-free environment in a variety of laboratory and manufacturing settings. Thanks to the impressive ion balance and static elimination time, the SJ-F2000 is able to operate with confidence at a distance of 50mm, generating a maximum air volume of 2.5m/min (88.29 CFM). null

• Ion balance of +- 5 V'1
• Static elimination time Approx. 1Sec'2
• Operating distance of 50mm with maximum air volume of 2.5m/min (88.29 CFM)
• Supportive of various static-free environment settings
• High-speed, high-precision ion balance

• Model: SJ-F2000
• Voltage application method: Pulse AC method
• Applied voltage: 7000V
• Ion balance control method: I.C.C.
• Ion balance: 5 V1
• Static elimination time: Approx. 1 sec2
• Operating distance: 50 mm (1.97" min.)
• Maximum wind speed: 3.5 m/s (11.48 ft/s1)
• Maximum air volume: 2.5 m3/min (88.29 CFM)
• Ozone density: 0.005 ppm max.
• Power source input type: KEYENCE AC Adapter or DC Option
• Power voltage: 24 VDC 10 %
• Current consumption: 0.9 A
• Pollution degree: 2
• Ambient temperature: 0 to +50°C (32 to 122°F)
• Relative humidity: 35 to 65% RH

Metric: 4.53592 kg
Imperial: 10 lbs

Metric: 33.02 cm x 20.32 cm x 38.1 cm
Imperial: 13 in x 8 in x 15 in
