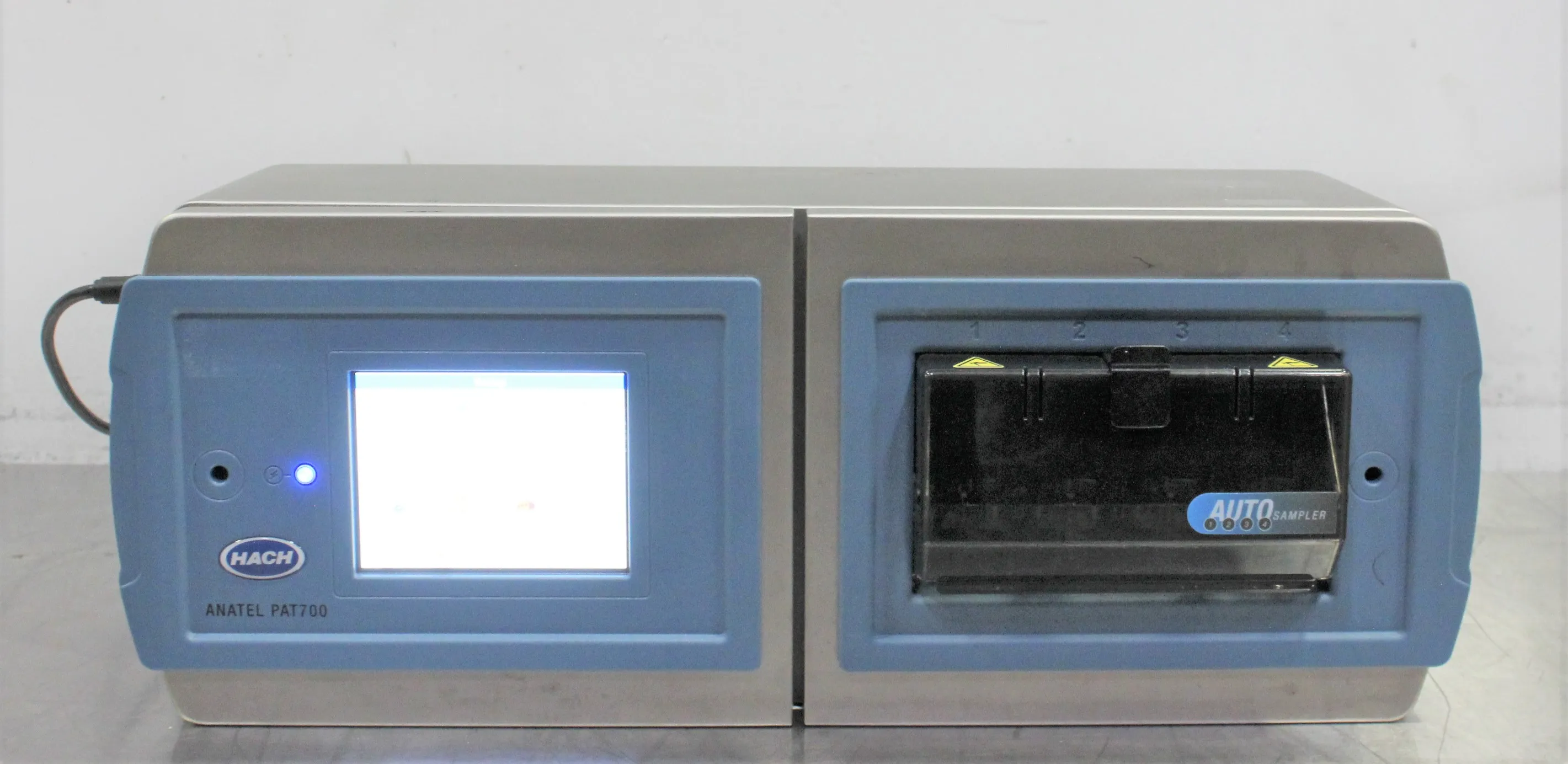

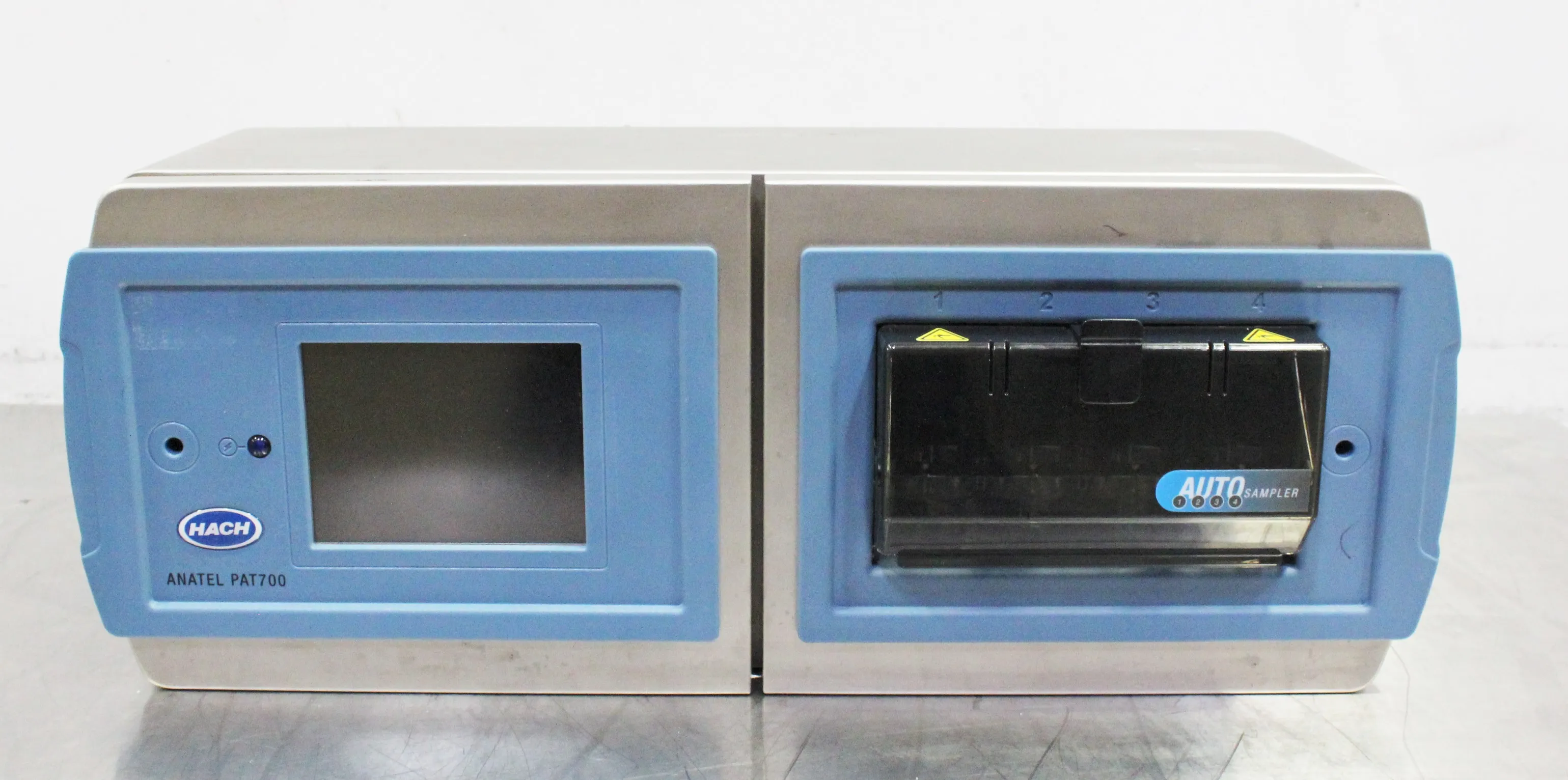

Hach ANATEL PAT700 Laboratory TOC Analyzer - Used

Product Information

Welcome to the fascinating world of the Hach ANATEL PAT700, an on-line Total Organic Carbon (TOC) analyzer that bridges the gap between science and risk-based water system applications. Manufactured by Hach, this fully compliant TOC analyzer meets the rigorous requirements of USP <643> for TOC, EP2.2.44, and other standards. Used in pharmaceutical operations, it simplifies the application of Process Analytical Technology (PAT) and allows for real-time, on-line release for pharmaceutical water systems. Designed to move TOC analysis from the laboratory to the production area, the PAT700 delivers compliance in the most demanding regulatory environments. This innovative analyzer is the key to enabling process compliance and ensuring the highest quality in life science water system applications.

• Fully compliant with USP <643> for TOC, EP2.2.44, and more
• Simplifies application of Process Analytical Technology (PAT)
• Enables real-time, on-line release for pharmaceutical water systems
• Moves TOC analysis from the laboratory to the production area
• Designed for conformity in demanding regulatory environments

• Industry Standards: USP <643> (including Sterile Water SST), EP <2.2.44>, 21 CFR Part 11
• Calibration Intervals and Options: 3-point TOC calibration; Conductivity calibration to USP<645>; System suitability to USP, EP and JP
• Fluid Compatibility: Purified water, Water for injection (WFI)

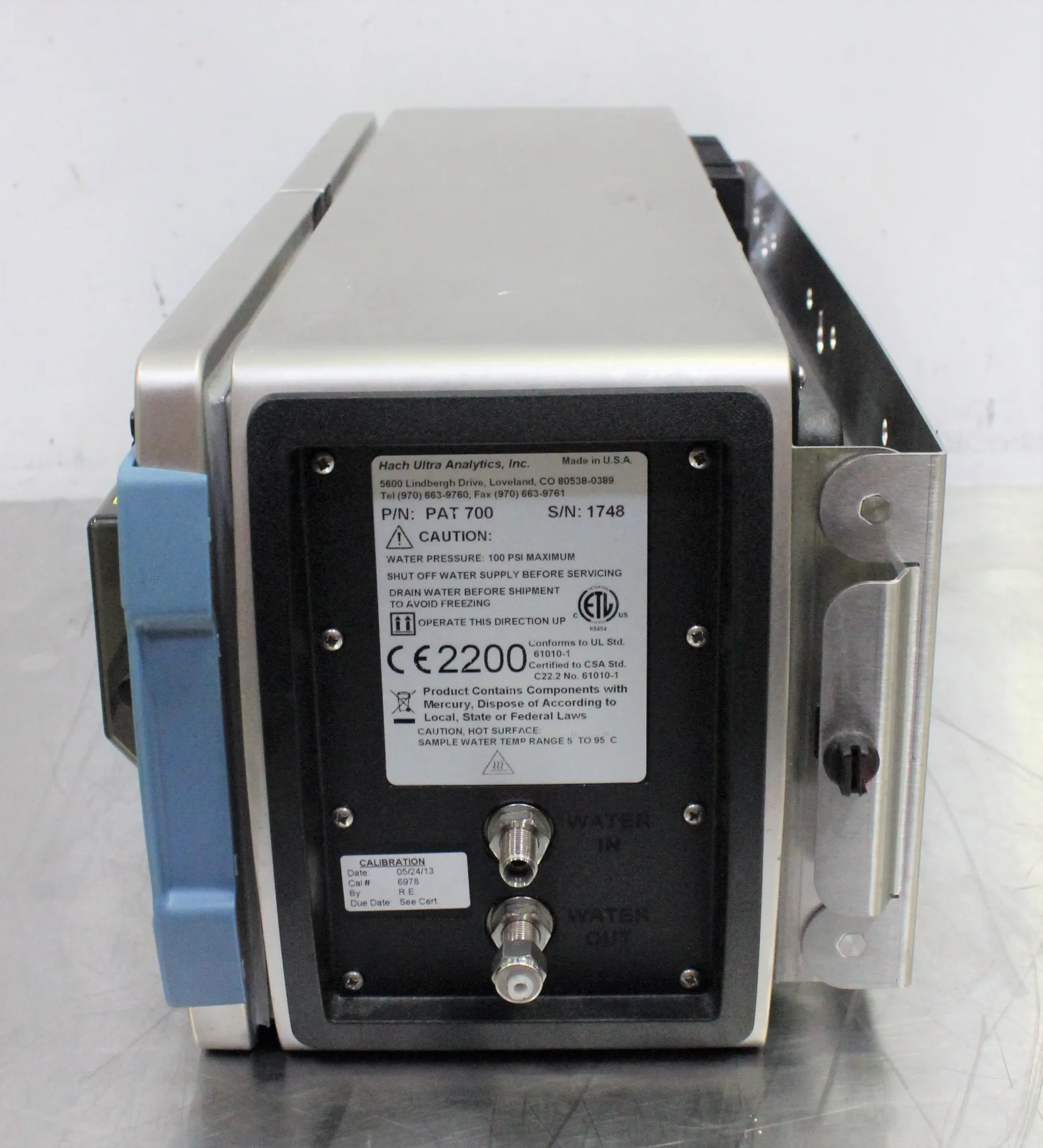

• Online Operation: Sample inlet pressure 10 to 100psi (0.69 to 6.89Bar)
• Detection: Differential conductivity
• Reporting: ppb TOC S/cm
• Installation Category: II
• Temperature Range: 5 to 95°C sample range
• Operating System: Paperless reporting via secure FTP over Ethernet
• Resolution: 0.1 ppb

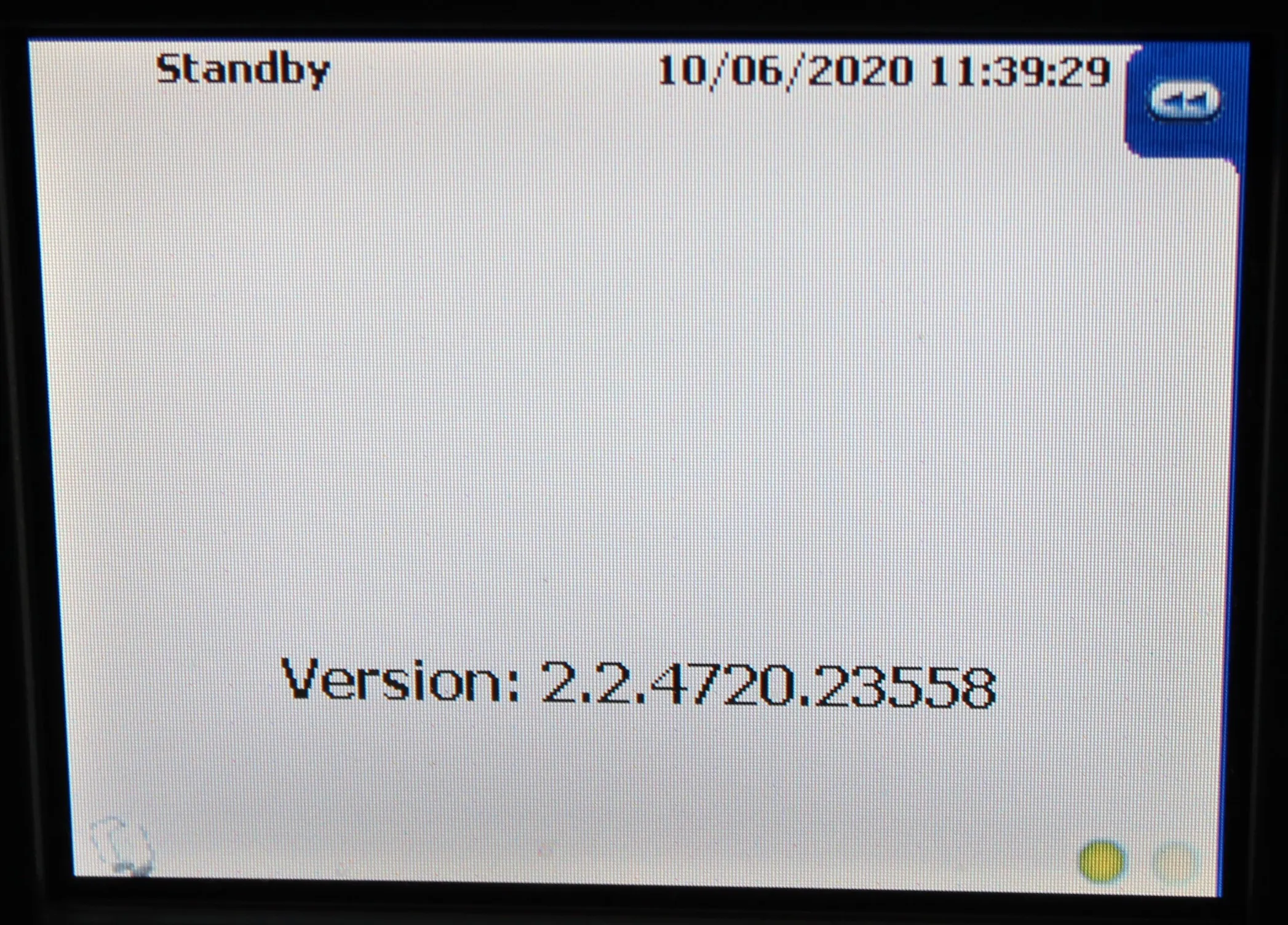

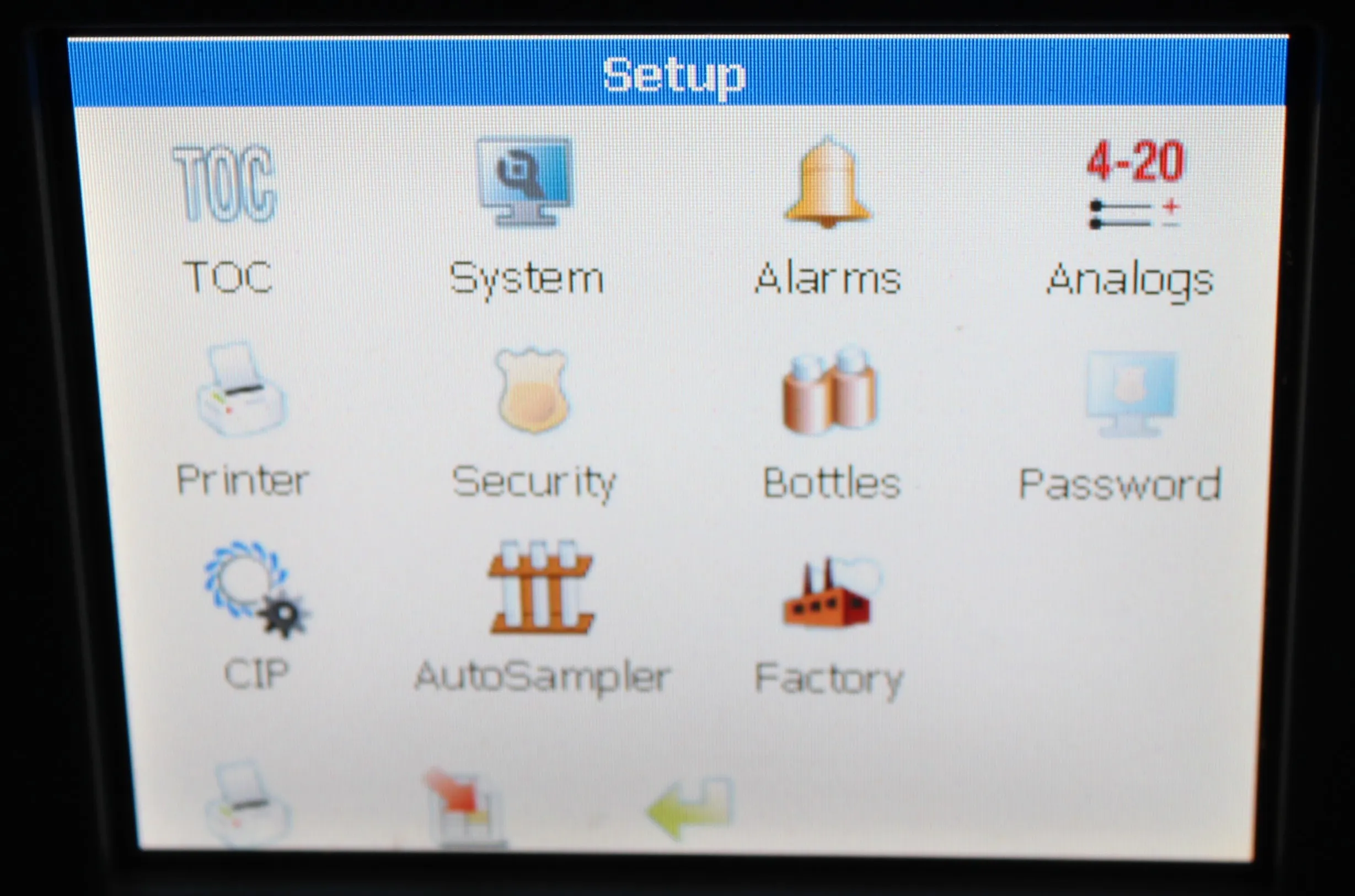

• Display: Full-color LCD touch screen

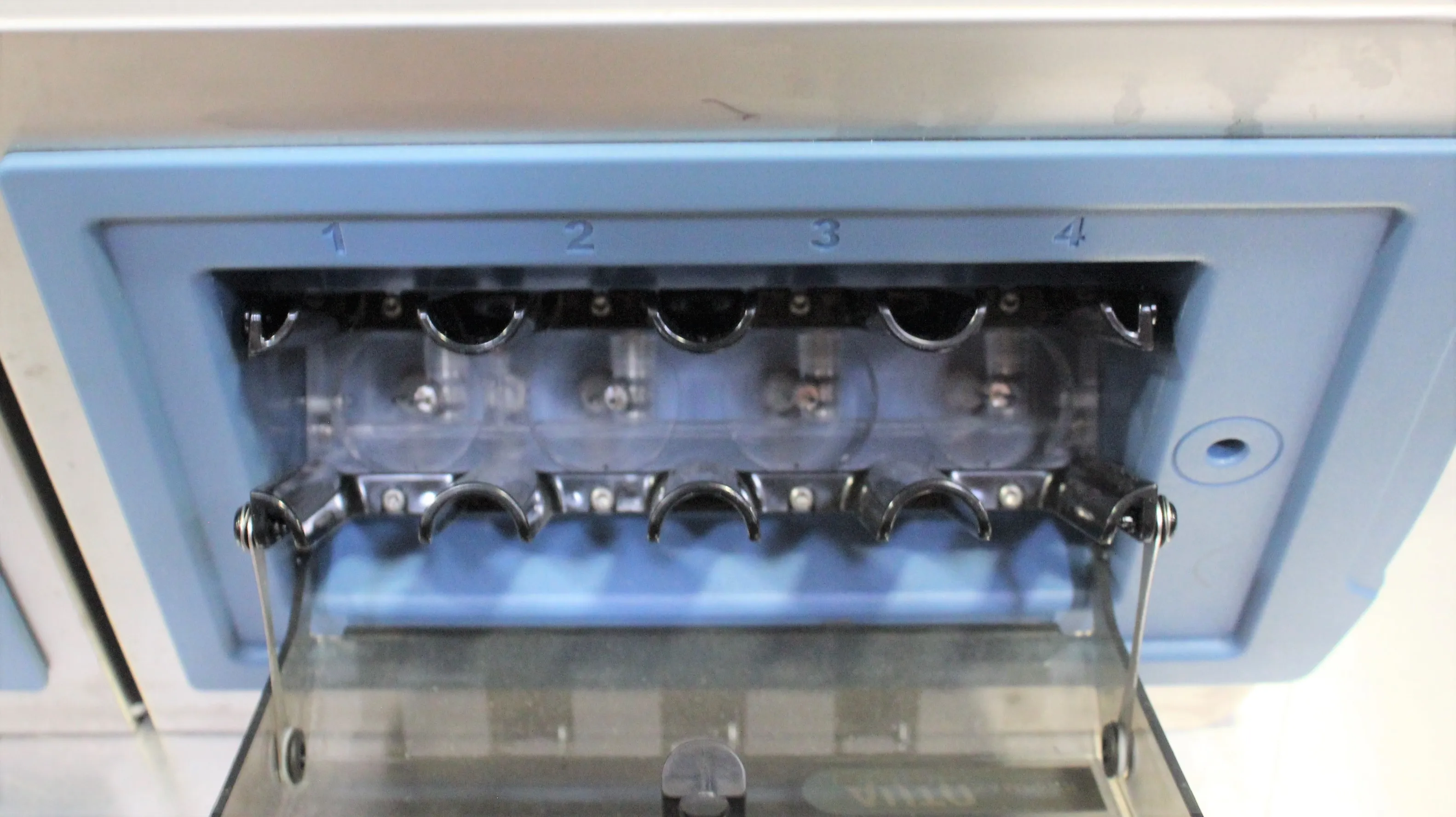

• Operating Modes: Online TOC; Online Conductivity; Auto-switching Main and Standby UV lamps for 12 months operation, 4-bottle auto-sampler for grab sample analysis, Excursion capture for root cause analysis support

Metric: 18.14 kg
Imperial: 40 lbs

Metric: 31 cm x 58.42 cm x 45.72 cm
Imperial: 12.2 in x 23 in x 18 in

902780

This code is used for liquid chromatographs and homogenizers. The ANATEL PAT700's functionality relates closely to the capabilities of liquid chromatography equipment, justifying the use of this harmonized code.
