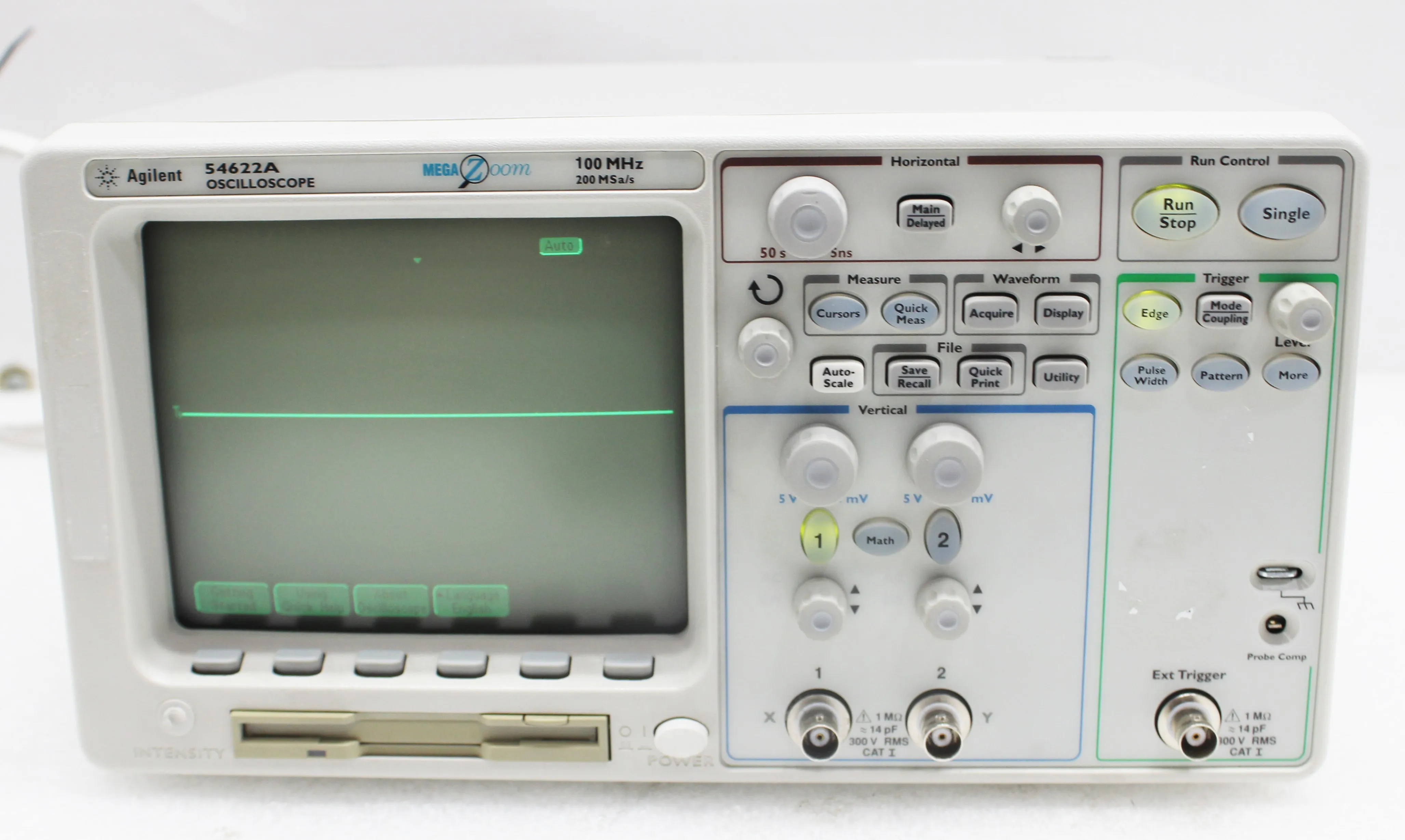

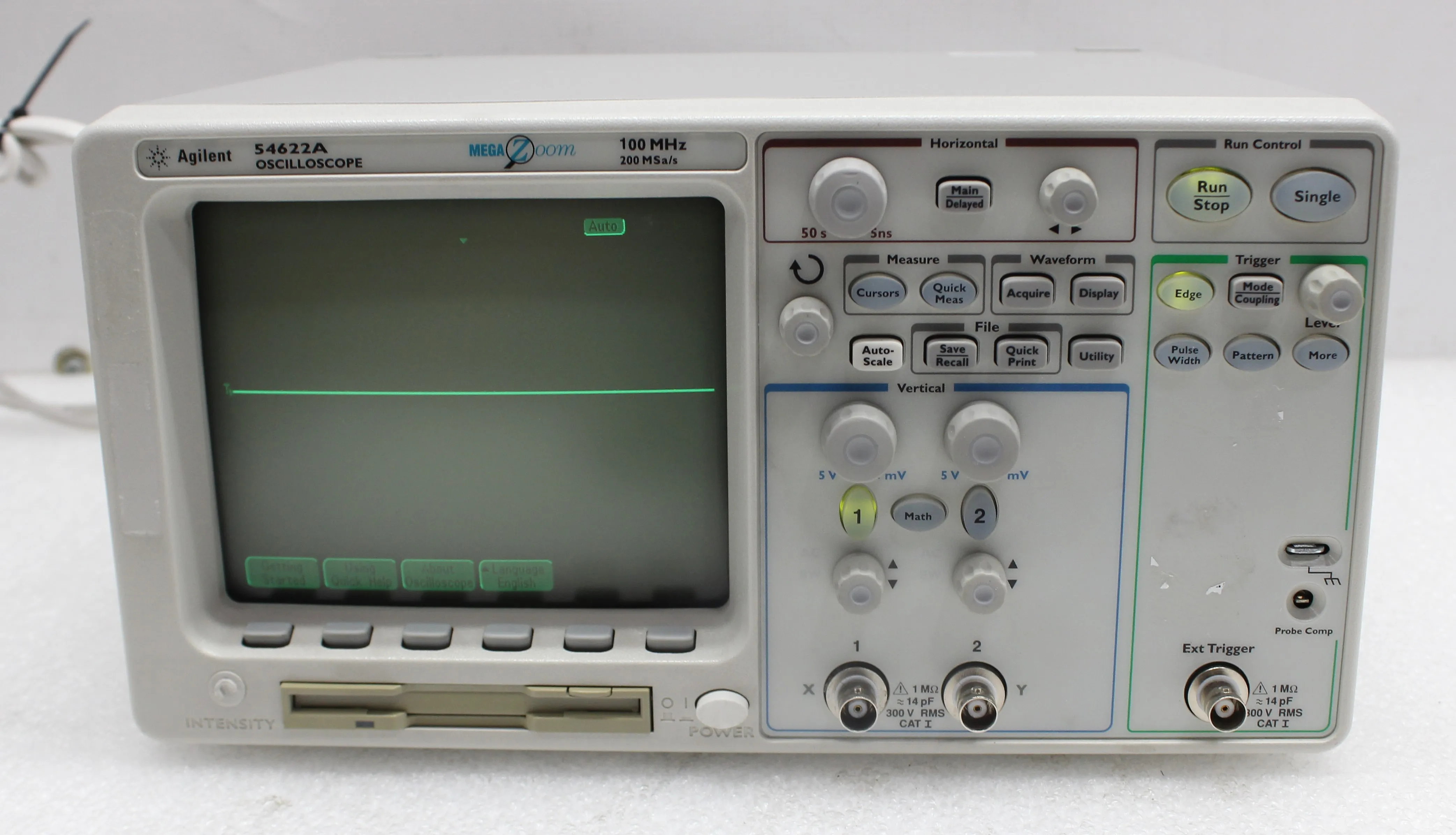

Agilent 54622A 100 MHz 2-Channel Digital Oscilloscope

Product Information

Introducing the Agilent 54622A, a 100 MHz, 2-channel digital oscilloscope. This powerful piece of equipment allows you to measure voltage or current signals over time in an electronic circuit or component to display amplitude, frequency, rise times, and more. The Agilent 54622A finds versatile application in troubleshooting, production testing, and design. Manufactured by Agilent, this oscilloscope features a 200 MS/s sample rate, 4 MPts record length, and a patented high-definition display with superior horizontal resolution. The extraordinary 4 MB of Mega Zoom deep memory is mapped to 32 levels of intensity, handling 25 million vectors/sec. With powerful, flexible triggering including IC, SPI, LIN, CAN, and USB, inbuilt floppy, RS-232, and parallel ports, and FFT's, this oscilloscope ensures deep memory transfer over the interface bus.

• 100 MHz, 2-channel digital oscilloscope
• Designed for measuring voltage or current signals over time
• Ideal for troubleshooting, production tests, and design
• Advanced features such as deep memory and flexible triggering
• Patented high-definition display with superior horizontal resolution
• Supported sample rate of 200 MS/s and a record length of 4 MPts

• Sample Rate: 200 MS/s
• Record Length: 4 MPts
• Patented high-definition display with superior horizontal resolution
• 4 MB of Mega Zoom deep memory mapped to 32 levels of intensity, 25 million vectors/sec.
• Powerful, flexible triggering including IC, SPI, LIN, CAN and USB

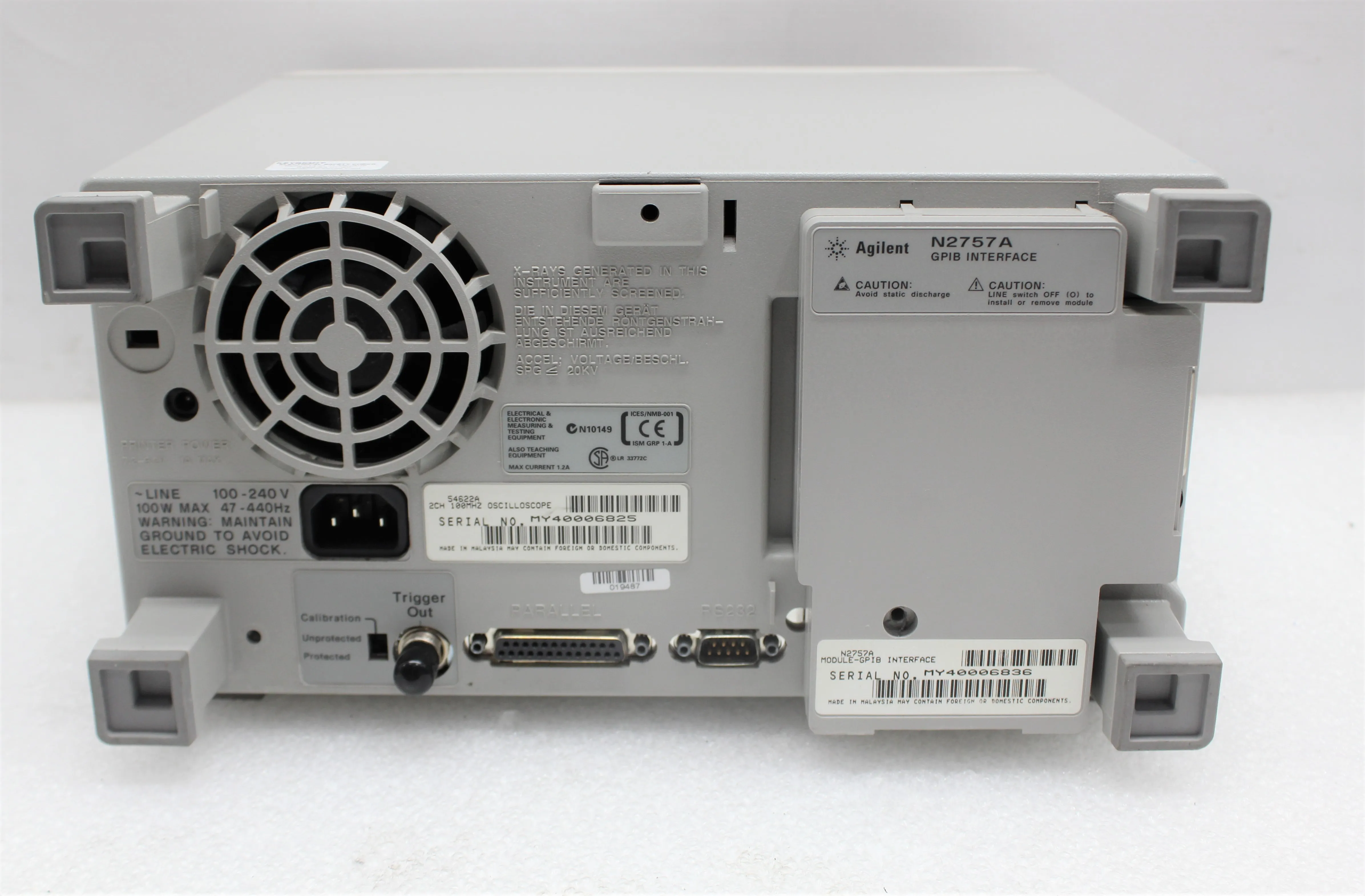

• Standard built-in floppy, RS-232 and parallel ports, FFT's
• Deep memory transfer over the interface bus

Metric: 10.886 kg
Imperial: 24 lbs

Metric: 30.48 cm x 33.02 cm x 38.1 cm
Imperial: 12 in x 13 in x 15 in

9030208040

Oscilloscopes; other instruments for measuring or checking voltage, current, resistance or power, with recording device
