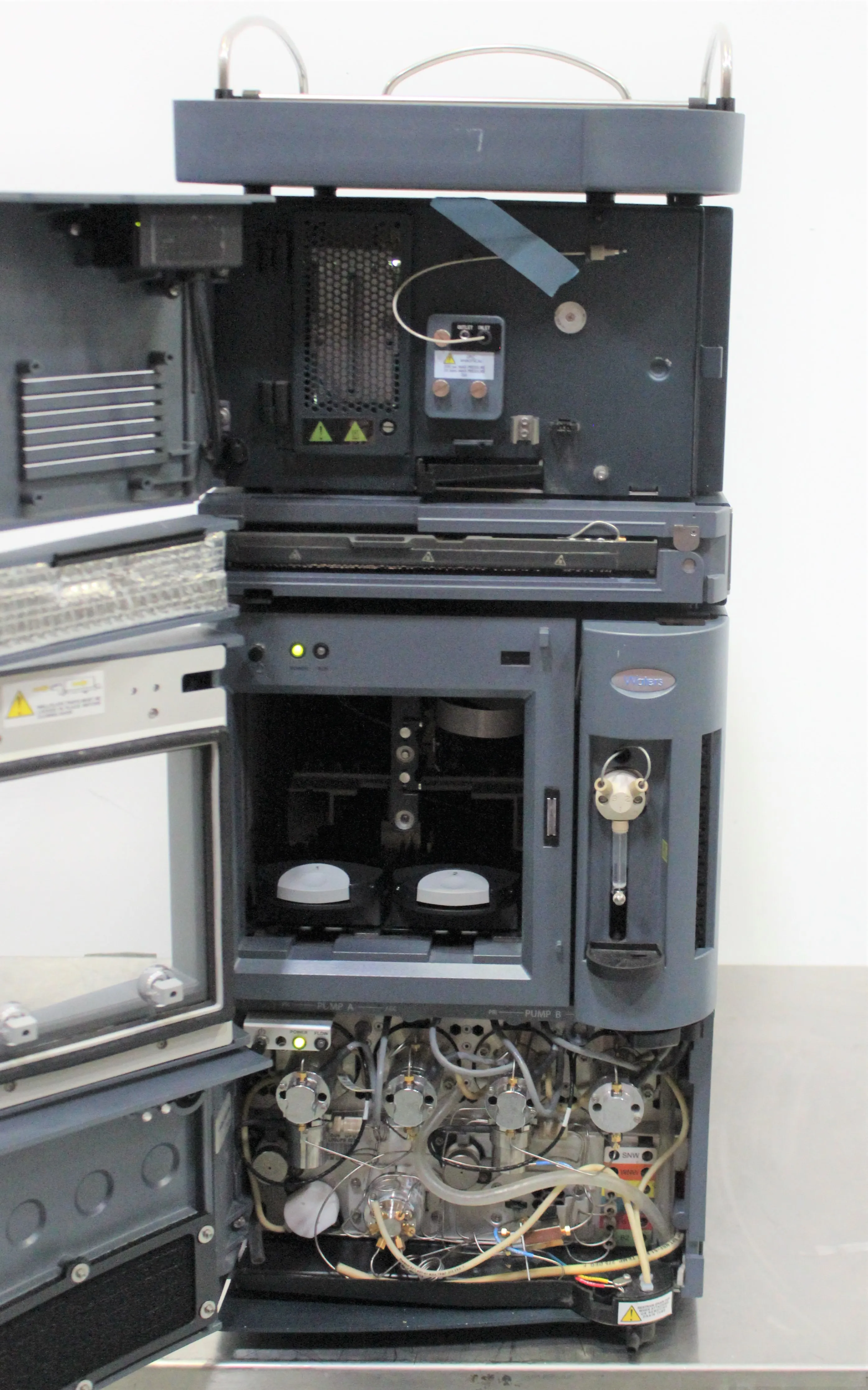

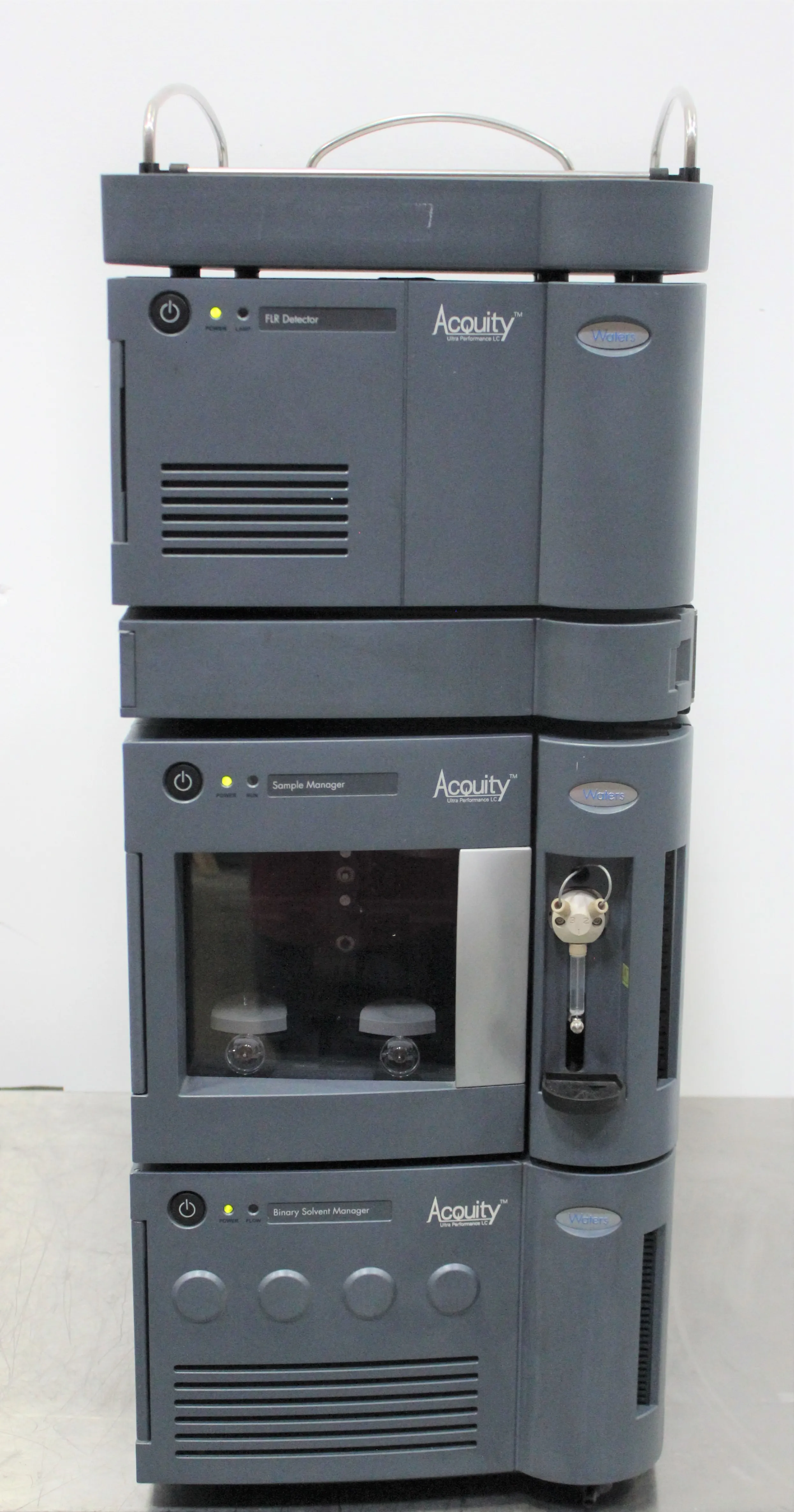

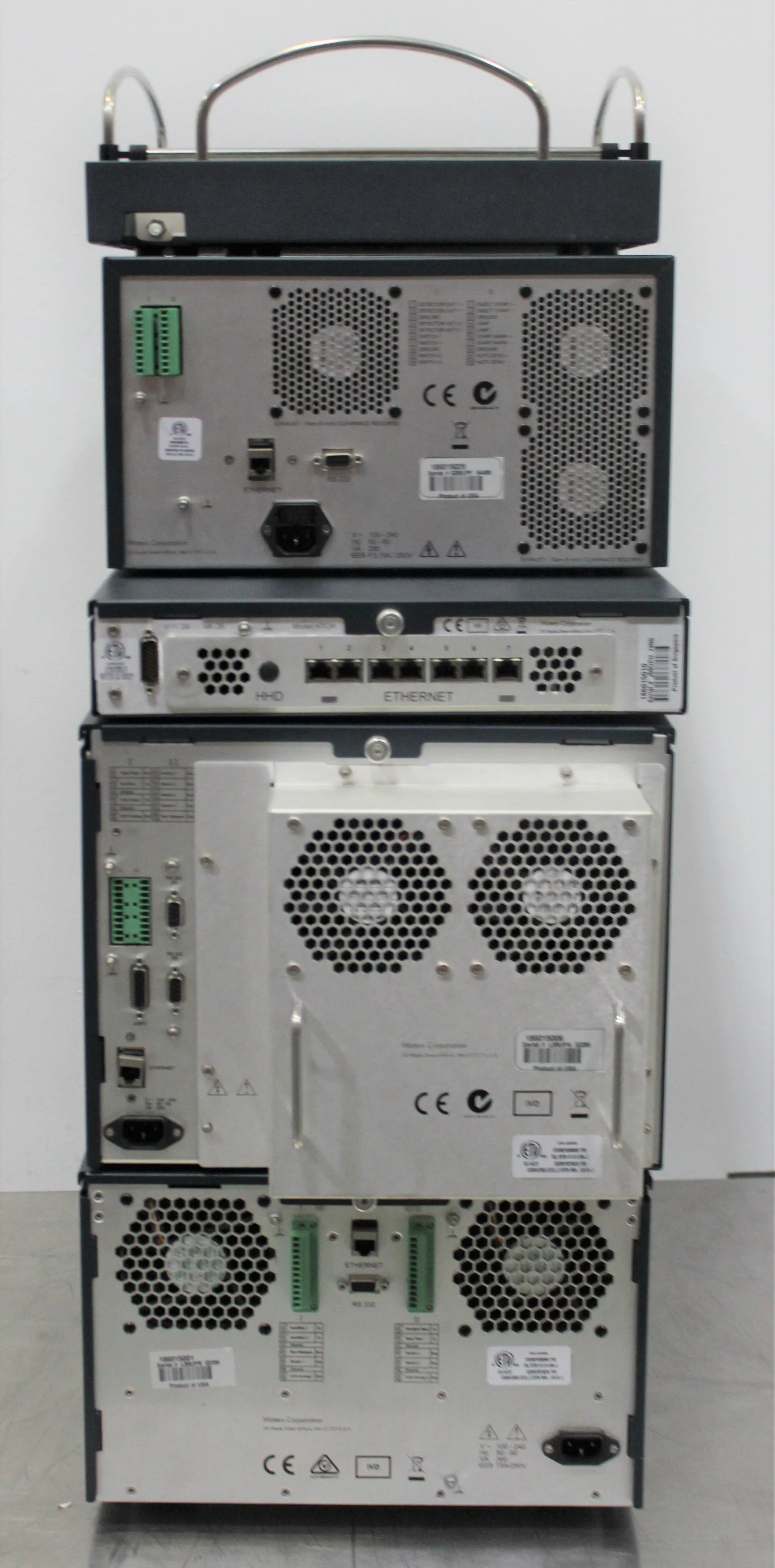

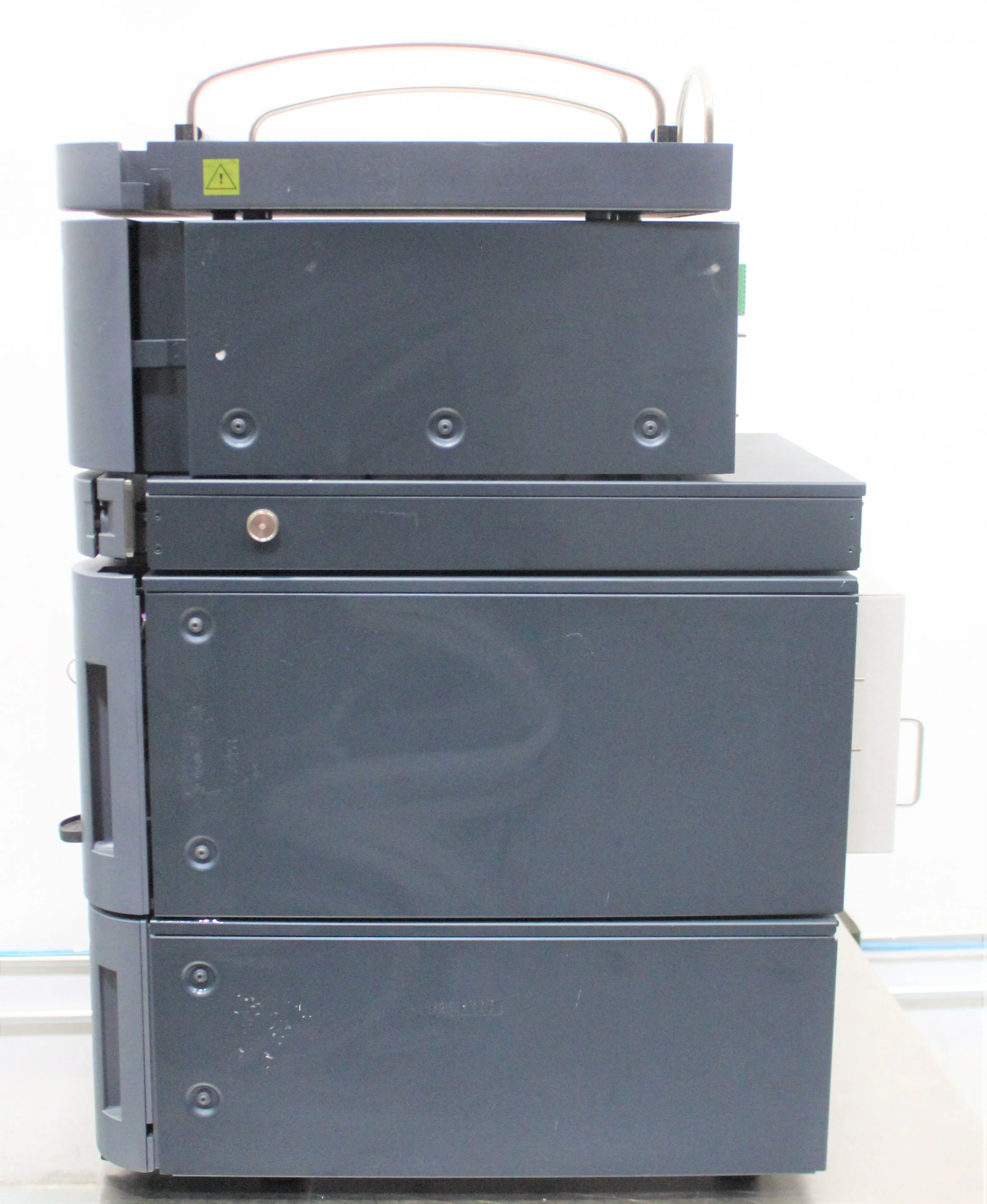

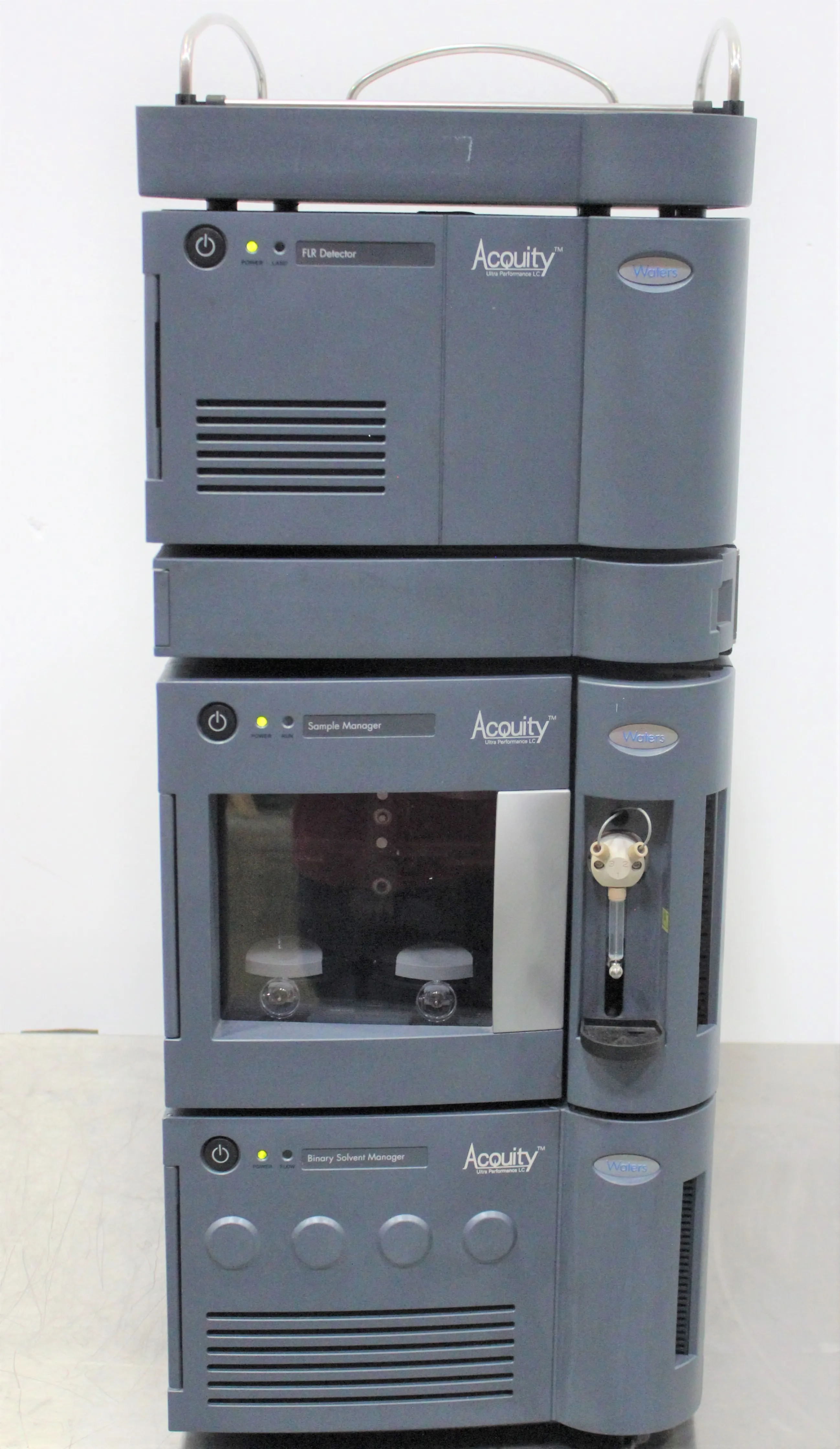

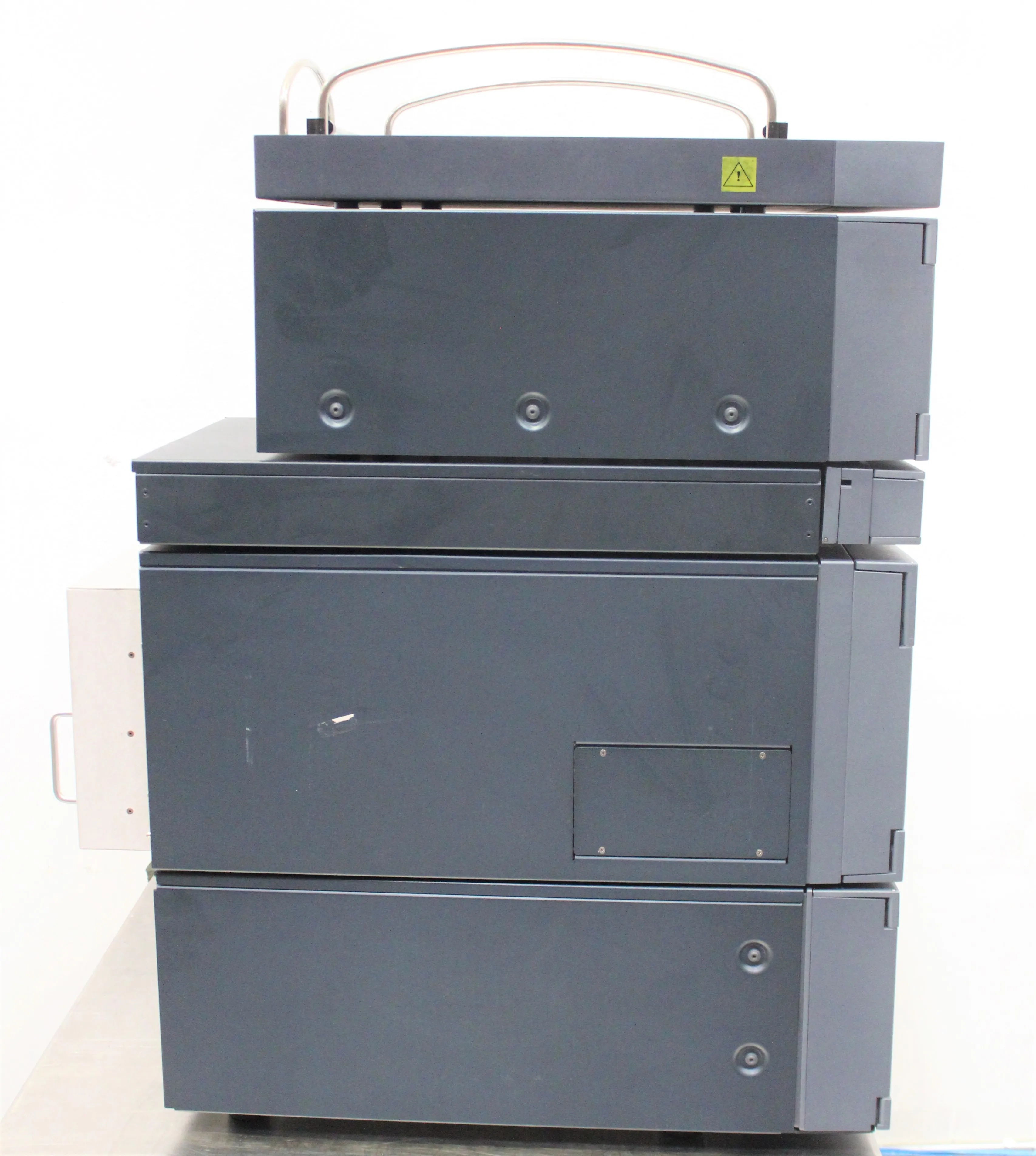

Waters Acquity UPLC Chromatography System - PDA Detector, Sampler Manager Autosampler, Binary Solvent Manager

Product Information

The Waters Acquity UPLC system is a powerful liquid chromatography system known for reproducible, dependable, and data-rich results. It features a wide range of flow rates, back pressures, and linear velocities, offering increased throughput with high efficiency. This UPLC system runs separations at a flow rate 3 times faster than HPLC, without a loss in resolution. The contained tower UPLC system holds a sample manager, column heater, binary solvent manager, and a PDA detector. The unique sub 2 m particle system offers 3 times the efficiency of a 5 m system with 70% higher resolution, resulting in more information from more samples in less time.

• Unique sub 2 m particle system providing 3 times the efficiency of a 5 m system
• Sample manager, column heater, binary solvent manager, and a PDA detector included
• Run separations at a flow rate 3 times faster than HPLC, without a loss in resolution

• Maximum operating pressure: 103,421 kPa (1034 bar, 15,000 psi) up to 1 L/min, 62,053 kPa (621 bar, 9000 psi) up to 2 mL/min
• Composition accuracy: 0.5% absolute (full scale) from 5 to 95% from 0.50 to 2.00 mL/mina
• Composition precision: 0.15% RSD or 0.04 min SD
• Flow accuracy: 1.0% at 0.5 mL/min
• Number of SBS/ANSI sample plates: Total of two plates, expandable to up to 22 plates with optional sample organizer
• Maximum sample capacity: 768 in two 384-well plates; expandable to up to 8,448 samples with optional sample organizer
• Column Heater: Accepts any column up to 4.6 mm ID and 150mm long, temperature range 5 above ambient to 65C (9 above ambient to 194F)
• PDA Detector: Wavelength Range 190-500 nm, Flow Cell Options - Analytical Cell 500 nanoliters, 10 mm pathlength

Metric: 78.7 kg
Imperial: 173.6 lbs

Metric: 91.44 cm x 60.96 cm x 116.84 cm
Imperial: 36 in x 24 in x 46 in

9027200000

The chosen HS code is for liquid chromatography instruments. It is the most suitable as the product is a chromatography system that can be used for laboratory analytical or preparative purposes.
