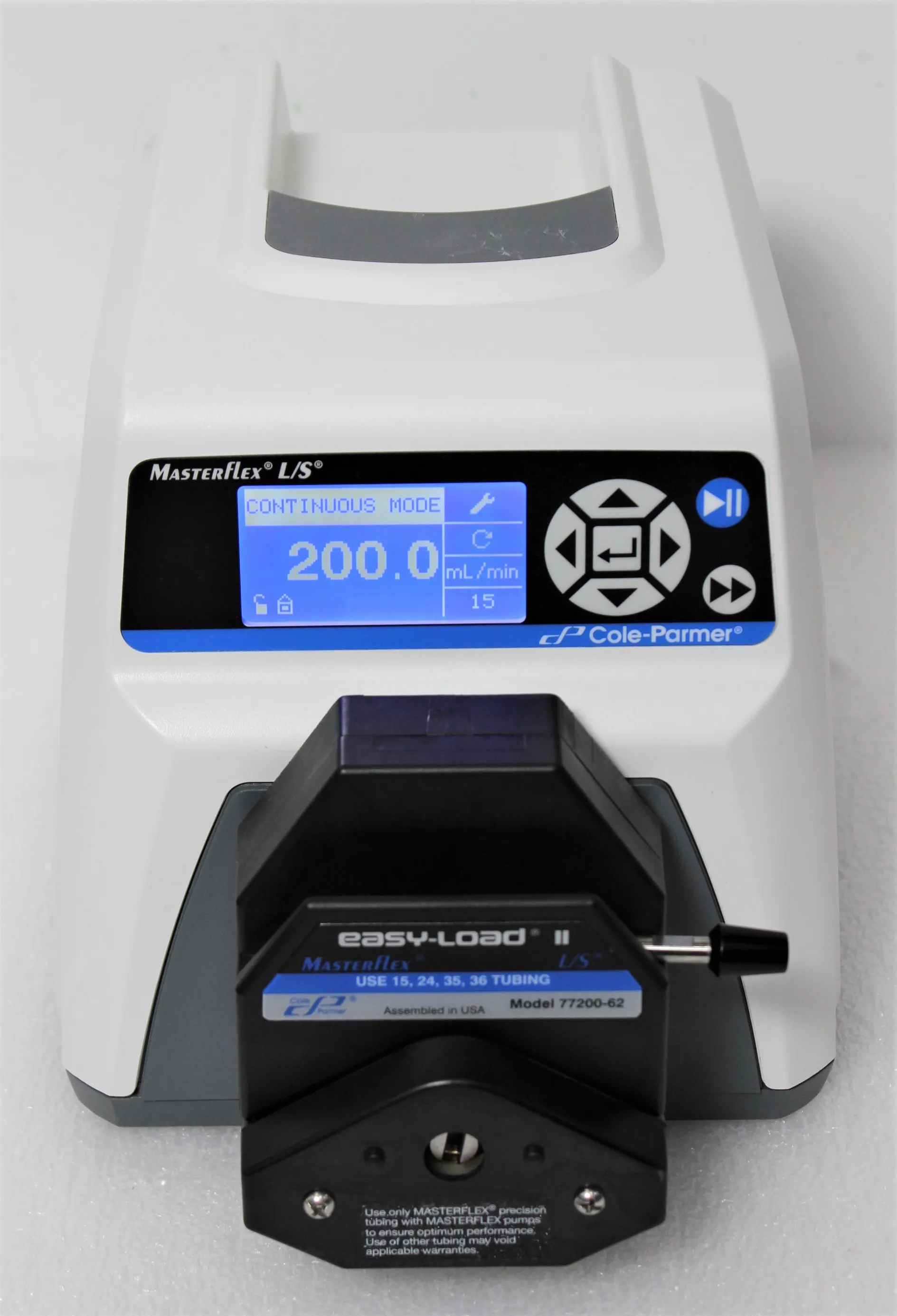

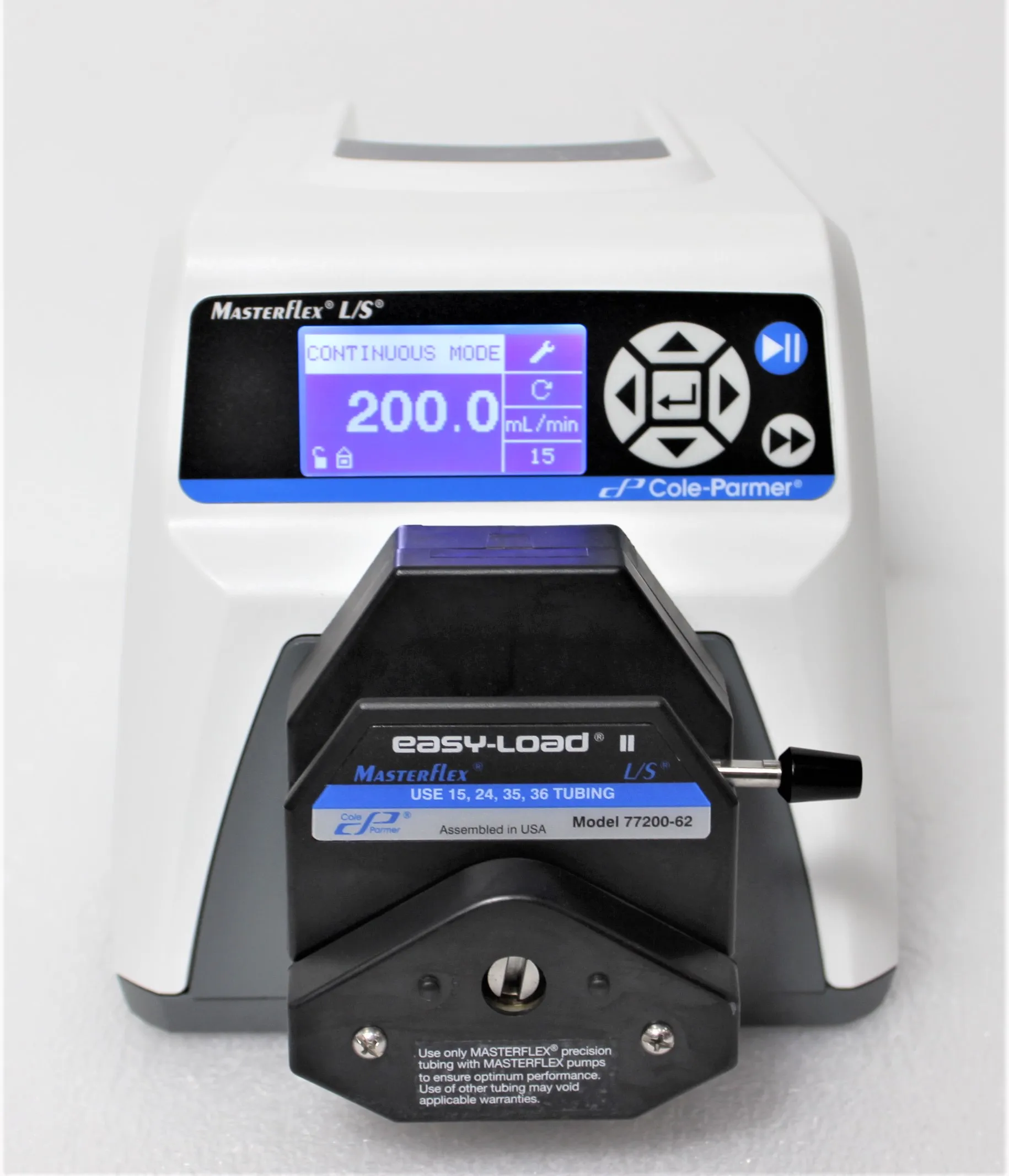

Cole Parmer LS Digital Drive 600rpm 07522-20 Peristaltic Pump

Product Information

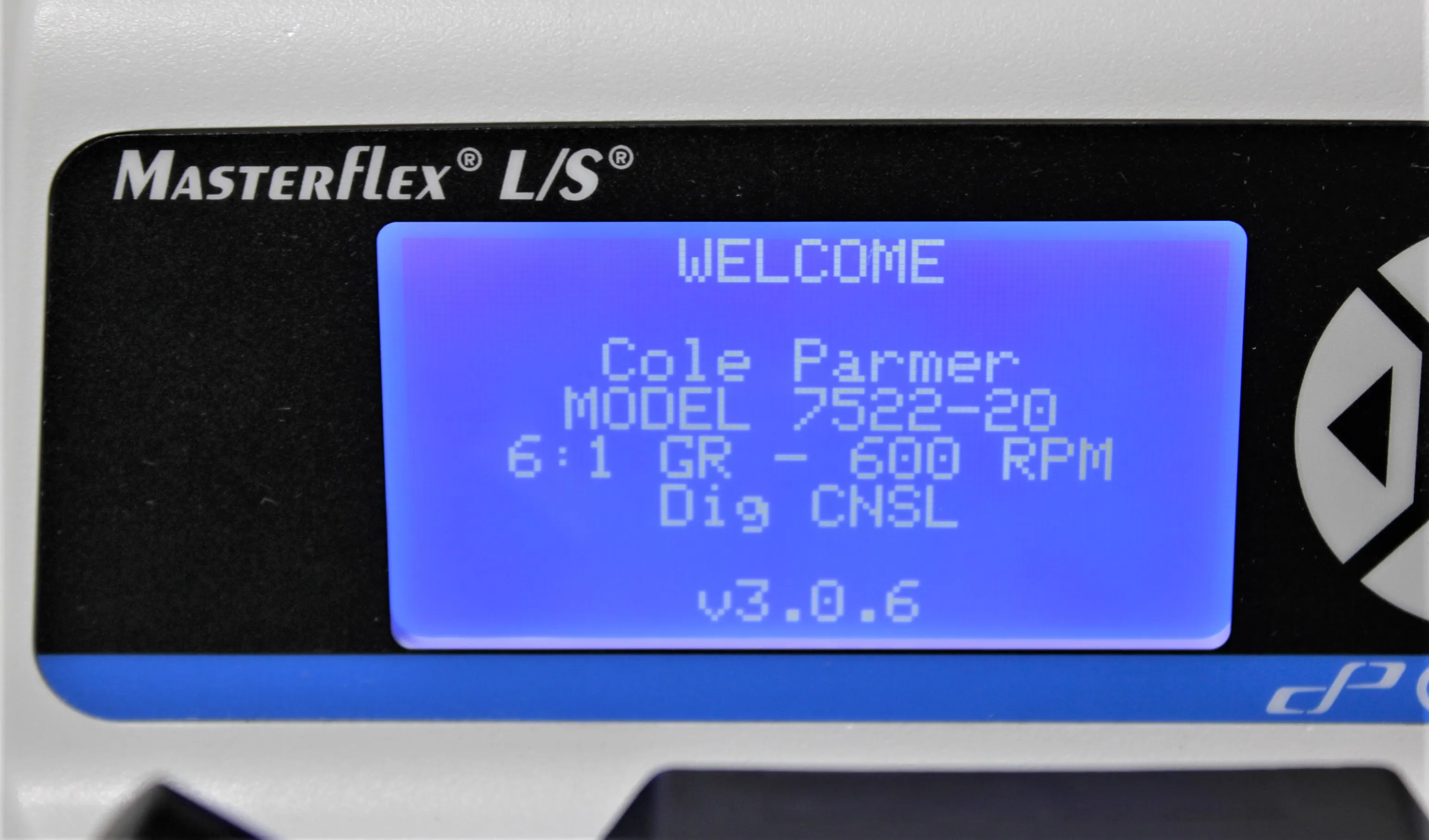

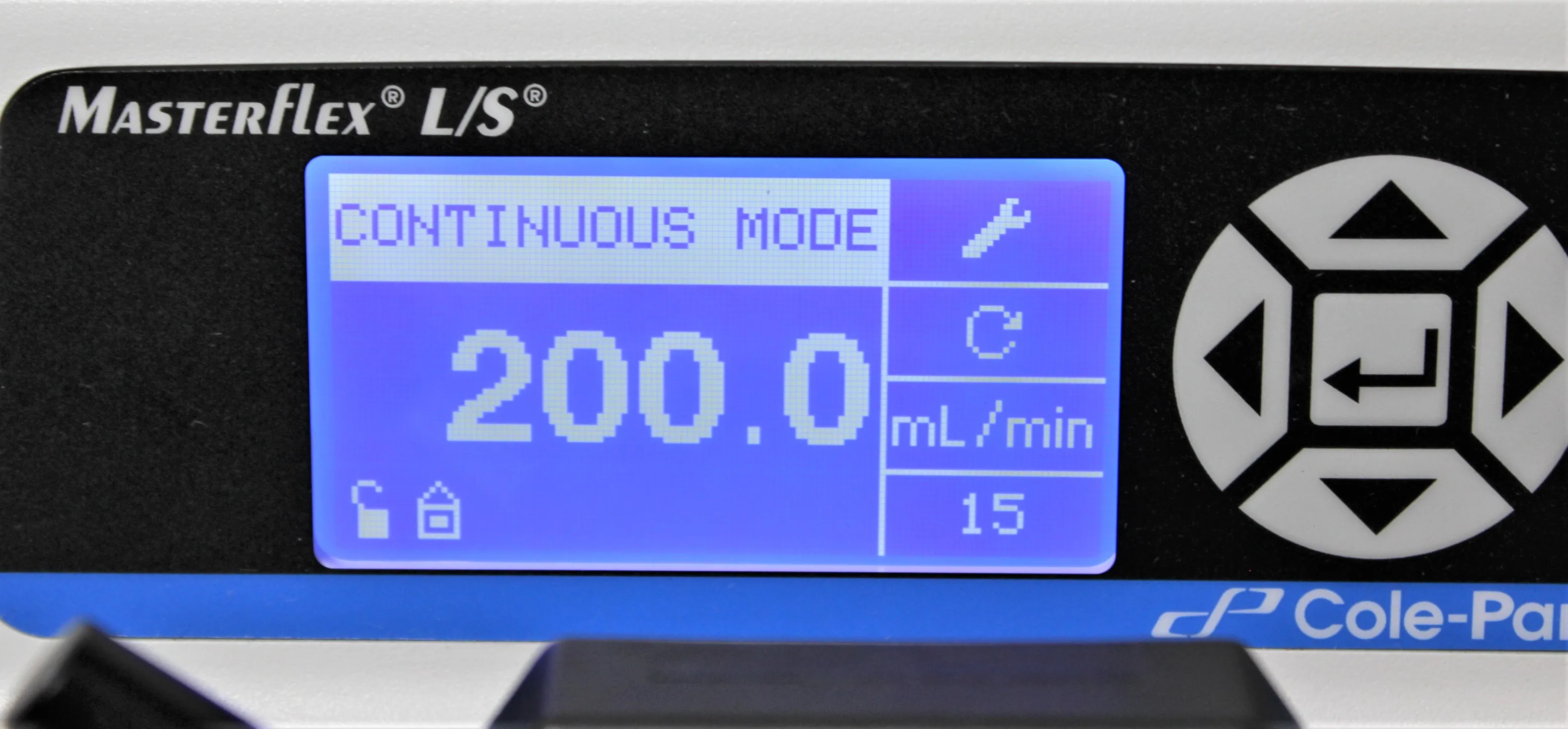

As a brilliant lab scientist, I bring you the Cole Parmer LS Digital Drive 600rpm 07522-20 Peristaltic Pump! This precision drive offers analog remote control options, making it ideal for automated process applications. With its digital interface and graphical LCD, it displays pump performance and operating modes, such as continuous run, timed dispense, copy dispense, or volume dispense. The maximum speed of 600 rpm ensures accurate and versatile dispensing. This pump is perfect for applications such as pharmaceutical manufacturing, biotechnology, and chemical processing.

• Flow rate 0.001 to 566 mL/min with L/S tubing
• Brushless, maintenance-free motor with 0.1% speed control accuracy
• Analog remote control options and simple programming
• Programmable dispense interval
• Reversible motor for purging tubing and pumping in either direction

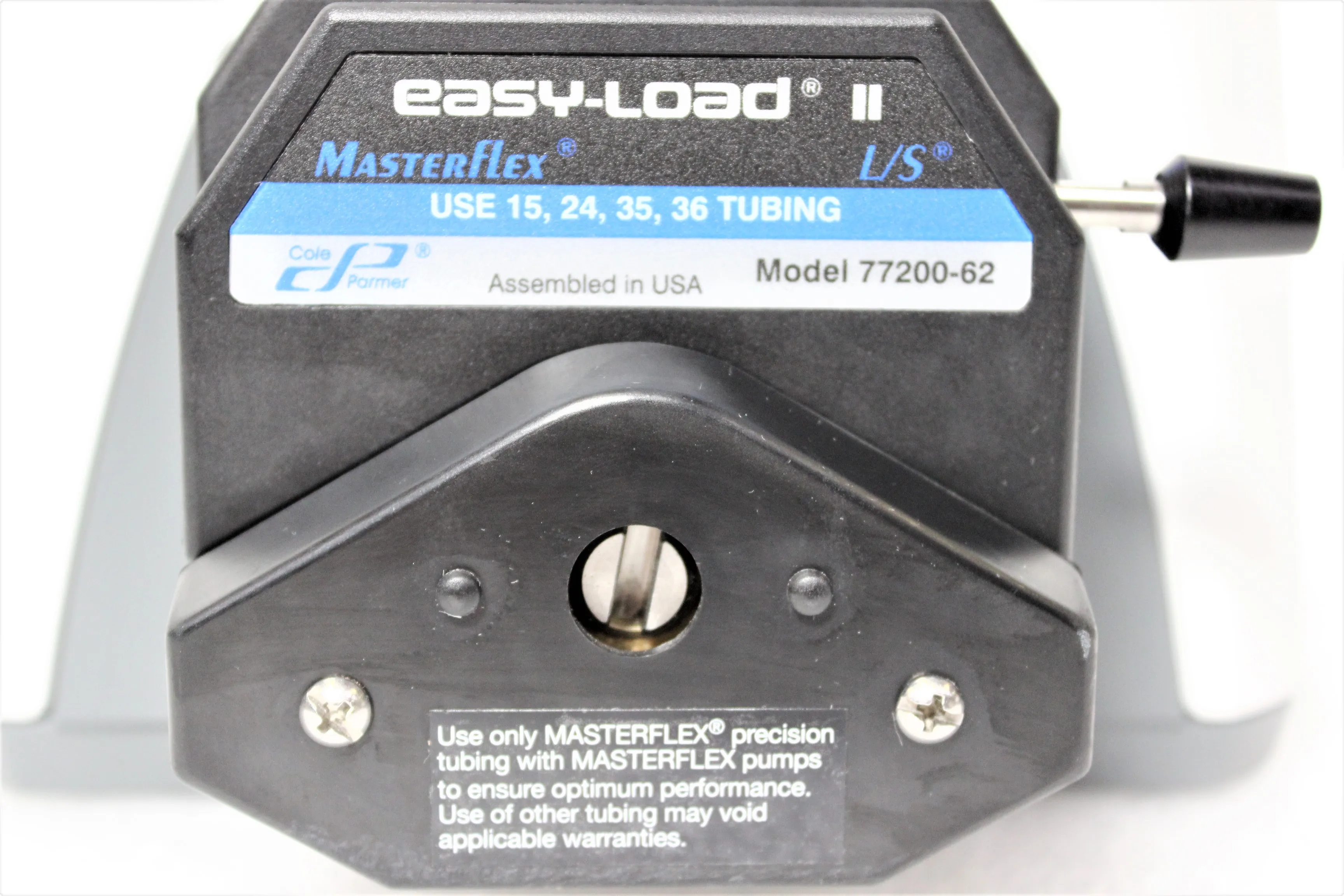

• Compatible with multiple pump head types

• Pump Series: L/S
• Control Type: Digital Variable Speed
• Min RPM: 0.1
• Max RPM: 600
• Speed Control: 0.1% (0.1 rpm at 600 rpm)
• Max Flow Rate: 3400 mL/min
• Reversible Motor: Yes
• Digital Dispensing: Yes
• No. of Pump Heads Accepted: 2
• Motor (watts): 75
• Drive IP rating: IP 33

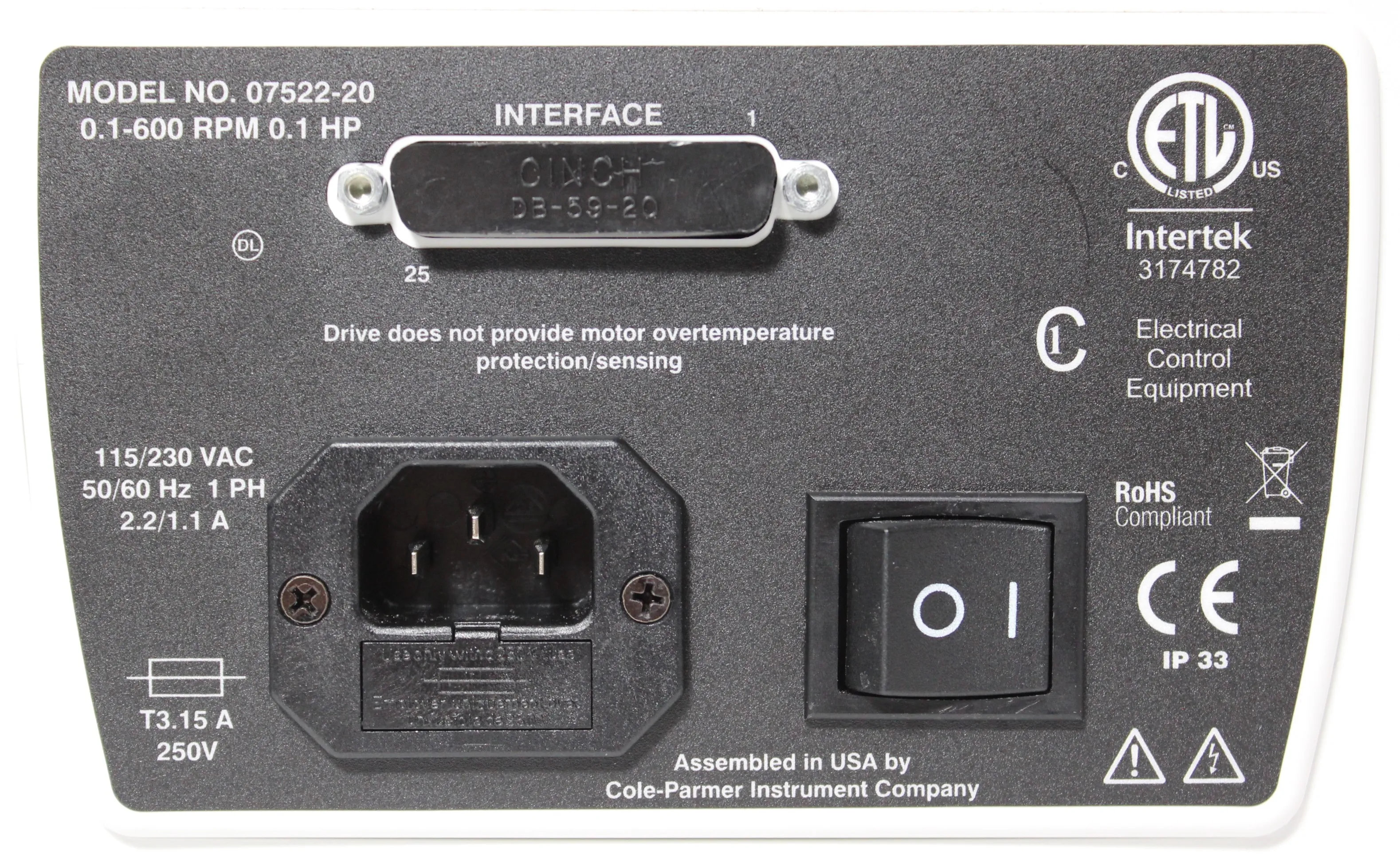

• Power (VAC): 90 to 260
• Power (amps): 2.2
• Power (Hz): 50/60
• Dimensions: 254mm x 216mm x 216mm
• Weight: 15 kg
• Voltage: 230V
• Hertz: 50Hz/60Hz
• Warranty: 30-Day Warranty, 100% Parts and Labor

Metric: 15 kg
Imperial: 33.0693 lbs

Metric: 26.4 cm x 21.6 cm x 21.6 cm
Imperial: 10.39 in x 8.5 in x 8.5 in

8413811050

The harmonized code 8413811050 is chosen for centrifugal pumps, typically used for liquid dispensing in laboratories. It perfectly aligns with the purpose and specifications of the Cole Parmer LS Digital Drive 600rpm 07522-20 Peristaltic Pump.
