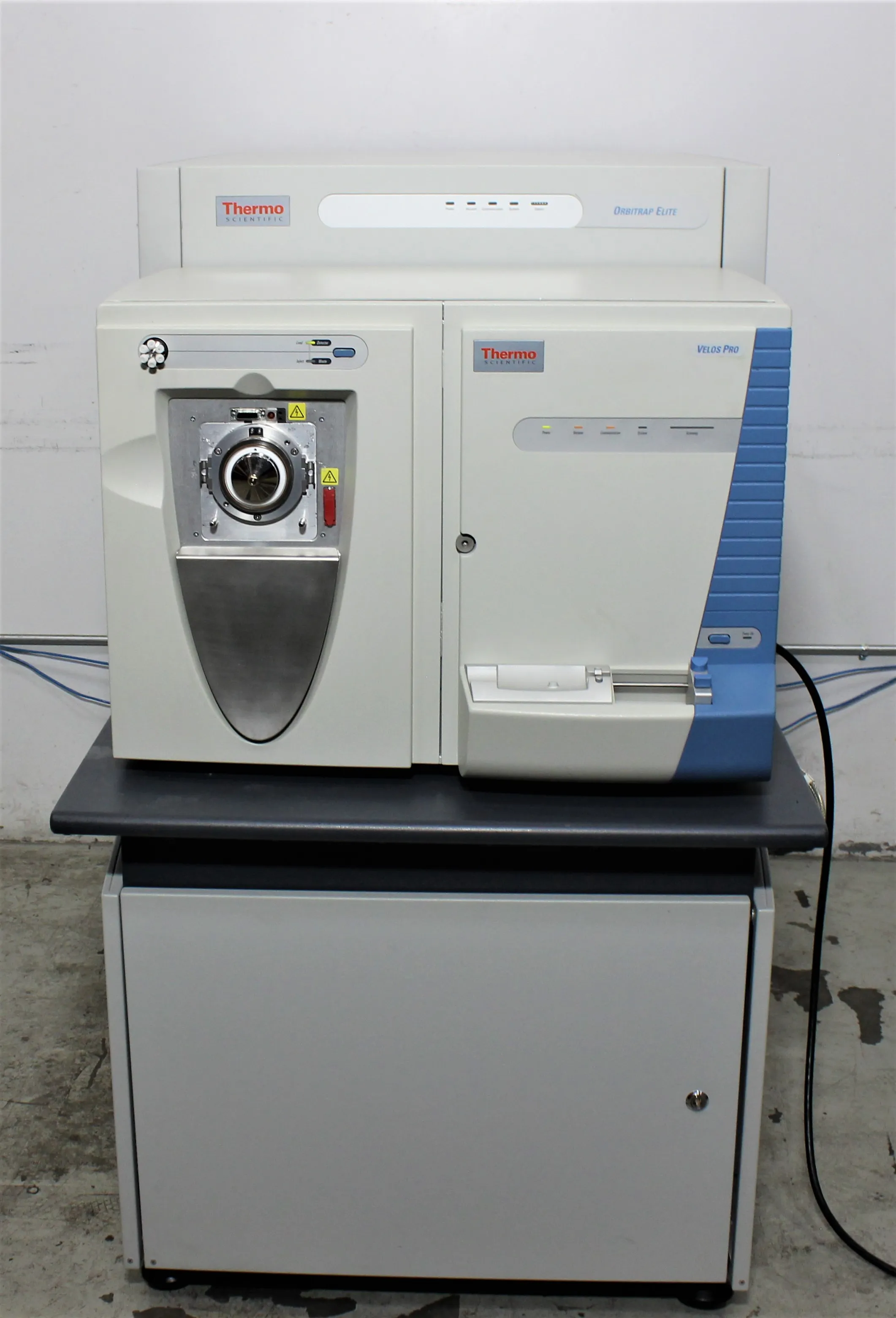

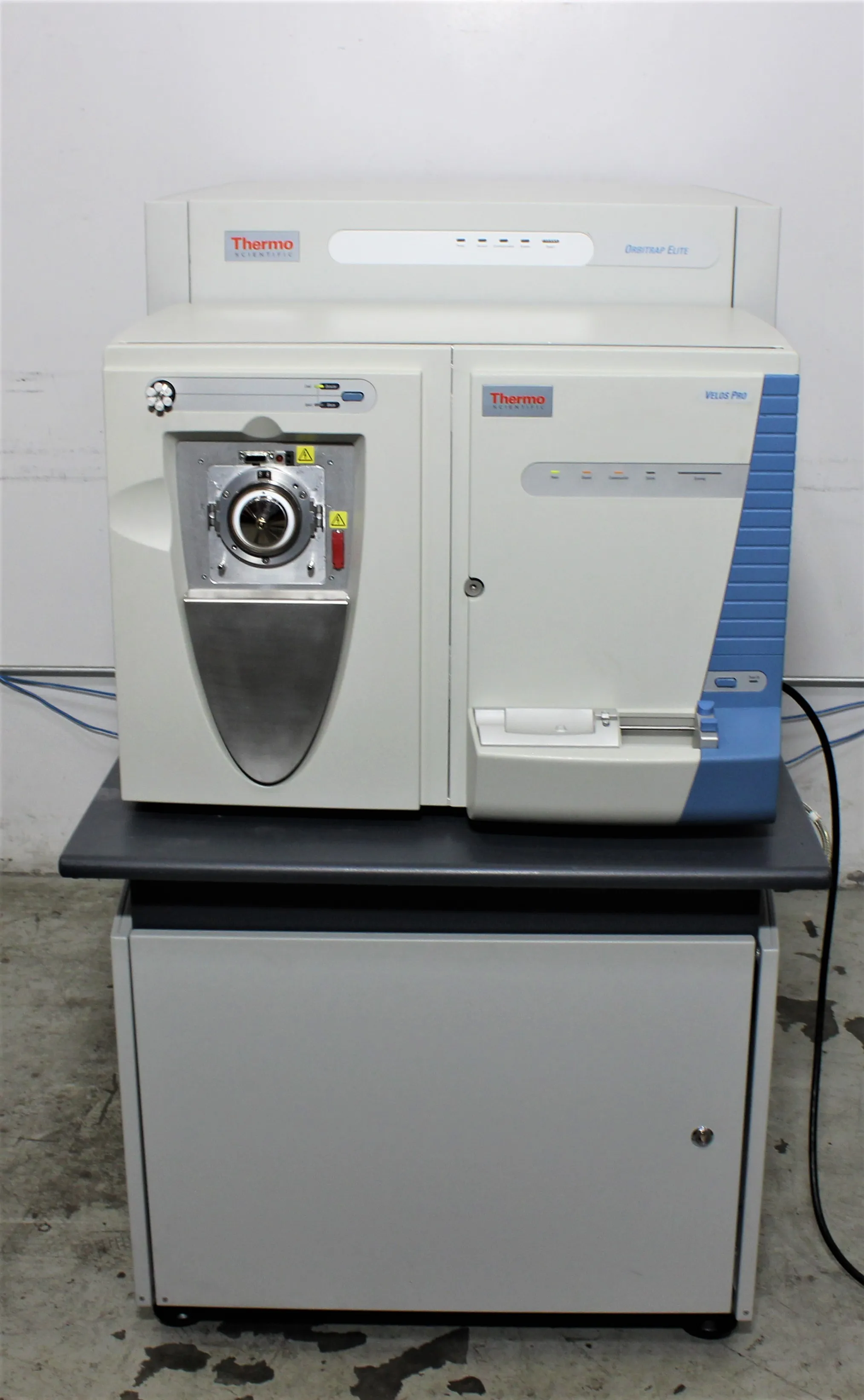

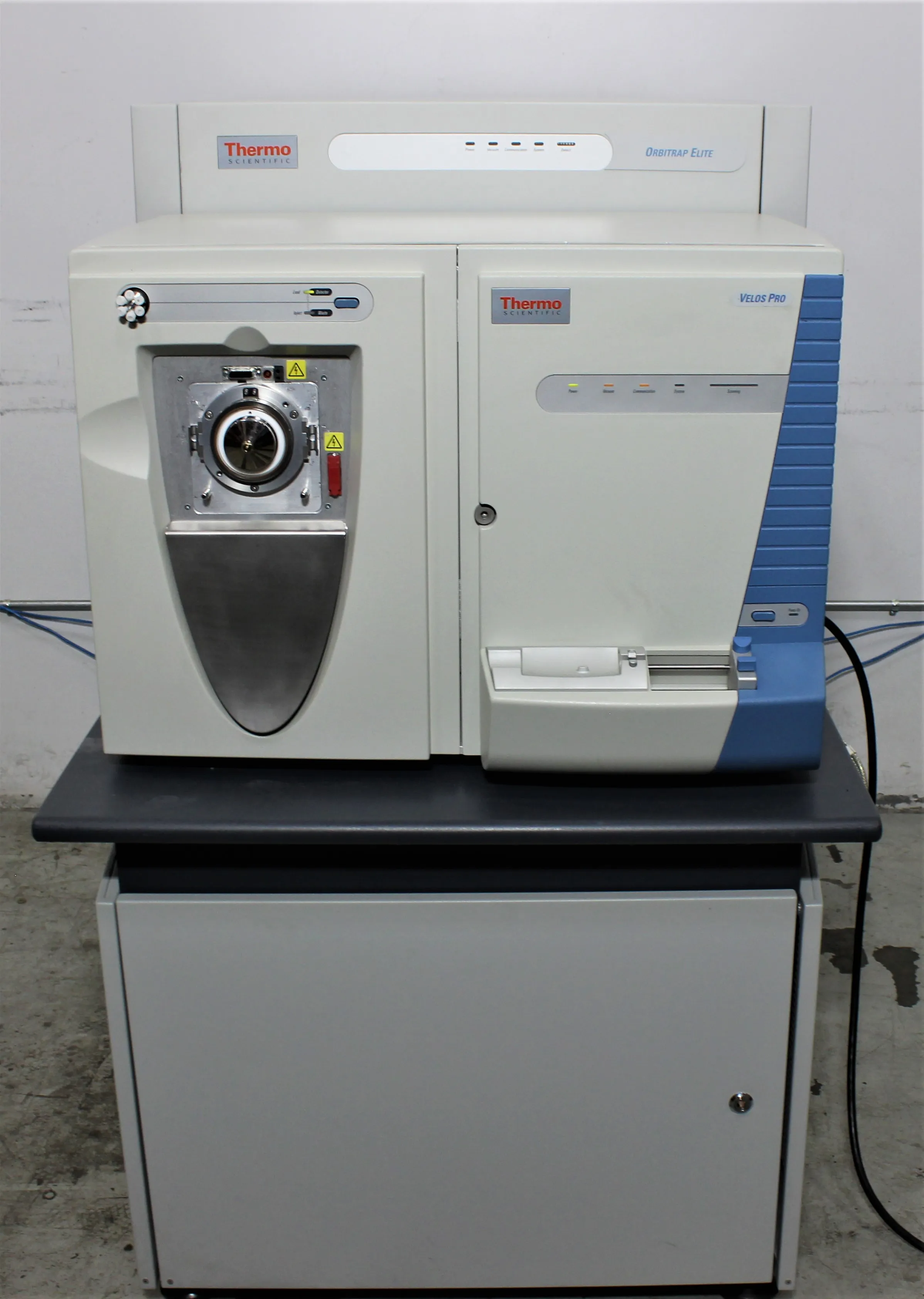

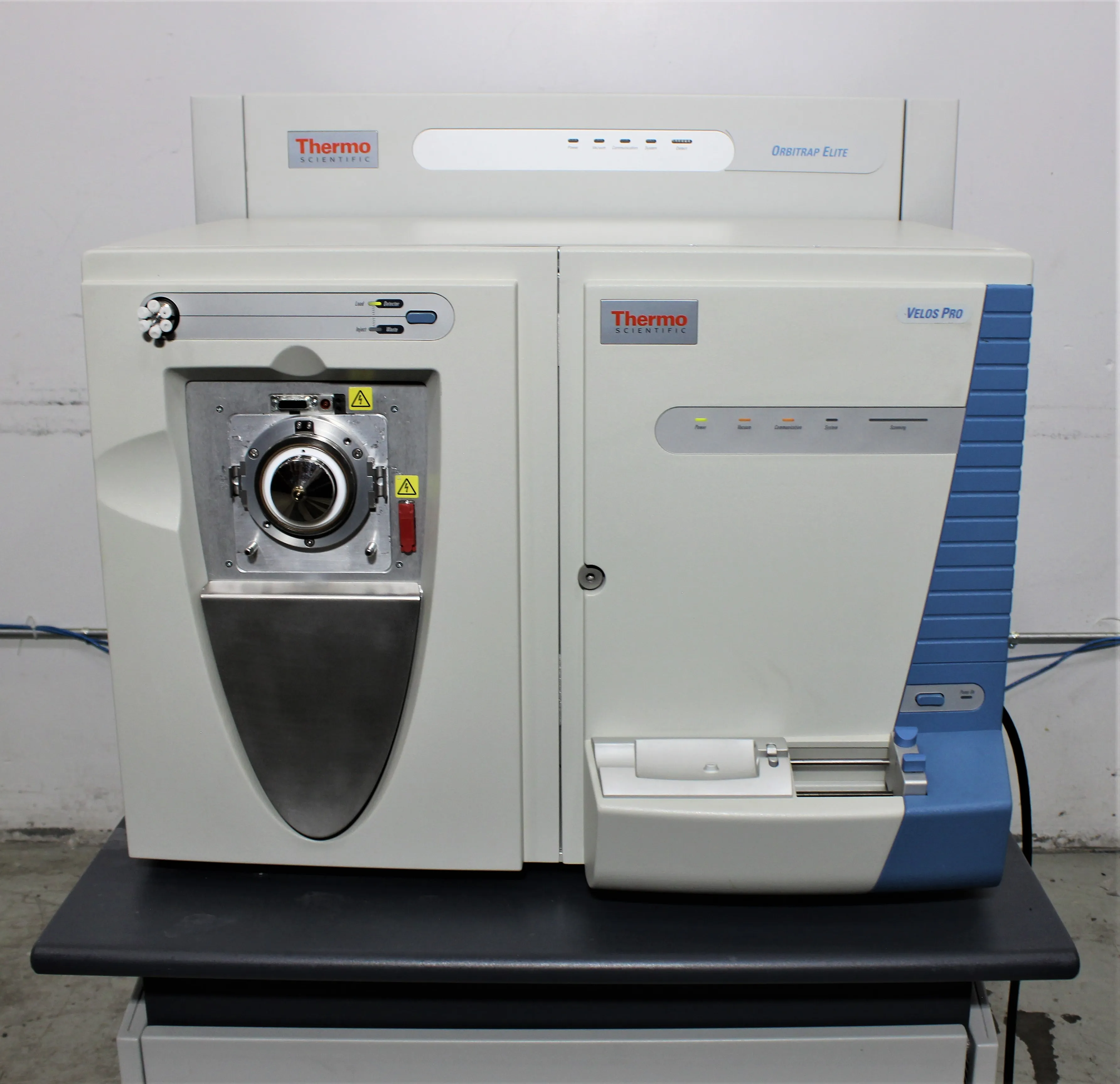

Thermo Scientific Orbitrap Elite & LTQ Velos PRO Hybrid Mass Spectrometer

Product Information

The Thermo Scientific Orbitrap Elite & LTQ Velos PRO hybrid mass spectrometer is an industry-leading high-performance machine. This novel high-field Orbitrap analyzer combined with the Thermo Scientific LTQ Velos PRO increases speed, sensitivity, and dynamic range to delve deeper into samples. It ensures molecular weight determination for intact proteins and in-depth analysis of isobaric species. The system's unsurpassed resolution is especially useful for complex and low abundance samples, in applications such as proteomics, metabolomics, and lipidomics.

• High-performance hybrid mass spectrometer

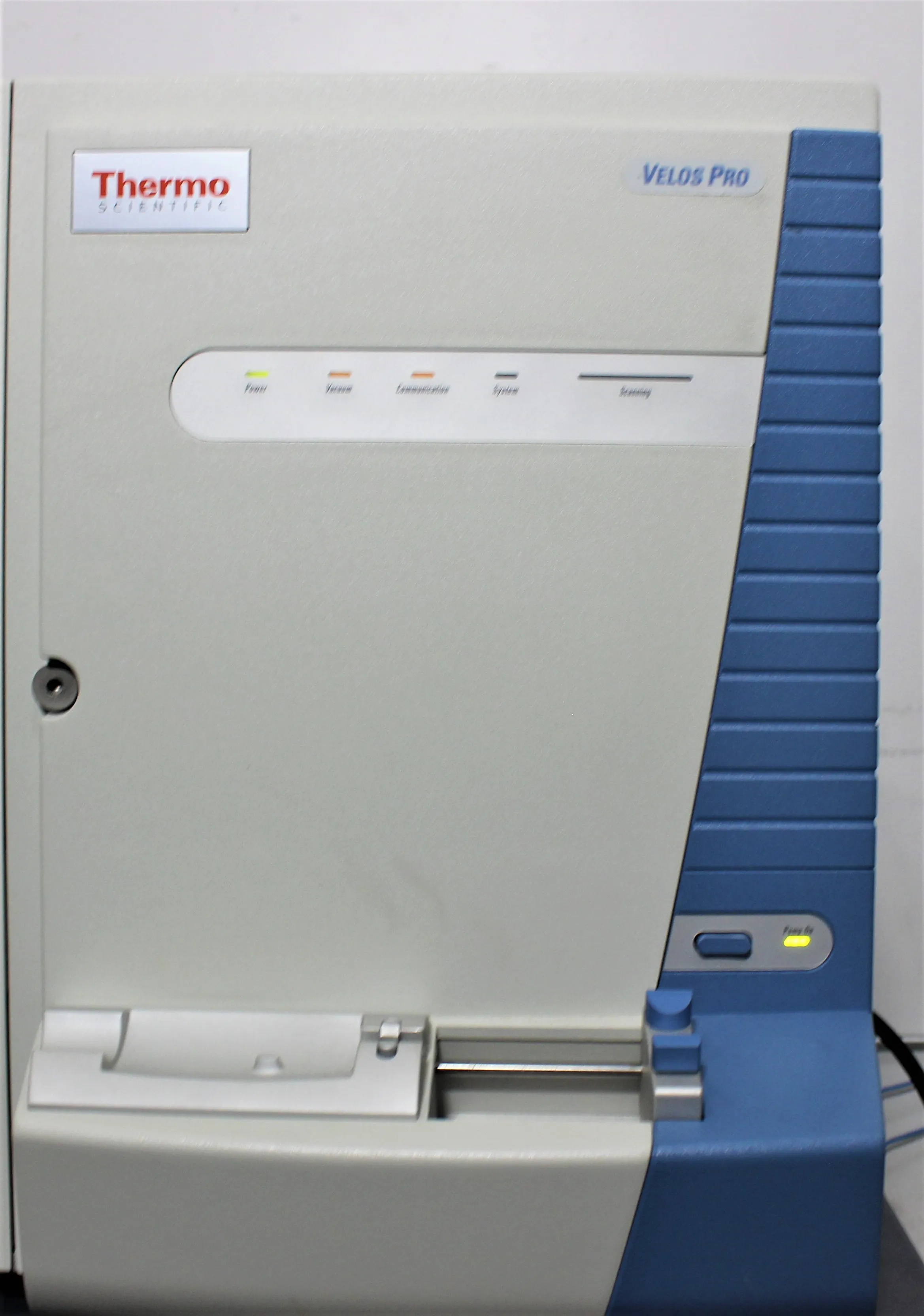

• Combination of high-field Orbitrap analyzer and LTQ Velos PRO
• Increased speed, sensitivity, and dynamic range
• Ensures molecular weight determination for intact proteins and in-depth analysis of isobaric species
• Useful for complex and low abundance samples
• Applications in proteomics, metabolomics, and lipidomics

• Mass Range: m/z 50-2000, m/z 200-4000
• Resolution: 60,000 at m/z 400 at a scan rate of 1 Hz, minimum resolution 7,500 maximum resolution >100,000 at m/z 400
• Mass Accuracy: < 3 ppm with external calibration, < 1 ppm using internal calibration
• MS/MS Technique: Electrospray Ionization (ESI)
• Dynamic Range: >5,000 within a single scan guaranteeing specified mass accuracy
• MS Scan Power: MSn, for n = 1 through 10
• Sensitivity: -2 L of a 50 fg/L solution of (Ion Trap) reserpine injected at a flow of 500 L/min will produce a minimum signal-to-noise ratio of 100:1
• ETD: 3 L/min infusion of a 1 pmol/L solution of Angiotensin I will produce electron transfer dissociation fragmentation efficiency of >15%

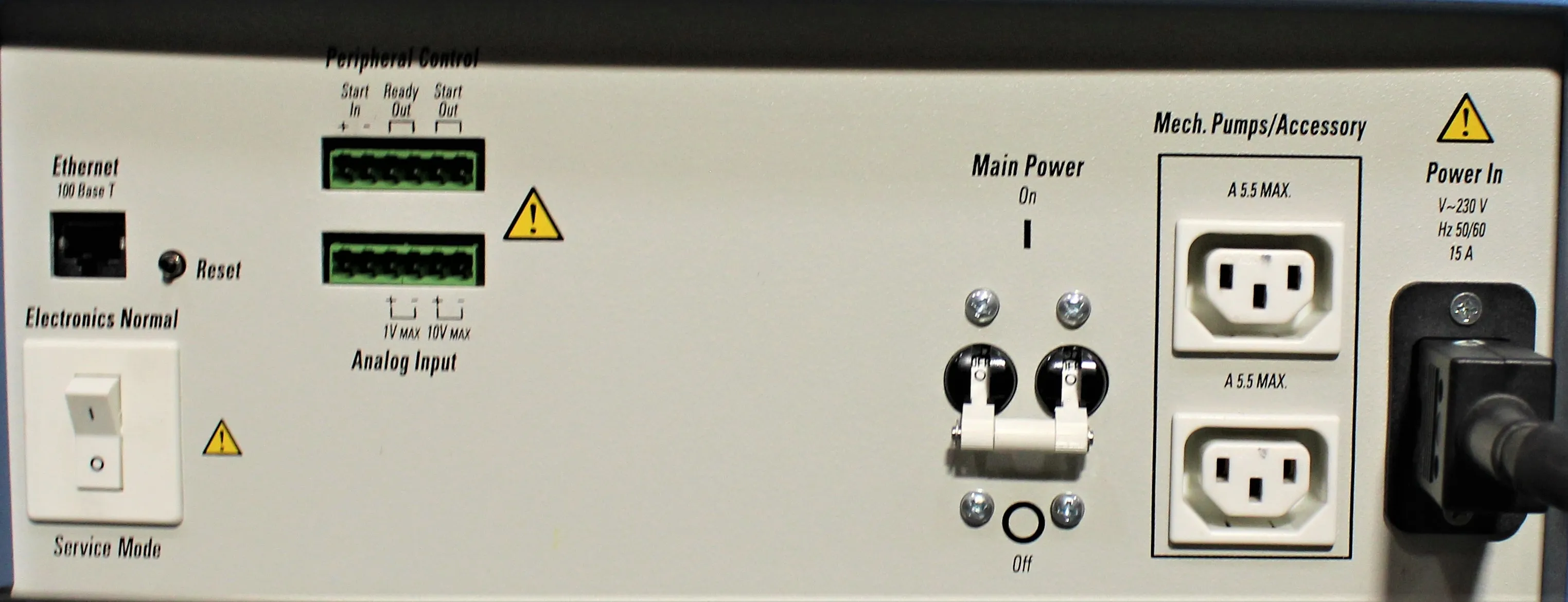

• Analog Inputs: One (1) analog input (0-1 V), One (1) analog (0-10 V)

Metric: 689.463 kg
Imperial: 1517 lbs

Metric: 79 cm x 44 cm x 66 cm
Imperial: 31.102 in x 17.323 in x 25.984 in

902720

902720 - Spectrometers, mass spectrometers
