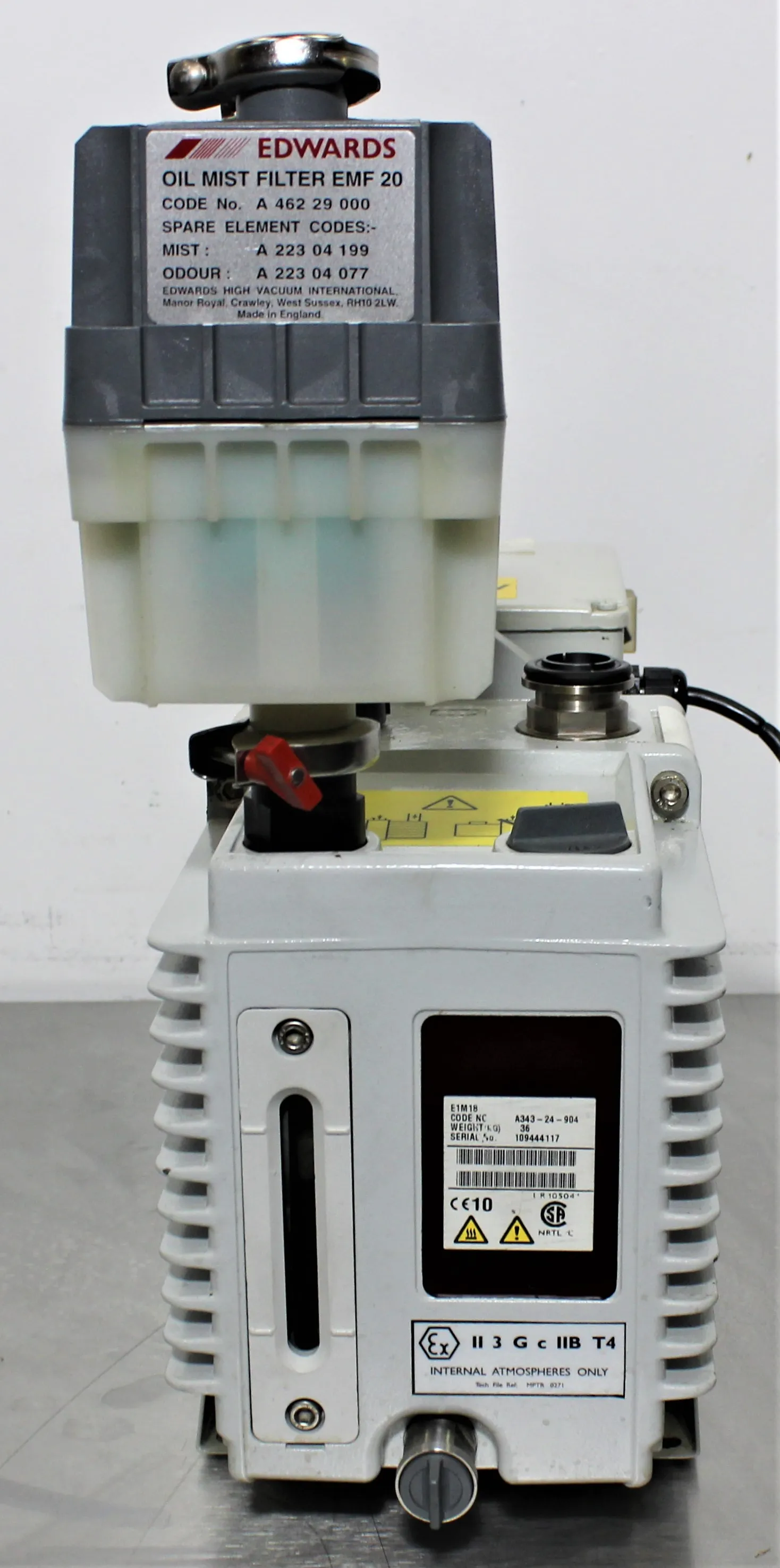

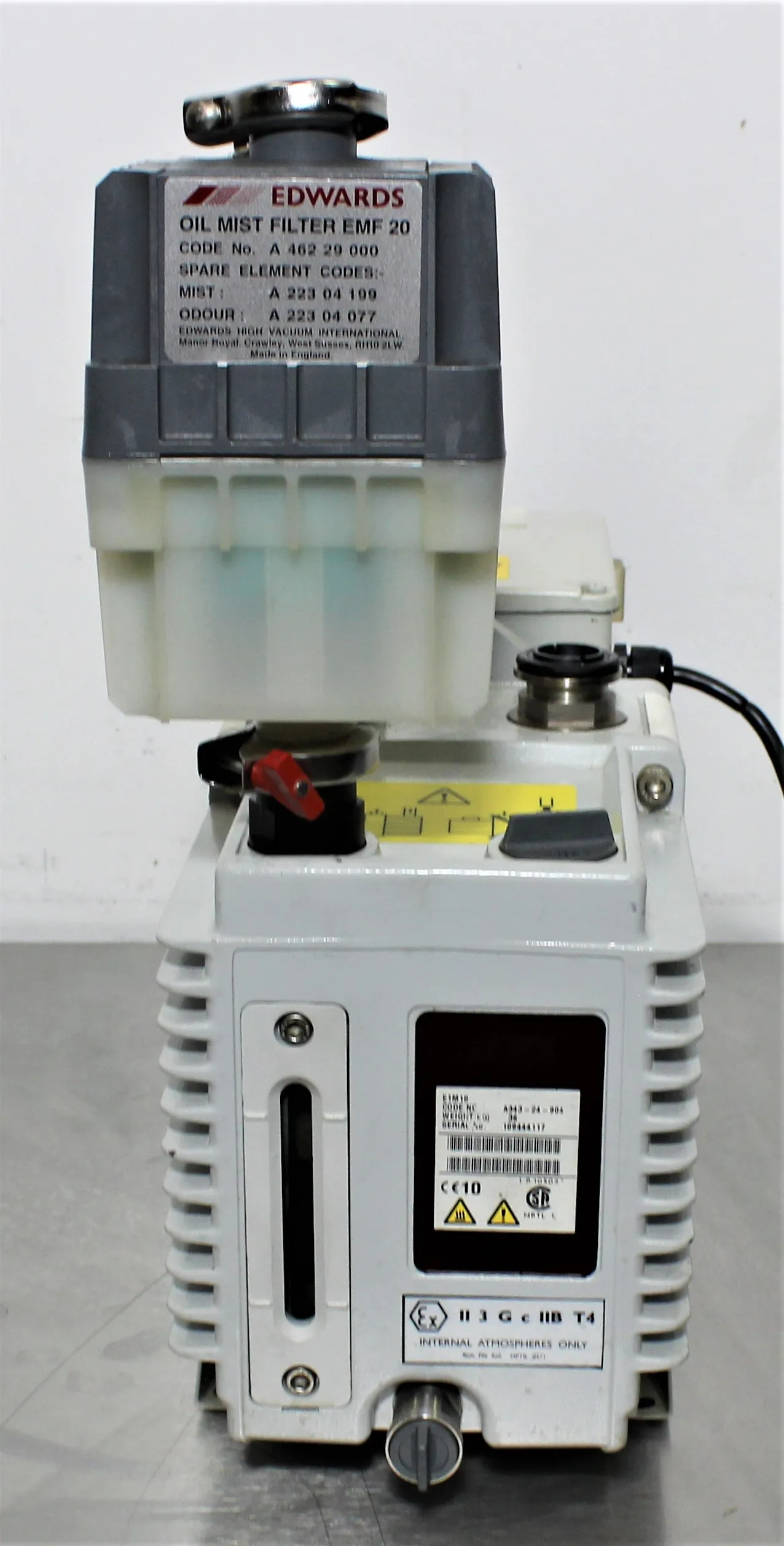

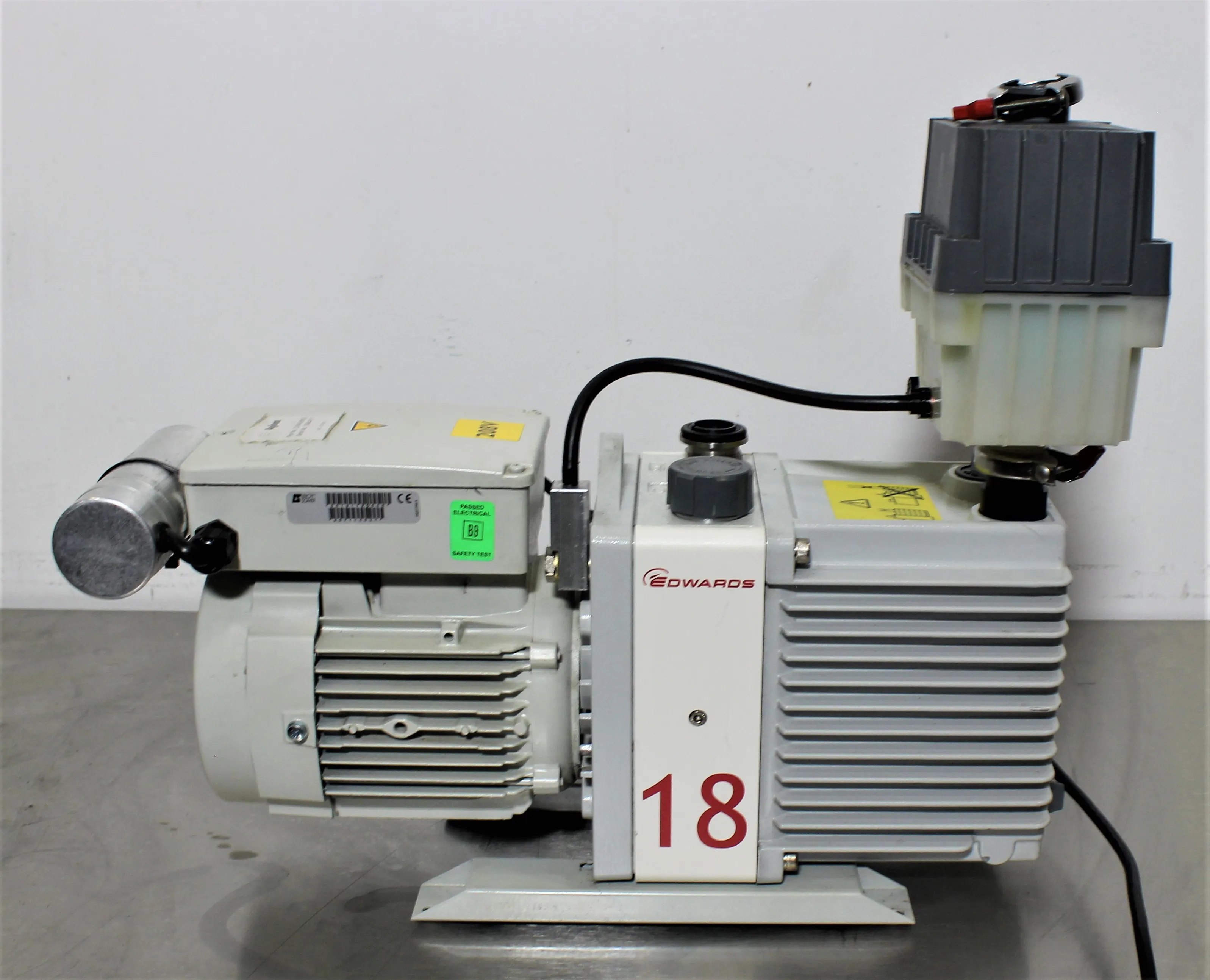

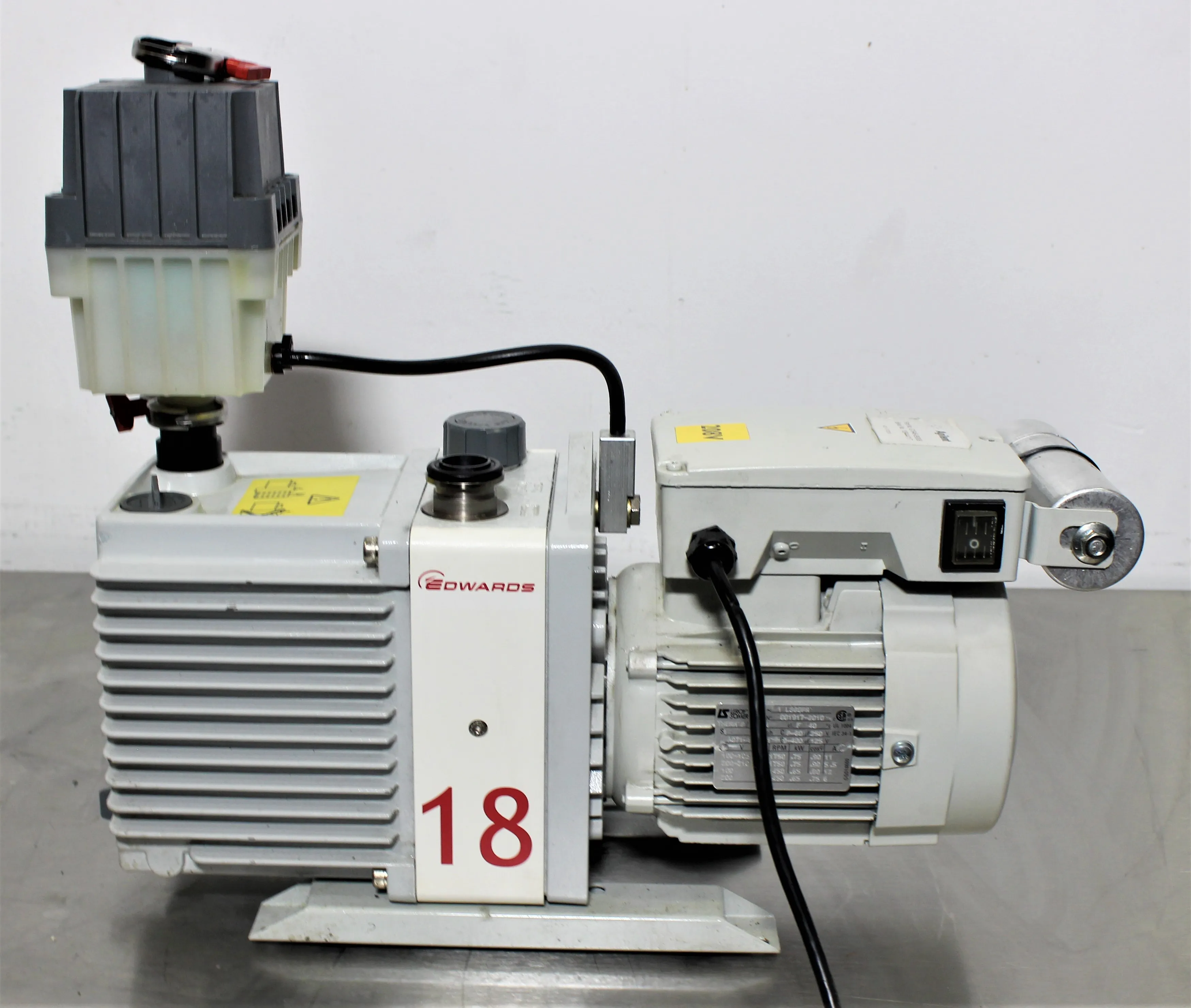

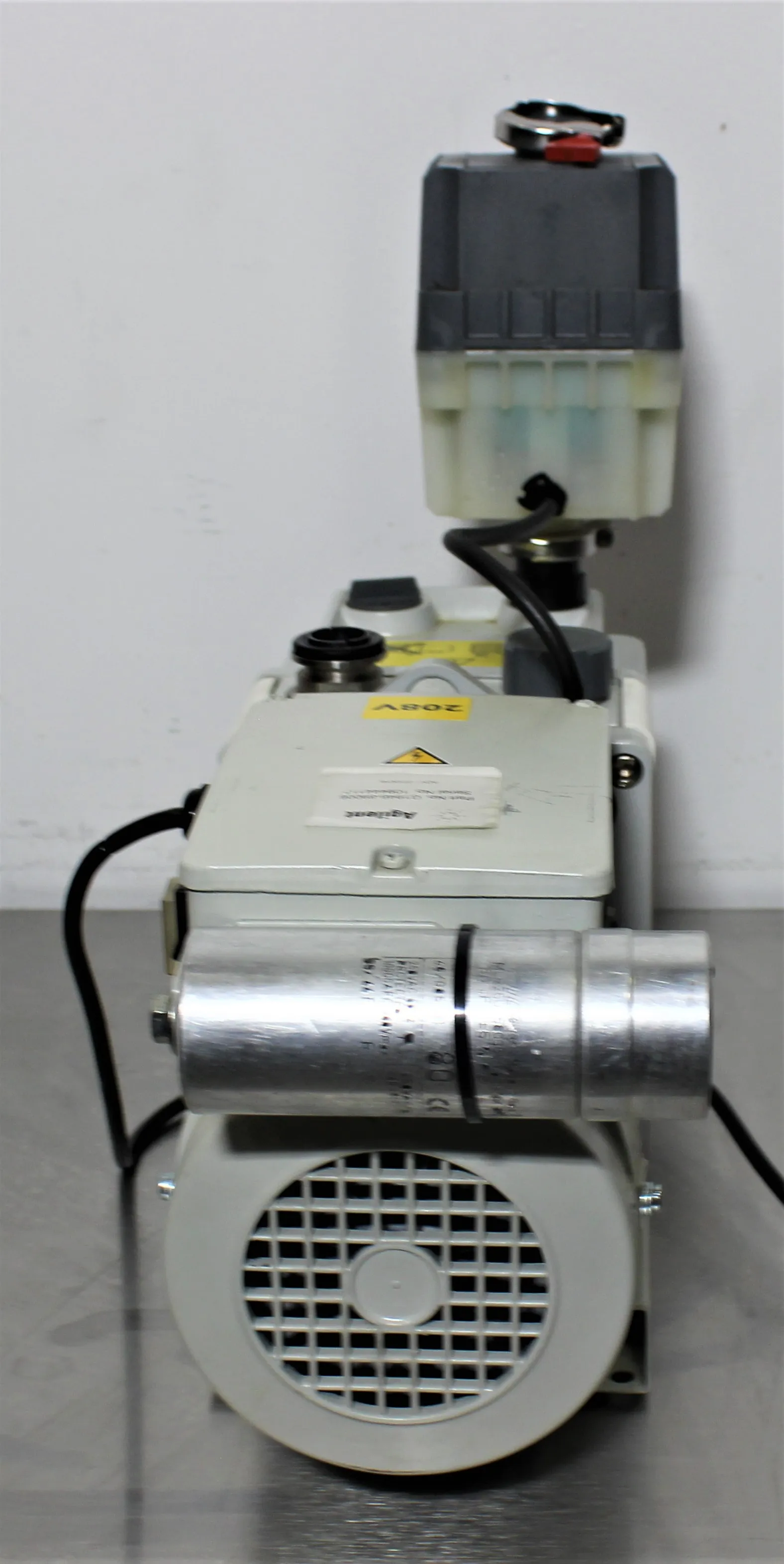

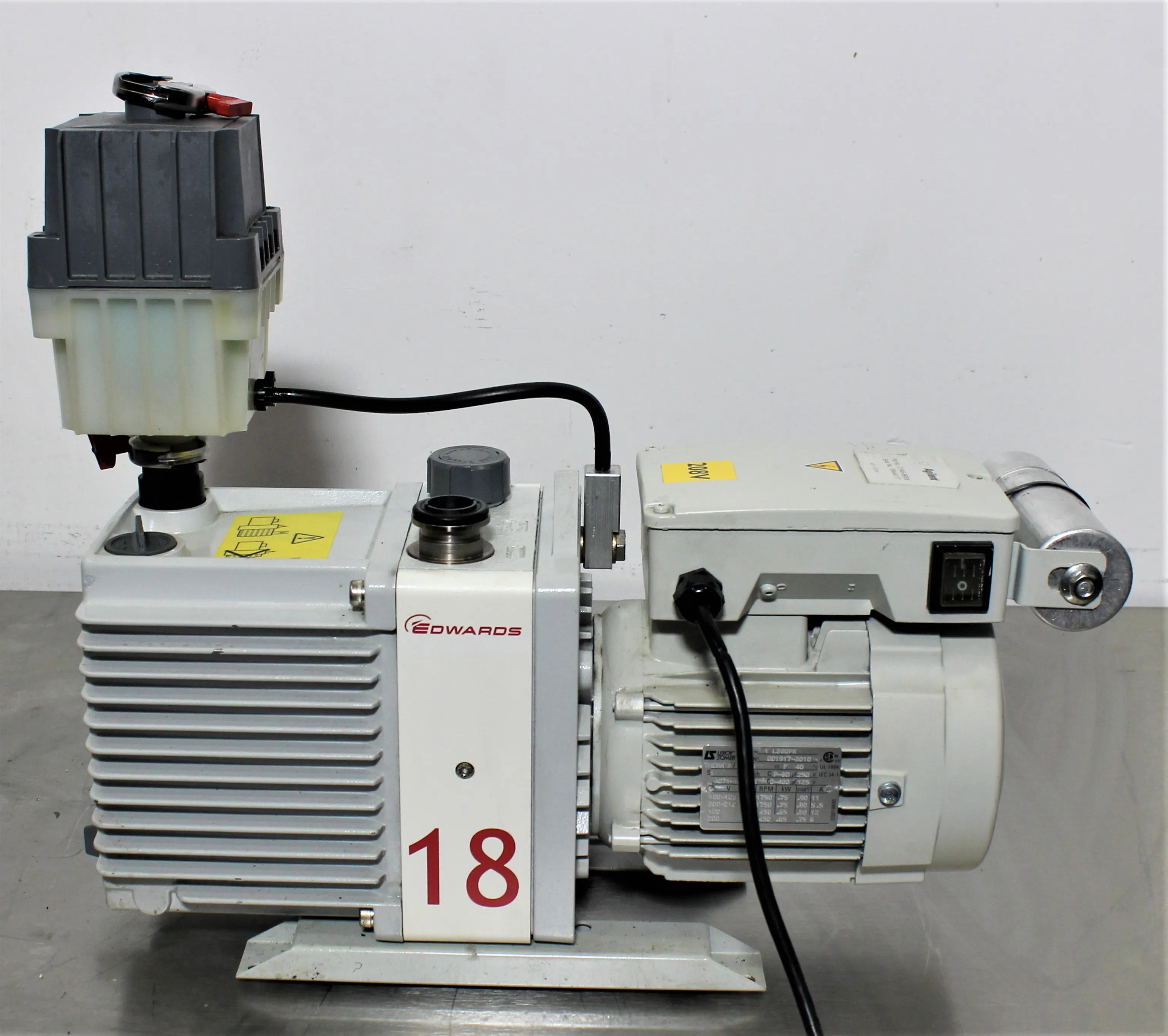

Edwards E1M18 Vacuum Pump

Product Information

Welcome, scientists! I present to you the Edwards E1M18 Vacuum Pump, a direct drive, sliding vane pump designed for reliable long-term operation in laboratory and industrial environments. This single-stage pump by Edwards is oil-sealed, free-standing, and perfect for use in various applications such as chemical, pharmaceutical, and food processing. The pump has been rebuilt with hydrocarbon oil, has a motor cooling fan, a gas ballast control, and a maximum flow rate of 25.0 m3h-1 / 14.7 ft3min-1. The Edwards E1M18 is as important in your lab as a microscope or a centrifuge, and its pivotal role should not be underestimated.

• Direct drive, sliding vane pump
• Oil-sealed for reliable long-term operation
• Free-standing unit with a motor cooling fan
• Rebuilt with Hydrocarbon oil
• Single-stage pump with a gas ballast control

• Ultimate Vacuum: Without gas purge 3 x 10-2mbar / 2.2 x 10-2Torr, with gas purge 6.5 x 10-1mbar / 4.8 x 10-1Torr
• Maximum Permitted Pressure at Outlet: 0.5 bar gauge / 7 psig
• Maximum Inlet Pressure for Water Vapour: 50 mbar / 38 Torr

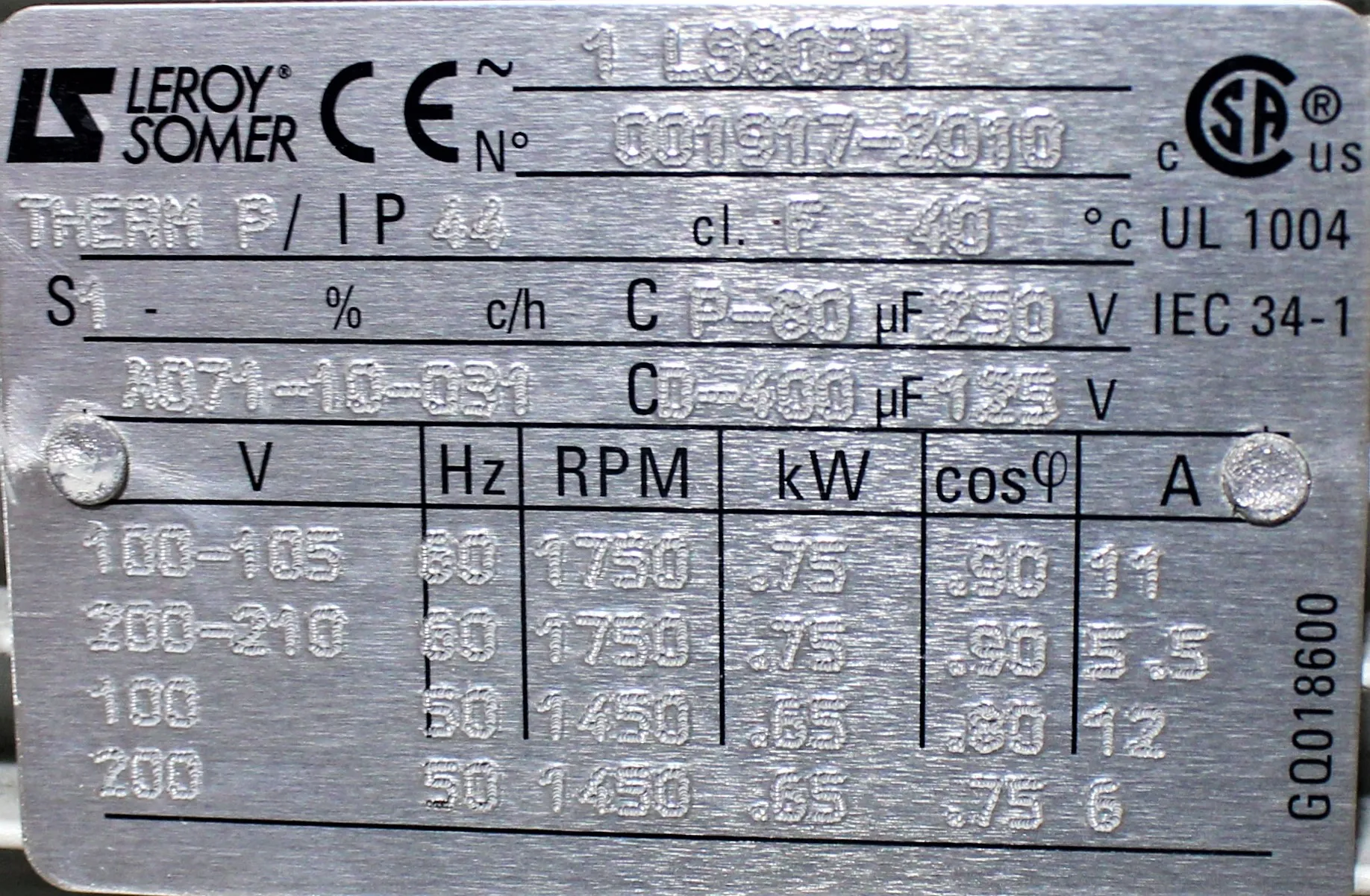

• Motor Power: 50/60 Hz 0.55 kW / 0.75kW
• Operating Temperature Range: 13 - 40C
• Noise: 57 dB(A) @ 50 Hz
• Oil Capacity: Maximum 1.4 litre, Minimum 0.9 litre
• Recommended Oil: Ultragrade 19

Metric: 40.82 kg
Imperial: 90 lbs

Metric: 73.66 cm x 38.1 cm x 66.04 cm
Imperial: 29 in x 15 in x 26 in

8414105000

The harmonized system code 8414105000 is for Vacuum Pumps. The Edwards E1M18 Vacuum Pump falls under this category due to its function and key design features.
