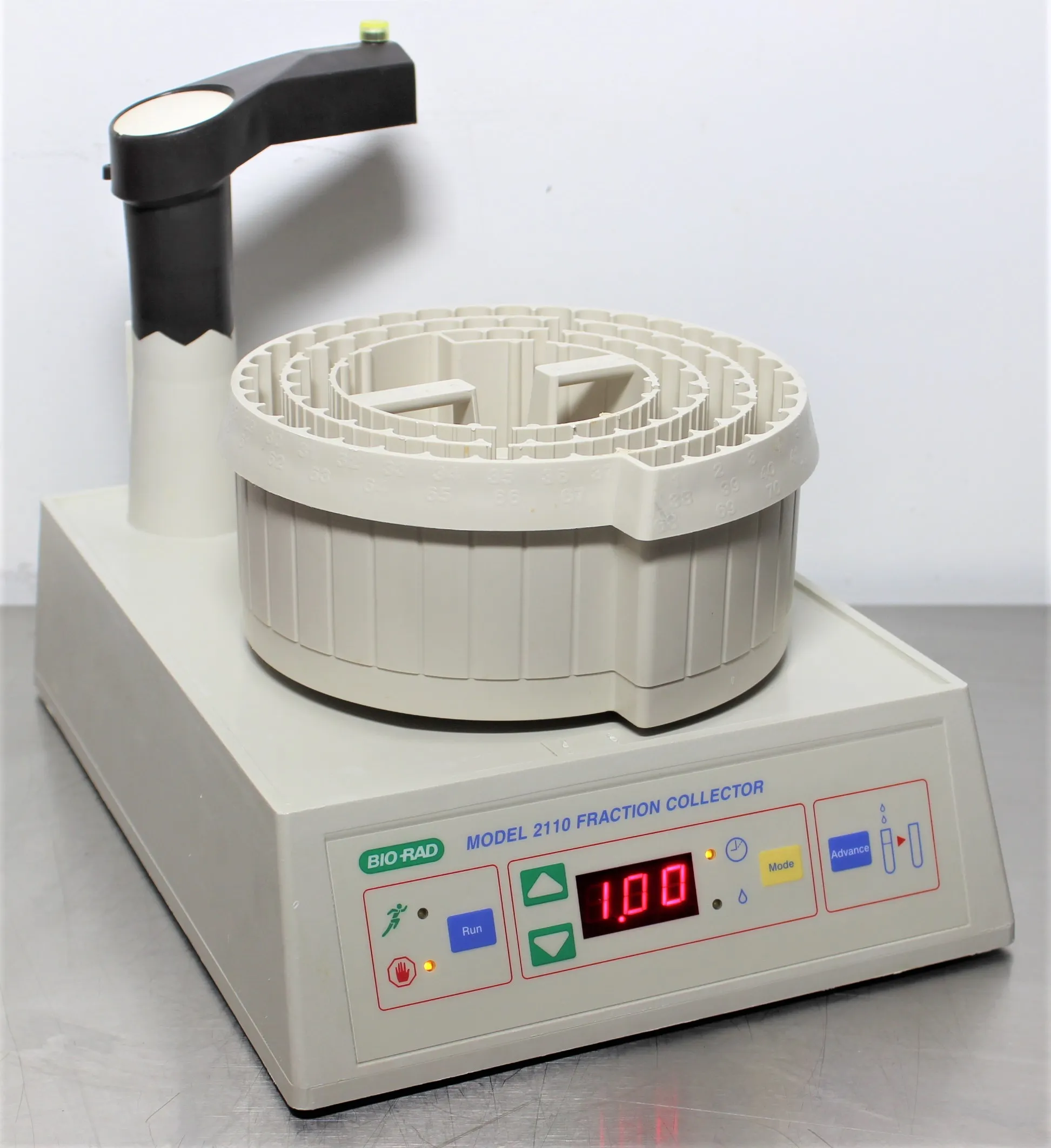

Bio Rad Model 2110 Fraction Collector

Product Information

Welcome, fellow scientists! Introducing the Bio Rad Model 2110 Fraction Collector, a versatile instrument providing multiple collection modes for chromatographic separations. This incredibly easy-to-use collector allows for time or drop collection modes, ensuring precise and efficient fraction collection. Ideal for collecting 1 drop (~50 l) to 9 ml fractions in 80 test tubes or microtubes. Its adaptable design enables mounting of small chromatography columns to minimize dead volume. With a small footprint of 24 x 33 cm, it's a space-saving addition to any lab. This Used unit has coldroom compatibility and offers manual-advance tube changes. The robust construction with polypropylene case and carousel, along with a hard-coated polycarbonate front panel, ensures durability. Compatible with eighty 13 x 100 mm glass, polypropylene, or polystyrene test tubes, or 1.5 ml microtubes when using the optional micro tube adaptor. The Model 2110 Fraction Collector is capable of a collection basis of 1999 drops in 1 drop increments, 0.05 - 9.99 min in 0.01 min increments, and 10.0 - 99.9 min in 0.1 min increments.

• Time or drop collection modes
• Collection of 1 drop (~50 l) to 9 ml fractions in 80 test tubes or microtubes
• Small chromatography columns can be mounted to minimize dead volume
• Manual-advance tube changes
• Coldroom compatibility
• Small footprint of 24 x 33 cm

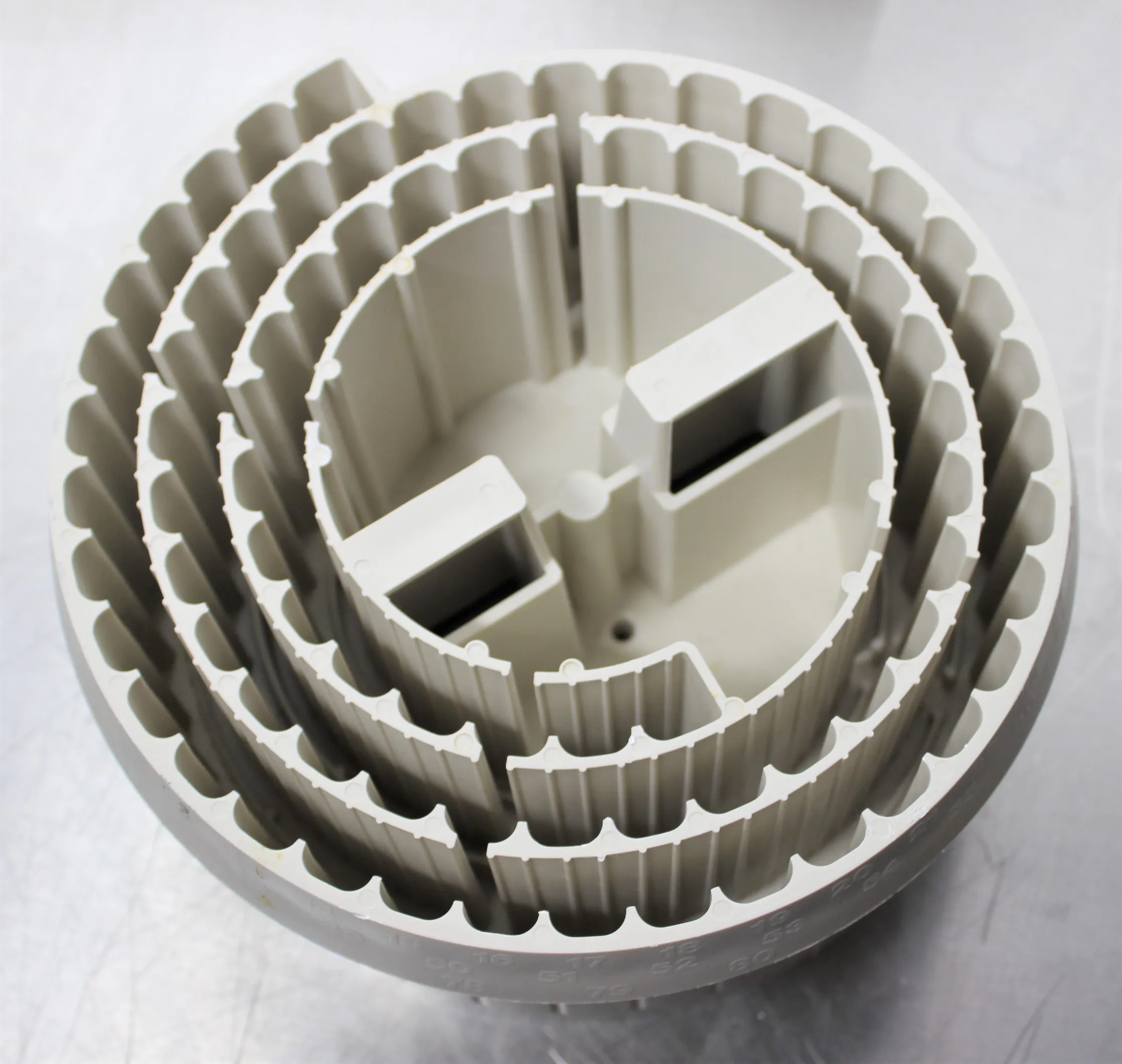

• Capacity for eighty 13 x 100 mm glass, polypropylene, or polystyrene test tubes, or 1.5 ml microtubes with optional micro tube adaptor
• Collection basis of 1999 drops in 1 drop increments, 0.05 - 9.99 min in 0.01 min increments, and 10.0 - 99.9 min in 0.1 min increments
• Construction with polypropylene case and carousel, hard-coated polycarbonate front panel

• Multiple collection modes for chromatographic separations
• Collection capacity: 1 drop to 9 ml fractions in 80 test tubes or microtubes
• Adaptable design to mount small chromatography columns
• Compatible with glass, polypropylene, or polystyrene test tubes, and 1.5 ml microtubes with optional adaptor
• Collection basis: 1999 drops in 1 drop increments, 0.05 - 9.99 min in 0.01 min increments, and 10.0 - 99.9 min in 0.1 min increments
• Construction: Polypropylene case and carousel, hard-coated polycarbonate front panel
• Operating temperature: 4°C to 40°C

Metric: 7 kg
Imperial: 15.43 lbs

Metric: 14 cm x 9 cm x 10 cm
Imperial: 5.51 in x 3.54 in x 3.94 in
