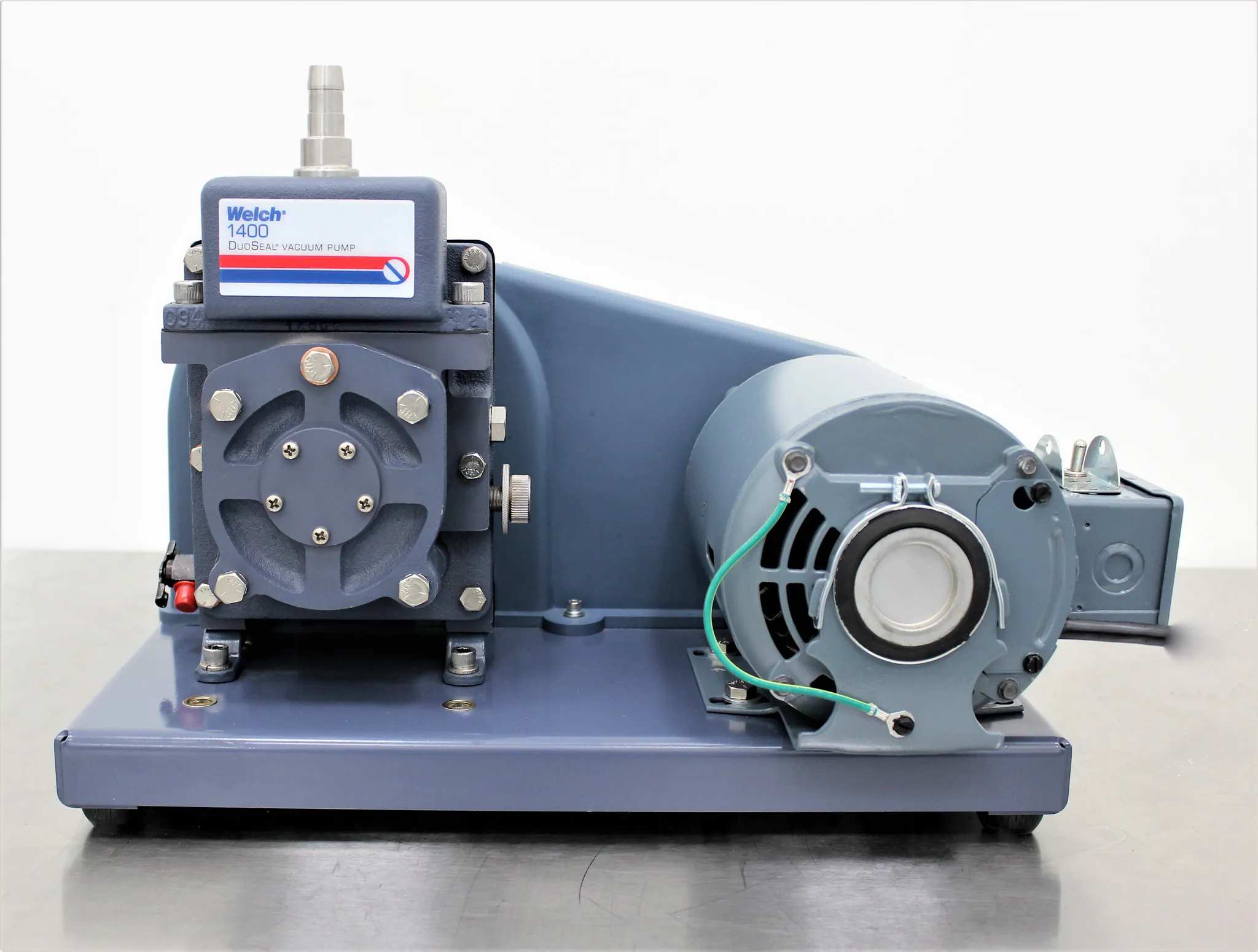

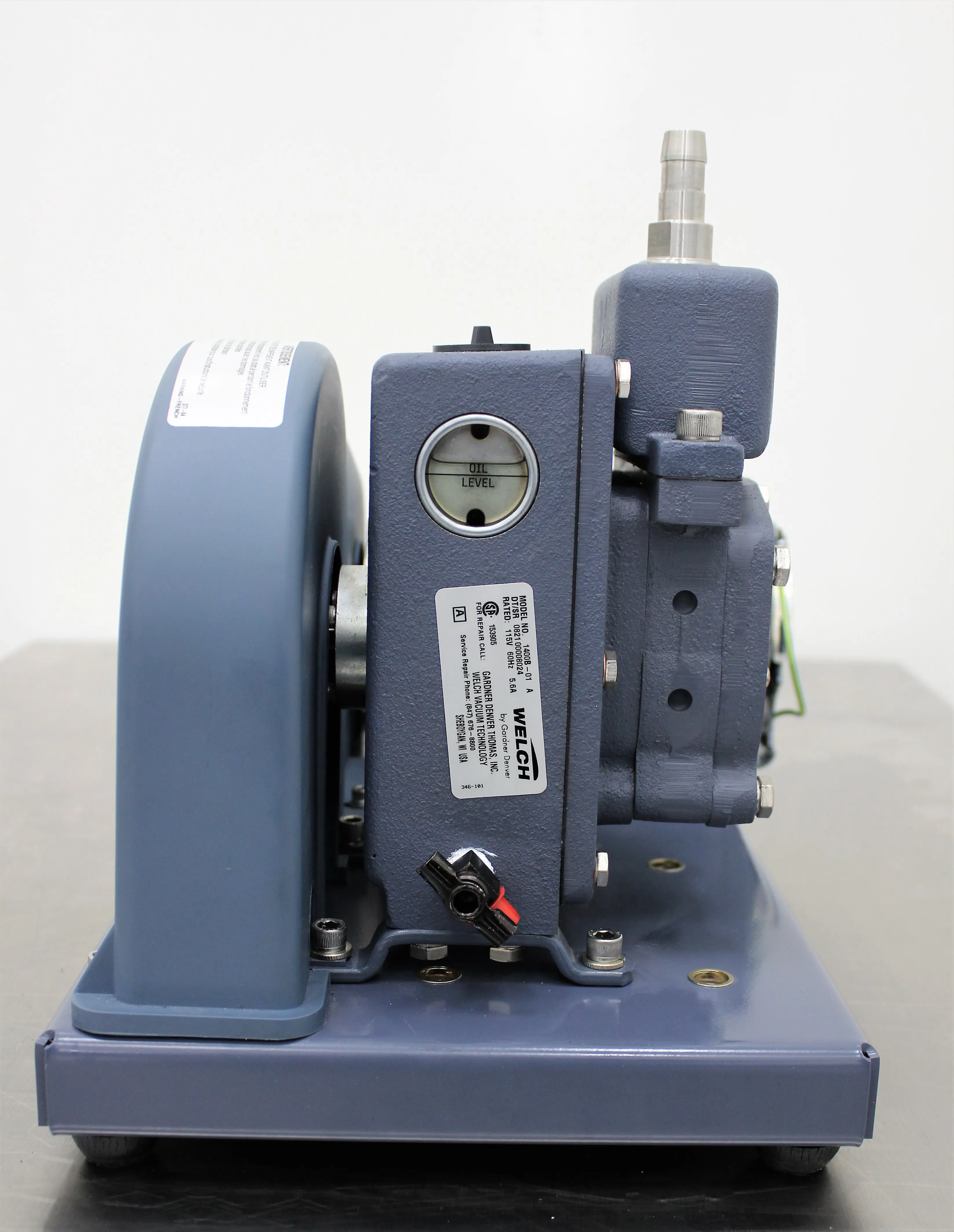

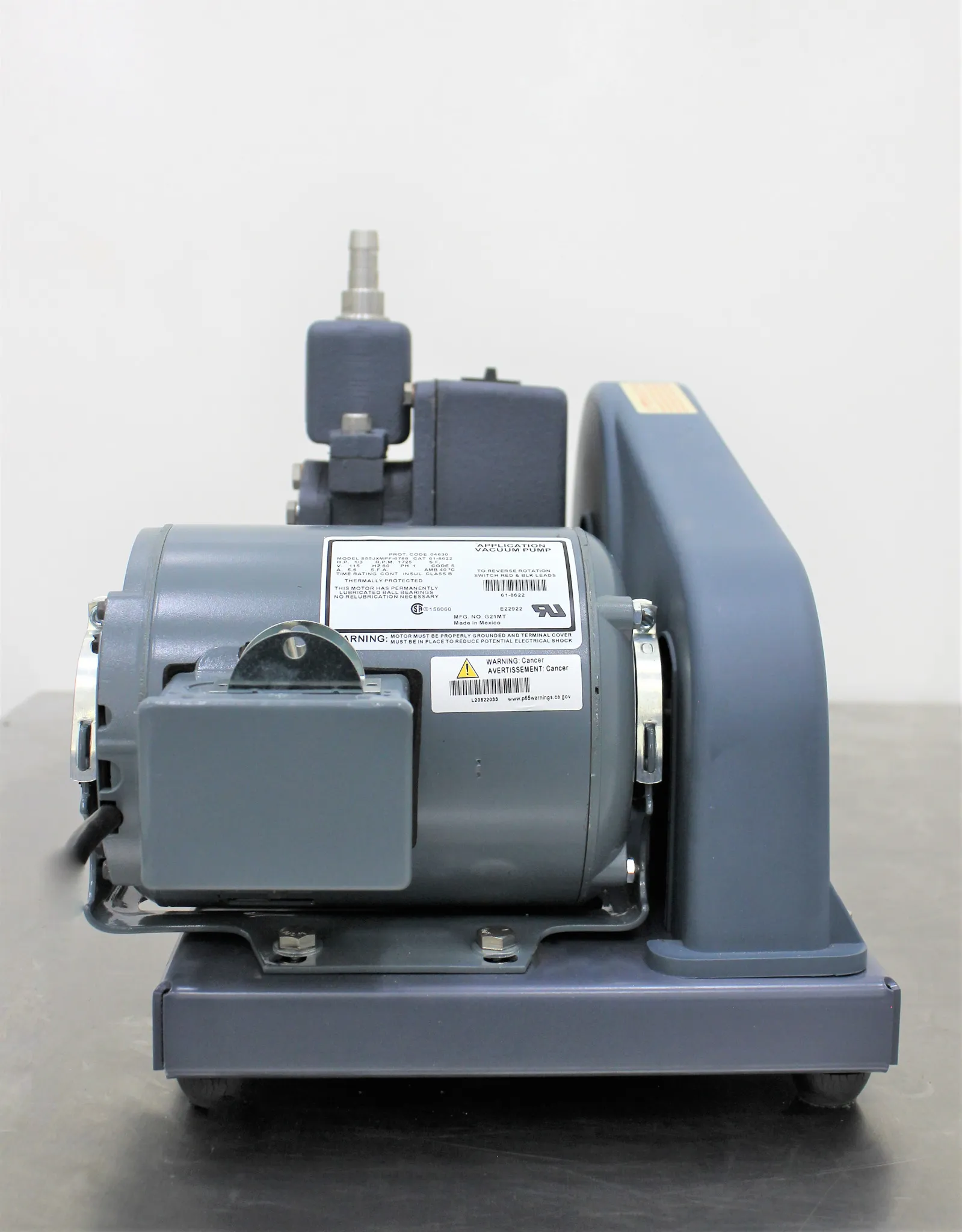

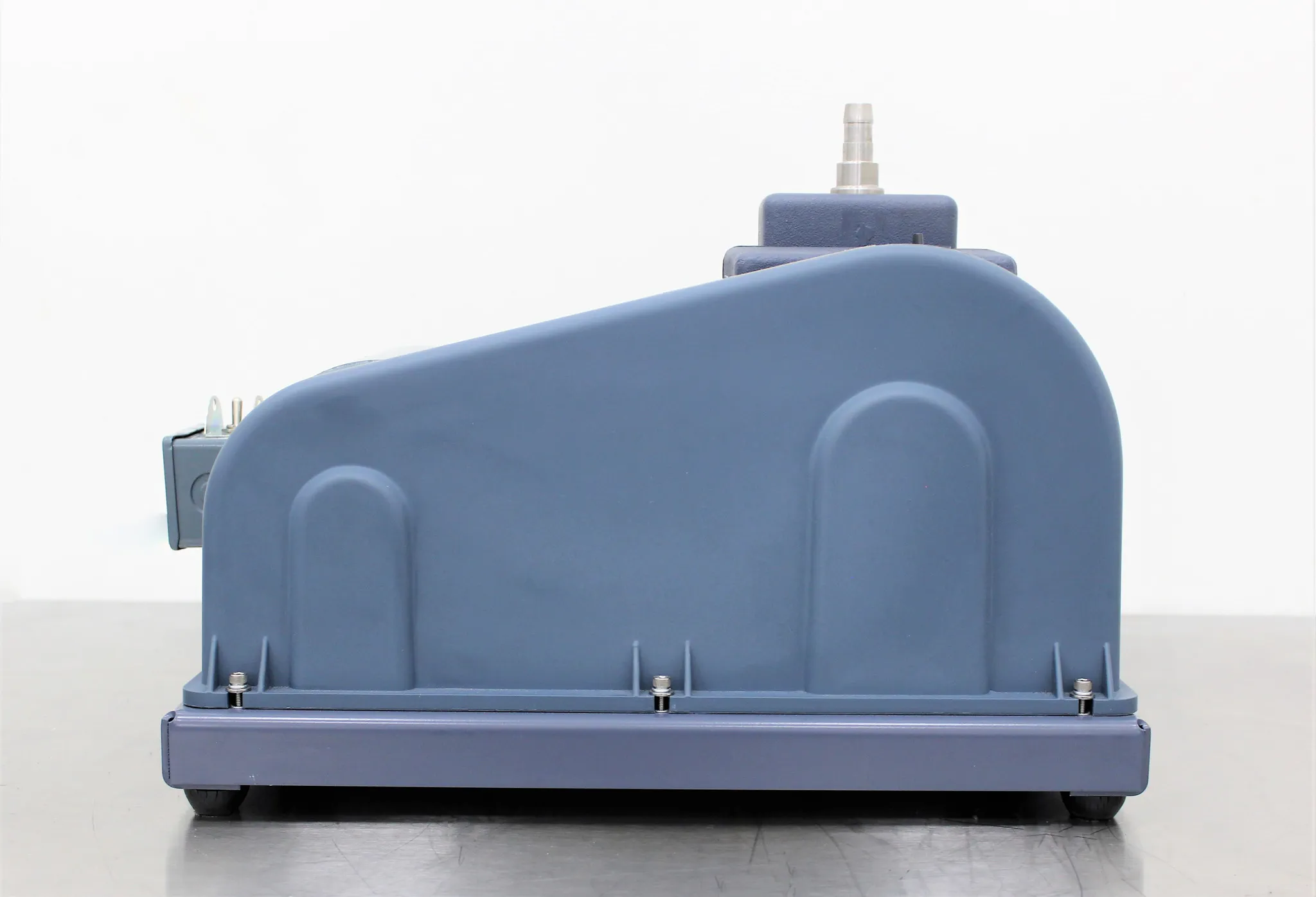

Welch 1400B-01 DuoSeal Belt Drive Rotary Vane Vacuum Pump

Product Information

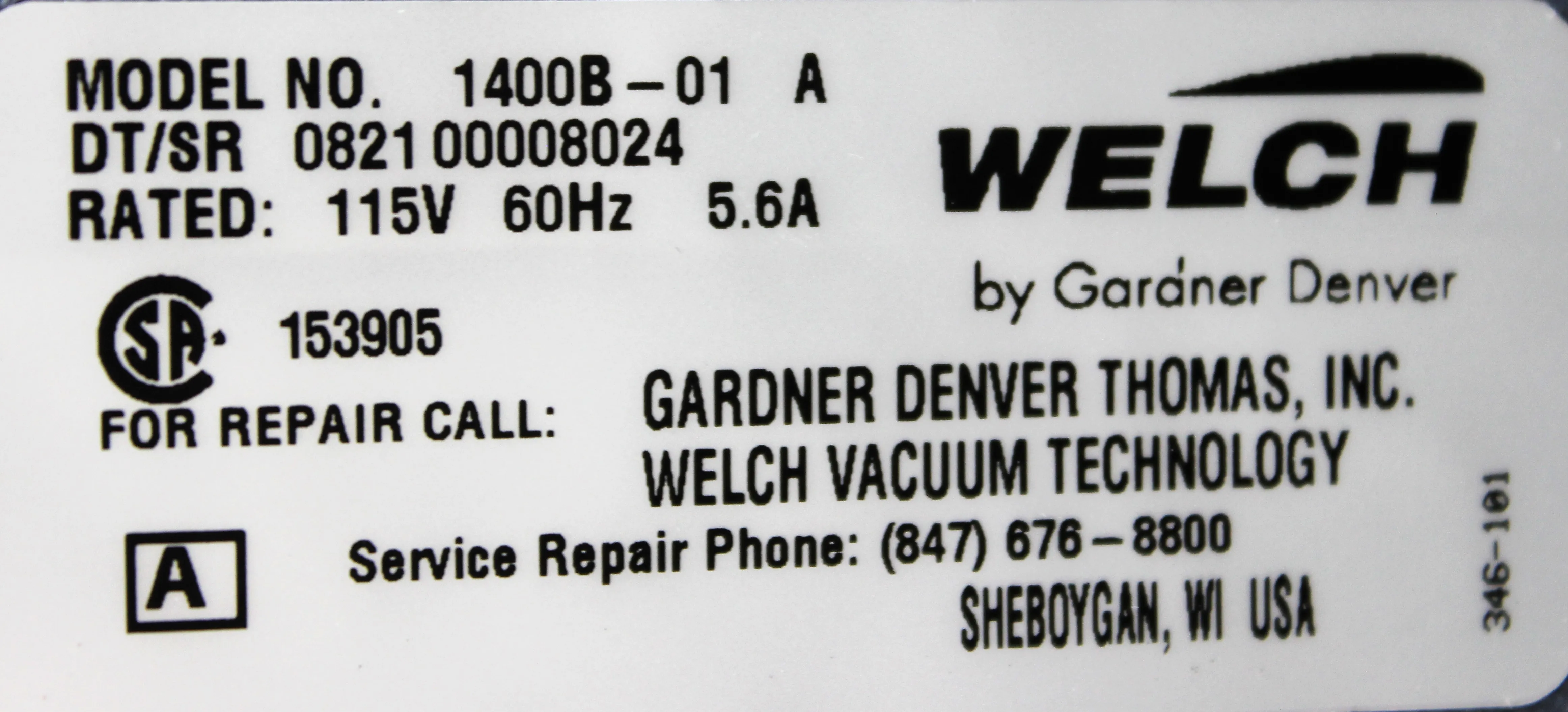

Imagine a rugged, reliable vacuum pump that can handle the most demanding lab and industrial applications. You are picturing the WELCH 1400B-01 DUOSEAL, the solution to your vacuum pump needs. With its low pump rpm to reduce wear and temperature, high oil feed, and durable belt-drive design, this pump excels in vacuum manifolds, high boiling point evaporations, glove boxes, and general laboratory applications.Make: Welch, Model: 1400B-01, Year: N/A, Condition: Used, Voltage: 120V, Hertz: 50Hz/60Hz. Tested with a 30-day warranty, it vacuums down to 10 microns.

• Low pump rpm to reduce frictional wear and minimize reservoir temperature
• High oil feed for cleanest lubrication
• Durable belt-drive design for longevity

• Model: DuoSeal 1400B-01
• Applications: Vacuum Manifolds, Schlenk Lines, High boiling point evaporations (to 195 deg. C), Glove boxes, General laboratory
• Type: Belt-Drive Vacuum Pump
• Free Air Displacement cfm (l/min.) @60Hz: 0.9(25)
• Ultimate Pressure: 1 x 10-4(0.00013)
• Pump RPM: 580
• Oil Capacity: 0.62(0.59)

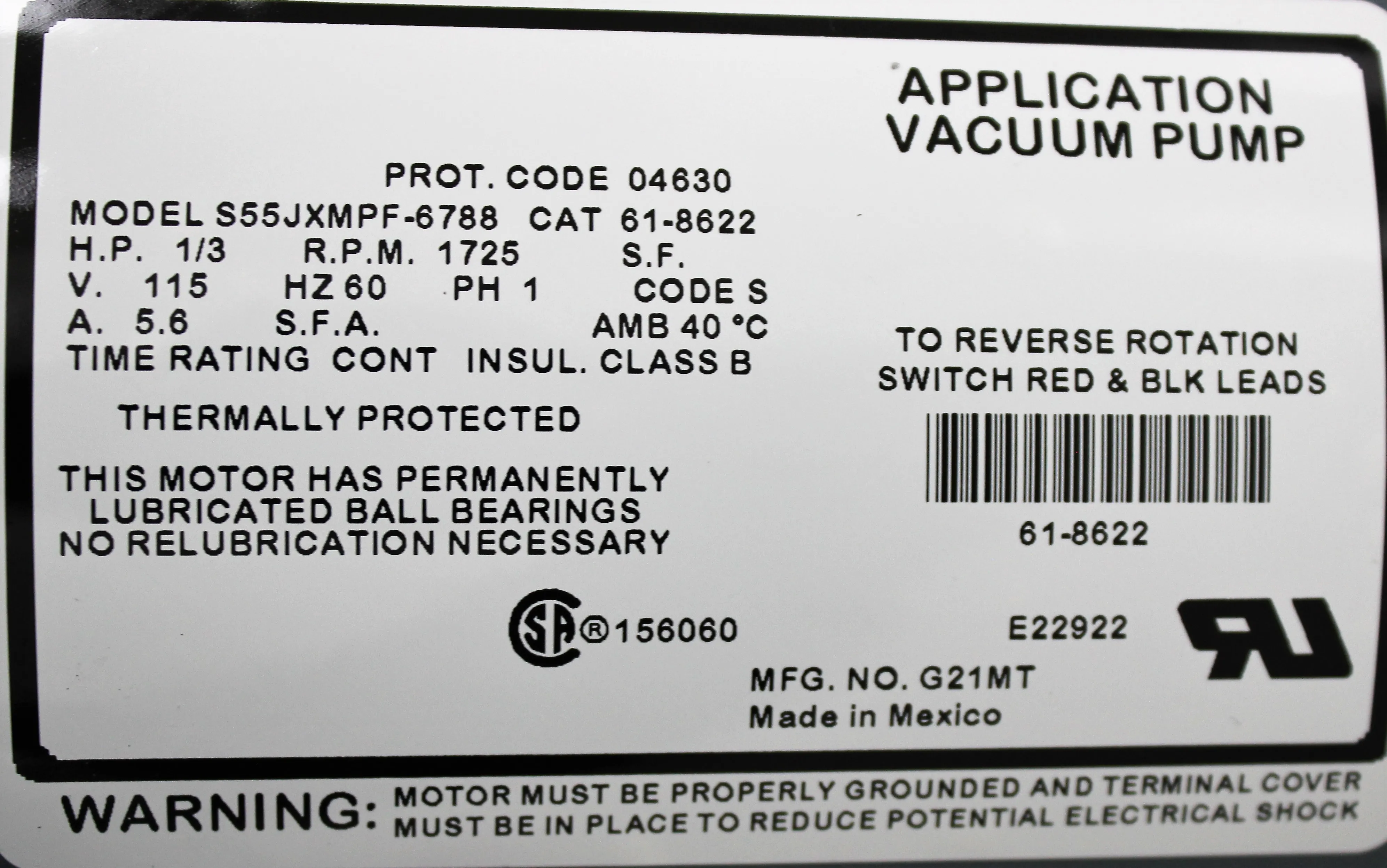

• Motor Horsepower (watts): 1/3(250)
• Adjustable Vac. / Gas Ballast: Yes
• Tubing Needed: 7/16(11)
• Intake Thread NPT: 3/4-20
• Exhaust Thread NPT: 3/4/20

Metric: 31.7515 kg
Imperial: 70 lbs

Metric: 43.18 cm x 30.48 cm x 50.8 cm
Imperial: 17 in x 12 in x 20 in

841410

Vacuum pumps represent a vital tool in laboratories across industries for their unique applications. The WELCH 1400B-01 DUOSEAL being a belt-driven vacuum pump suitable for laboratory and industrial applications, falls under this harmonized code category. It reflects the pivotal role of vacuum pumps in scientific processes, justifying a harmonized code classification.
