Molecular Devices SpectraMax Plus 384 Microplate Reader

Product Information

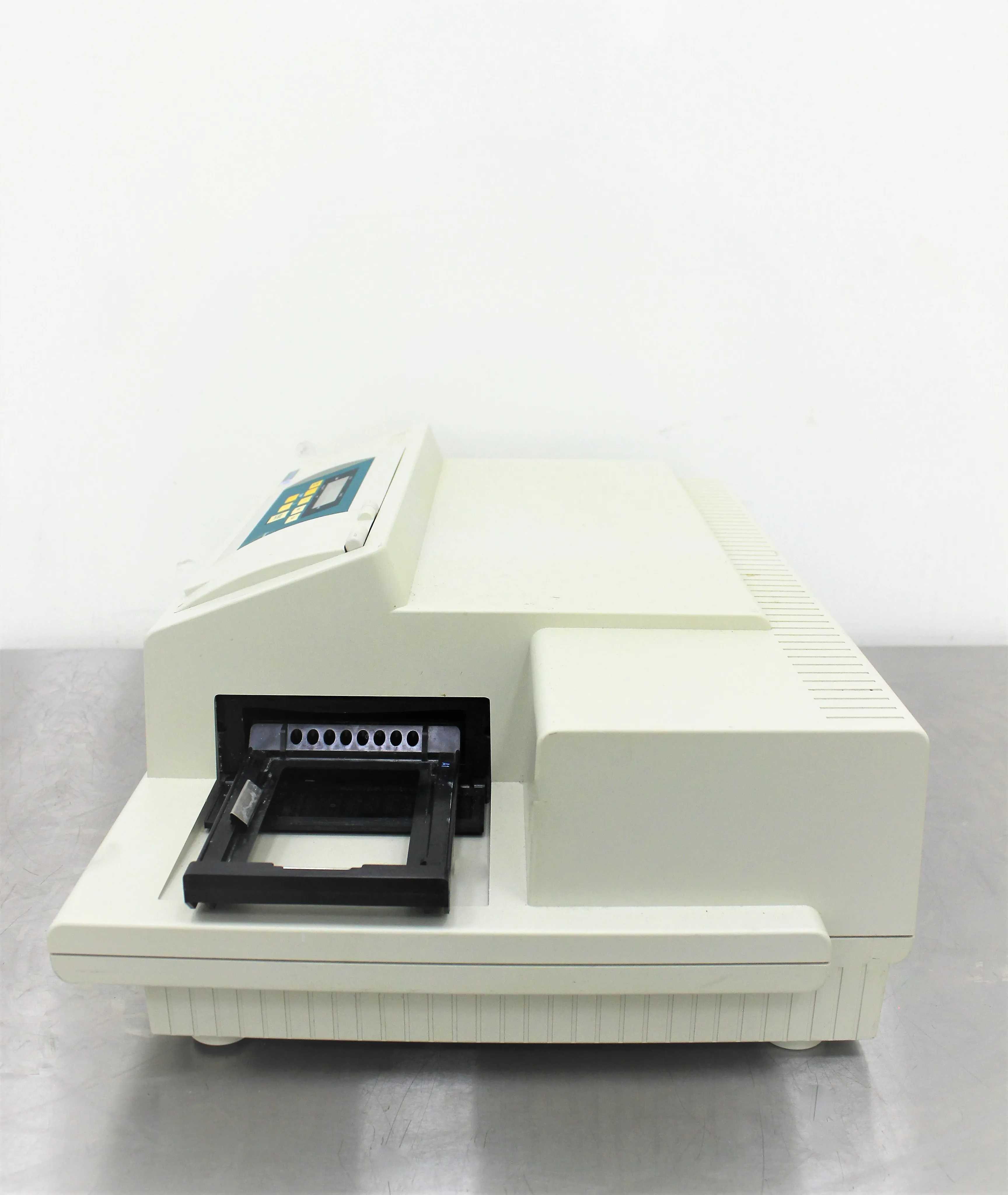

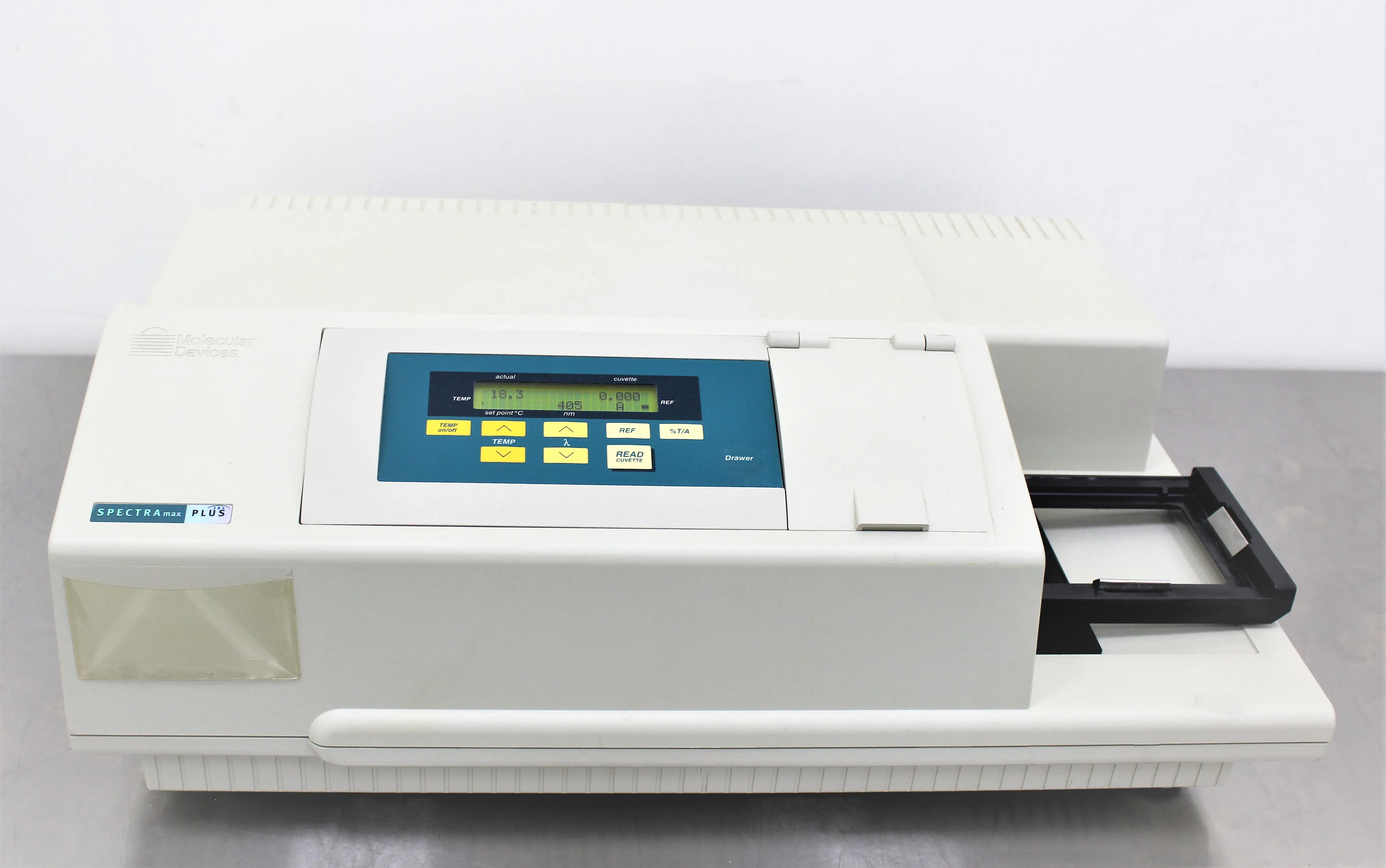

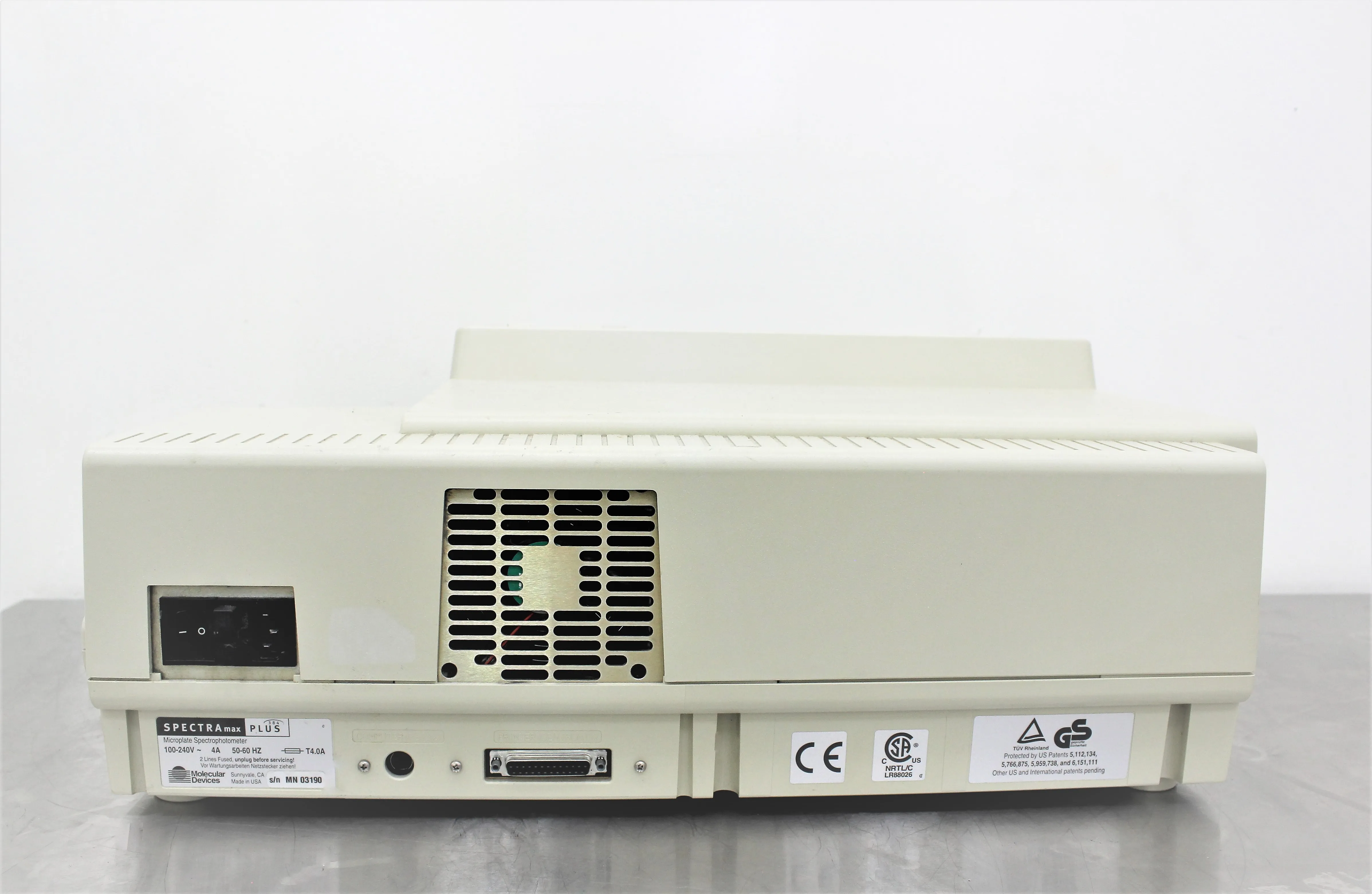

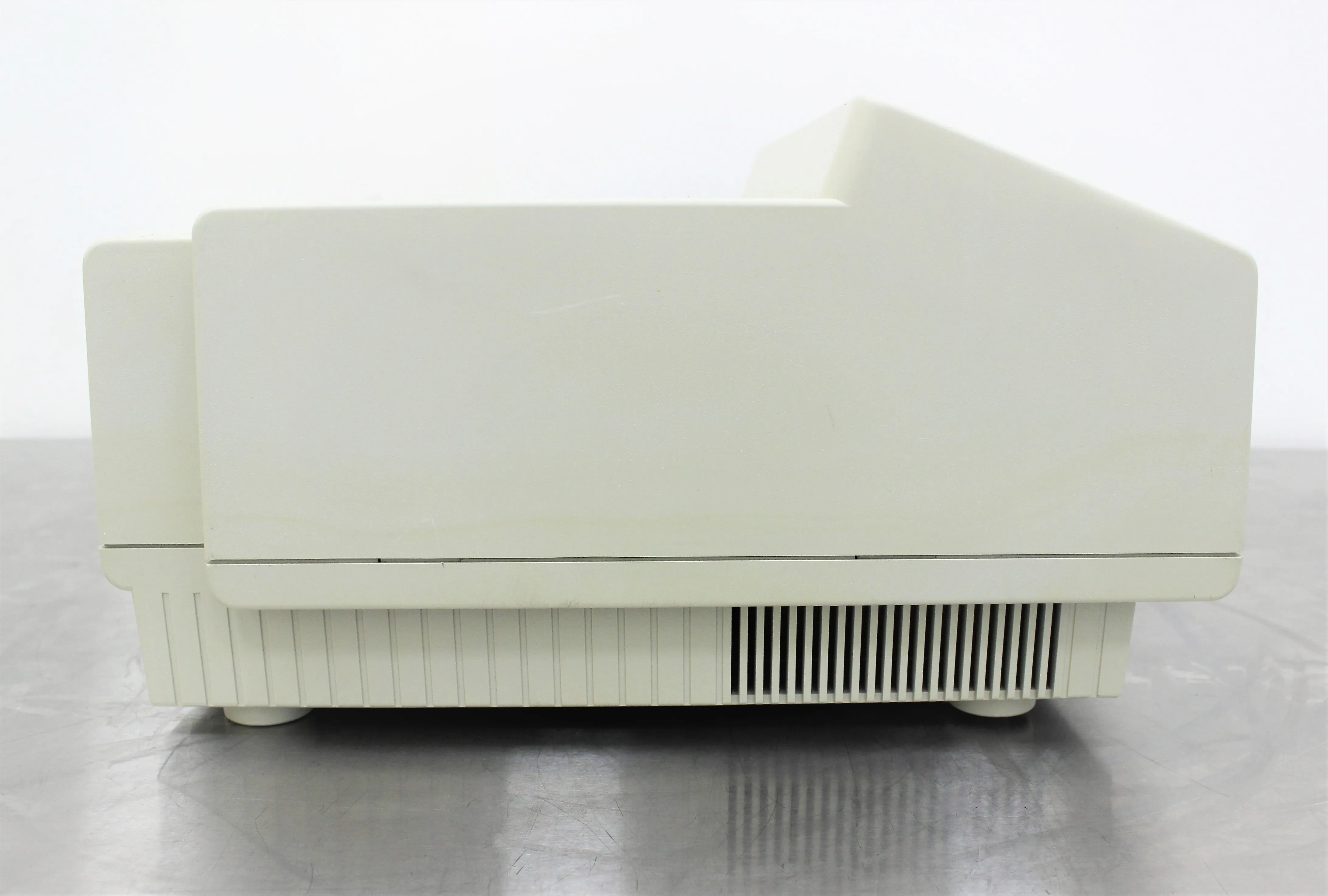

The Molecular Devices SpectraMax Plus 384 is a UV/Vis spectrophotometer and microplate reader capable of reading any standard cuvette, microcuvette, test tube or 96- and 384-well standard or UV transparent microplate over a full 190 to 1000 nm wavelength range. It is equipped with a high-precision nine-channel system and a robust path check sensor that makes it a reliable tool for applications such as DNA and RNA analysis, ELISAs and immunoassays, cell viability, protein quantitation, and endotoxin detection, offering fast and reliable data reporting. The system includes a monochromator, a built-in cuvette port, and a programmable linear and orbital plate shaking device, among other high-precision features. This particular unit has been tested for basic power function, without any error messages. While software is not included, it does come with a 30-day warranty. Please note there are slight cosmetic blemishes from normal use. Kindly refer to the images for further details.

• UV/Vis spectrophotometer
• Microplate reader
• Wide wavelength range of 190-1000 nm
• High-precision nine-channel system

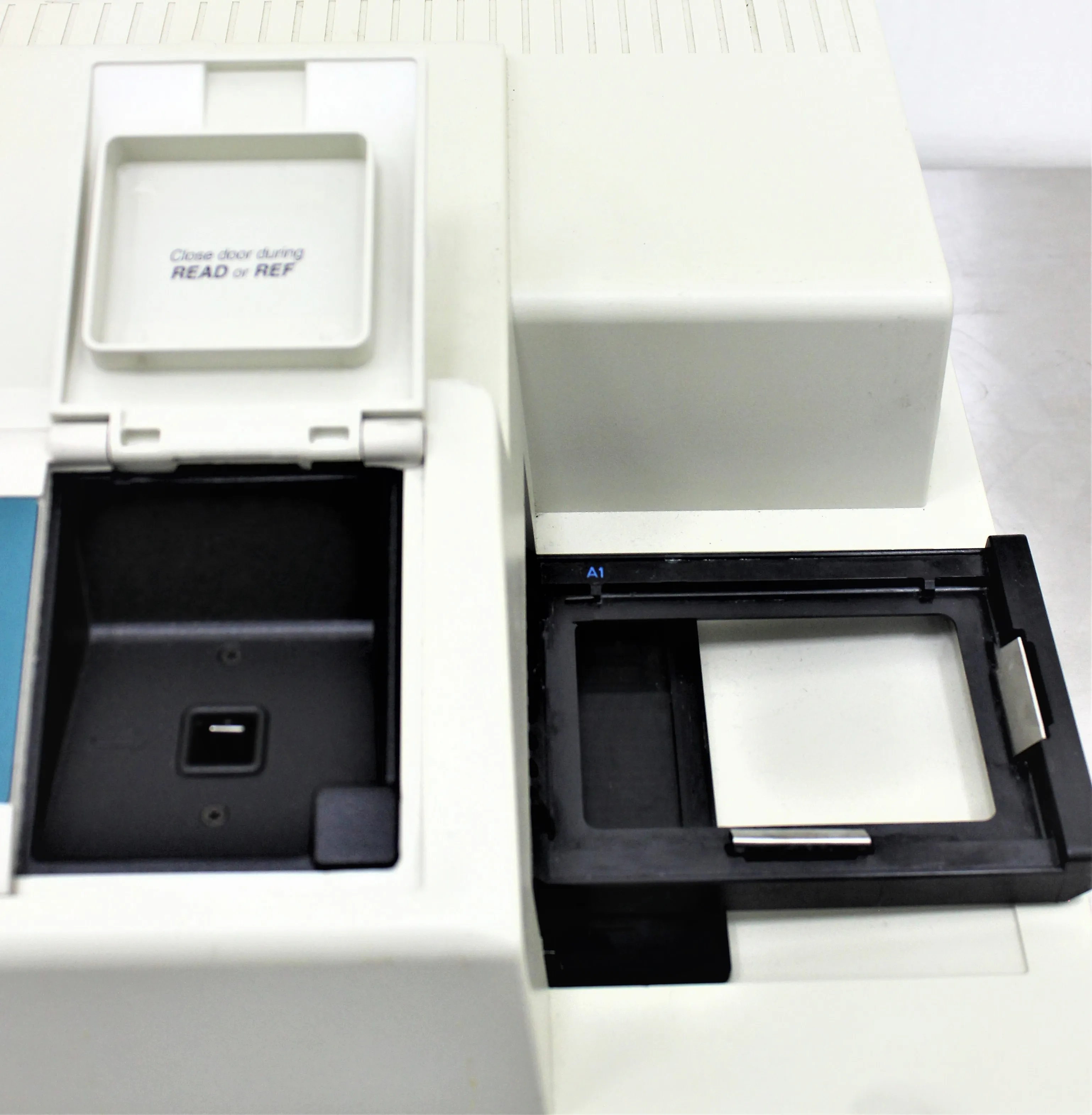

• Built-in cuvette port
• Path check sensor
• Programmable linear and orbital plate shaking device

• Spectral Range: 190-1000 nm, tunable in 1 nm increments
• Wavelength Range: 190-1000 nm
• Wavelength Selection: Monochromator, tunable 1.0nm increments
• Speed Read Mode: Reads 96-well microplates in 5 seconds; Reads 384-well microplates in 16 seconds
• Wavelength Bandwidth: 2 nm
• Wavelength Accuracy: < 1.0 nm
• Wavelength Repeatability: 0.2 nm
• Photometric Range: 0.0 to 4.0 OD
• Photometric Resolution: 0.001 OD
• Photometric Accuracy (plate): < 0.006 OD 1.0%, 0.0 - 2.0 OD
• Photometric Accuracy (cuvette): < 0.005 OD 1.0%, 0.0 - 2.0 OD
• Photometric Precision: < 0.003 OD 1.0%, 0.0 - 2.0 OD
• Photometric Baseline Flatness: < 0.001 OD
• Stray Light: < 0.05% / 230 nm
• Light Source: Xenon Flash Lamp
• Temperature Range: Ambient + 4C up to 45C
• Temperature Uniformity (plate): 0.5 C / 37C
• Dimensions: 22 cm (h) x 58 cm (w) x 38 cm (d)

Metric: 12.247 kg
Imperial: 27 lb

Metric: 58 cm x 38 cm x 22 cm
Imperial: 22.83 in x 14.96 in x 8.66 in

9027300000

This harmonized code pertains to spectrophotometers, spectrometers and spectrographs using optical radiations (UV, visible, IR). The specific code 9027300000 is for spectrophotometers, covering the general purpose instruments used for an entire spectrum of analytical techniques. This is a well-suited match for the SpectraMax Plus 384 Microplate Reader, as it provides a standardized classification for customs and trade purposes.
