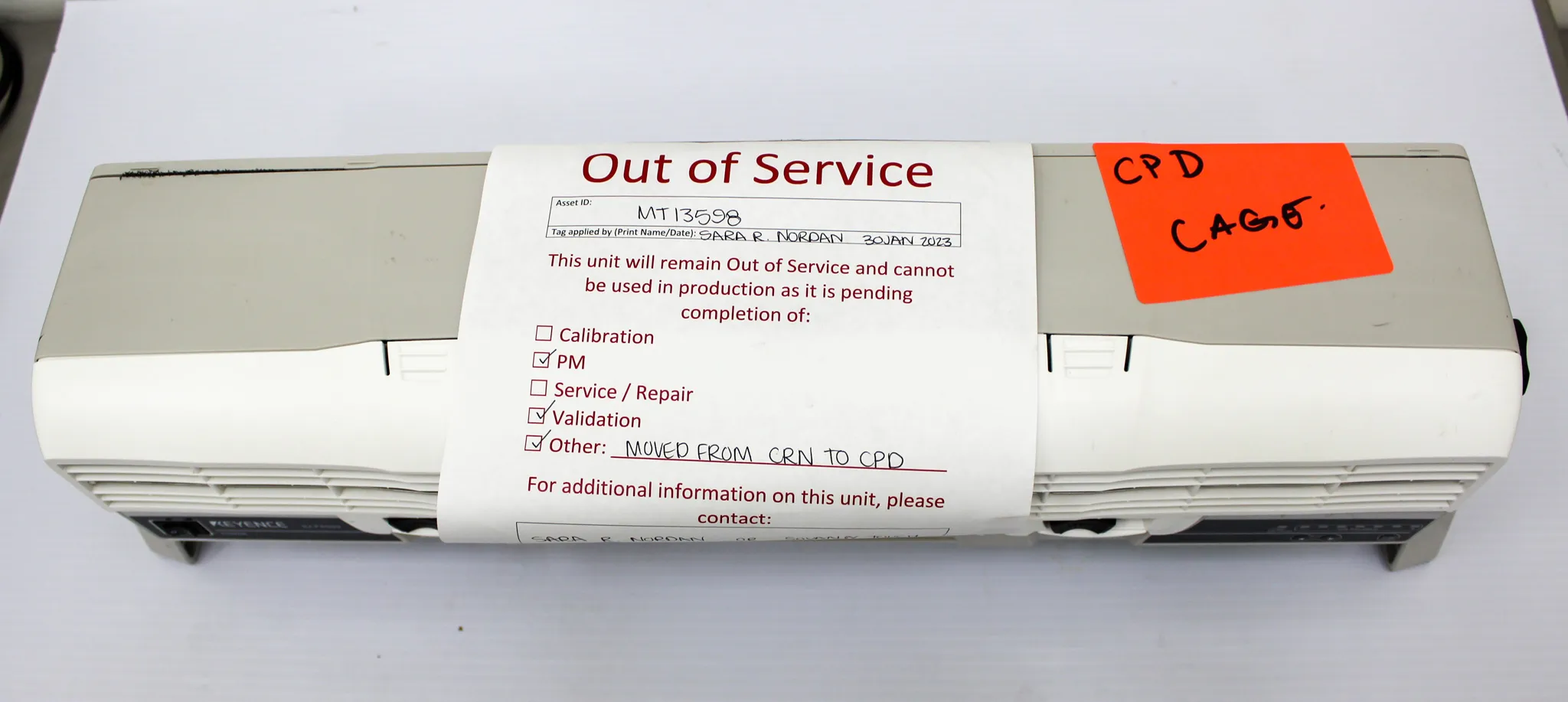

Keyence SJ-F5500 Ionizing Equipment - Used

Product Information

As a quirky, intelligent laboratory scientist, I present to you the Keyence SJ-F5500 Ionizing Equipment. This static eliminator blower boasts high-speed & high-precision features. Manufactured by Keyence, model SJ-F5500, this equipment is a pulse AC method, with a maximum applied voltage of 7000V. Key features include ion balance control method I.C.C., an ion balance of 5 V, and a static elimination time of approximately 0.6 seconds. The operating distance is 50 mm, with maximum wind speed of 5.7 m/s or 18.70 ft/s, suitable for ambient temperatures of 0 to +50°C or 32 to 122°F. With a 30-Day Warranty, this equipment is perfect for applications requiring ozone density management, power voltage ratings of 100 to 240 VAC, 50/60 Hz, and a power consumption of 90 VA. It's an essential tool for labs dealing with static elimination, ion balance control, and air volume management.

• Pulse AC method for voltage application
• Ion balance control method: I.C.C.
• Static elimination time: Approx. 0.6 seconds
• Operating distance: 50 mm
• Ambient temperature range: 0 to +50°C or 32 to 122°F
• Maximum wind speed: 5.7 m/s or 18.70 ft/s
• Ozone density: 0.005 ppm max
• Power voltage: 100 to 240 VAC, 50/60 Hz
• Power consumption: 90 VA

• Model: SJ-F5500
• Type: 600 mm (23.62")
• Voltage application method: Pulse AC method
• Applied voltage: 7000V
• Ion balance control method: I.C.C.
• Ion balance: 5 V*1
• Static elimination time: Approx. 0.6 sec*2
• Operating distance: 50 mm (1.97" min)
• Maximum wind speed: 5.7 m/s or 18.70 ft/s*1
• Ambient temperature: 0 to +50°C (32 to 122°F)
• Maximum air volume: 10.0 m3/min (353.15 CFM)
• Ozone density: 0.005 ppm max
• Power source input type: AC cord input
• Rating: Power voltage 100 to 240 VAC, 50/60 Hz, Power consumption: 90 VA

Metric: 6.80389 kg
Imperial: 15 lbs

Metric: 63.5 cm x 38.1 cm x 33.02 cm
Imperial: 25 in x 15 in x 13 in
