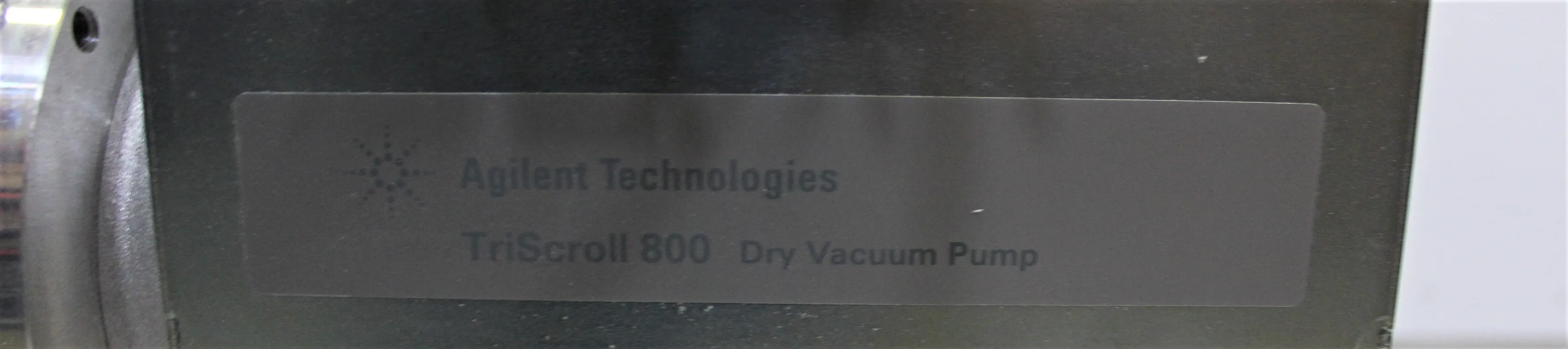

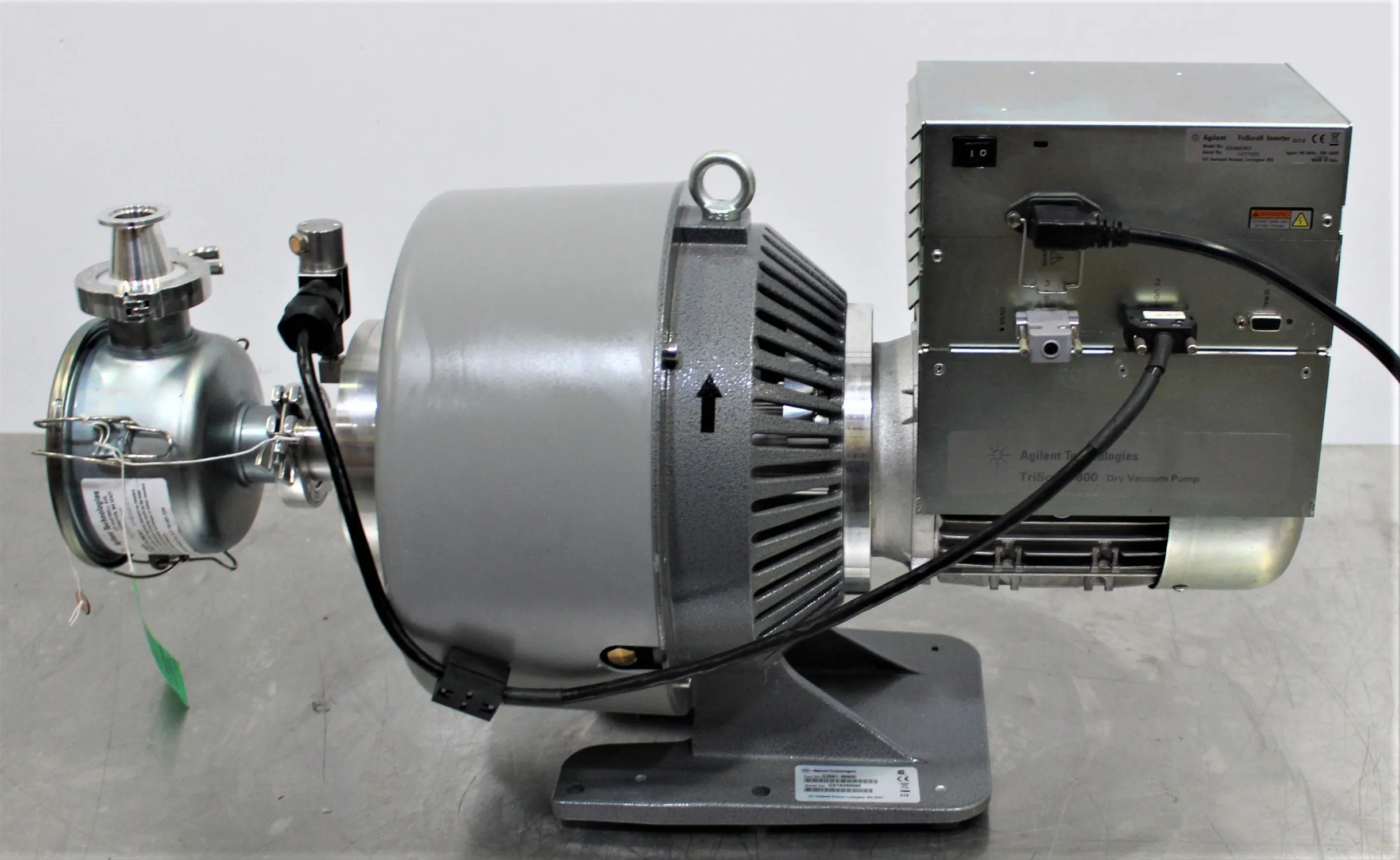

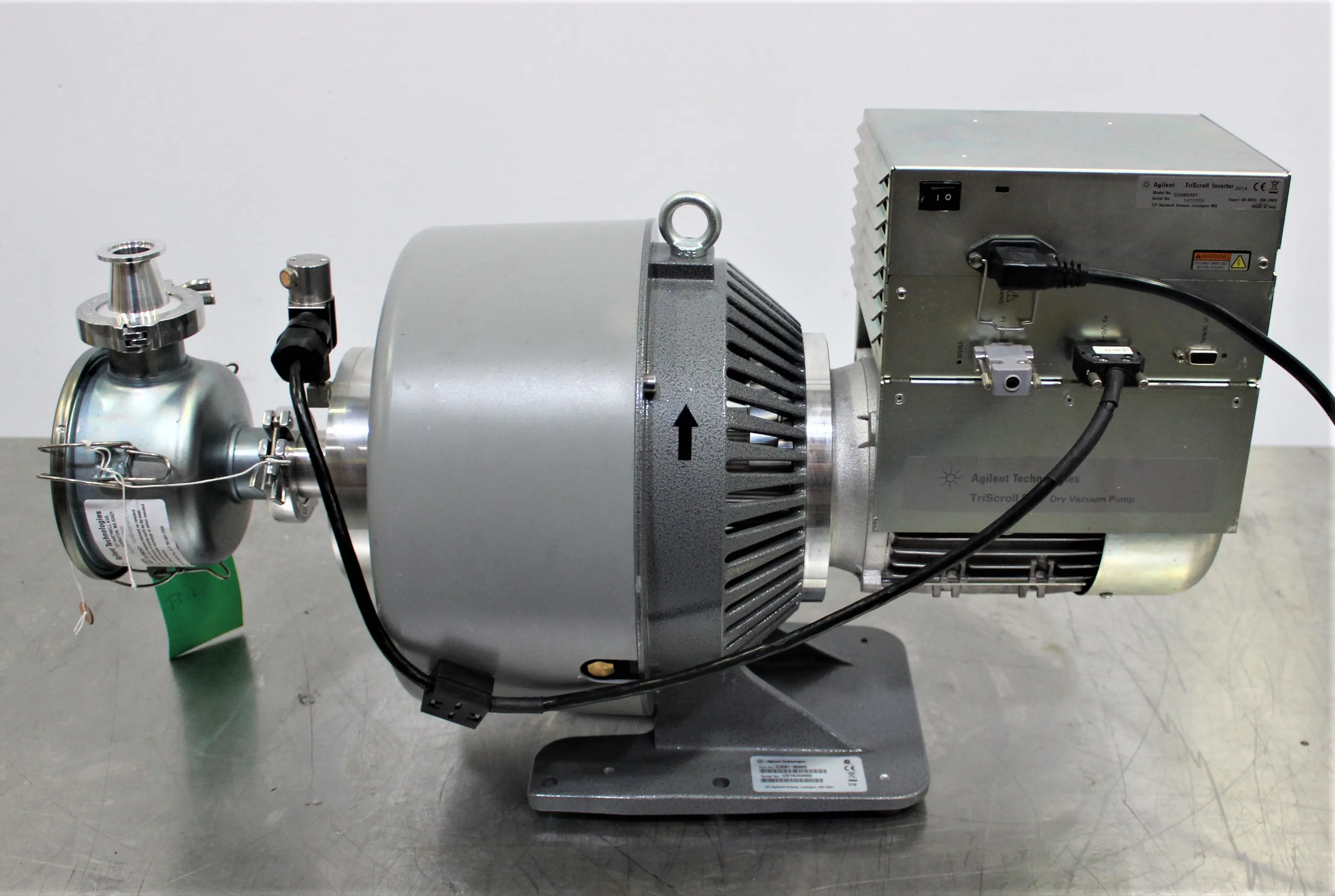

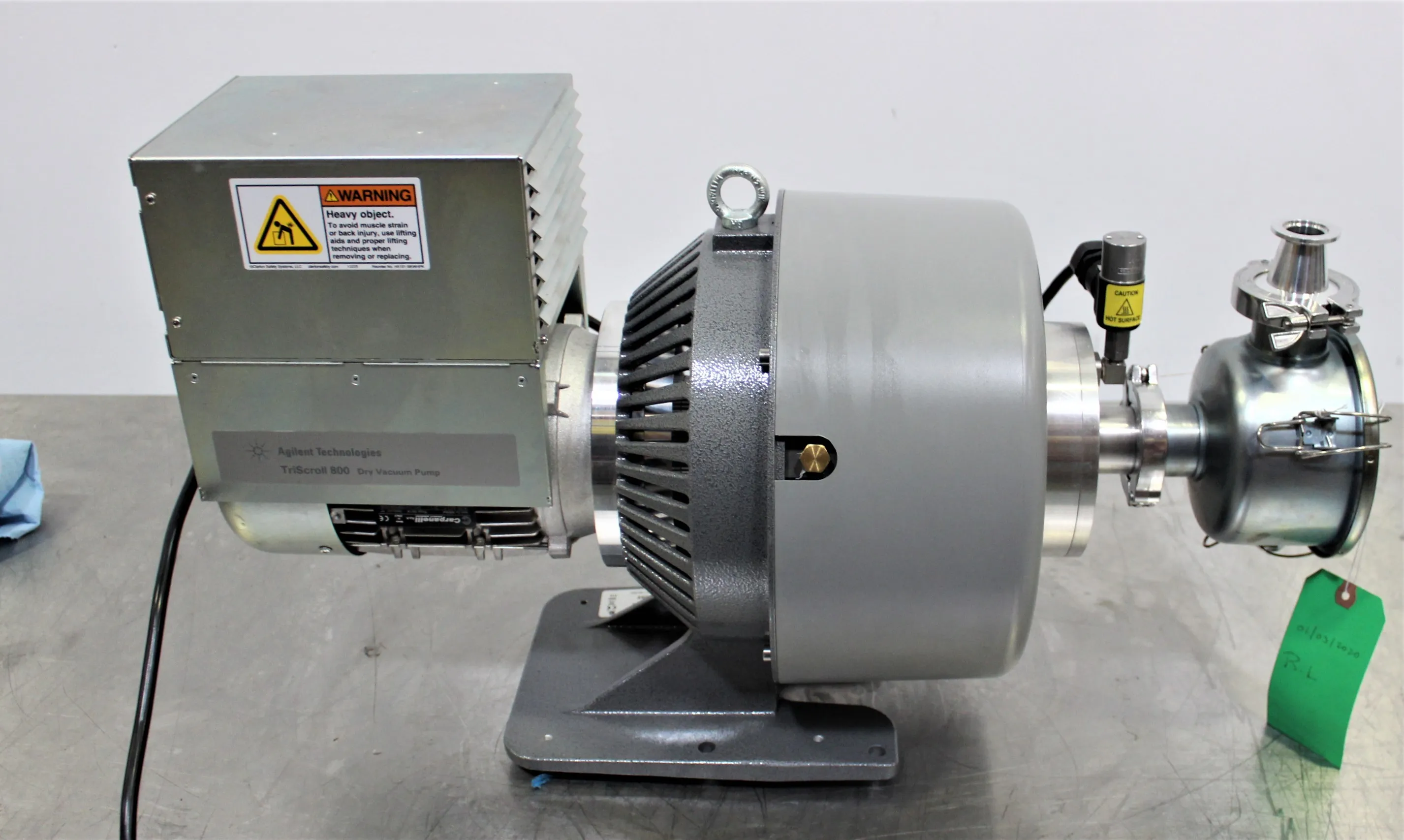

Agilent TriScroll-800 Inverter Pump PTS800 - Used - 30-Day Warranty

Product Information

Introducing the Agilent TriScroll-800 Inverter Pump PTS800! This innovative, used pump adds the benefits of frequency inverter technology to the high performance of Agilent TriScroll dry primary vacuum pumps, reducing the frequent maintenance of oil-sealed rotary vane pumps and simplifying regulatory and environmental compliance. The unique, patented design delivers proven reliability, durability, and consistent performance, making it ideal for steady and high gas load applications, LC/MS, and TOFMS. The features are plenty and include integrated inlet valve, solid tip seal, universal input voltage consumption, I/O and RS232/RS485 communication, and remote power monitoring. Dive into the scientific details and practical benefits of the Agilent TriScroll-800 Inverter Pump PTS800!

• Innovative Agilent TriScroll-800 Inverter Pump PTS800
• Used and tested with a 30-Day Warranty
• Integrated inlet valve for added efficiency
• Universal input voltage consumption - great for worldwide compatibility

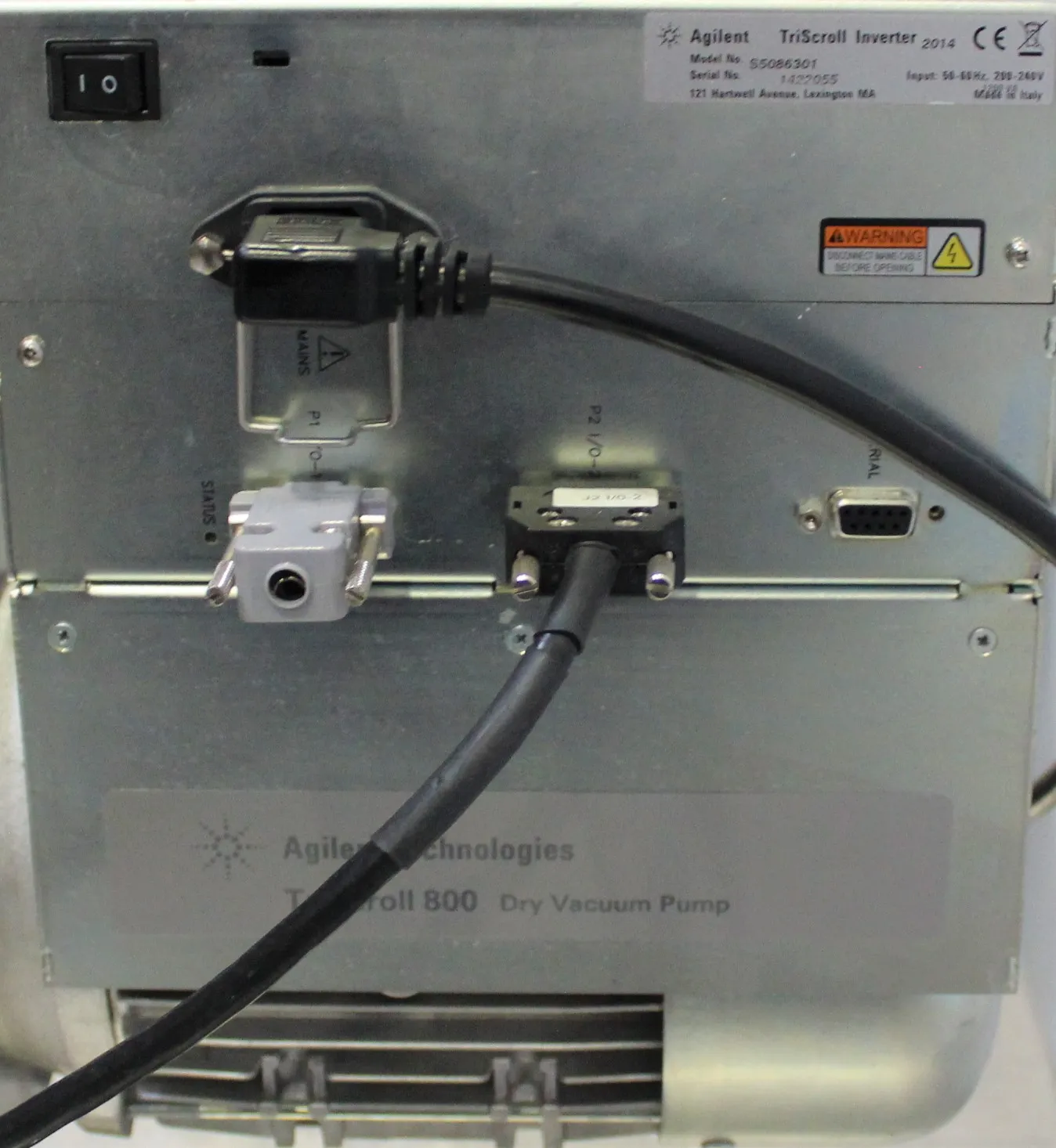

• Remote diagnostics and power monitoring
• Remote operation and high reliability

• Peak pumping speed: 800 l/m, 48 m3/hr (28.3 cfm)
• Ultimate pressure (Torr): 13.3 x 10-3mbar / 10 x 10-3Torr
• Maximum inlet pressure: 1.0 atmosphere (0 psig)
• Maximum continuous inlet pressure: 100 Torr
• Maximum outlet pressure: 1.1 atmosphere (1.5 psig)

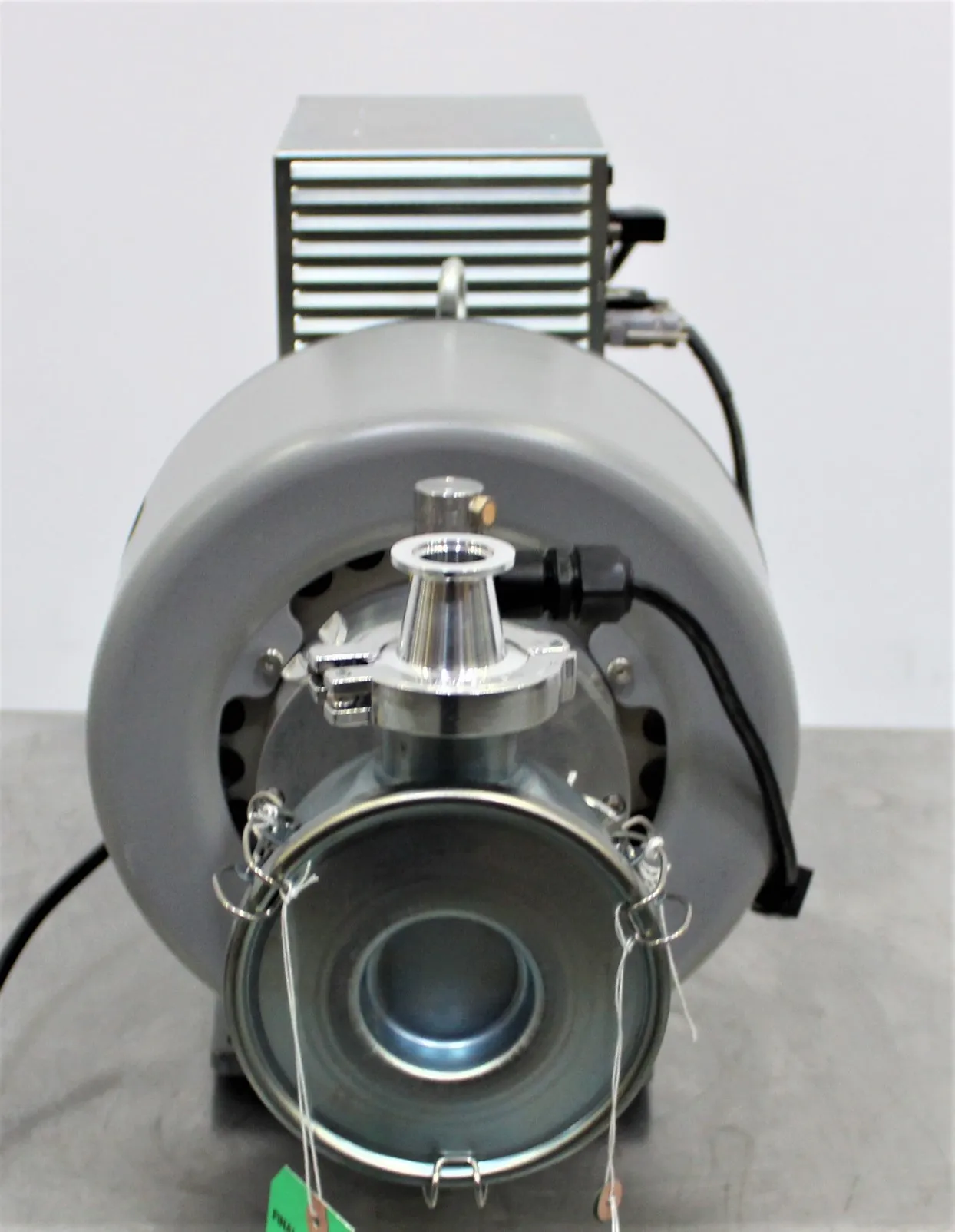

• Inlet connection: NW40
• Exhaust connection: Female 3/8" NPT (NW25 adapter provided)
• Ambient operating temperature: 5C to 40C (41F to 104F)
• Motor rating: 1.0 HP (0.75 kW)

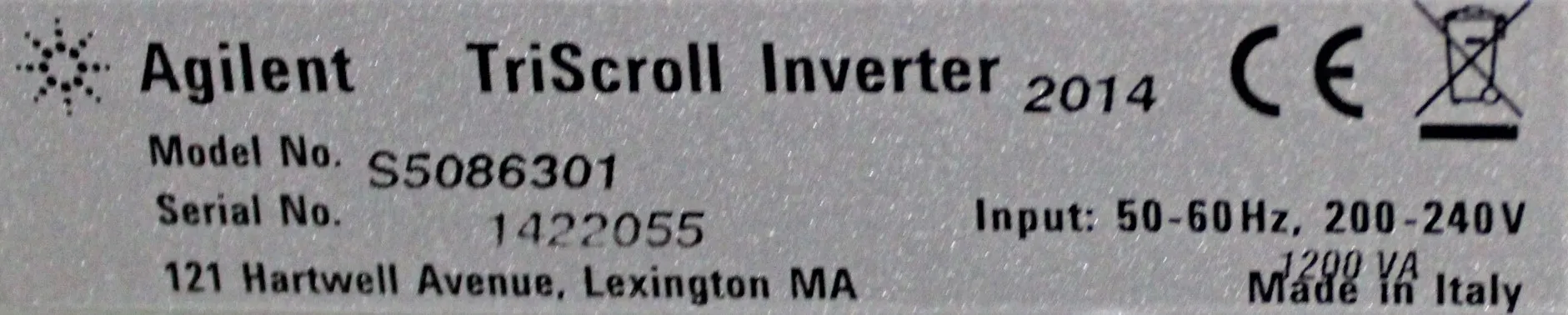

• Operating voltage: 50-60 Hz: 200-240 VAC single-phase 10%
• Noise level (per ISO 11201): Variable w/ frequency, 58-71 dB(A)

Metric: 36.74 kg
Imperial: 81.0 lbs

Metric: 29.0 cm x 13.0 cm x 16.0 cm
Imperial: 11.42 in x 5.12 in x 6.3 in

841410

Vacuum pumps, of a kind used with refrigerating equipment
