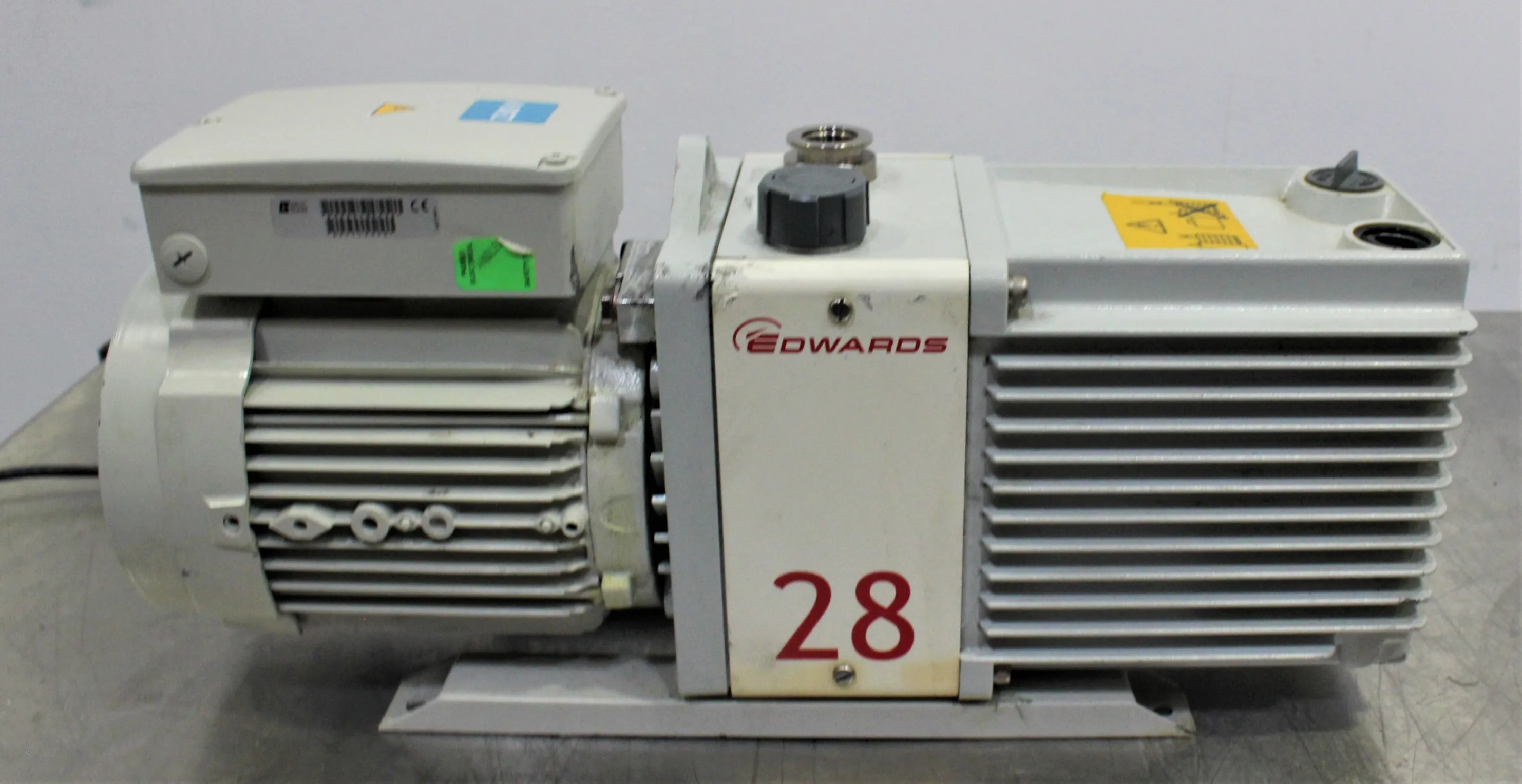

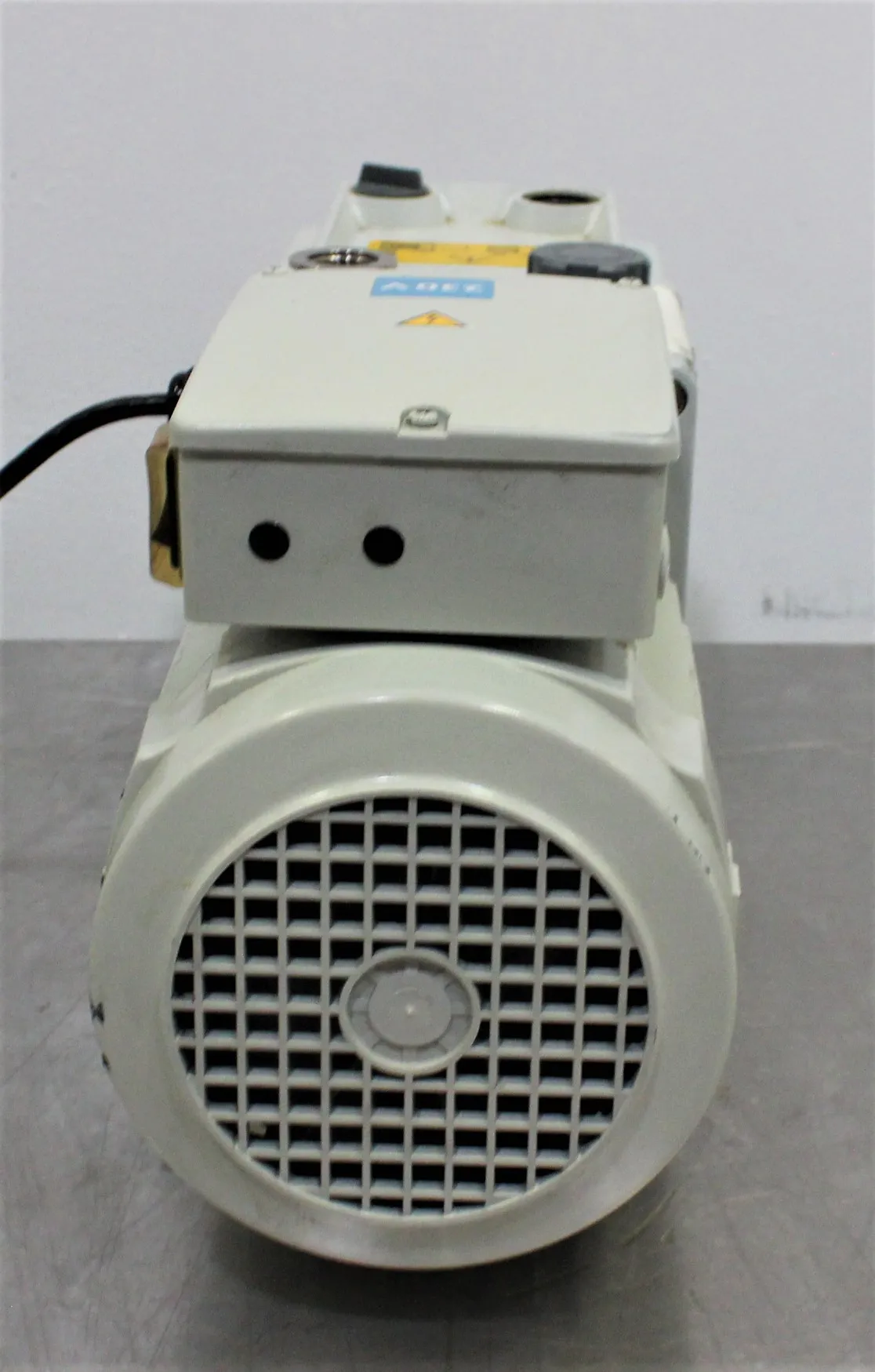

Edwards E2M28 Rotary Vane Vacuum Pump
Same item available with different options / conditions
- Make Edwards
- Hertz 60Hz US
- Model E2M28
- Serial 099049116
- Weight 120.0 Lb
- Voltage 120V/220V
- Warranty 30-Day Warranty, 100% Parts and Labor
- Dimensions 31.0in x 15.0in x 19.0in
- Shipping Type FedEx Ground
- Item Condition Excellent
- Manufacturing Date Does Not Apply
Product Information
The Edwards E2M28 Rotary Vane Vacuum Pump offers excellent ultimate pumping speed while providing quiet operation. With outstanding vapor handling capabilities, the E2M28 is a reliable and versatile 208V vacuum pump. There are a multitude of applications for the Edwards E2M28, including use with sterilization, mass spectrometry, lasers, vacuum distillation, epoxy degassing, brake line evacuation, freeze drying, space research, refrigeration dehydration, vacuum ovens, backing combinations, thin film coating, and other vacuum processes. Manufacture Specifications Max water vapor inlet pressure: 22.5 torr (30 mbar) Max allowed pressure at outlet: 0.5 bar gauge/7 psig Max water vapor capacity: 700 grams/hour Operating temperature range: 54F to 104F (12C to 40C) Oil capacity: Minimum 1.4 quart (1.3 L), maximum 1.6 quart (1.5 L) Oil type: Ultragrade 19 Nominal rotation speed: 1400/1720 rpm Noise level: 57 dB(A) Inlet connection: NW25/KF25 Outlet connection: Nozzle 15mm external removable from 3/4 in BSP tapped hole
Key Features
Metric: 120 kg
Imperial: 264.55 lbs
Metric: 32 cm x 15 cm x 19 cm
Imperial: 12.6 in x 5.9 in x 7.5 in
8414200000
Harmonized Code Details8414200000 - Vacuum pumps, The Edwards E2M28 Rotary Vane Vacuum Pump falls under this category due to its function as a vacuum pump according to its make and model.
