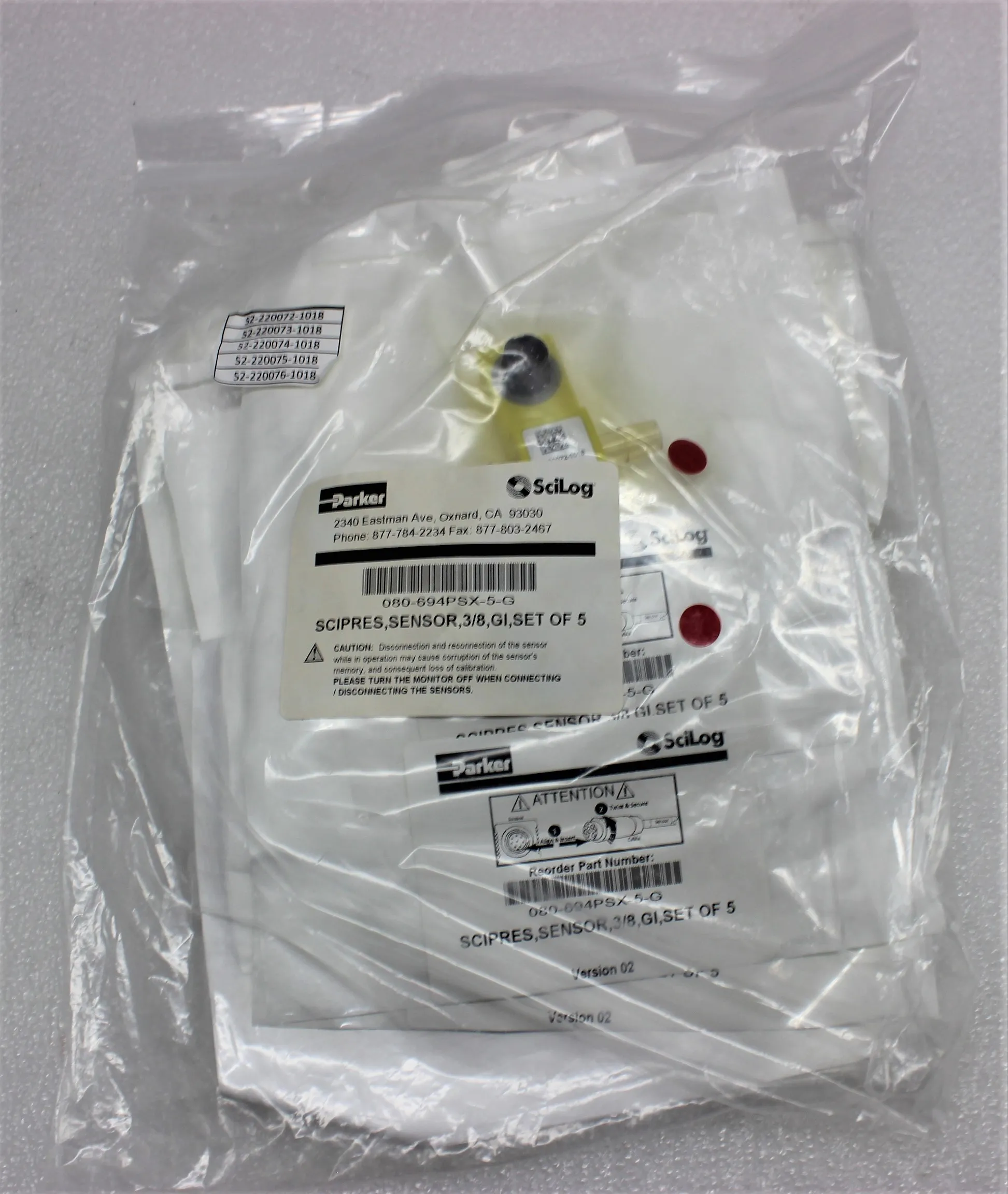

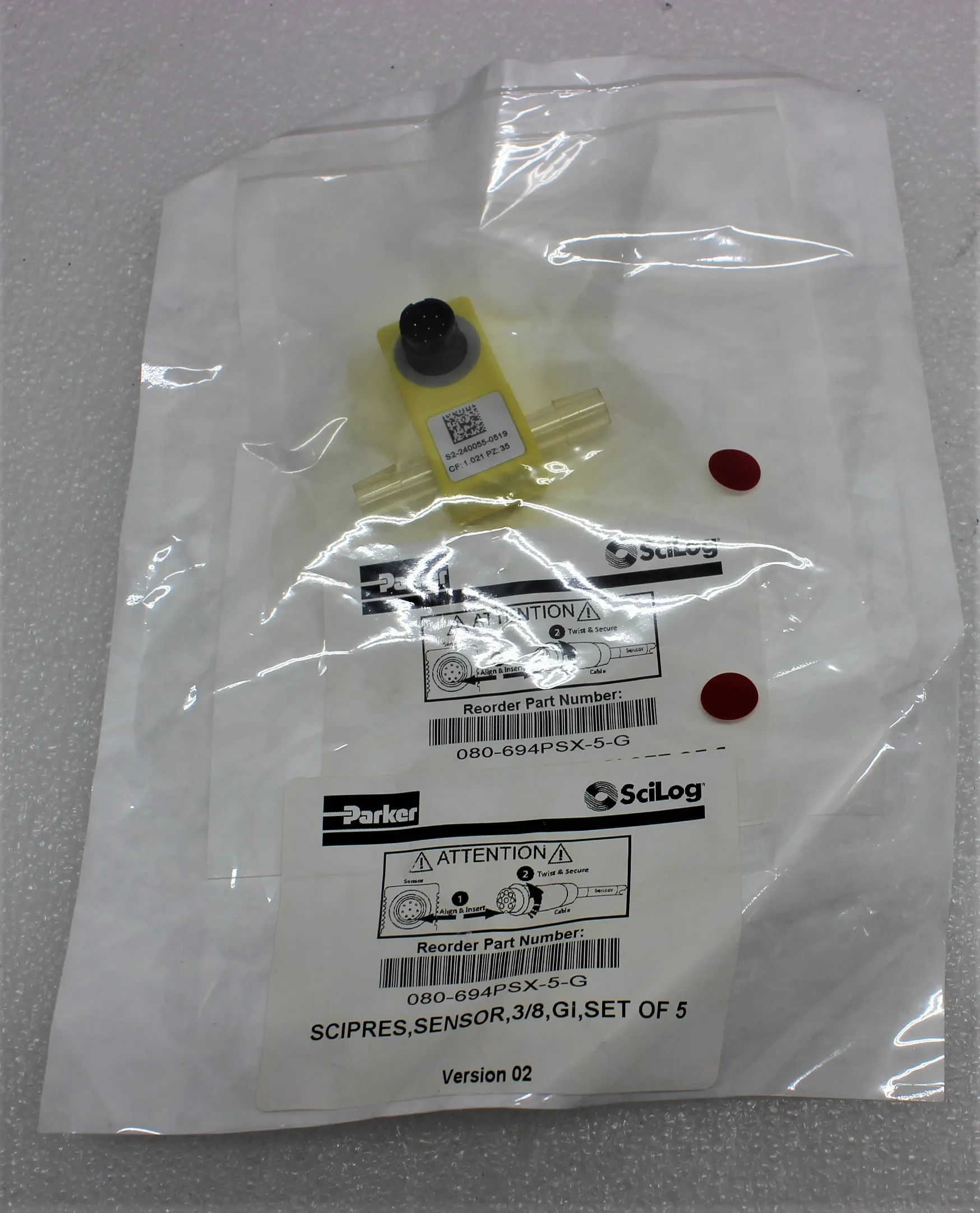

SciLog SciPres Pressure Sensor 080-694PSX-5-G

Product Information

One of the key features of the biopharmaceutical manufacturing process is the careful monitoring and control of pressure. The SciPres pressure sensor from SciLog, a part of Parker domnick hunter's SciLog range, is a pre-calibrated, single-use sensor. It plays a crucial role in measuring and documenting pressure in applications such as tangential flow filtration, virus filtration, chromatography operations, and more. The sensor's unique features include NIST traceability, suitability for single-use GMP applications, and validation for exposure to gamma irradiation, autoclave, and sodium hydroxide sterilization. It's extensively used in growth media preparation, bioreactor maintenance, cell culture harvest, buffer preparation, and other areas. The pressure sensor is proven to prevent system integrity breach, safeguard operators from exposure to potent molecules and acids, and protect against blockage in chromatography operations.

• Pre-calibrated sensor for accurate readings
• Single-use sensor for GMP applications
• NIST traceable for reliability
• Validated for exposure to sterilization methods
• Safeguards against system integrity breach
• Protection for operators working with potent substances

• Calibration Type: 2-pt (0-30psi)
• Connection Type: 3/8" Barb
• Tube Size Range: ID 0.31" to 0.38"
• Maximum Pressure (psi): 60
• Maximum Flow Rate (lpm): 8
• Application: Pressure
• Industry: Life Sciences
• Wetted Material: Animal-free compounds
• Materials of Construction: Medical grade polysulfone
• Specifications Met: USP Class VI, FDA 21CRF177.1520
• Performance: 2-pt calibration: 0.3 psi, 0-30 range* *Accuracy values define the maximum expected error reported by functioning sensors.
• Pressure Rating: -5 to 60 psi

Metric: 1.36 kg
Imperial: 3.0 lbs

Metric: 17.78 cm x 15.24 cm x 15.24 cm
Imperial: 7.0 in x 6.0 in x 6.0 in

902620

Pressure sensors; parts and accessories
