Edwards RV3 Finnigan Vacuum Pump

Product Information

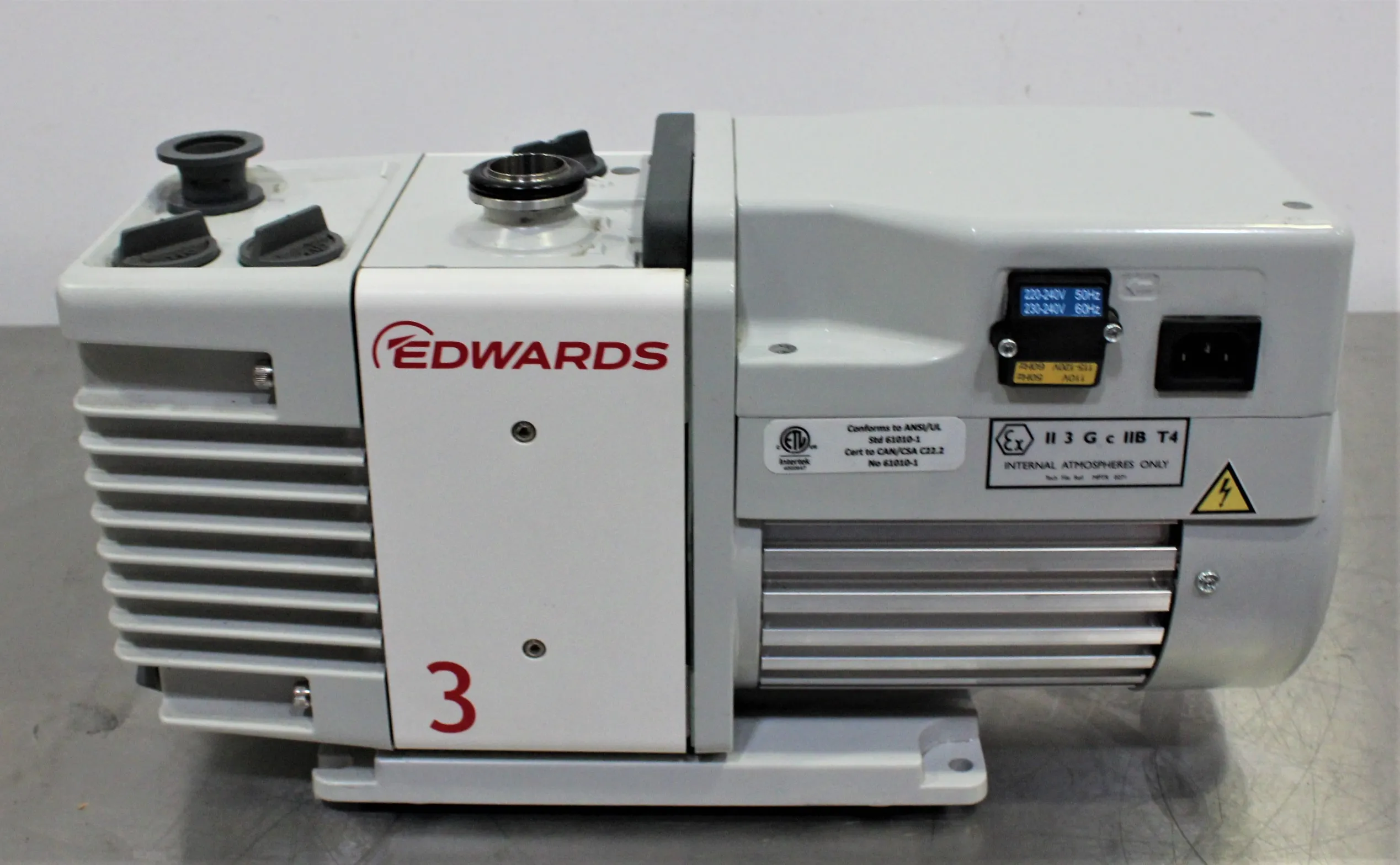

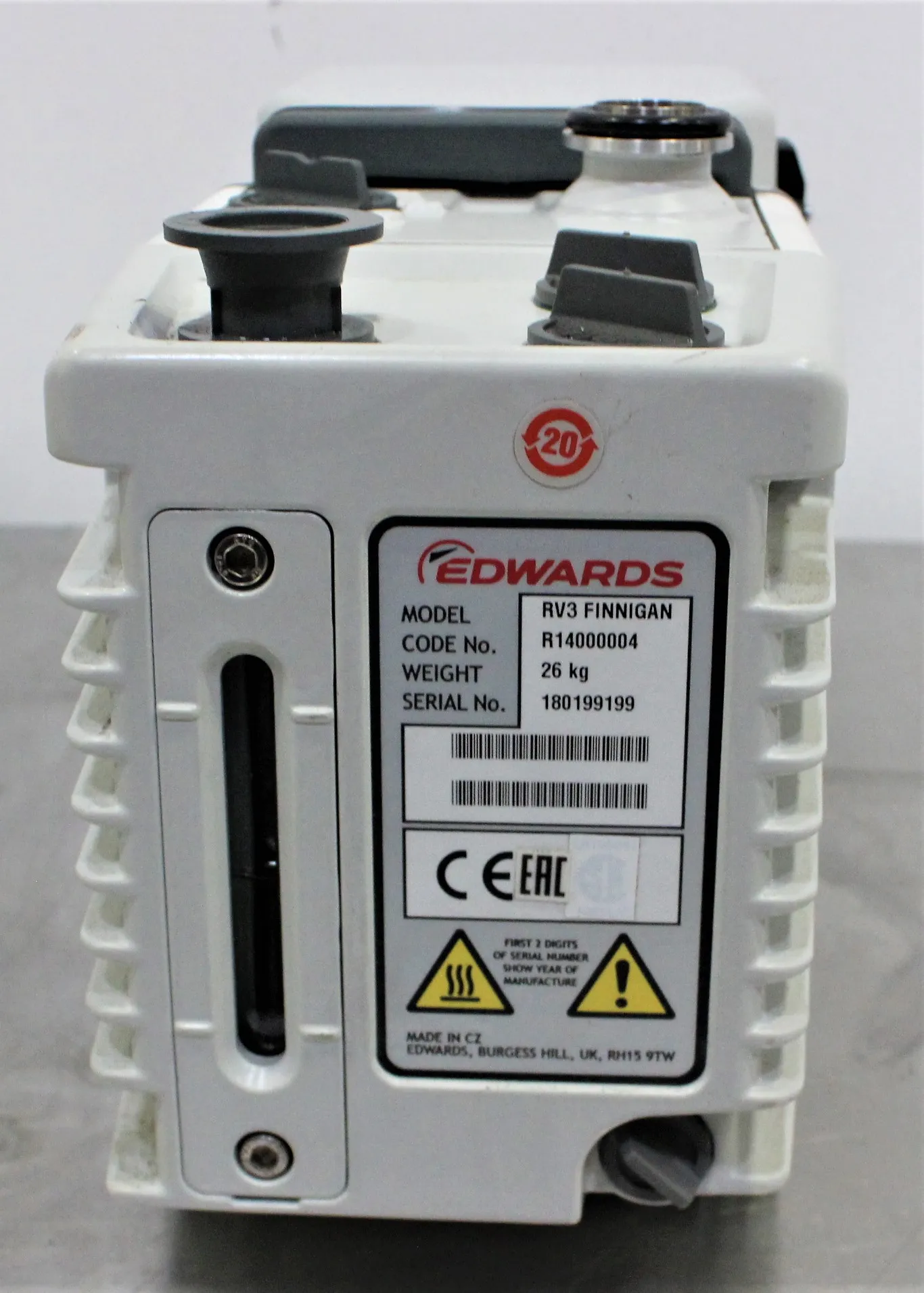

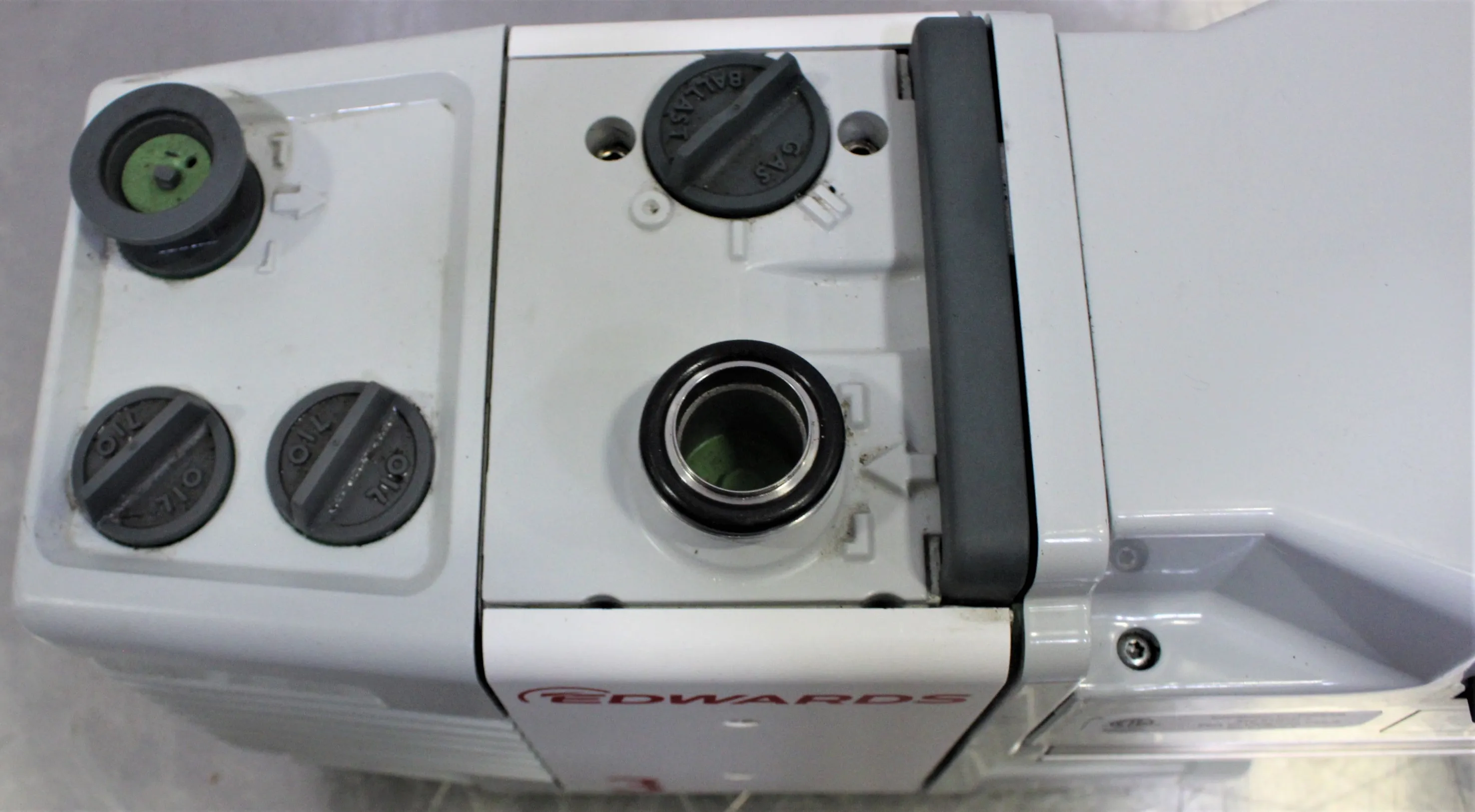

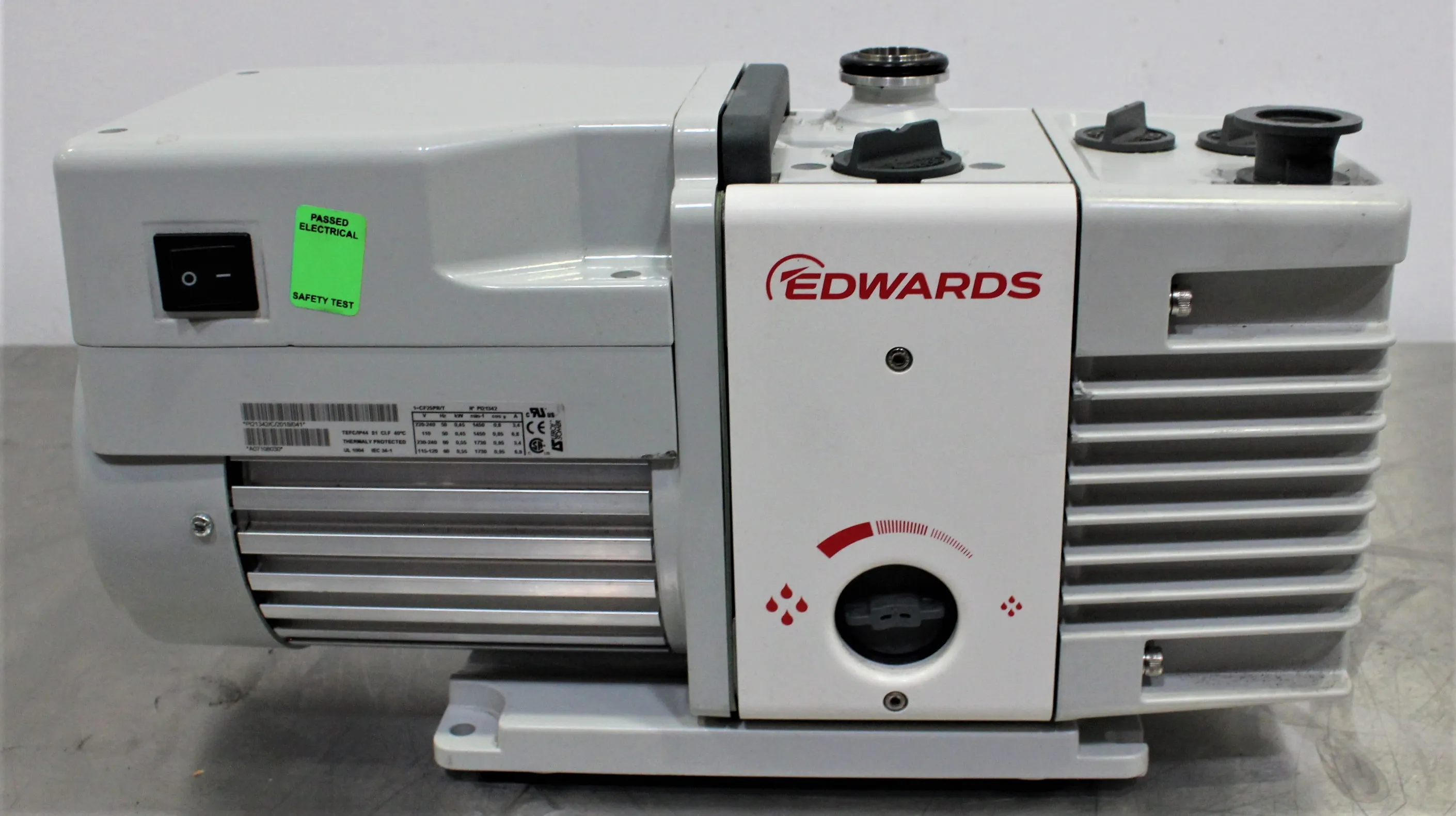

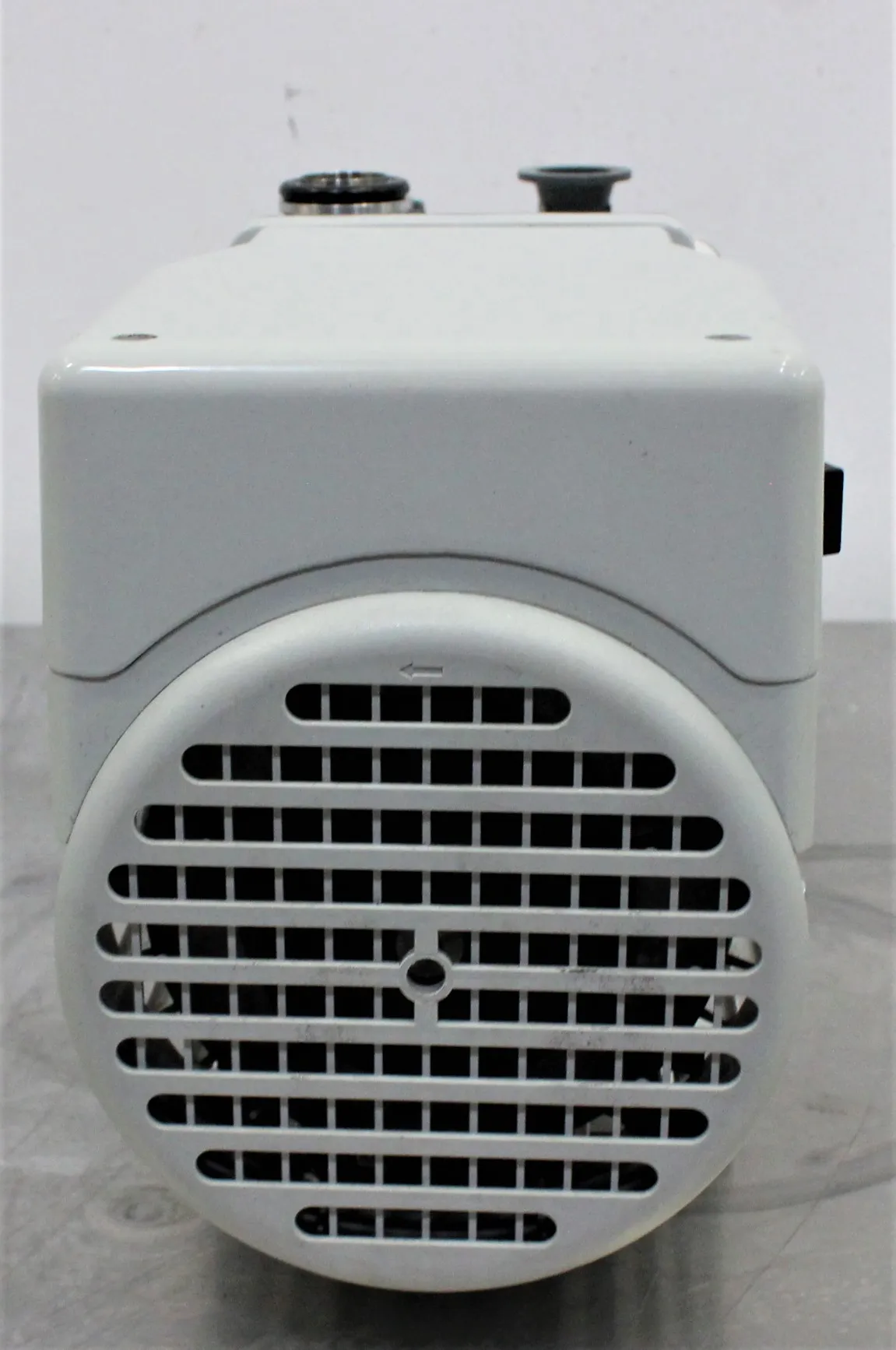

Hey there fellow scientists! Check out the Edwards RV3 Finnigan, a dual-stage rotary vane mechanical vacuum pump. This little powerhouse offers a peak pumping speed of 2.6 cfm at 60 Hz and an ultimate pressure of 1.5x10-3 Torr (2x10-3 mbar). At only 47 pounds, with dimensions of 16.9" x 6.2" x 8.9", the RV3 is both lightweight and transportable. It uses Ultragrade 19 oil, has an oil capacity of 0.70 liters, and runs at a very quiet 48 dB(A) noise level. Tested to run in temperatures ranging from 12 to 40 degrees Celsius, this pump is a quiet, hardworking addition to your lab setup. Besides, it has a max vapor inlet pressure of 60 torr and a max water vapor capacity of 220 grams per hour. And the best part? It's perfect for applications such as gas transfer, freeze drying, and vacuum ovens!

• Peak pumping speed of 2.6 cfm at 60 Hz
• Ultimate pressure of 1.5x10-3 Torr (2x10-3 mbar)
• Lightweight, portable design at 47 pounds and 16.9" x 6.2" x 8.9"
• Uses Ultragrade 19 oil with a 0.70 liter capacity
• Runs quietly at 48 dB(A) noise level
• Can operate in temperatures ranging from 12 to 40 degrees Celsius

• Peak Pumping Speed: 2.6 cfm at 60 Hz
• Ultimate Pressure: 1.5x10-3 Torr (2x10-3 mbar)
• Oil Type: Ultragrade 19
• Oil Capacity: 0.70 liters
• Noise Level: 48 dB(A)
• Max Vapor Inlet Pressure: 60 torr
• Max Water Vapor Capacity: 220 grams per hour
• Weight: 47 pounds
• Dimensions: 16.9" x 6.2" x 8.9"
• Operating Temperature Range: 12 to 40 degrees Celsius

Metric: 30.39 kg
Imperial: 67 lbs

Metric: 43.05 cm x 15.75 cm x 22.61 cm
Imperial: 16.9 in x 6.2 in x 8.9 in

8414200000

8414200000 - Vacuum Pumps: This specific code is used for vane pumps and is designed to cover the category of vacuum pumps with a displacement not exceeding 29.74 cc.
