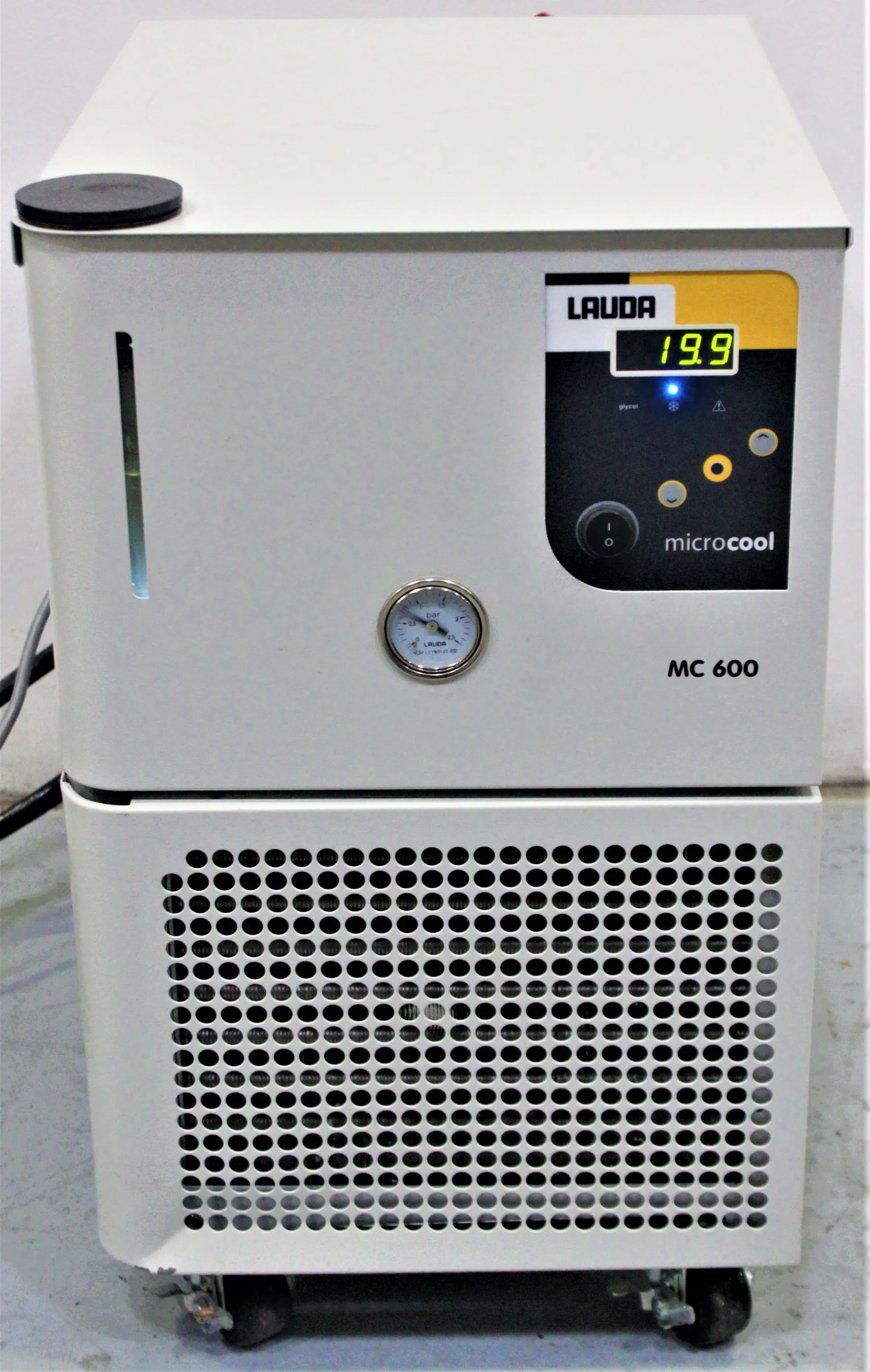

Lauda MC 600 Micro Cool Circulation Chiller

Product Information

Introducing the LAUDA Micro cool MC 600, the compact and reliable circulation chiller designed for dissipating heat quickly and efficiently in laboratory environments. The high-quality block pump with magnetic coupling eliminates sealing problems on the pump shaft. The user interface boasts a large LED display and membrane keyboard for easy operation. Its compact and low space requirements make it a perfect fit for laboratories using rotary evaporators, distillation systems, or analytical devices.

• High-quality block pump with magnetic coupling
• Large LED display and membrane keyboard for user interface
• Integrated RS-232 interface and alarm contact as a standard feature
• Compact design with low space requirements
• Easily removable front grid for maintenance

• Four device types in three housing sizes
• Cooling capacities from 250 W up to 1200 W
• Auto start timer and auto-shutdown function
• Illuminated window for checking heat transfer liquid level
• Integrated adjustable bypass and pressure gauge at MC 600, MC 1200 and MC 1200 W
• Integrated overflow connection
• Working temp. range[C]: -10 - 40
• Temperature stability[+K]: 0.5
• Cooling output[kW]: 0.60
• Pump pressure max. [bar]: 1.30
• Pump flow pressure max. [l/min]: 35
• Bath volume [l]: 4
• Power supply[V; Hz]: 230; 50

Metric: 56.7 kg
Imperial: 125 lbs

Metric: 48.26 cm x 35.56 cm x 73.66 cm
Imperial: 19 in x 14 in x 29 in

841869

841869 - Refrigerating or freezing chests, cabinets, display counters, showcases and similar refrigerating or freezing furniture, other than those of subheading 8418.10
