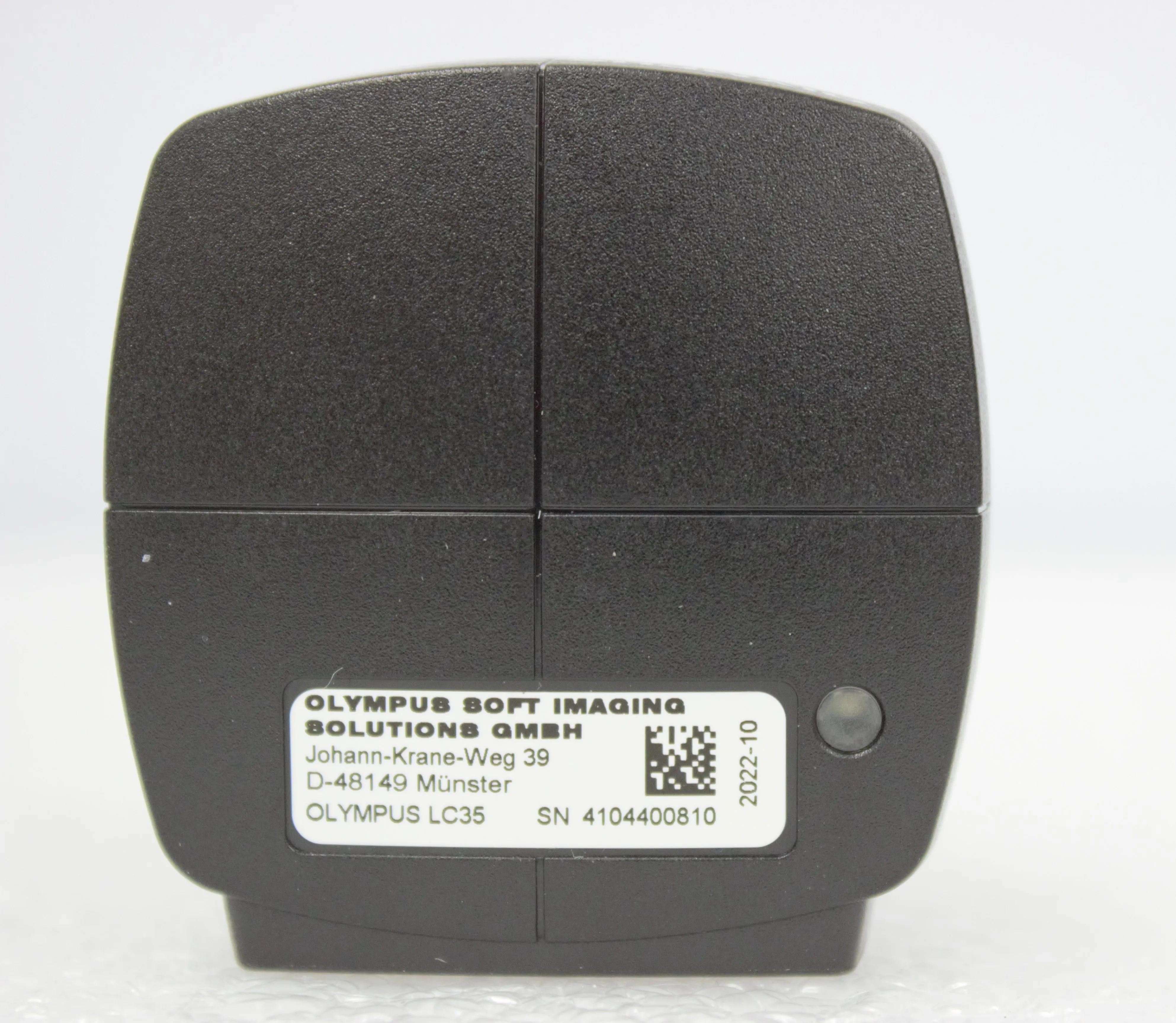

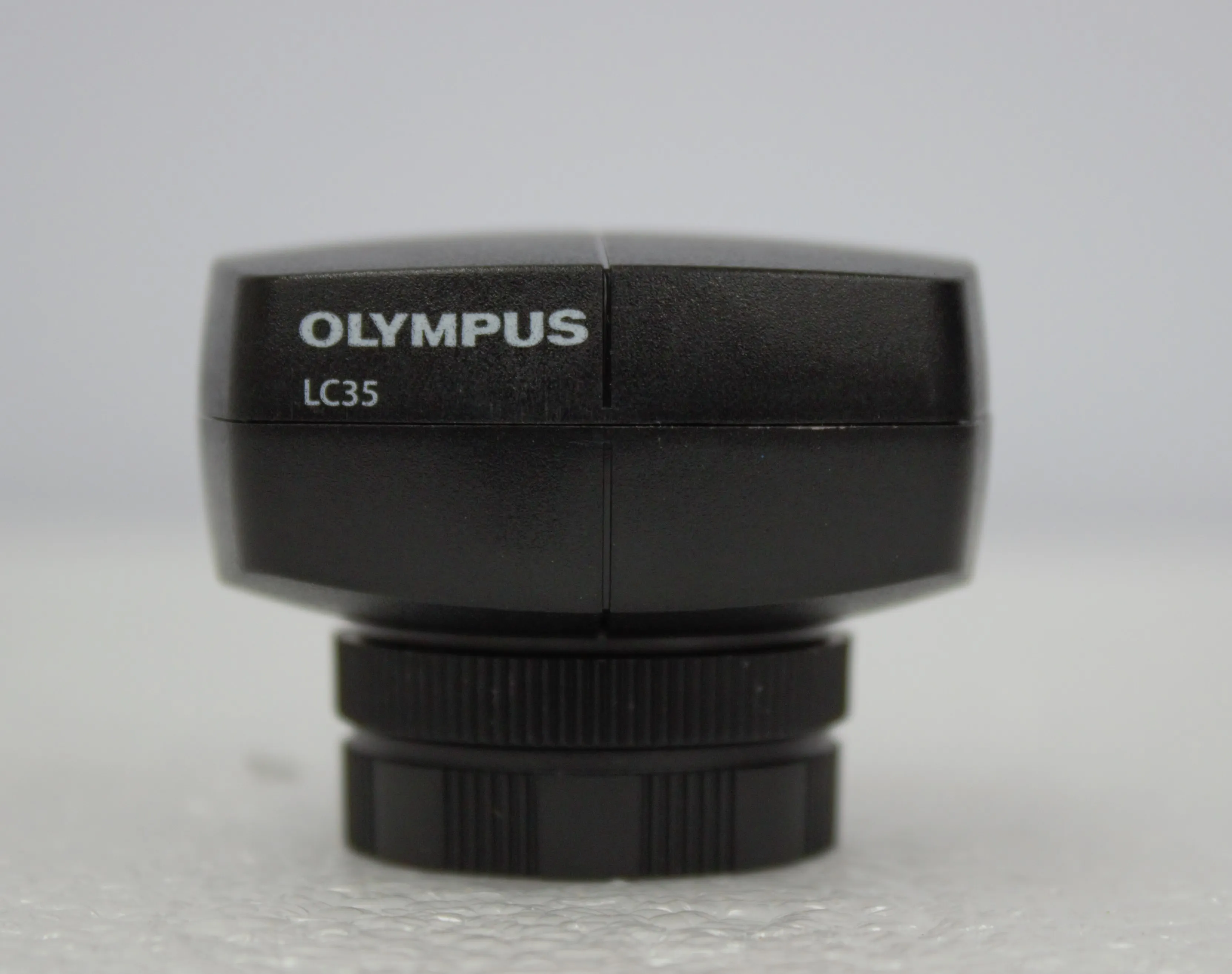

Olympus LC35-CU Microscope and Imager

Product Information

The OLYMPUS LC35-CU is a state-of-the-art microscope and imager with a 3.5-megapixel CMOS sensor, USB 3.1 Gen1 Type-C data transfer, and versatile exposure times and resolution modes. This brand new unit captures detailed brightfield images for routine imaging, inspection, and documentation and provides fast image capture with precise focusing. It has live frame rates of up to 40 fps at 1,296 x 972 pixels in fast mode. With a 30-day warranty included, the OLYMPUS LC35-CU is a top choice for versatile and detailed sample observation and documentation. It's perfect for life science, clinical, and research lab settings.

• 3.5-megapixel CMOS sensor
• USB 3.1 Gen1 Type-C data transfer
• Versatile exposure times and resolution modes
• Live frame rates of up to 40 fps at 1,296 x 972 pixels in fast mode
• 30-day warranty included

• Image Sensor: 1/2.5-inch color CMOS
• Resolution (max.): 2,160 x 1,620 pixels, 1920 x 1080 pixels (fullHD 16:9), 1,296 x 972 pixels (fast mode)
• Pixel Size: 2.64 x 2.64 µm
• A/D Converter (Bit Depth): 10-bits
• Exposure Time: 25 s - 1.5 sec
• Live Frame Rates: Up to 19 fps at 2,160 x 1,620 pixels, up to 25 fps at 1920 x 1080 pixels, up to 40 fps at 1,296 x 972 pixels
• Data Transfer: USB 3.1 Gen1 Type-C
• PC Requirements: CPU: Intel Xeon, Intel Core i5, i7, i9, or the equivalent, RAM: 8 GB, Recommended: 4 or more physical CPU cores, 8 GB RAM (dual channel)
• PC Control: Windows 10 (64-bit)
• Imaging Platform: LCmicro cellSens Entry, Standard, and Dimension v. 3.2 or higher DP2-TWAIN

Metric: 1.36 kg
Imperial: 3 lbs

Metric: 20.32 cm x 20.32 cm x 10.16 cm
Imperial: 8 in x 8 in x 4 in

901180

Microscopes for photomicrography, cinephotomicrography or microprojection
