Thermo Scientific Dionex ICS-Series VWD Variable Wavelength Detector

Product Information

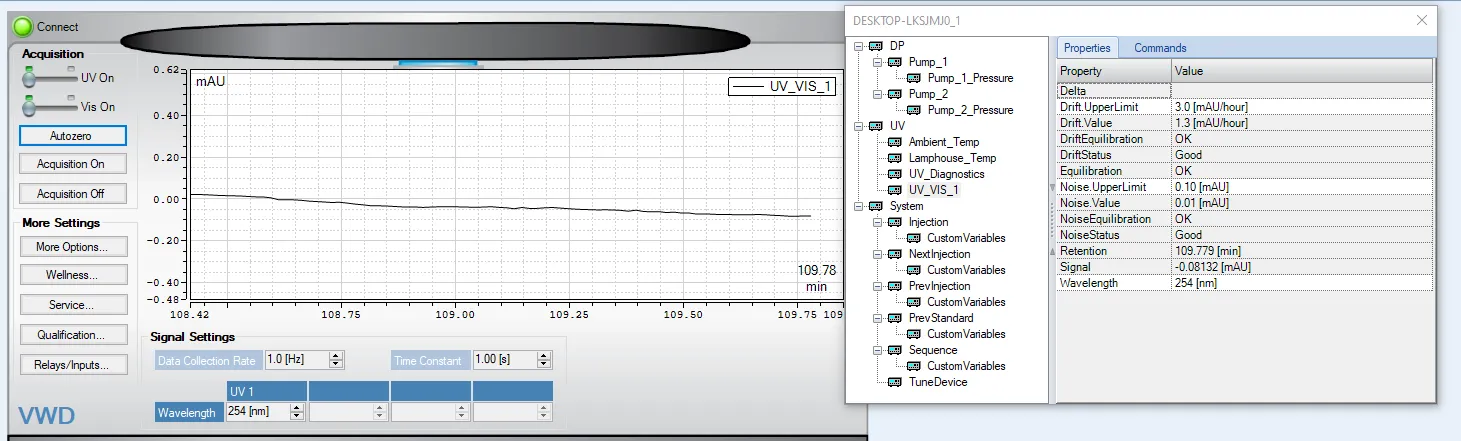

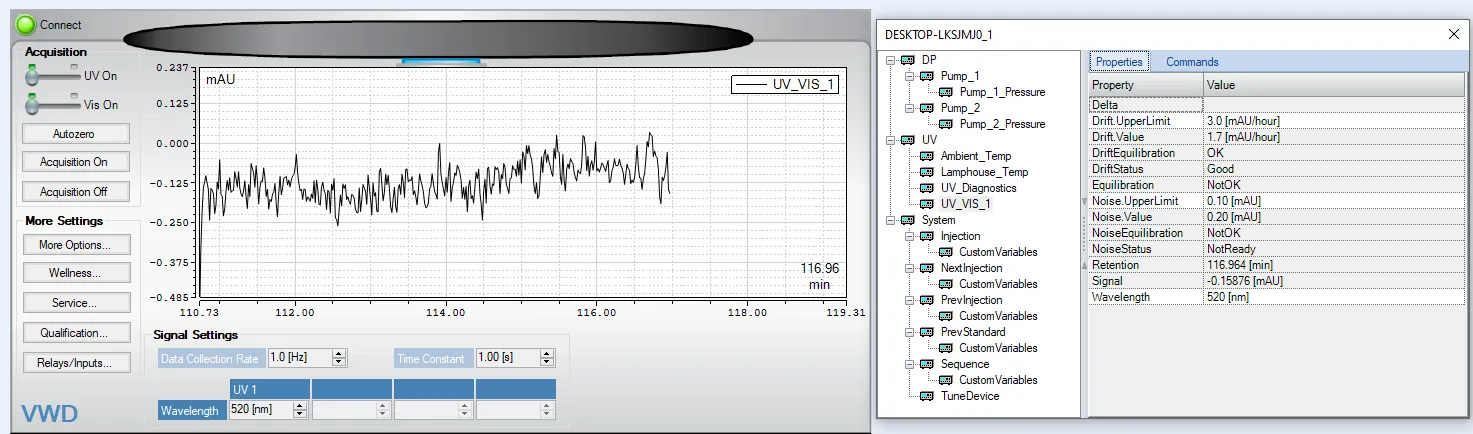

Thermo Scientific Dionex ICS-Series VWD 070220. This item is being sold AS-IS. There is excessive dift and noise in VIS Spectrum. See photos for further details. Get outstanding sensitivity for routine ion chromatography applications with the dual-lamp Thermo Scientific Dionex ICS-Series VWD Variable Wavelength Detector. Work free from worry of metal contamination with available all Thermo Scientific PEEK flow cells. The Thermo Scientific Dionex ICS-Series VWD Variable Wavelength Detector is a versatile and reliable tool for detecting and analyzing ion chromatography. Its high sensitivity, low drift, and noise level make it suitable for a wide range of routine ion chromatography applications. The Variable Wavelength Detector also features simultaneous Tungsten and Deuterium lamp, PEEK flow cell, a PC connection via USB, and a wide wavelength range of 190 to 900 nm. With flow cell volume of 11 L, the Variable Wavelength Detector provides accurate results with a wavelength accuracy of 1 nm. This used item is in Class 4 - As-Is condition and operates at 120V/220V and 50Hz/60Hz voltage and hertz. Notably, Thermo Scientific Dionex ICS-Series VWD is known for its frequency of 47/63 Hz and analog outputs. This model also has a data collection rate of up to 10 Hz, with 20-bit resolution, variable wavelength type, and two variable wavelength detectors (single channel). The flow cell volume is 11L with PEEK materials, and a peak wavelength bandwidth of 6 nm. With a drift of less than 0.1 mAU/hr and a noise level of under 2.5 AU at 254 nm, users can rely on the accuracy and precision of this detector. Its wide linear range of up to 2.5 AU and dual lamp design reinforce the instrument's capability. This item offers high-quality results, making it an ideal fit for a variety of ion chromatography applications.

• Dual-lamp functionality for enhanced sensitivity
• PEEK flow cells
• Simultaneous Tungsten and Deuterium lamp
• Wide wavelength range of 190 to 900 nm
• Analog outputs with 20-bit resolution
• USB PC connection for data transfer

• Frequency: 47/63 Hz
• Analog Outputs: Two (absorbance, 20-bit resolution, 0-1 V and 0-10 V)
• Type: Variable Wavelength Detector
• Detector Type: Variable Wavelength (Single Channel)
• Data Collection Rate: Up to 10 Hz
• Drift: < 0.1 mAU/hr
• Noise Level: < 2.5 AU (at 254 nm)
• Flow Cell Volume: 11 L
• Flow Cell Materials: PEEK
• Wavelength Accuracy: 1 nm
• Wavelength Range: 190 to 900 nm
• Lamp: Simultaneous Tungsten and Deuterium
• Linearity: Up to 2.5 AU
• PC Connection: USB
• Wavelength Bandwidth: 6 nm (at 254 nm)

Metric: 19.5 kg
Imperial: 43 lbs

Metric: 63.5 cm x 58.42 cm x 27.94 cm
Imperial: 25 in x 23 in x 11 in
