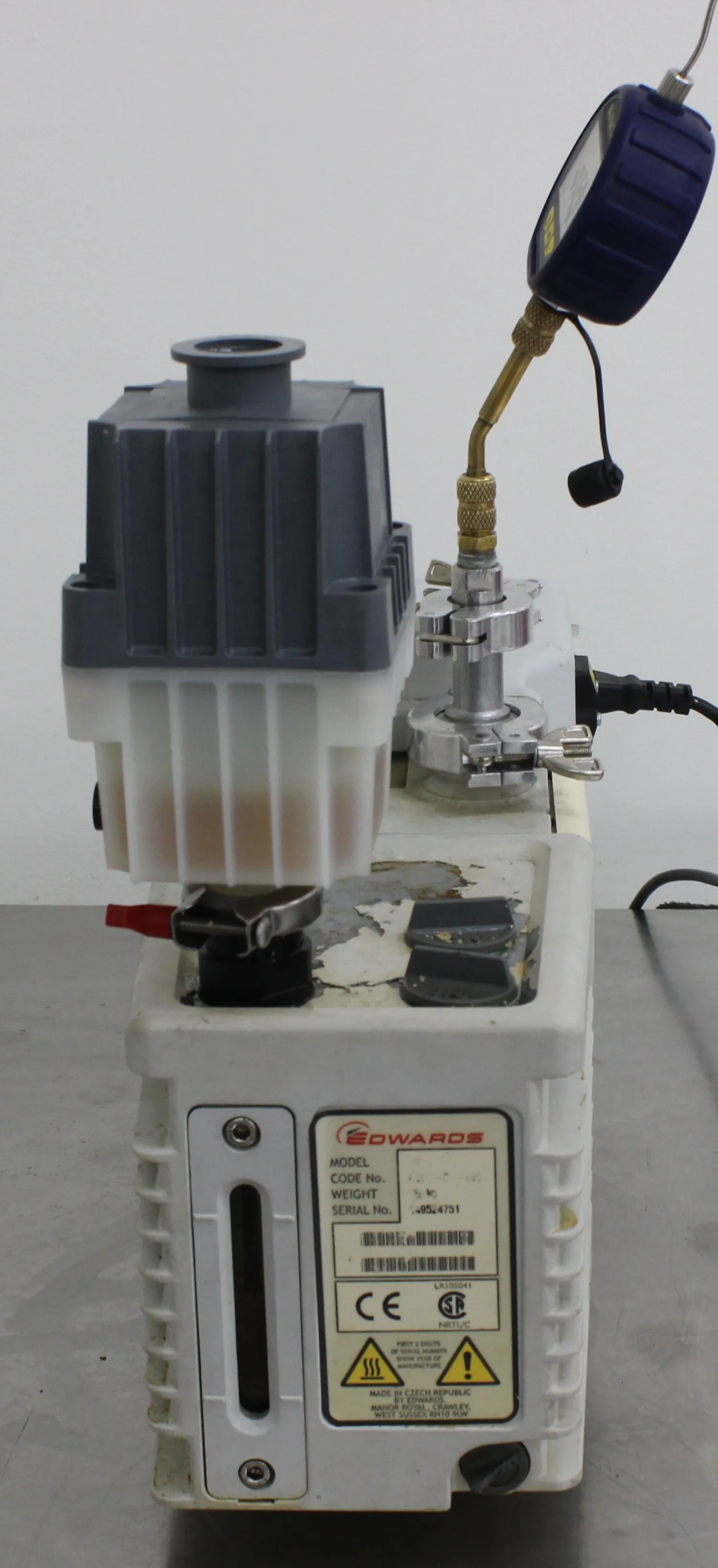

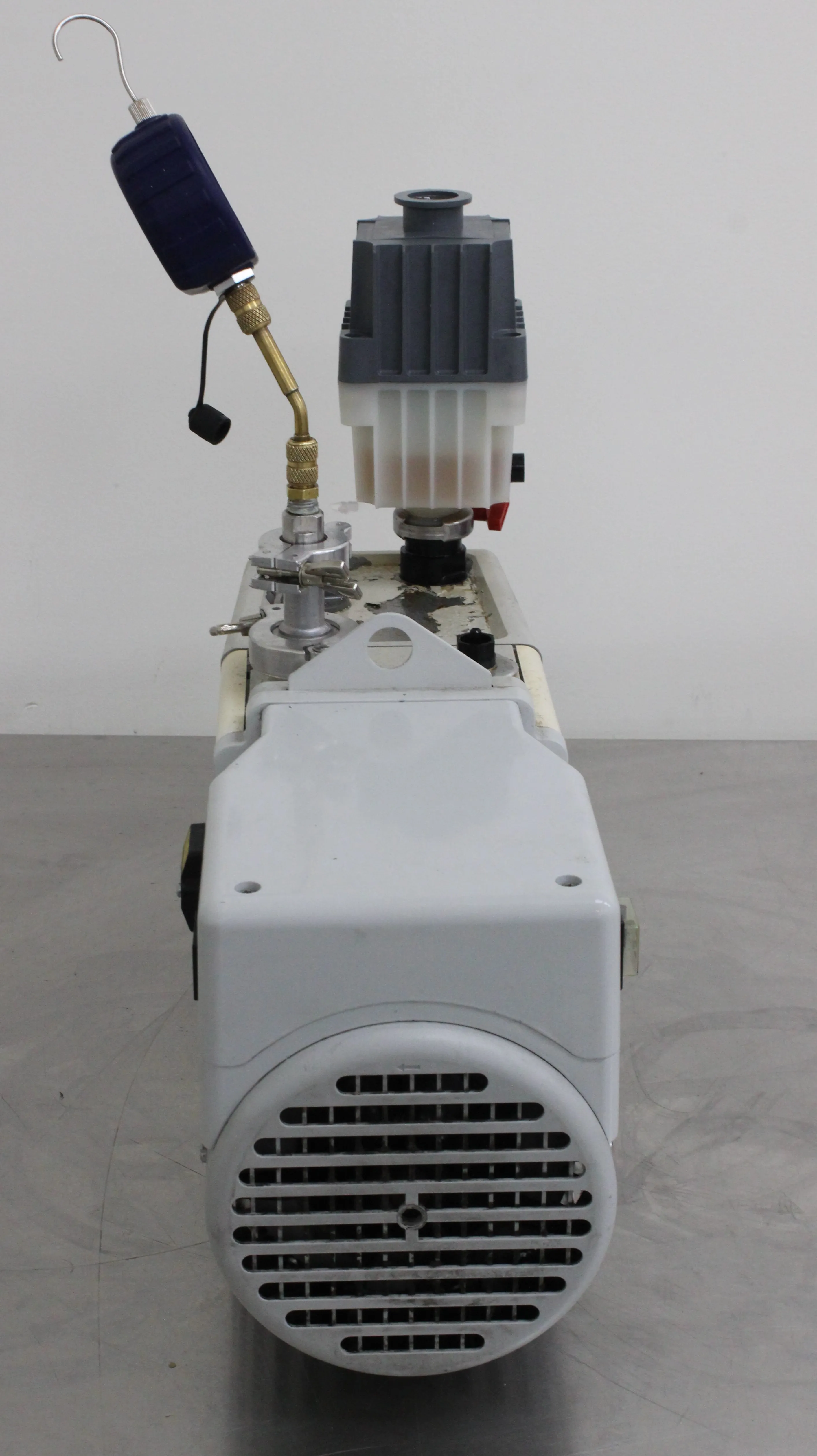

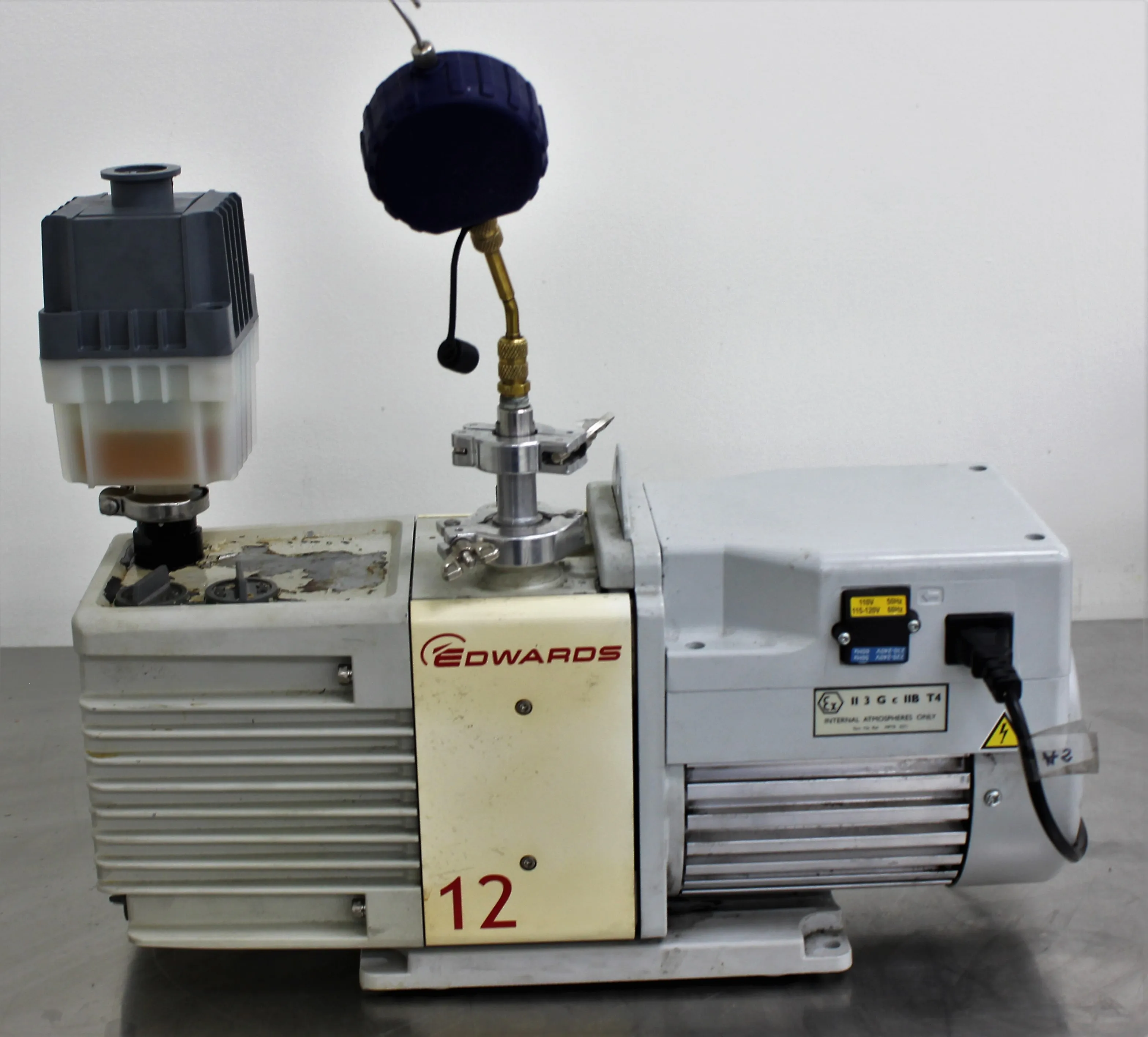

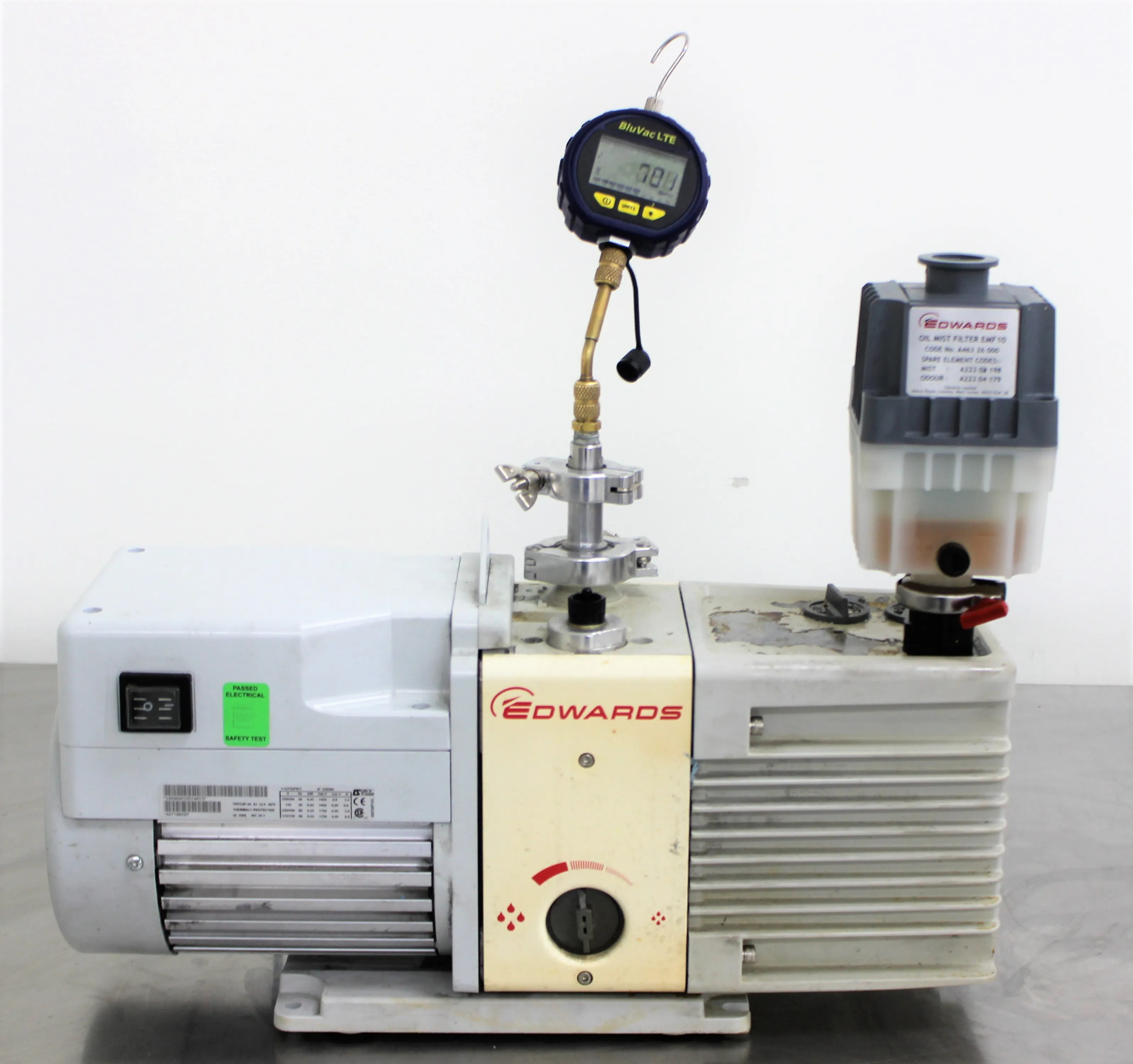

Edwards RV12 Vacuum Pump

Product Information

The Edwards RV12 is a small oil sealed rotary vane pump known for delivering excellent ultimate vacuum pressure, high pumping speeds, and superior vapor handling capabilities with quiet operation. With over 400,000 units produced, these pumps are reliable and widely used for R&D and scientific pumping applications. Sold AS/IS for parts with a vacuum pressure over 700 microns. This pump offers an ultimate pressure of 2 x 10-3mbar, making it suitable for various lab applications. Built with a motor power of 450/550W and featuring both 120V and 220V voltage support, this vacuum pump caters to diverse laboratory setups and requirements.

• Ultimate pressure: 2 x 10-3mbar
• Motor power: 450/550W
• Voltage: 120V/220V

• Ultimate pressure: 2 x 10-3mbar / 1.5 x 10-3Torr
• Ultimate pressure GB I: 3 x 10-2mbar / 2.3 x 10-2Torr
• Ultimate pressure GB II: 6 x 10-2mbar / 4.6 x 10-2Torr
• Ultimate pressure with Fomblin: 2 x 10-2mbar / 1.5 x 10-2Torr
• Max inlet pressure for water vapor: 32 mbar / 24 Torr
• Max water vapor pumping rate GB I: 60 gh-1
• Max water vapor pumping rate GB II: 220 gh-1
• Max allowed outlet pressure: 0.2 bar gauge / 2.8 psig
• Max allowed inlet and gas ballast pressure: 0.5 bar gauge / 7 psig
• Motor power 50/60Hz: 450 / 550W
• Power connector 1-ph IEC EN60320 C13
• Nominal rotation speed 50/60Hz: 1500 / 1800rpm
• Oil capacity min/max: 0.65 / 1 litres
• Recommended oil: Ultragrade 19
• Inlet flange: NW25
• Exhaust flange: NW25
• Noise level: 48 dB(A) @ 50 Hz
• Operating temperature range: 12 - 40°C

Metric: 28.1233 kg
Imperial: 62 lbs

Metric: 28 cm x 15 cm x 17 cm
Imperial: 11.0236 in x 5.9055 in x 6.6929 in

8414100000

This code includes vacuum pumps for laboratory use, which applies to this Edwards RV12 vacuum pump.
