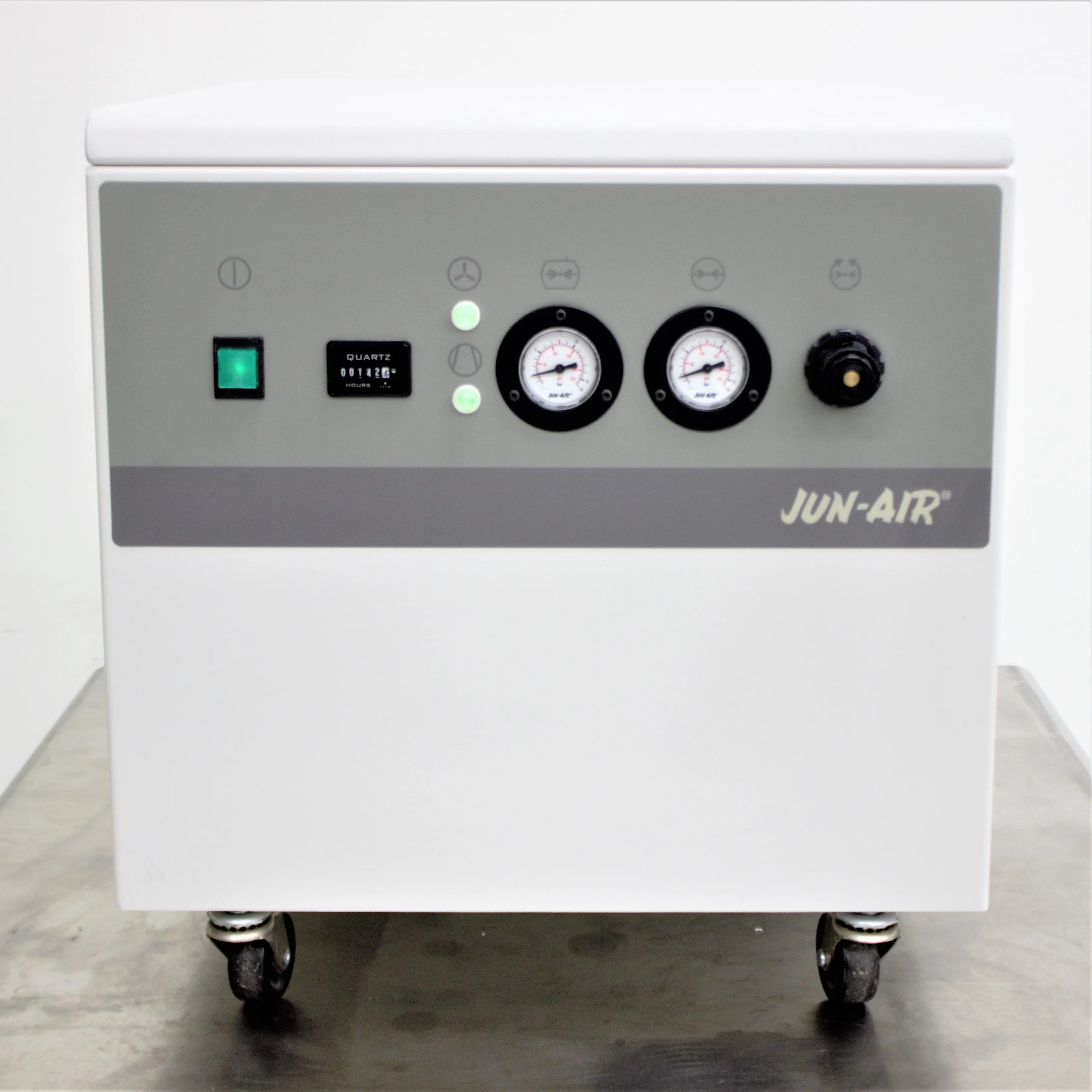

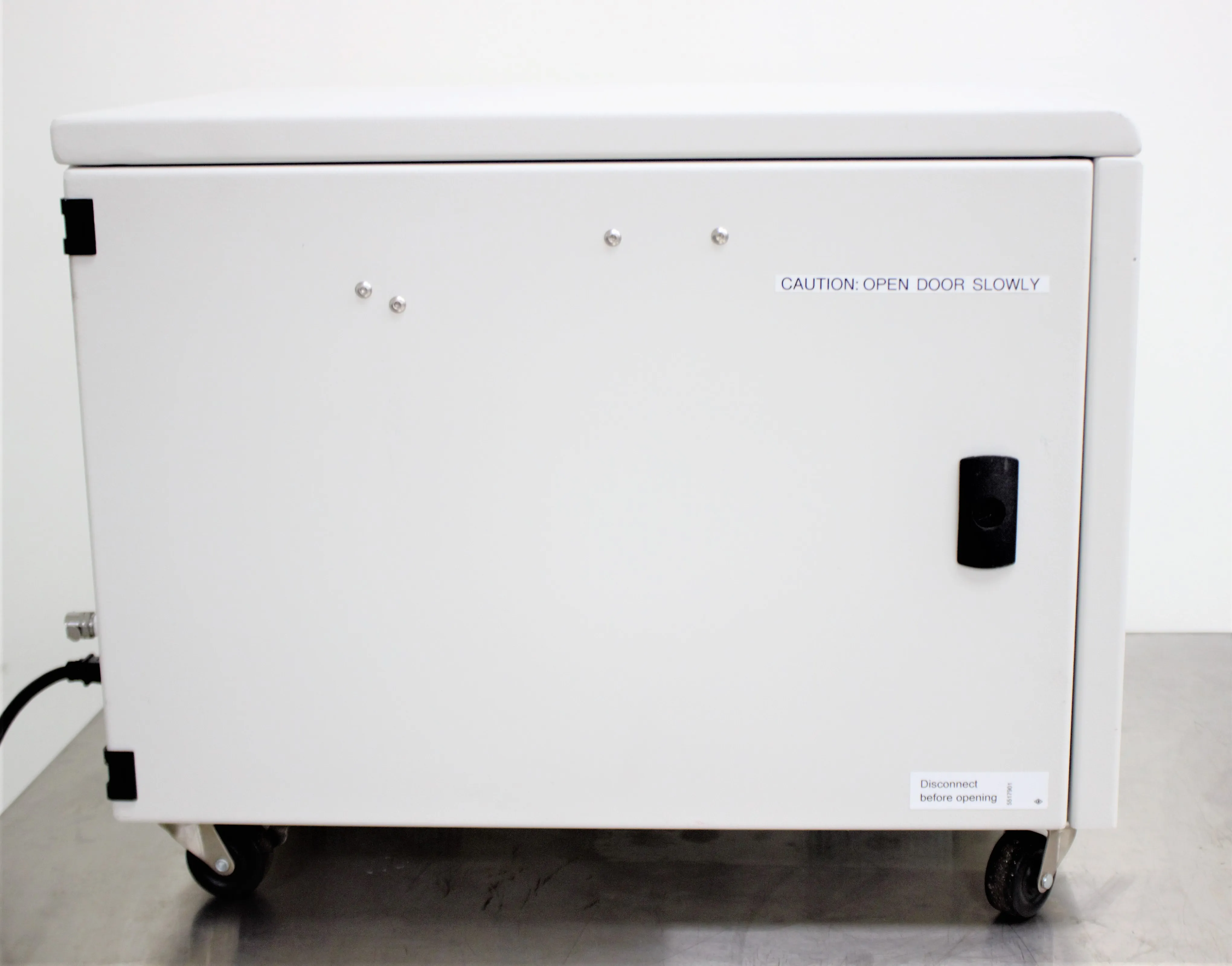

Jun-Air OF302-4M Oil-Less Rocking Piston Air Compressor Cabinet Unit with Integrated Filtration

Product Information

This OF302-4m air compressor cabinet unit has been tested for basic functionality. The Jun-Air OF302-4M oil-less rocking piston is ideal for laboratory, medical, dental, gas generation, beverage dispensing, and other applications where noise and long life are key requirements. Jun-Air has introduced a new generation of compressors with few moving parts, which reduces the noise, vibrations as well as wear and tear. The reduction in noise and vibration level makes it possible to place the compressor directly at the place of use, with an approximate noise level of 65 dB(A). The system type is a Cabinet Unit, designed for use in Medical / Lab / Dental markets. It has a displacement of 3.81 cfm (108 l/min) at 50 Hz and 4.87 cfm (138 l/min) at 60 Hz, FAD @ Max Pressure of 1.34 cfm (38 l/min) at 50 Hz and 1.55 cfm (44 l/min) at 60 Hz, a maximum pressure of 120 psig (8 bar), and a tank size of 1.1 gal (4 litres). With a noise level of 47 dB(A) at 50 Hz and 48 dB(A) at 60 Hz, this unit is quiet, modern, highly efficient, and flexible, featuring integrated filtration and a 100% duty cycle.

• Modern design
• Low noise and vibration level
• State-of-the-art performance
• Highly efficient
• Flexible installation
• Easy maintenance
• Integrated filtration
• 100% duty cycle, runs continuously

• System Type: Cabinet Unit
• Market: Medical / Lab / Dental
• Displacement (50 Hz): 3.81 cfm (108 l/min)
• Displacement (60 Hz): 4.87 cfm (138 l/min)
• FAD @ Max Pressure (50 Hz): 1.34 cfm (38 l/min)
• FAD @ Max Pressure (60 Hz): 1.55 cfm (44 l/min)
• Max Pressure: 120 psig (8 bar)
• Tank Size: 1.1 gal (4 litres)
• Noise Level (50 Hz): 47 dB(A)
• Noise Level (60 Hz): 48 dB(A)

Metric: 49.44 kg
Imperial: 109 lbs

Metric: 24 cm x 18 cm x 19 cm
Imperial: 9.45 in x 7.09 in x 7.48 in
