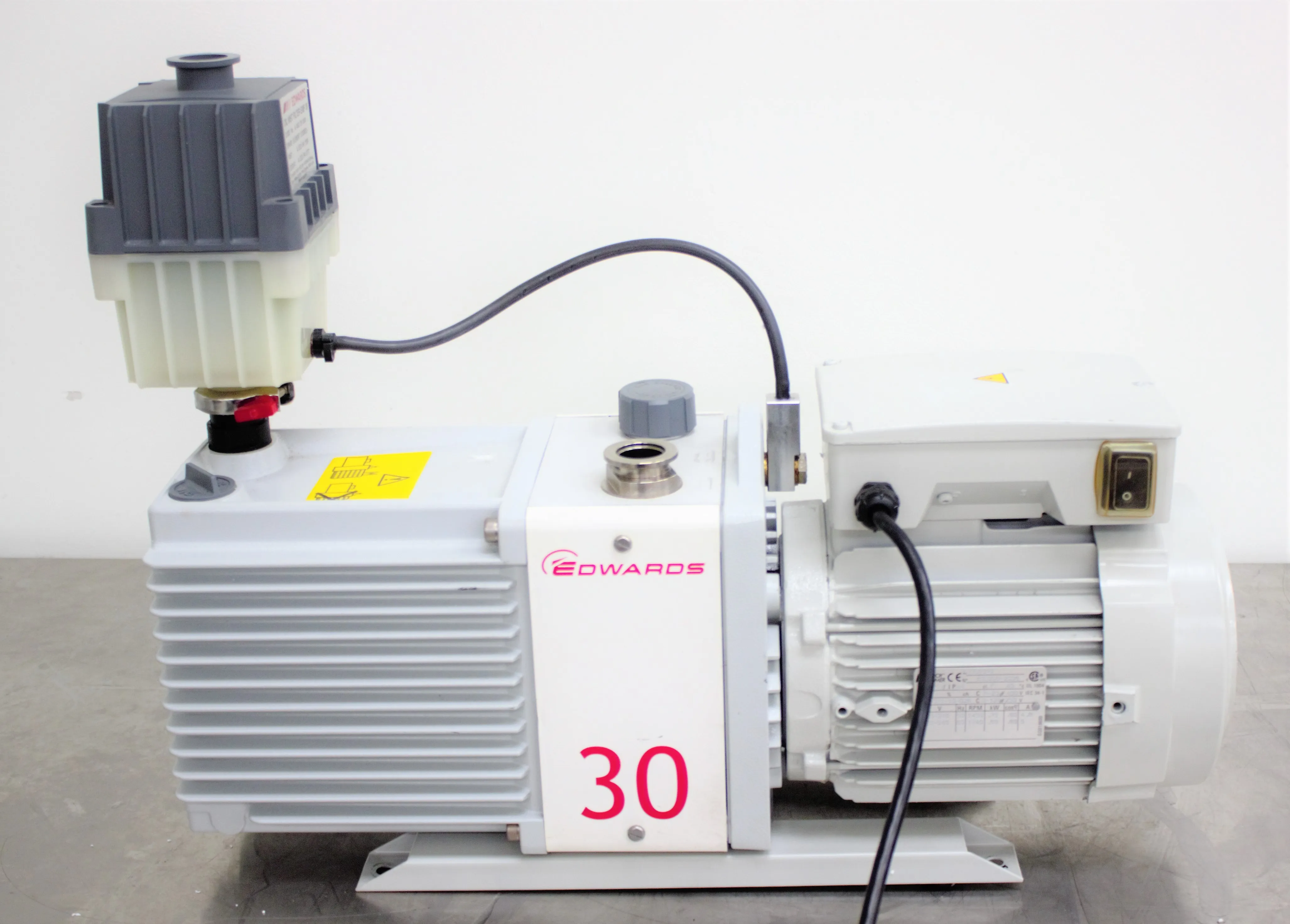

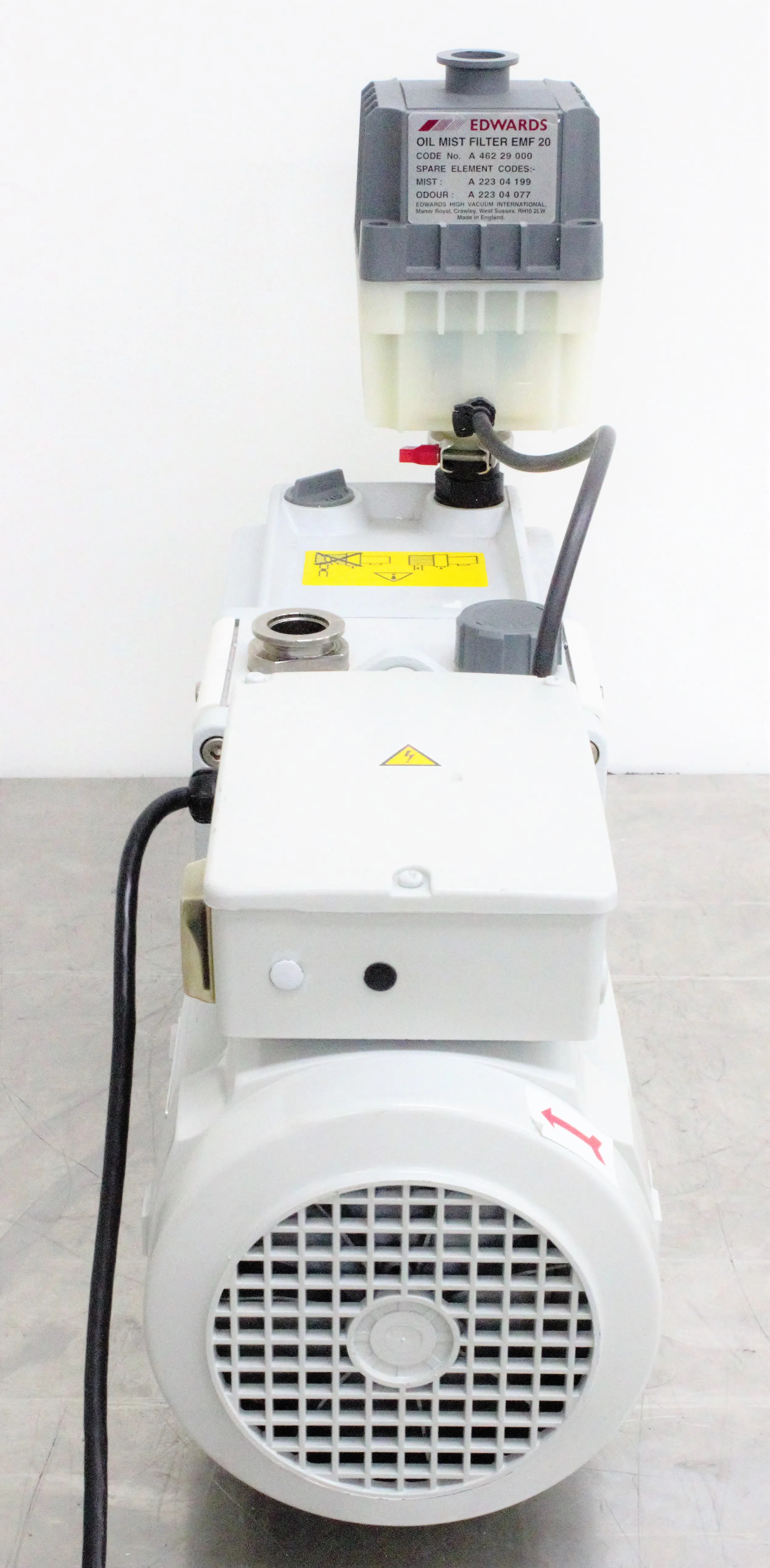

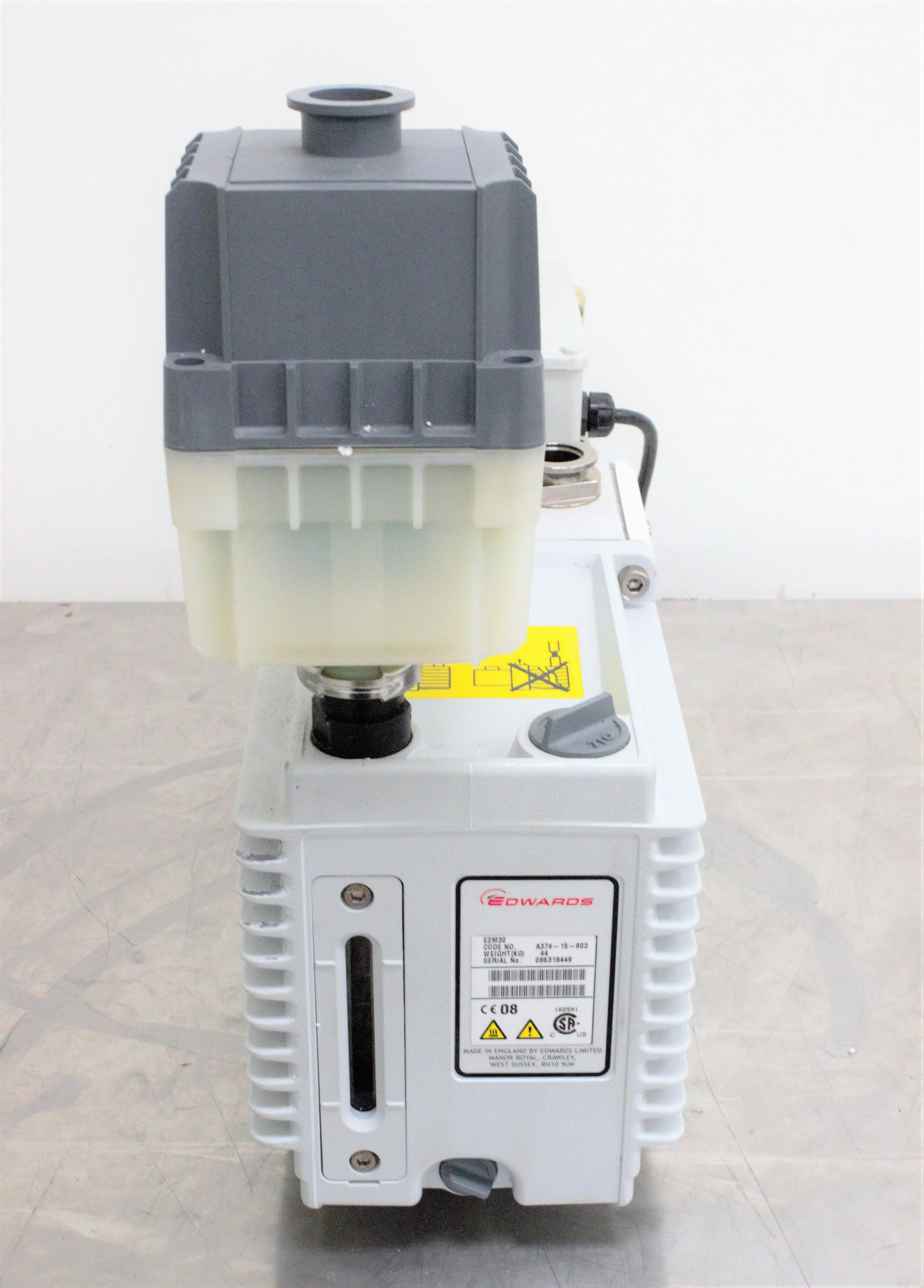

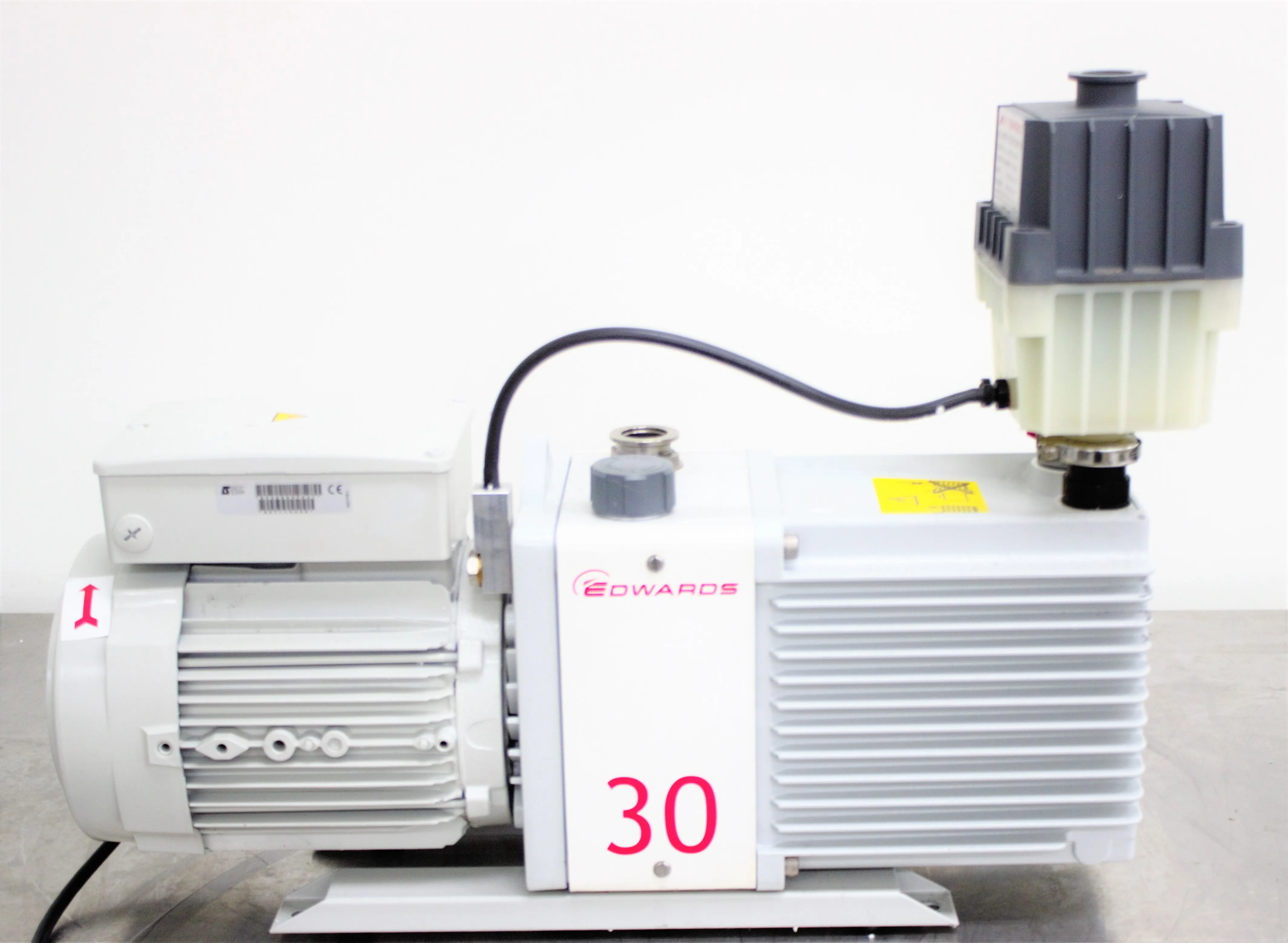

Edwards E2M30 Rotary Vane Vacuum Pump
Same item available with different options / conditions
- Make Edwards
- Hertz 50Hz/60Hz

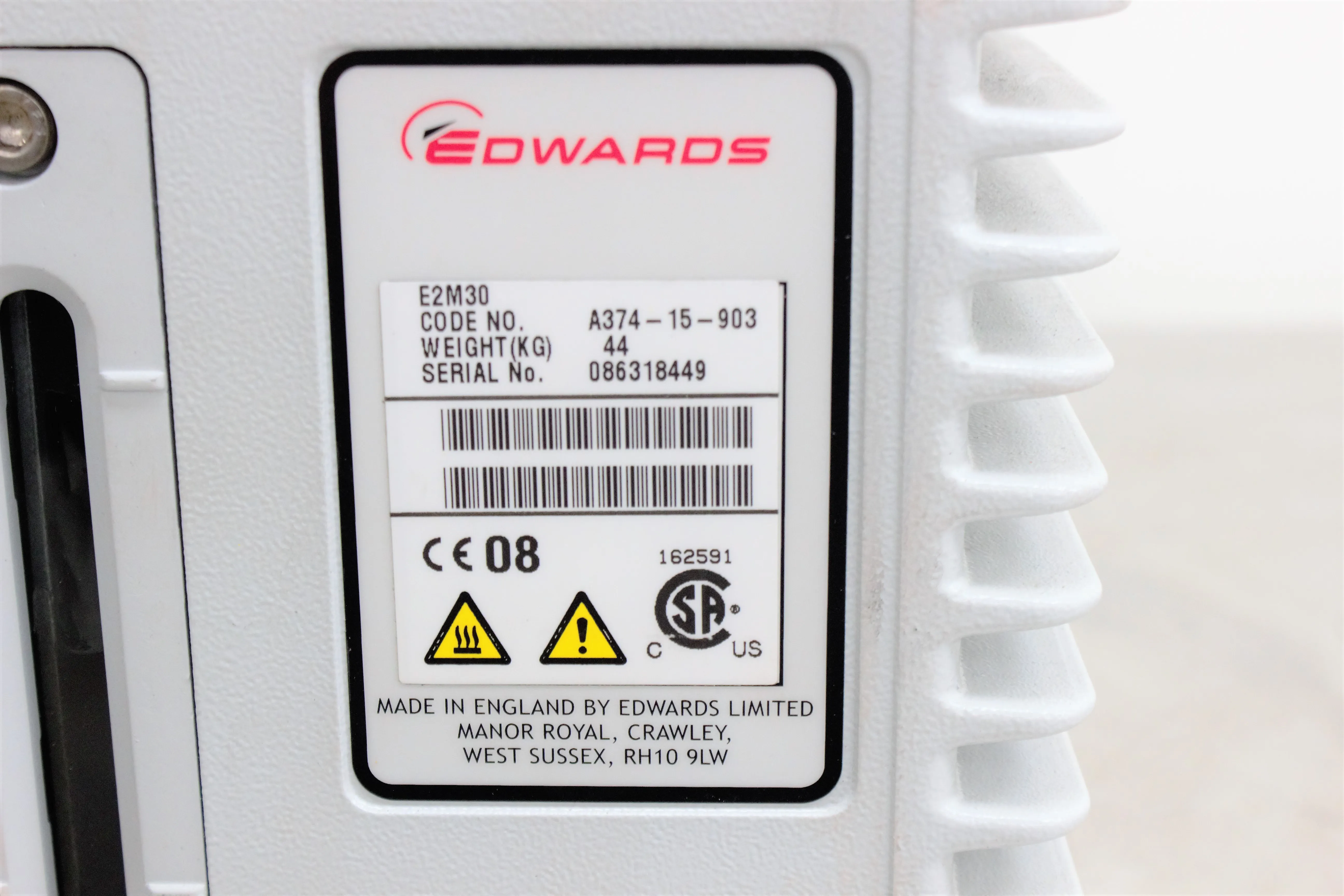

- Model E2M30
- Serial 086318449
- Weight 107.0 Lb
- Voltage 220V
- Includes Power cord included |
- Warranty 30-Day Warranty, 100% Parts and Labor
- Dimensions 32.0in x 15.0in x 26.0in
- Shipping Type FedEx Ground
- Item Condition Excellent
- Manufacturing Date Does Not Apply
Product Information

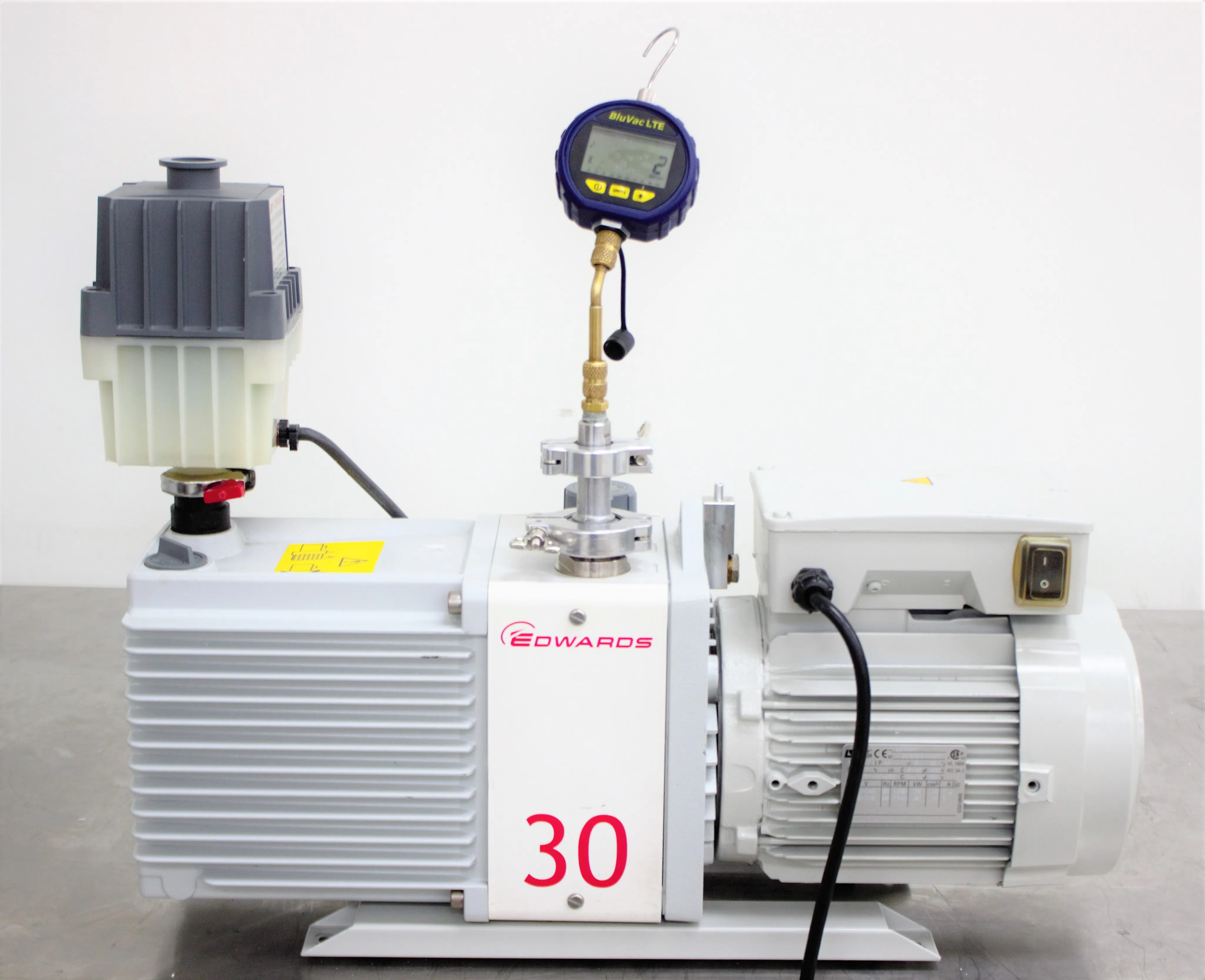

This Edwards E2M30 Pump is used and has been tested for basic functionality. (pressure gauge not included) The Edwards E2M30 Rotary Vane Vacuum Pump offers excellent ultimate pumping speed while providing quiet operation. With outstanding vapor handling capabilities, the E2M30 is a reliable and versatile 208V vacuum pump. There are a multitude of applications for the Edwards E2M30, including use with sterilization, mass spectrometry, lasers, vacuum distillation, epoxy degassing, brake line evacuation, freeze drying, space research, refrigeration dehydration, vacuum ovens, backing combinations, thin film coating, and other vacuum processes. Large, clearly marked, easily accessible controls Operate at quiet 48dBA Easy to use and service (require no special tools) Fast-acting inlet valve prevents oil and gas suck-back in the event of power or oil pressure loss NW25 inlet/outlet connections High vacuum or high throughput from the same pump Easily selectable modes High Vacuum mode provides ultimate vacuum down to 1.5 x 10-3torr with no gas ballast High Throughput mode sustains long-term high inlet pressures with ultimate vacuum as low as 2.3 x 10-2torr without gas ballast Adjustable gas ballast control maximizes vapor handling capability Gas ballast delivered into pump prevents condensation of vapor carried by pumped gases Three user-selectable gas ballast positions '0' Closed, 'I' Low Flow, 'II' High Flow meet most vapor handling requirements. Specifications Maximum Pressure 1.5 x 10-3mbar Horsepower 0.5 hp Noise Level 48 dB (A) Flow Rate 76 L/min. Temperature (English) Max. 104F Temperature (Metric) Min. 12C
Key Features- Provides ultimate pumping speed
- Quiet operation at 48dBA
- Offers outstanding vapor handling capabilities
- Maximum Pressure: 1.5 x 10-3mbar
- Horsepower: 0.5 hp
- Noise Level: 48 dB (A)
- Flow Rate: 76 L/min.
- Temperature (English) Max.: 104F
- Temperature (Metric) Min.: 12C
Metric: 48.54 kg
Imperial: 107 lbs
Metric: 32.0 cm x 15.0 cm x 26.0 cm
Imperial: 12.598 in x 5.906 in x 10.236 in
841410
Harmonized Code DetailsVacuum pumps, parts
This item is sold out, please see other similar options.
Edwards E2M30 Rotary Vane Vacuum Pump A37415903 Hydrocarbon Oil Dual Stage 220-240V
Edwards E2M30 Vacuum Pump with Hydrocarbon Oil, Dual Stage, Rotary Vane Pump, 220-240 VAC, A37415903
Edwards E2M30 Rotary Vane Vacuum Pump A37415903 120V/220V 50Hz/60Hz
