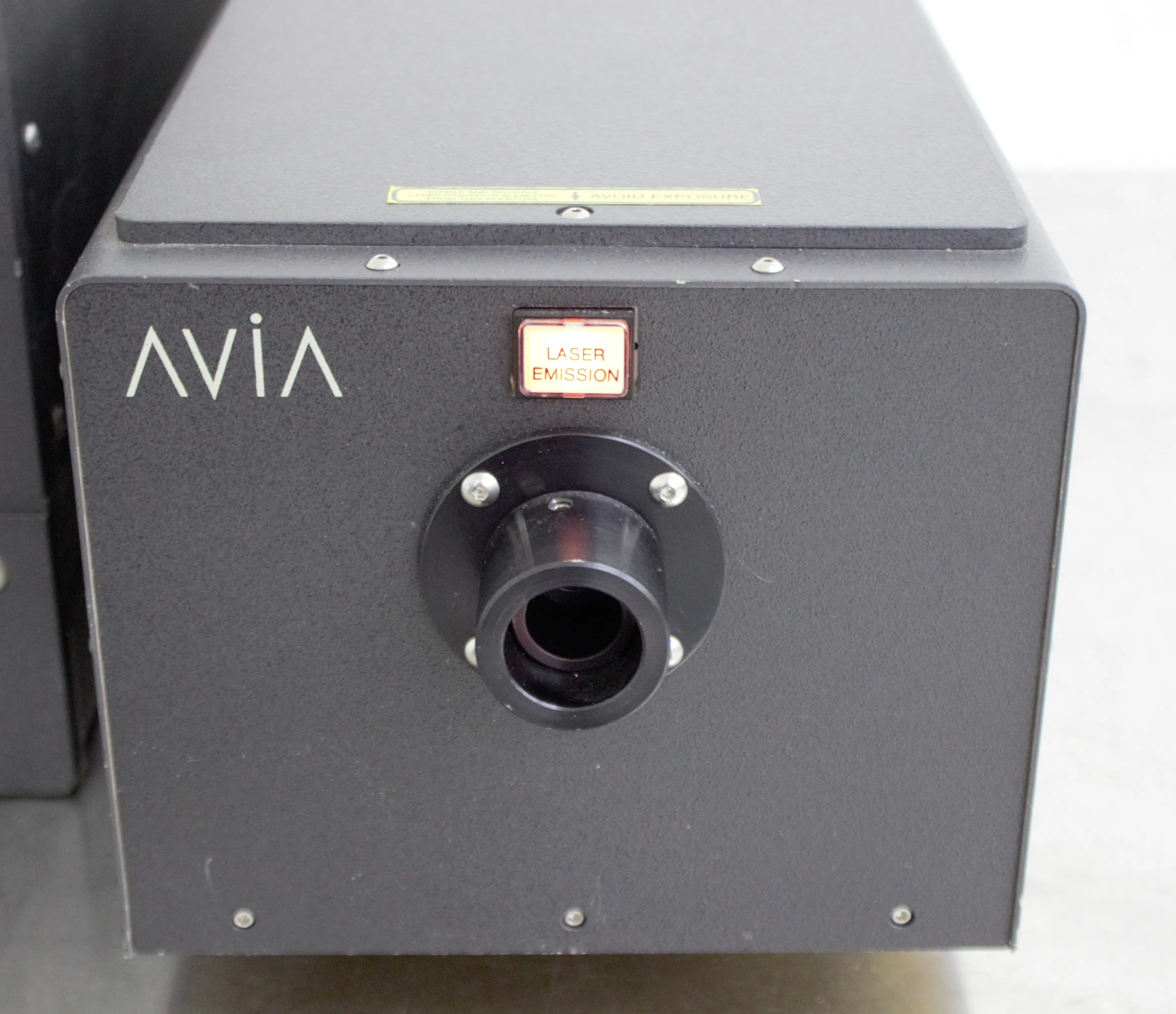

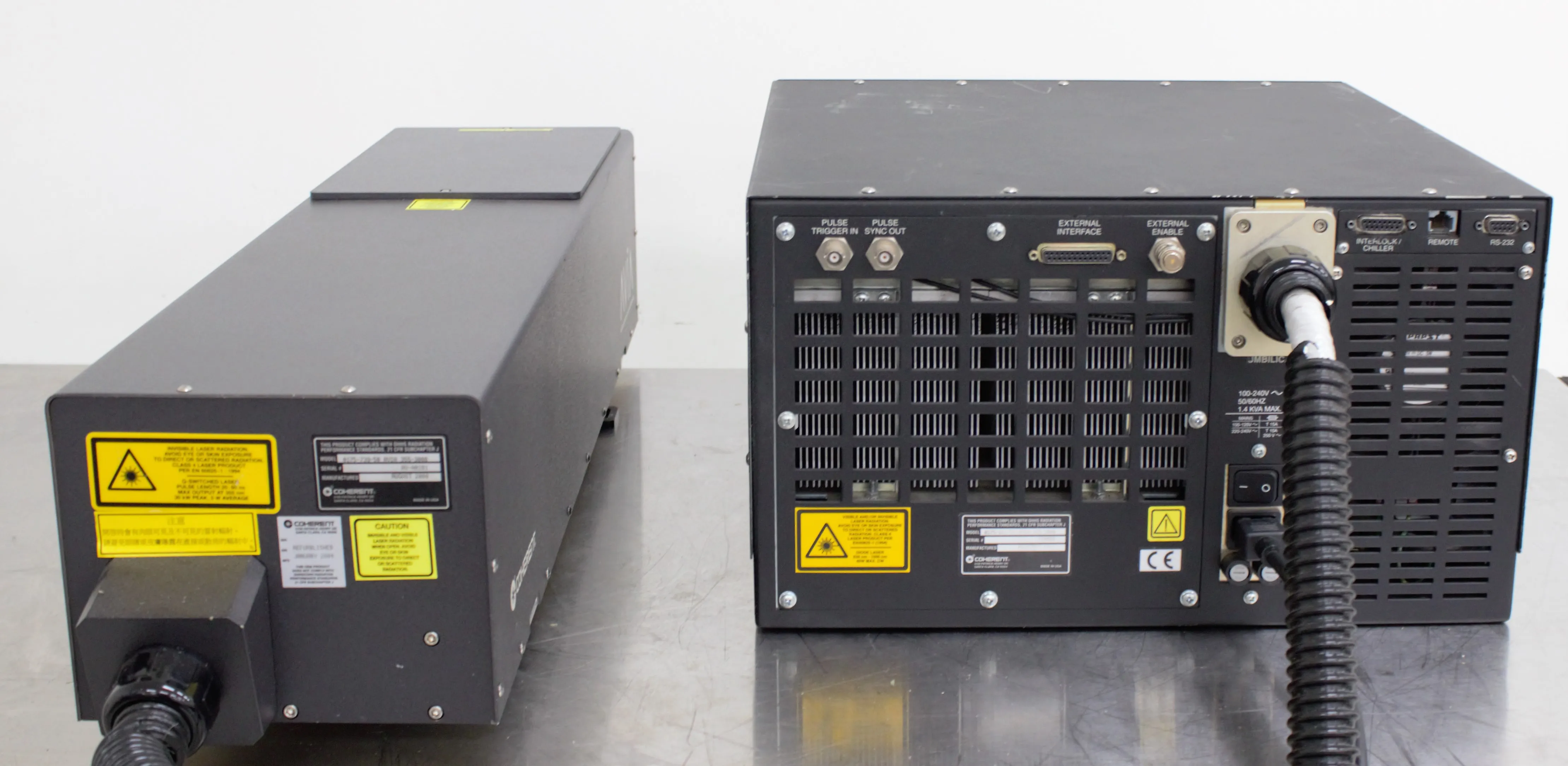

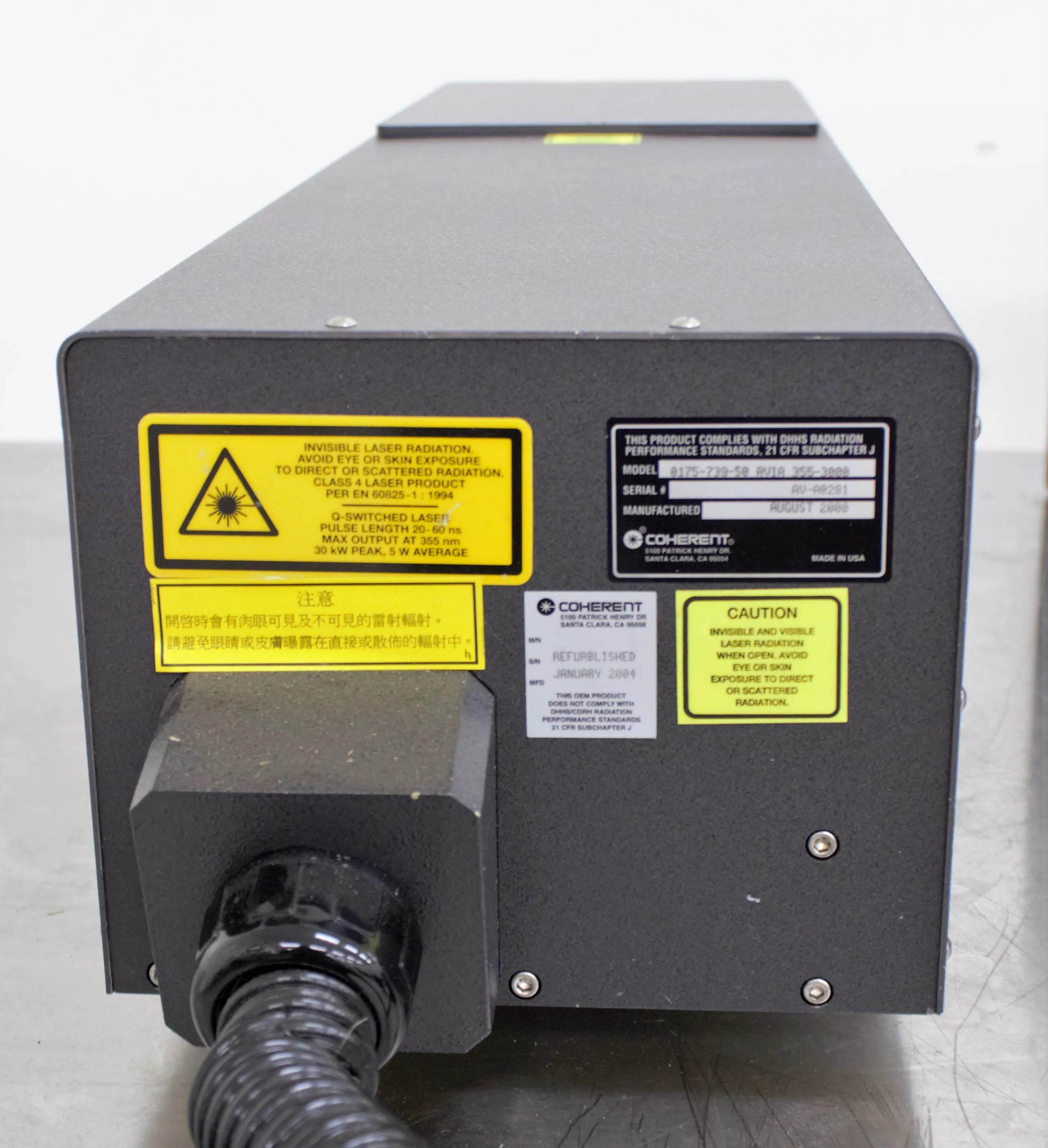

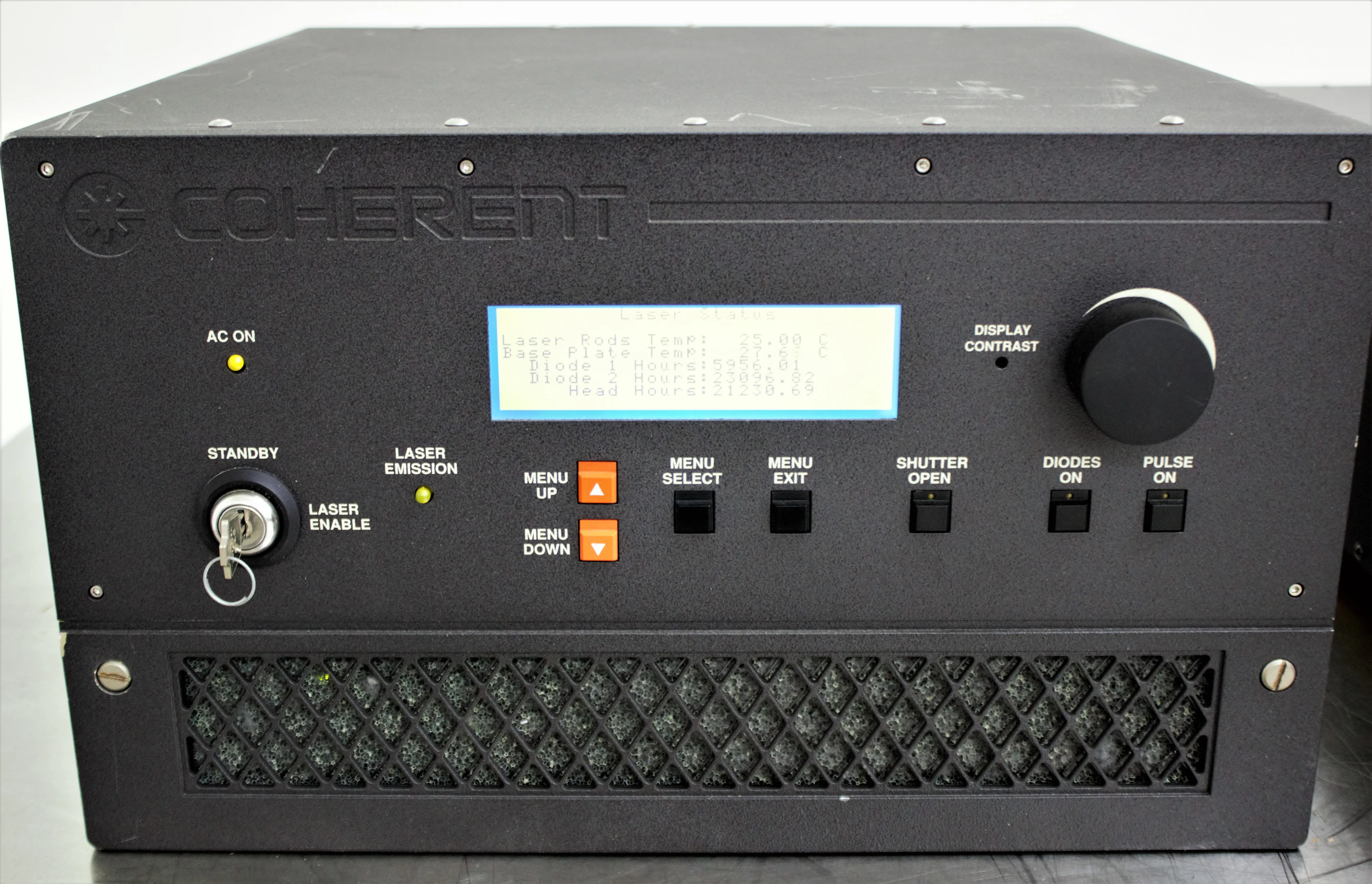

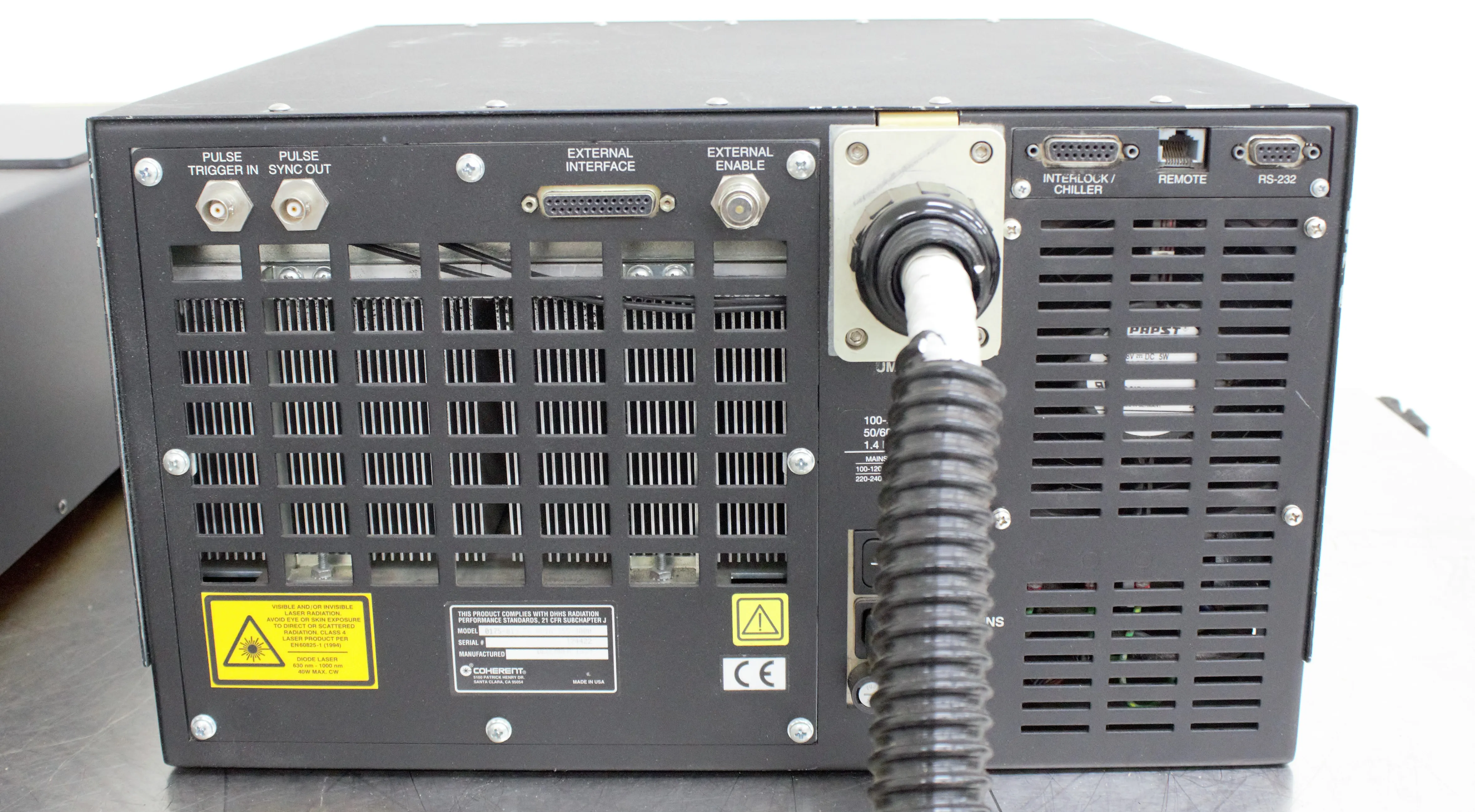

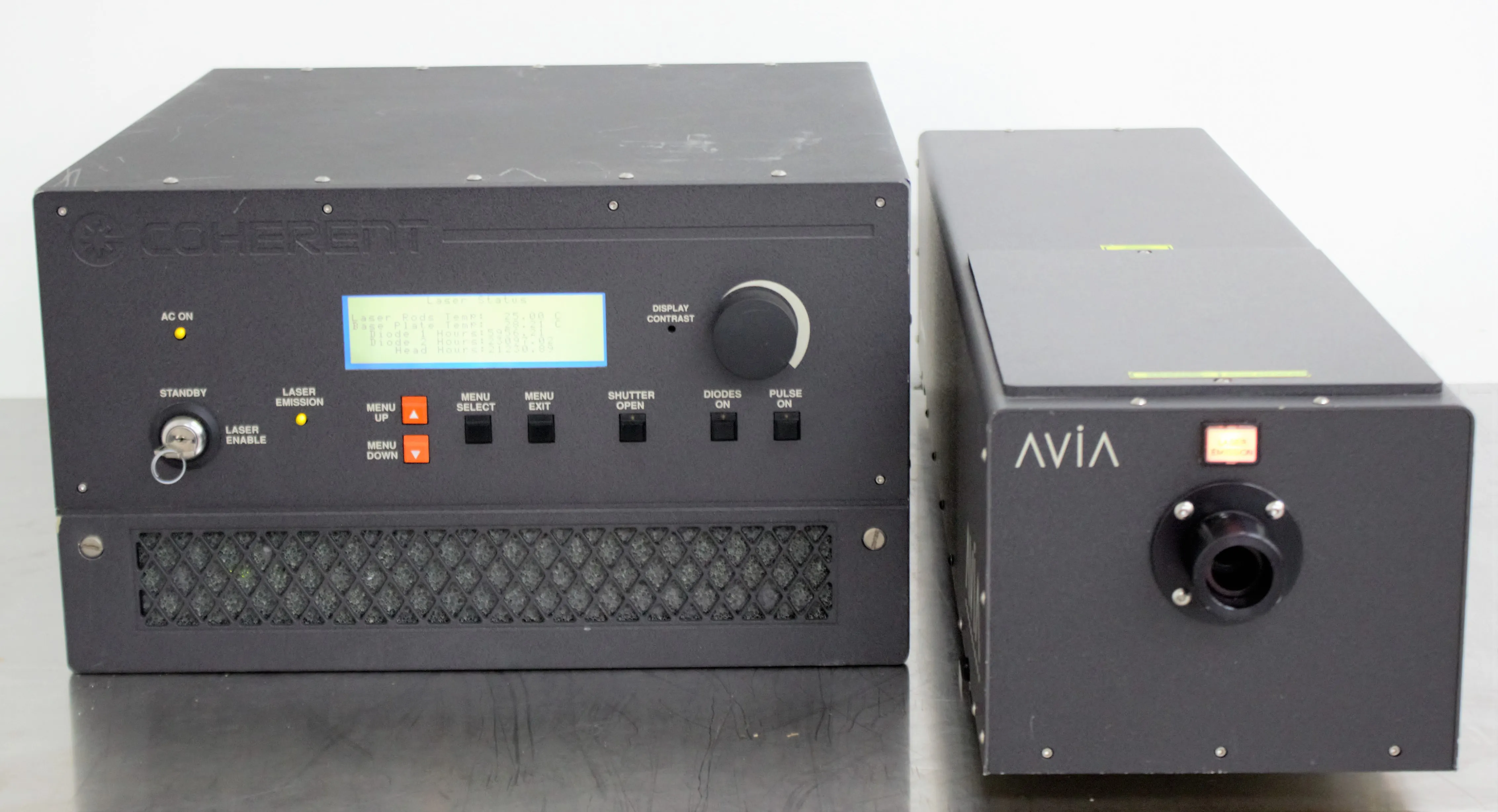

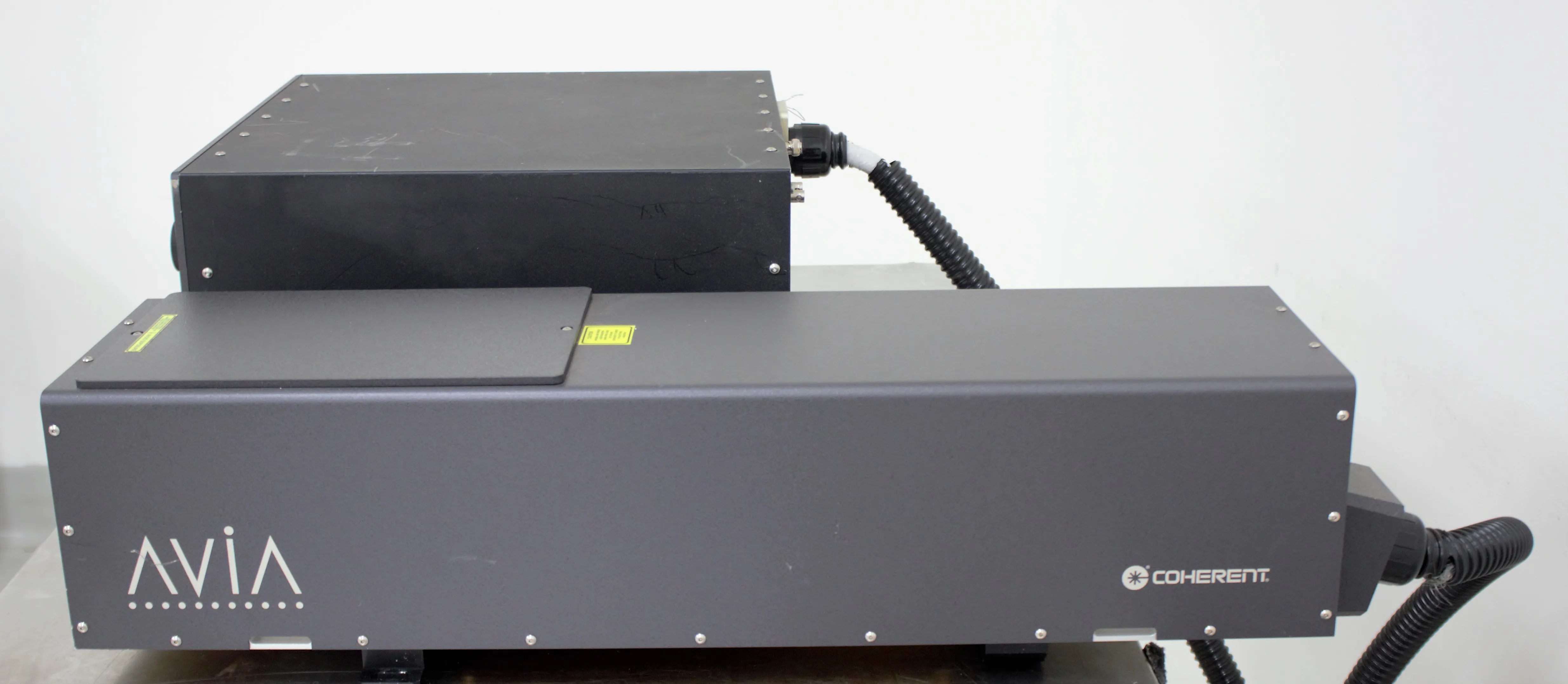

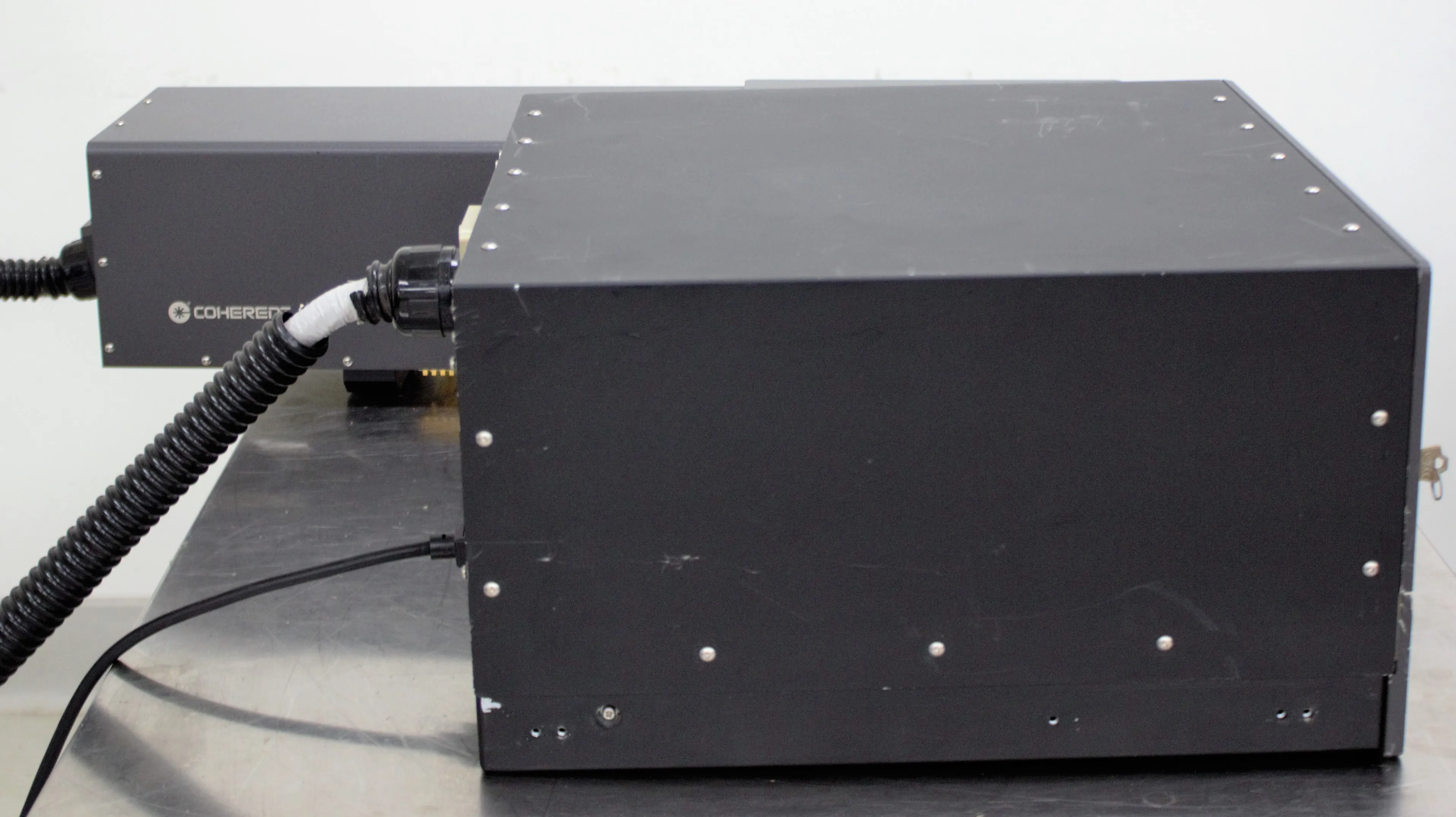

COHERENT Avia 355-3000 High-Power Q-Switched Ultraviolet Laser Module

Product Information

The COHERENT Avia 355-3000 is a high-power Q-switched ultraviolet laser module which is used for various industrial tasks including PCB/SIP drilling, cutting, trenching, and de-paneling. It can also be used for flex/LCP/LTCC processing, with minimized heat-affected zone and no post-cleaning needed. This UV laser power source combines high pulse energy and repetition rate with UV to enable rapid, precision materials processing in semi fab, advanced packaging, and solar cell manufacturing. It offers exceptional reliability and can perform tasks with high precision and less heat damage due to its unique properties. This used system has been tested for basic functionality and will need to be validated/calibrated to ensure accurate results.

• Wavelength: 355nm
• Pulse Repetition Rate: Single-shot to 100KHz
• Average Output Power: >3.0 watts at 20 kHz
• Pulse to Pulse Stability: <5% rms up to 30 kHz
• Warm-up Time: <10 minutes
• Operating Voltage: 90 to 264 vac (autoranging)
• Ambient Temperature Operating Range: 10 to 35C (air-cooled)

• Wavelength: 355nm
• Recommended Pulse Repetition Rate: Single-shot to 100KHz
• Pulse Width: <40 ns up to 60 kHz
• Average Output Power: >3.0 watts at 20 kHz
• Pulse to Pulse Stability: <5% rms up to 30 kHz
• Polarization Ratio: >100:1 horizontal
• Warm-up Time: <10 minutes
• Operating Voltage: 90 to 264 vac (autoranging)
• Line Frequency: 47-63 Hz
• Power Consumption: 1100W maximum (700W typical)
• Ambient Temperature Operating Range: 10 to 35C (air-cooled)

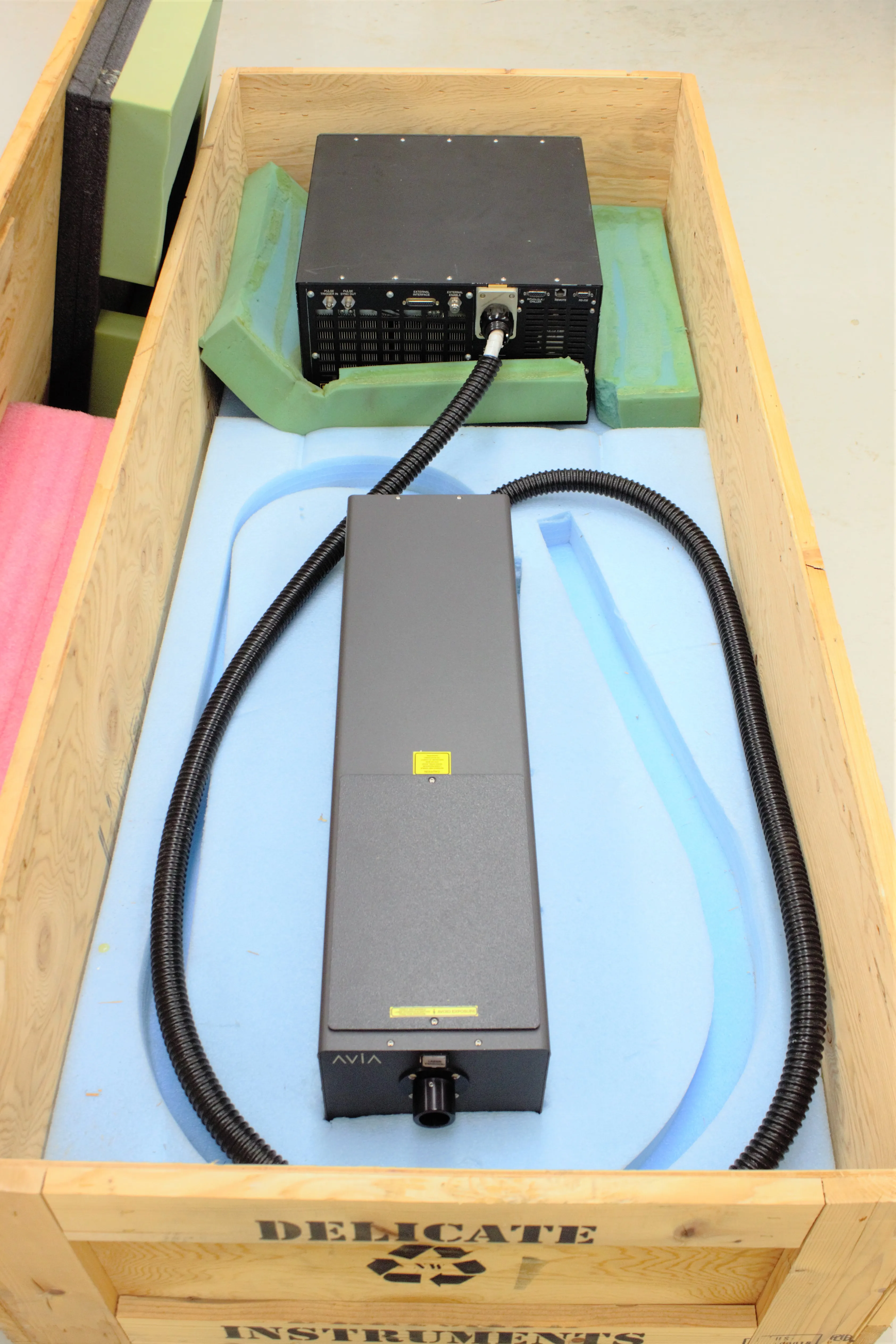

• Umbilical Length: 3 m (10 ft)
• Umbilical Weight: 2.7 kg (6 lb)

Metric: 68.04 kg
Imperial: 150.0 lbs

Metric: 40 cm x 40 cm x 20 cm
Imperial: 15.75 in x 15.75 in x 7.87 in

901320
