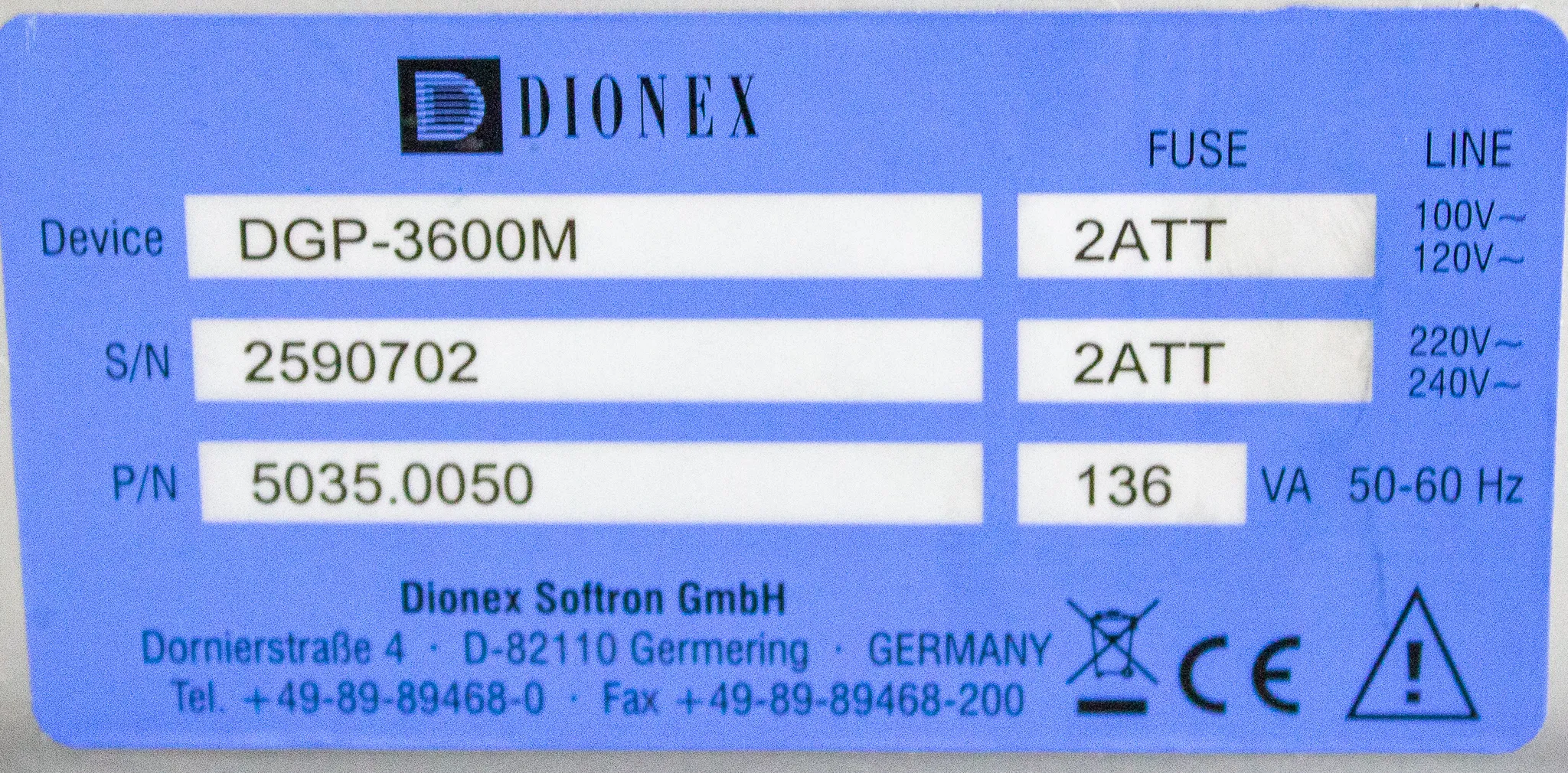

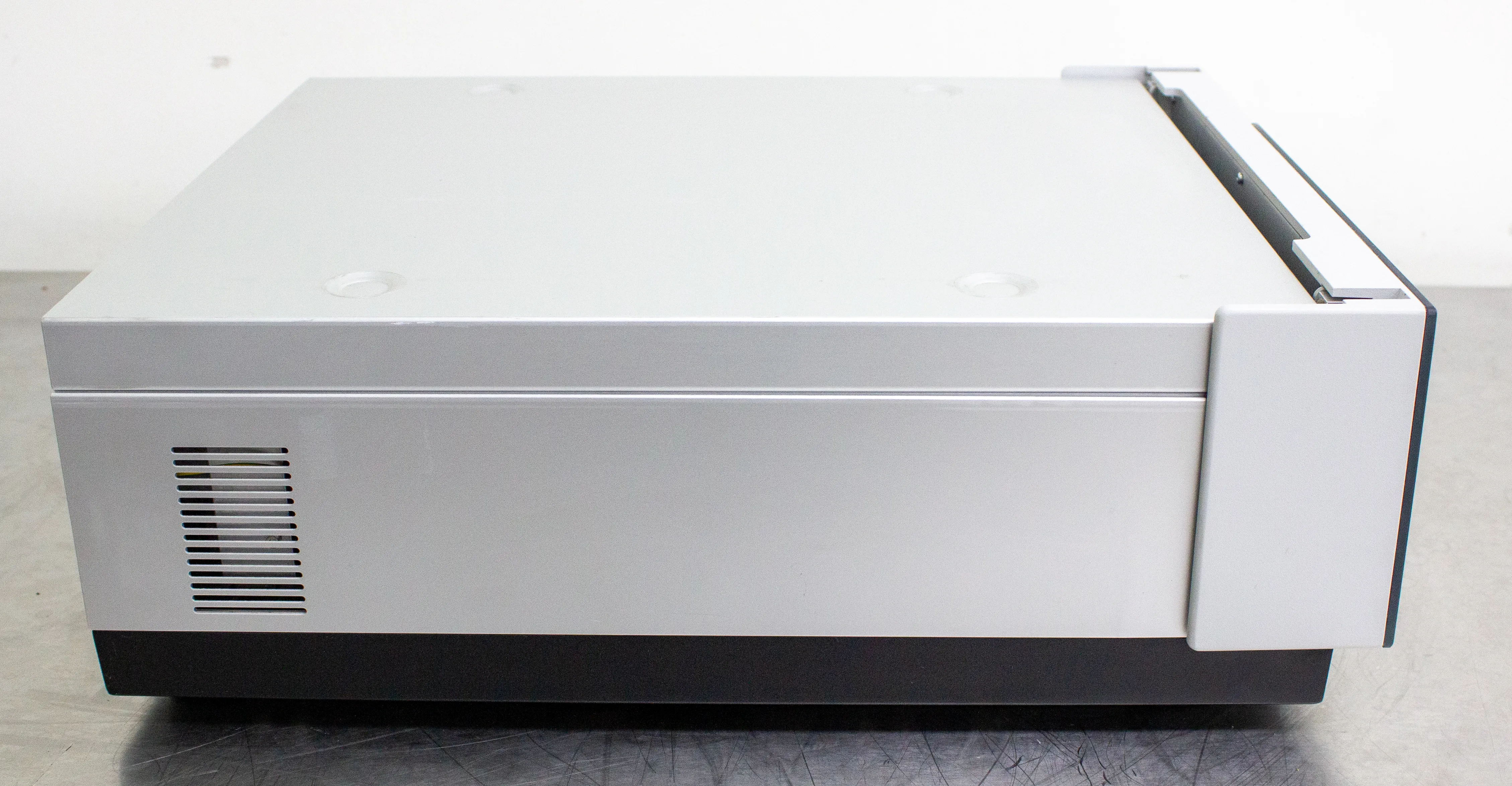

Dionex UltiMate 3000 Pump DGP-3600M P/N 5035.0050

Product Information

The Dionex UltiMate 3000 Pump DGP-3600M is a modern high-quality instrument designed for HPLC analysis, especially as part of the UltiMate 3000 system. It features patented isokinetic pre-compression allowing a precise and almost pulse-free flow, meeting the highest requirements for flow rate reproducibility, zero pulsation, and operational reliability. It has various monitoring and diagnostic features for optimum system performance and reliability. It is designed for routine analyses or as a sophisticated research instrument in HPLC applications. The pump requires a PC with USB port for full control. It can be used in various laboratory environments. Manufacturers Specifications include Flow Rate, Pressure Range, Proportioning accuracy, PC connection, I/O interfaces, and safety features.

• Patented isokinetic pre-compression
• Flow rate reproducibility and zero pulsation
• Monitoring and diagnostic features for optimum performance and reliability
• Full control via USB 1.1

• Recommended Flow Rate: 10-2500ul/min
• Flow Rate Accuracy: +/-0.5% at 200ul/min; +/-0.5% at 200 L/min; (typical 0.25% at 200 L/min)
• Pressure range: 2-50 MPa (7250 psi)
• Pressure ripple: Typical <0.2 MPa or <1% whichever is greater
• Proportioning accuracy: 0.2% of full scale
• PC connection: All functions controllable via USB 1.1

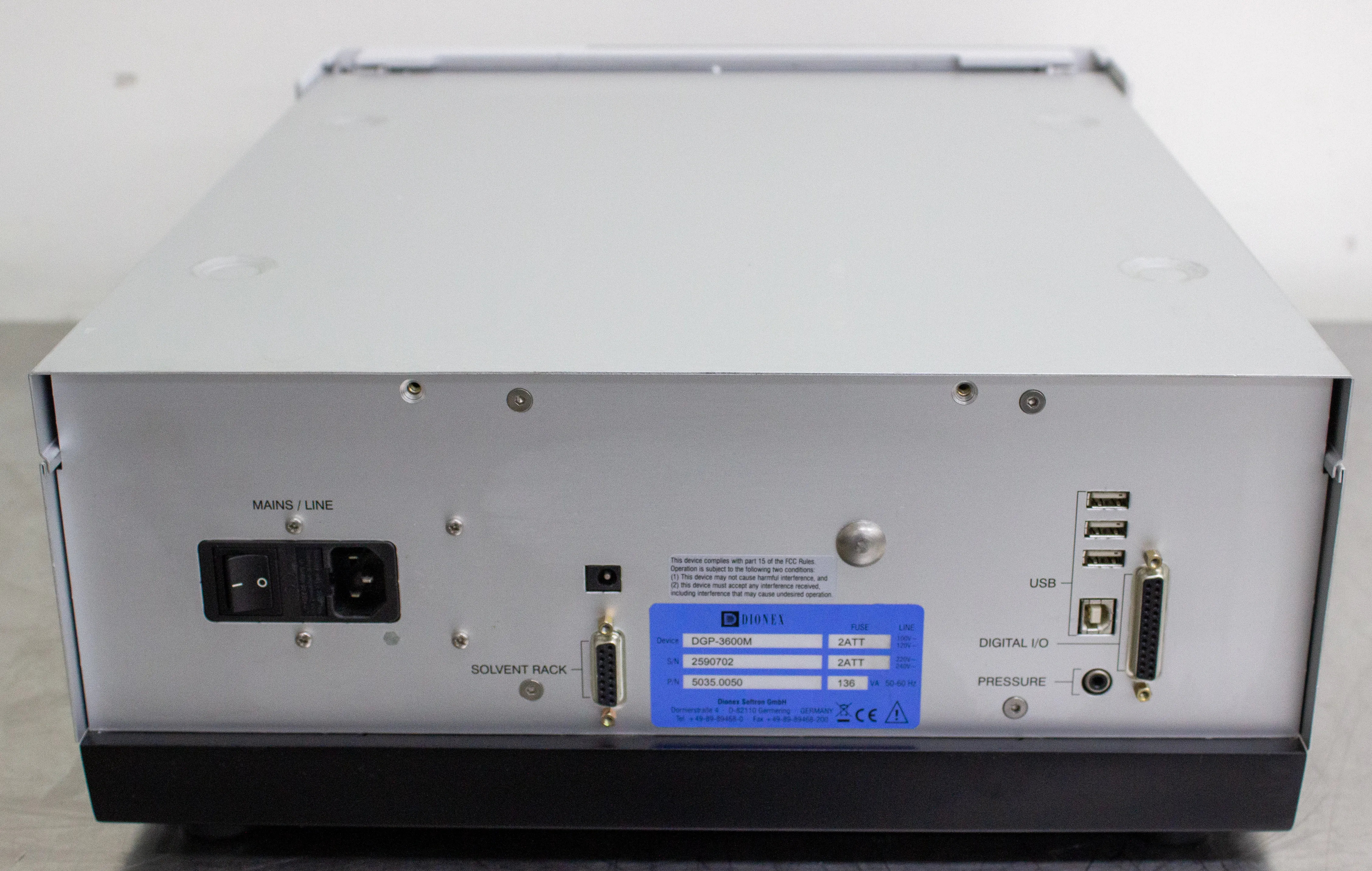

• I/O interfaces: 3 digital inputs, 4 programmable relays, 1 analog output for pressure monitoring
• Safety features: Leak sensor, Active rear seal washing, Liquid level monitoring

Metric: 24 kg
Imperial: 53 lb

Metric: 20 cm x 17 cm x 8 cm
Imperial: 7.87 in x 6.69 in x 3.15 in

84138160

The harmonized code 84138160 is used for certain industrial and laboratory furnaces and ovens. Given that the Dionex UltiMate 3000 Pump DGP-3600M is a laboratory instrument, this code is applicable due to its function in laboratory settings.
