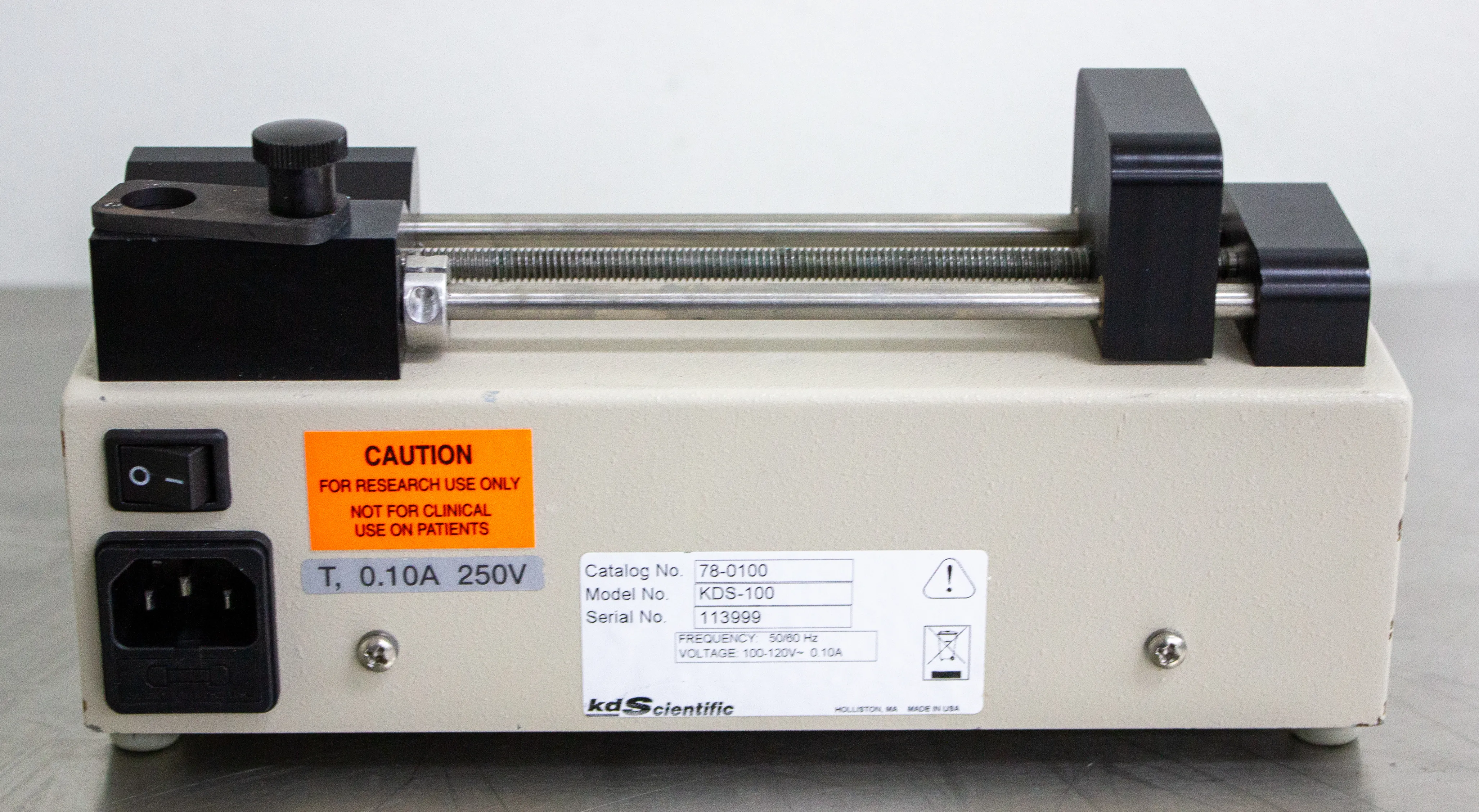

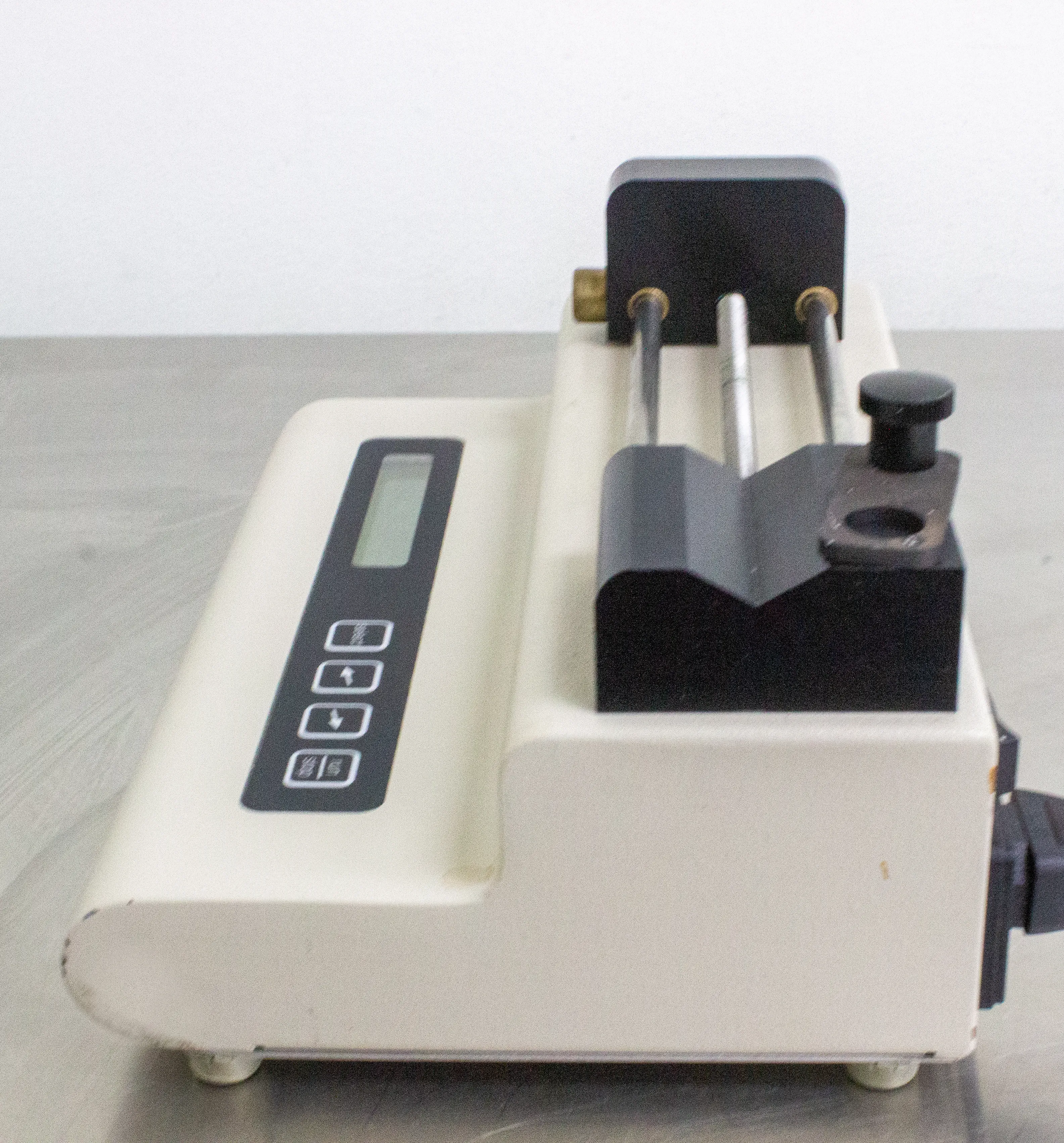

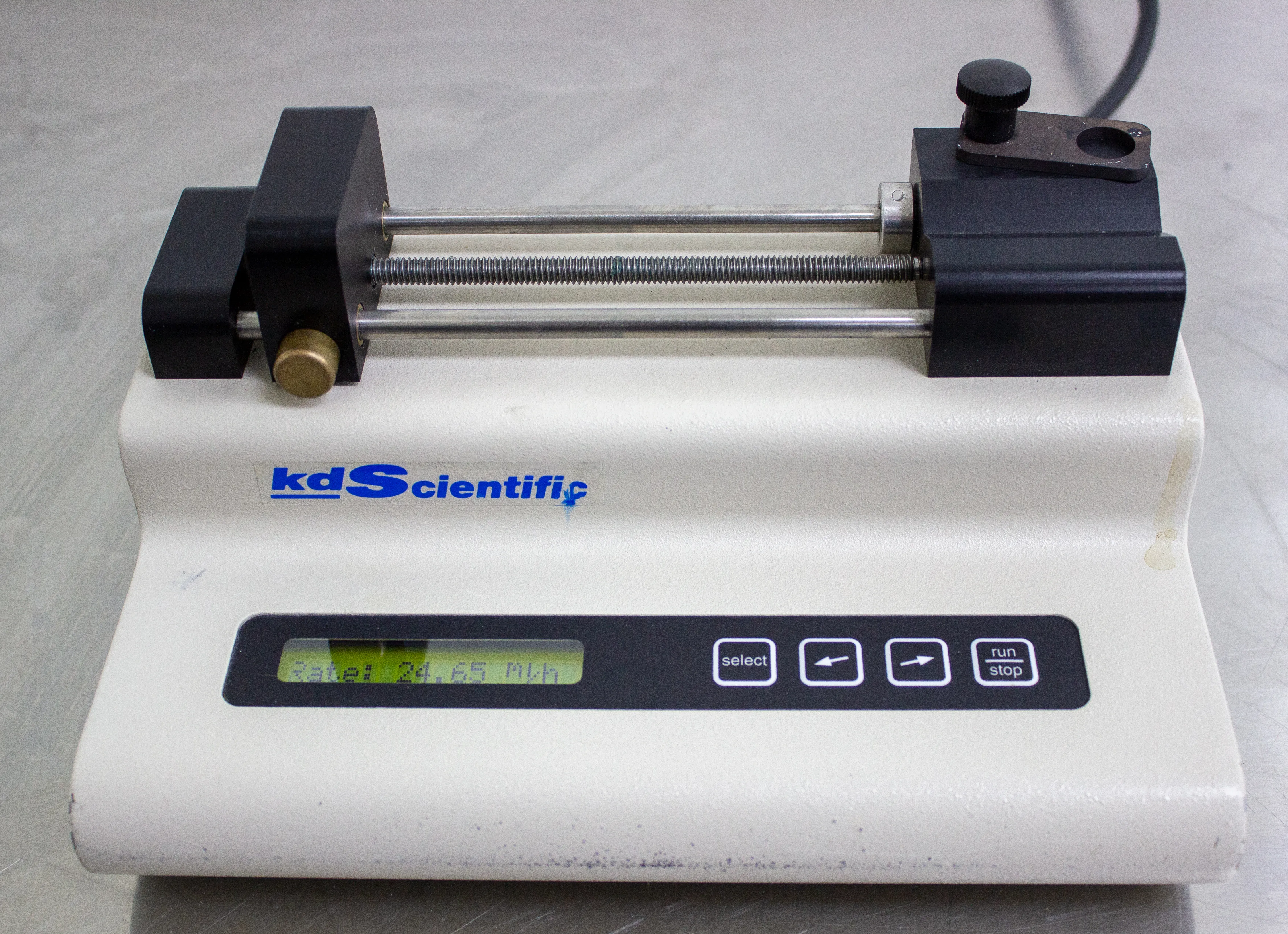

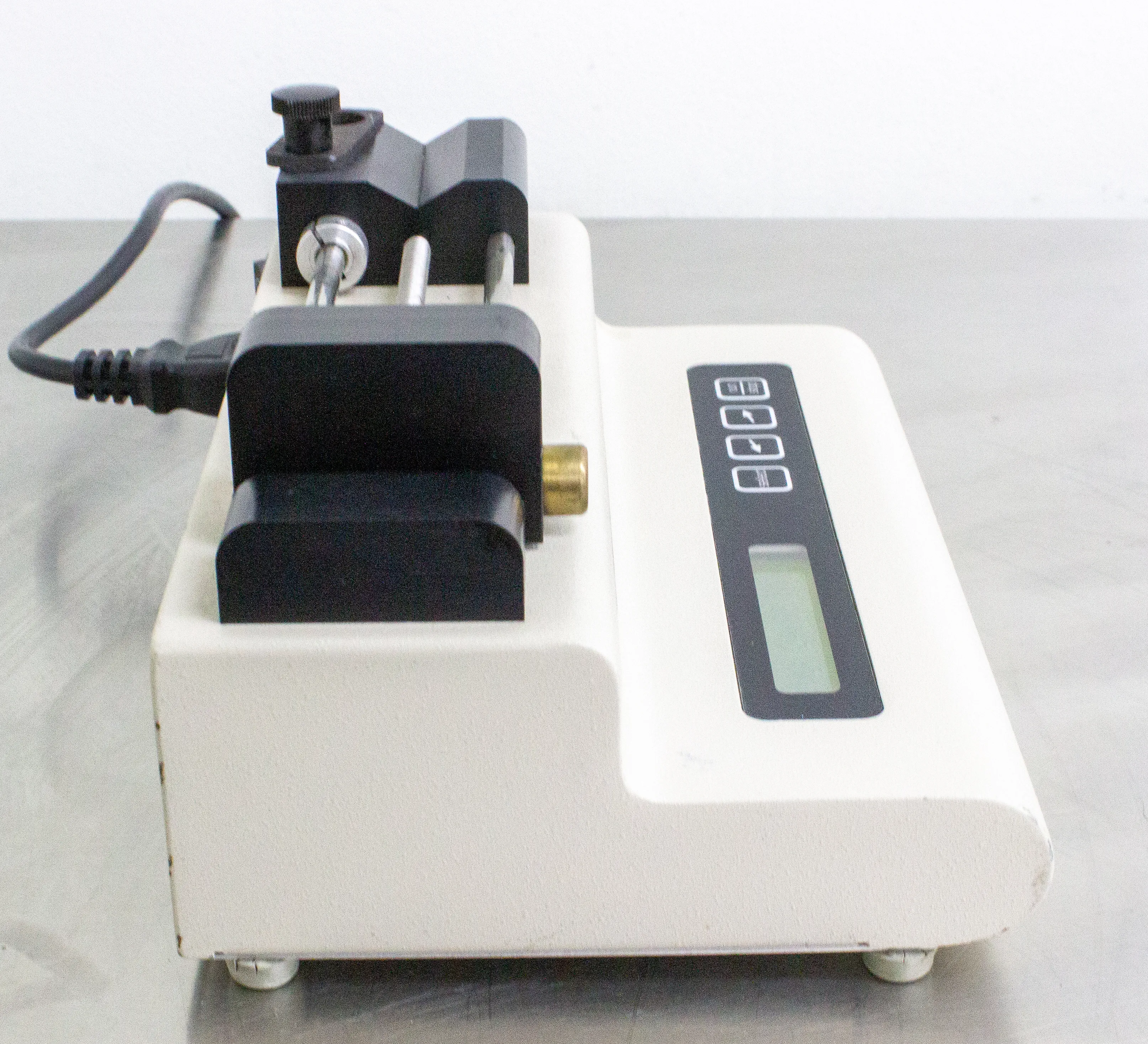

KD Scientific KDS-100 Legacy Single Syringe Infusion Pump 78-0100

Product Information

The KD Scientific KDS-100 is a legacy single syringe infusion pump designed to offer precision and simplicity. It has been tested for basic functionality, with some slight stains from normal use, which in no way affect its performance. This pump can accommodate syringe sizes ranging from 10μl to 60ml, regardless of the manufacturer. The setup is menu-driven, making it extremely user-friendly. The bright, backlight display enhances readability, and the automatic shutoff at completion ensures safety and accuracy. The permanent memory stores the last settings, offering convenience and saving time. With a linear force of 20lb, the KD Scientific KDS-100 is a reliable and efficient option for laboratories. Its compatibility with a variety of syringe sizes and ease of use make it an ideal choice for applications such as drug delivery, microfluidics, and chemical engineering.

• Menu-driven setup for easy operation
• Bright, backlight display for enhanced readability
• Automatic shutoff for safety and accuracy
• Permanent memory to store last settings
• Compatible with a wide range of syringe sizes
• Linear force of 20lb for reliability

• Max. No. of Syringes: One
• Syringe Size: 10μl to 60ml
• Dimensions: 9 x 6 x 5 in. (23 x 15 x 12 cm)
• Weight: 4.5 lb (2 kg)
• Linear Force: 20 lb (9 kg) min.
• Advance Per Microstep: 0.529 micron (1/2 step)
• Max Step Rate (1/2 Step): 400 steps/sec
• Min Step Rate: 1 step / 30 sec.
• Accuracy: <1%
• Audible Alarm: (Optional)

Metric: 2 kg
Imperial: 4.5 lbs

Metric: 23 cm x 15 cm x 12 cm
Imperial: 9 in x 6 in x 5 in
