Used Ebara EV-SA20-2 Dry Rotary Lobe Vacuum Pump - 220V, 50/60Hz, 100 m3/hr.

Product Information

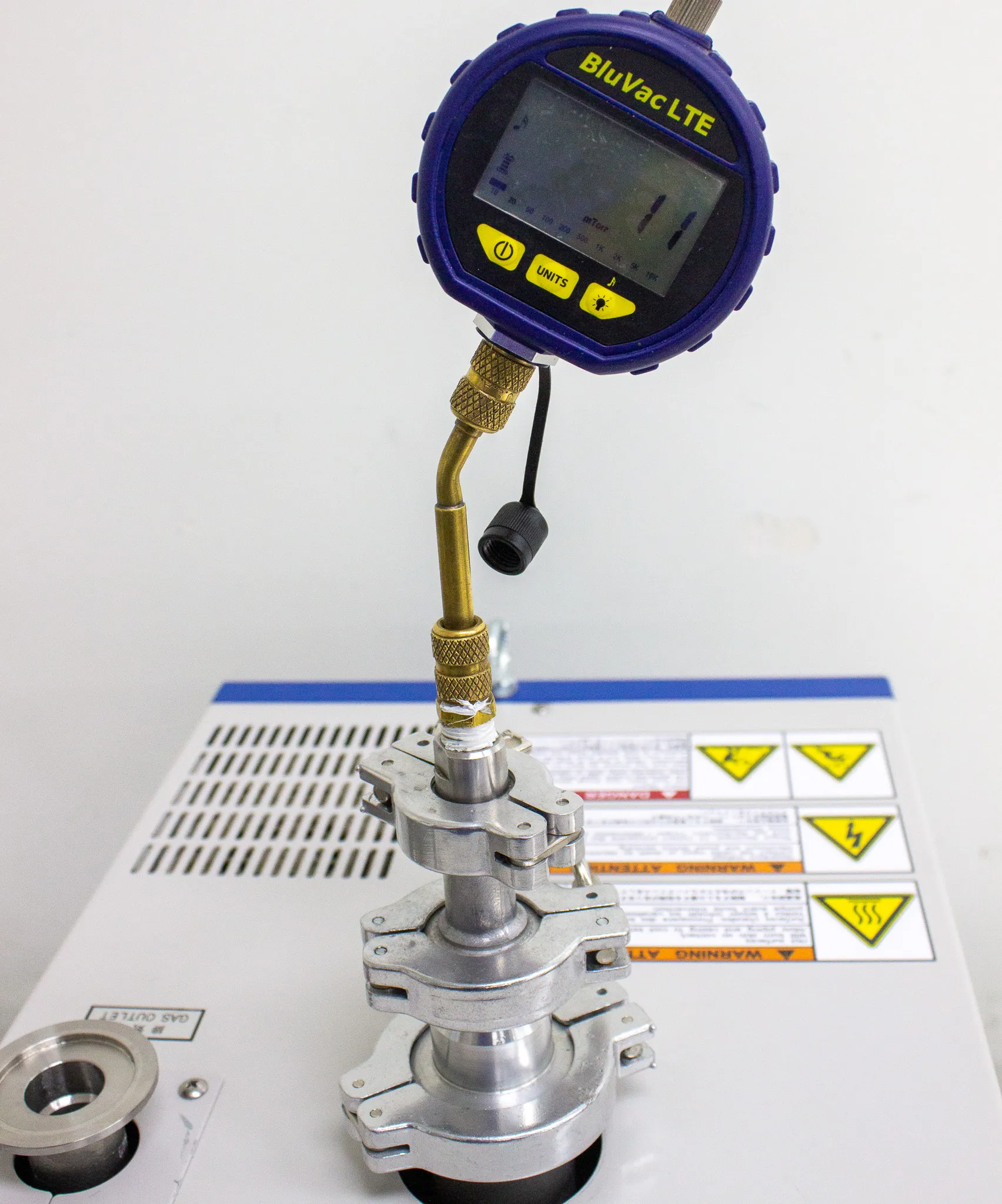

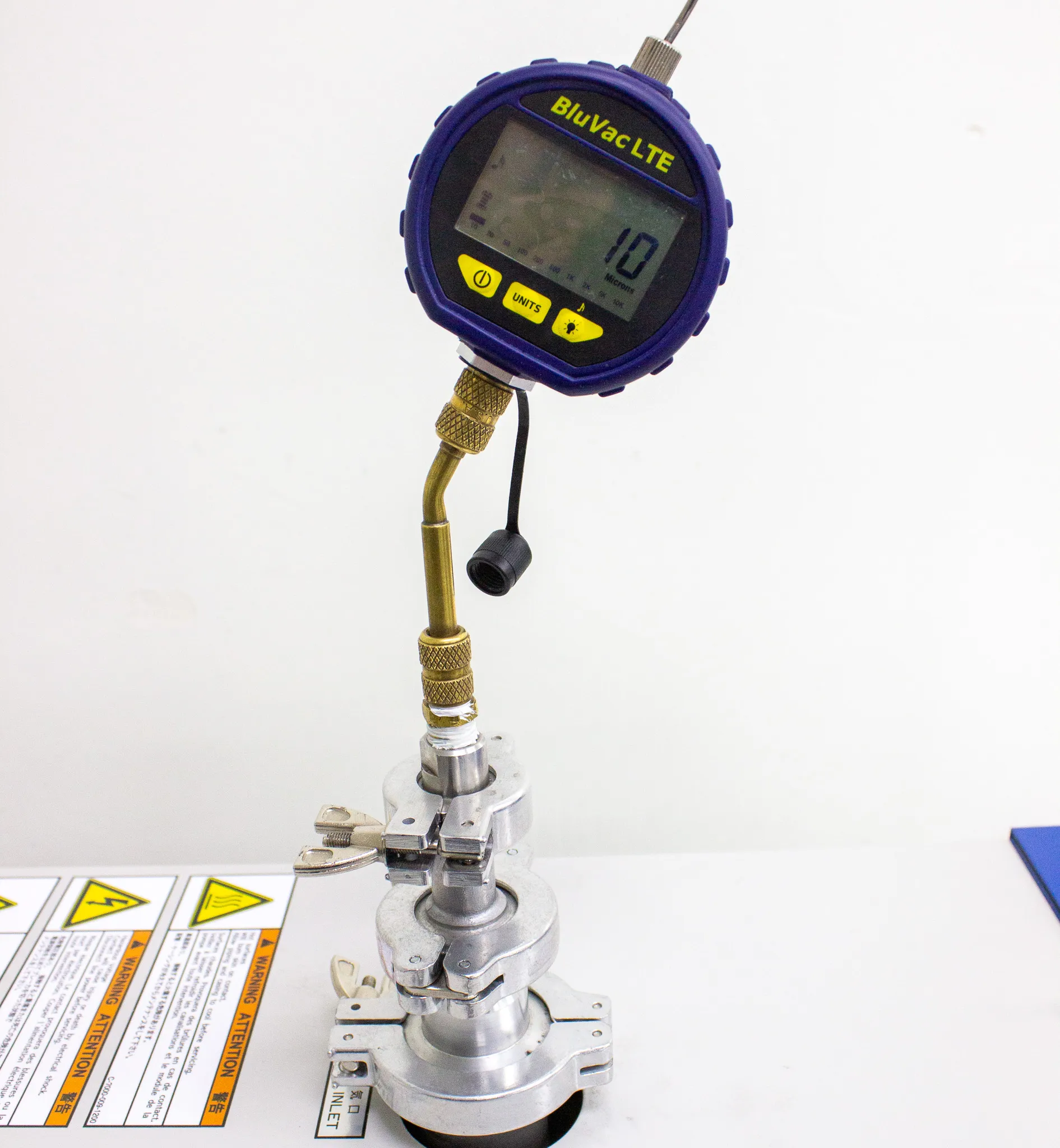

As a quirky lab scientist, diving deep into the intricacies of the Ebara EV-SA20-2 Dry Rotary Lobe Vacuum Pump has revealed its fascinating features. The air-cooled, multi-stage pump fosters a totally clean dry vacuum at a constant ultimate pressure. Operating at a light duty performance, it offers silent functionality with a large pumping speed of 60 cfm (2000 L/Min) and serves as a low-power consumption powerhouse with a simplistic plug-and-play feature. It is tested for basic functionality with an ultimate pressure of 10 microns and comes with a 30-day warranty. Typically applied in analytical instruments such as LCMS and GCMS, the Ebara EV-SA20-2 also serves various other applications, including wet pump replacement, metrology, drying vacuum ovens, and even within SEM and TEM setups.

• Air-Cooled
• Multi-Stage Roots Roughing Pump Technology
• Light Duty Dry Vacuum Applications
• Low Operating Power Consumption
• Silent Operation at 56 dB (A)

• Pumping Speeds: 50 (Hz) - 58.9 CFM, 1666 L/min, 27.8 L/s, 100 m3/hr
• 60 (Hz) - 59.0 CFM, 1670 L/min, 27.7 L/s, 100 m3/hr
• Max Water Vapor Pumping Rate (With gas ballast): 100 g/hr
• Ultimate Pressure: Total With Gas Ballast - 5.00 x 10-2hPA, 5.00 x 10-2mbar, 5.00 Pa, 3.75 x 10-2Torr, Total Without Gas Ballast - 3.00 x 10-2hPA, 3.00 x 10-2mbar, 3.00 Pa, 2.30 x 10-2Torr
• Cooling Method(s): Convection
• Motor Power HP (kW): 2.01 (1.50)
• Inlet Flange: KF40, Exhaust Flange: KF40
• Series: Standard
• Lubrication Type: Dry
• Technology Type: Multi-Stage Roots

Metric: 65 kg
Imperial: 143 lbs

Metric: 23 cm x 13 cm x 14 cm
Imperial: 9.06 in x 5.12 in x 5.51 in

841410

Vacuum pumps, including vacuum generators and parts
