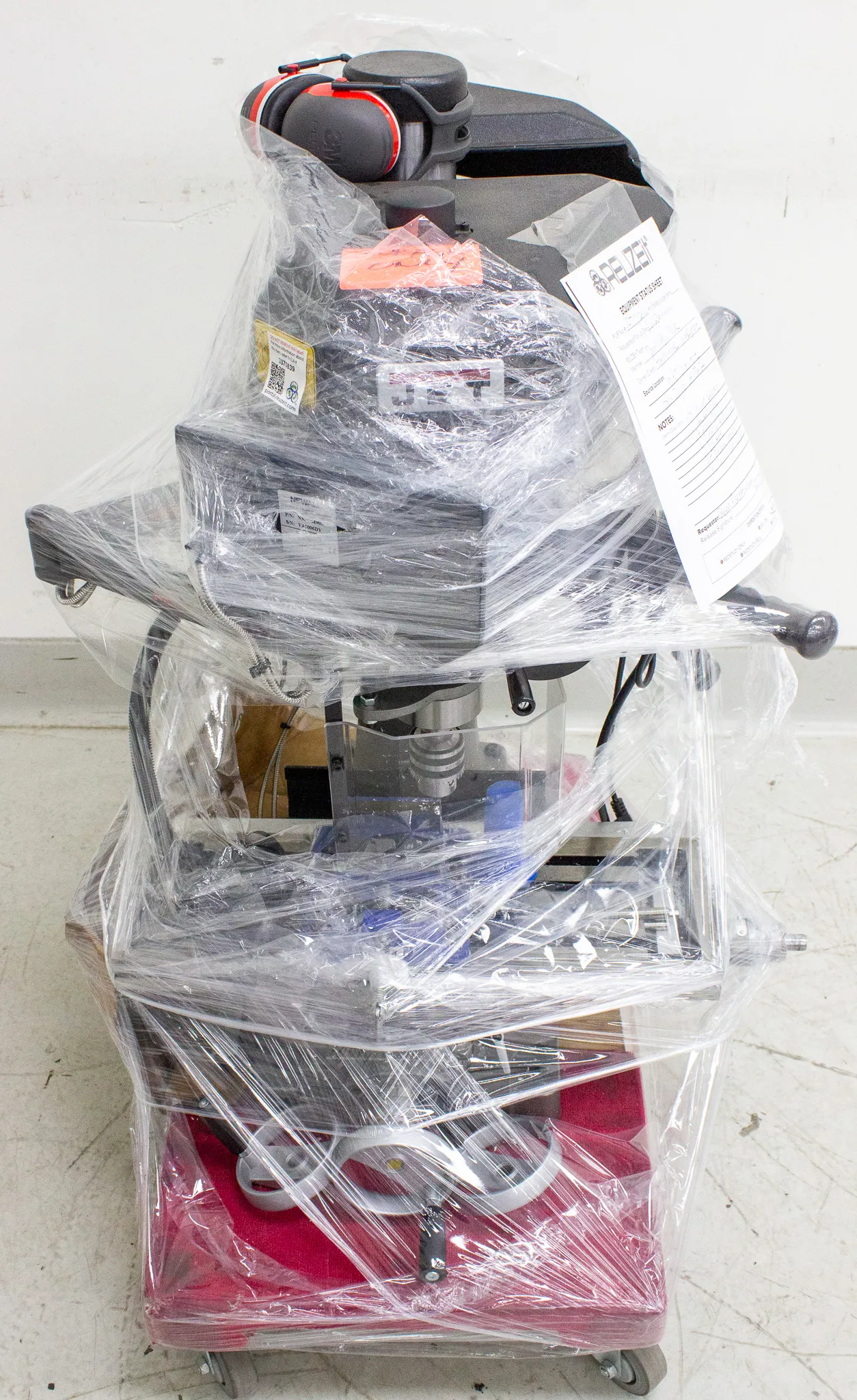

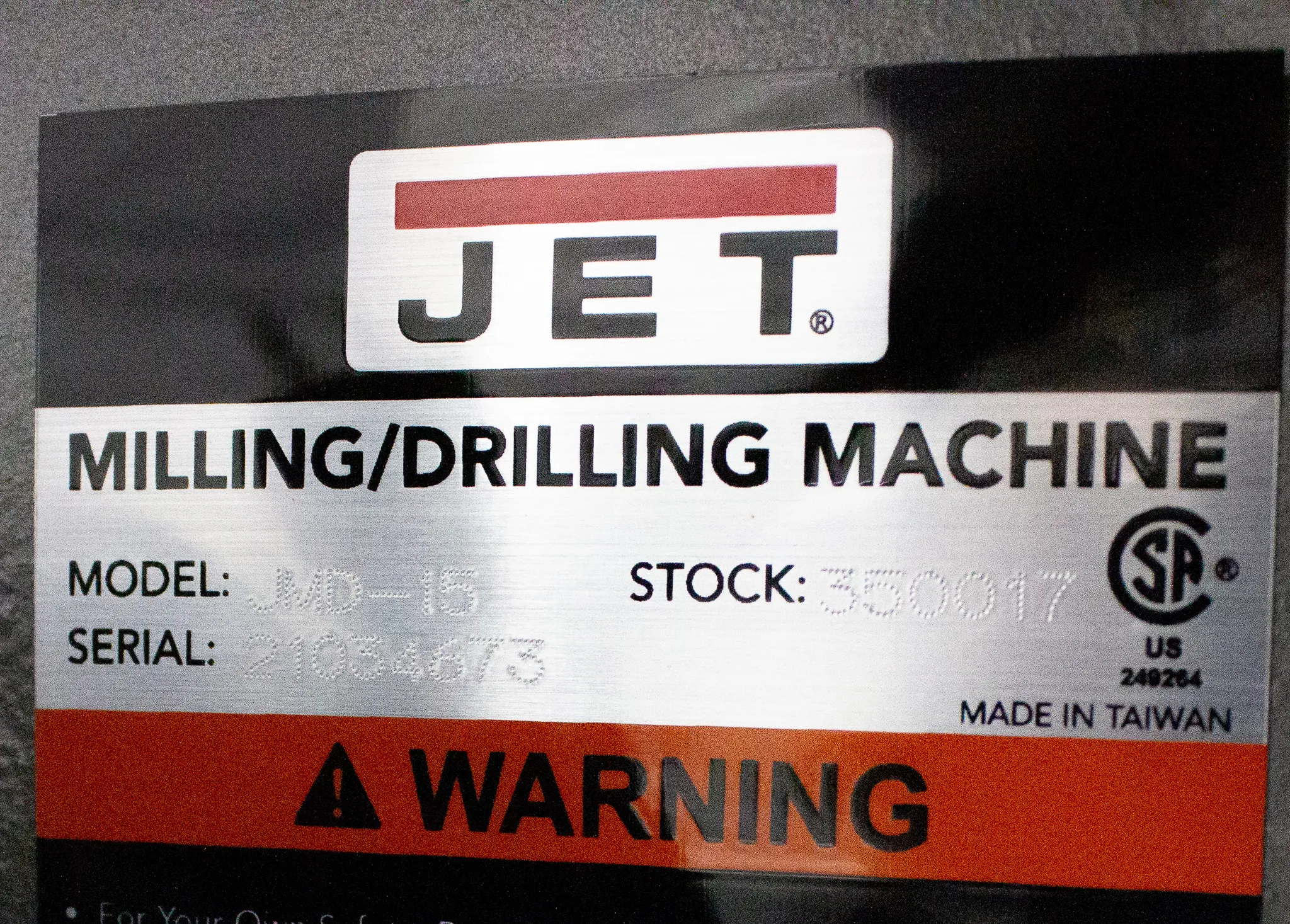

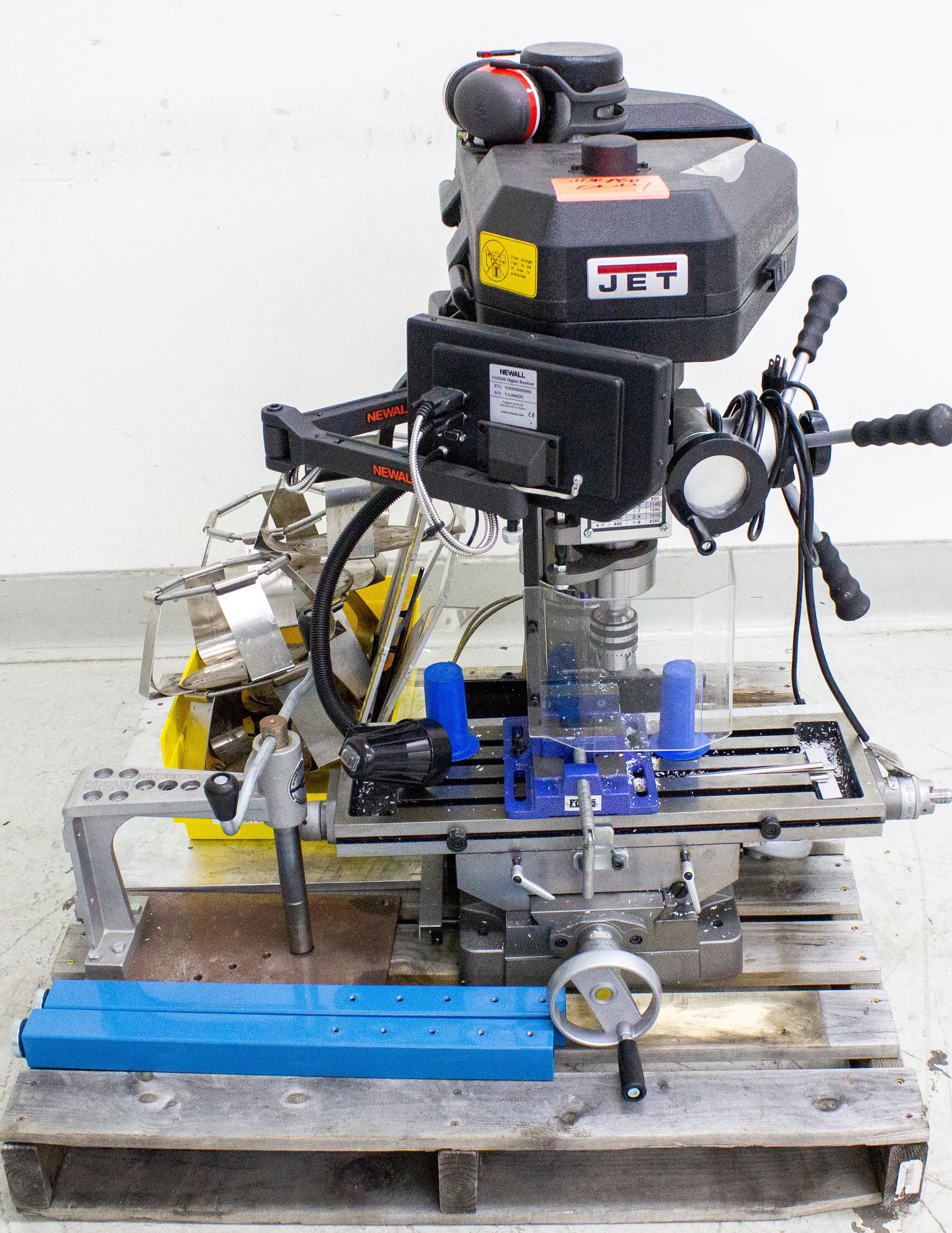

JET Model JMD-15 Milling/Drilling Machine 350017 w/ Dolly

Product Information

The JET Model JMD-15 Milling/Drilling Machine 350017 is a versatile and cost-effective solution for light machining capability. This machine combines the functions of a belt-driven drill press and a milling machine's table, offering flexibility and efficiency for a variety of tasks. With a 1/2 Drill chuck, adjustable carbide face mill, and base taper for easier clean-up, this machine is convenient and adaptable. The one-piece cast iron column enhances support and stability for precision work. Its 360-degree head swivel broadens the working space and increases functionality. The 30-day warranty and 100% parts and labor warranty ensure peace of mind for buyers.

• Lightweight design for easy mobility
• 1 HP motor with 12 spindle speeds
• 360-degree head swivel
• Locking collet for enhanced safety
• Adjustable carbide face mill
• One-piece cast iron column for added support

• Stock Number: 350017
• Base Dimensions (In.): 12-1/2 x 19-3/4
• Column Diameter (In.): 3-5/8
• Drilling Capacity (In.): 1
• Max Distance Spindle to Table (In.): 14-1/2
• Motor (HP): 1 HP, 115/230V, 1Ph
• Number of Spindle Speeds: 12
• Overall Dimensions (L x W x H) (In.): 38 x 37-1/2 x 42
• Quill Diameter (In.): 2-7/16
• Range of Spindle Speeds (RPM): 110 - 2,580
• Spindle Taper (In. x TPI): R-8
• Spindle Travel (In.): 3-1/2
• Swing (In.): 14-1/2
• T-Slot Centers (In.): 1-13/16
• T-Slots Number and Size (In.): 4 and 9/16
• Table Longitudinal Travel (In.): 14
• Table Size (L x W) (In.): 7-1/2 x 23
• Worktable Weight Capacity (Lbs.): 350

Metric: 200 kg
Imperial: 440 lbs

Metric: 96.52 cm x 95.25 cm x 106.68 cm
Imperial: 38 in x 37.5 in x 42 in
