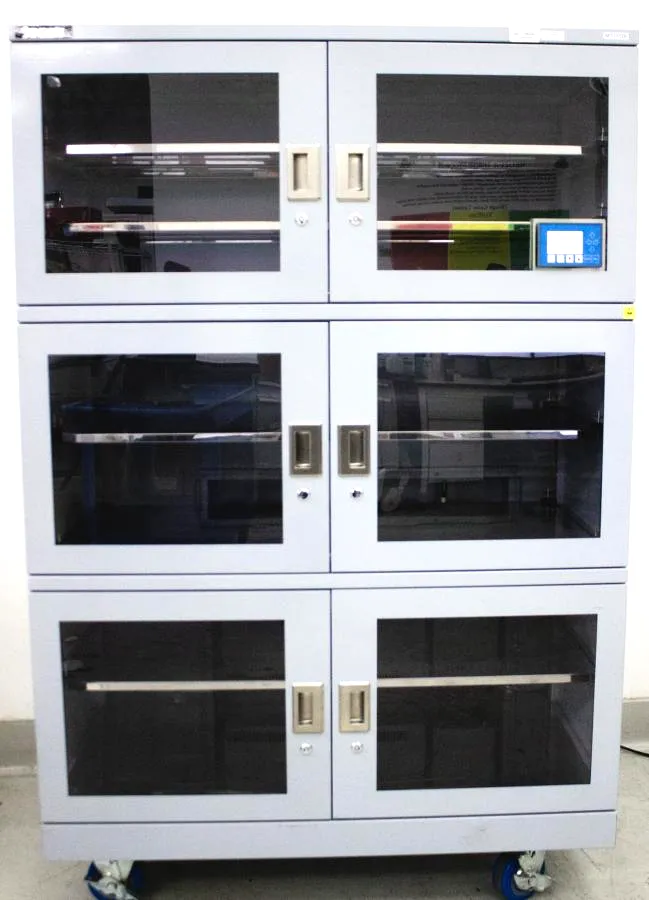

Totech Super Dry Storage Cabinet HSD 1106-22

Product Information

The Totech Super Dry Storage Cabinet HSD 1106-22 has been thoroughly tested and meets all specifications. It is in excellent condition, showing minimal signs of wear from regular use. The buyer can expect to receive the exact item as pictured, and it comes with a 30-day warranty for added peace of mind. The HSD cabinet series has an outstanding performance for drying moisture sensitive components and PCBs, making it suitable for frequent operation. The dynamic drying unit of the 5000 series reaches very reliable low humidity values of 0.5% RH. It features a user-friendly interface with ESD features, Norm (IEC 61340-5-1), dissipative glazing, and online functionality via Ethernet. The cabinet also includes functionalities such as door and humidity alarm buzzer, transport castors, lockable doors, sliding shelves, U-5000 series drying unit, and Rotronic sensor. The steel body has conductive coating and the cabinet has a maximum loading capacity of 300 kg. With steel body, 5 adjustable chrome steel shelves, and a U-5003 drying unit, this cabinet offers a total capacity of 1179 L. The electric supply is 230 VAC with an optional 120 VAC. The humidity level cabinet can reach 0.5% RH with the drying unit U-5003. The sensor accuracy is +/- 0.8% RH and +/- 0.3C. The cabinet's external dimensions are 1200 x 1675/(1840) x 658(768) mm, internal dimensions are 1190 x 1533 x 630 mm, and it weighs 189 kg.

• Dynamic drying unit reaches low humidity values of 0.5% RH

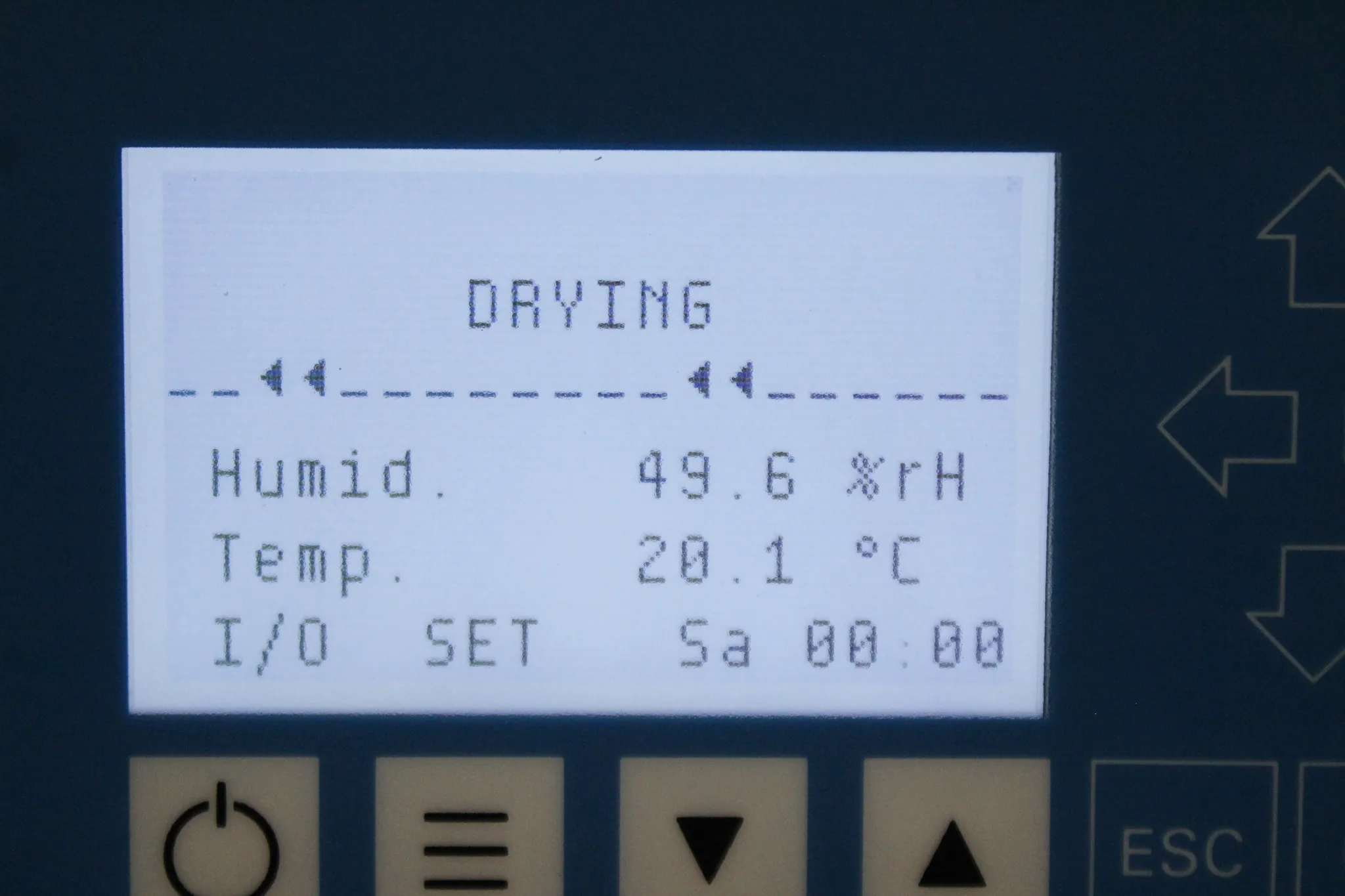

• User-friendly interface with ESD features, online functionality, and door/humidity alarm

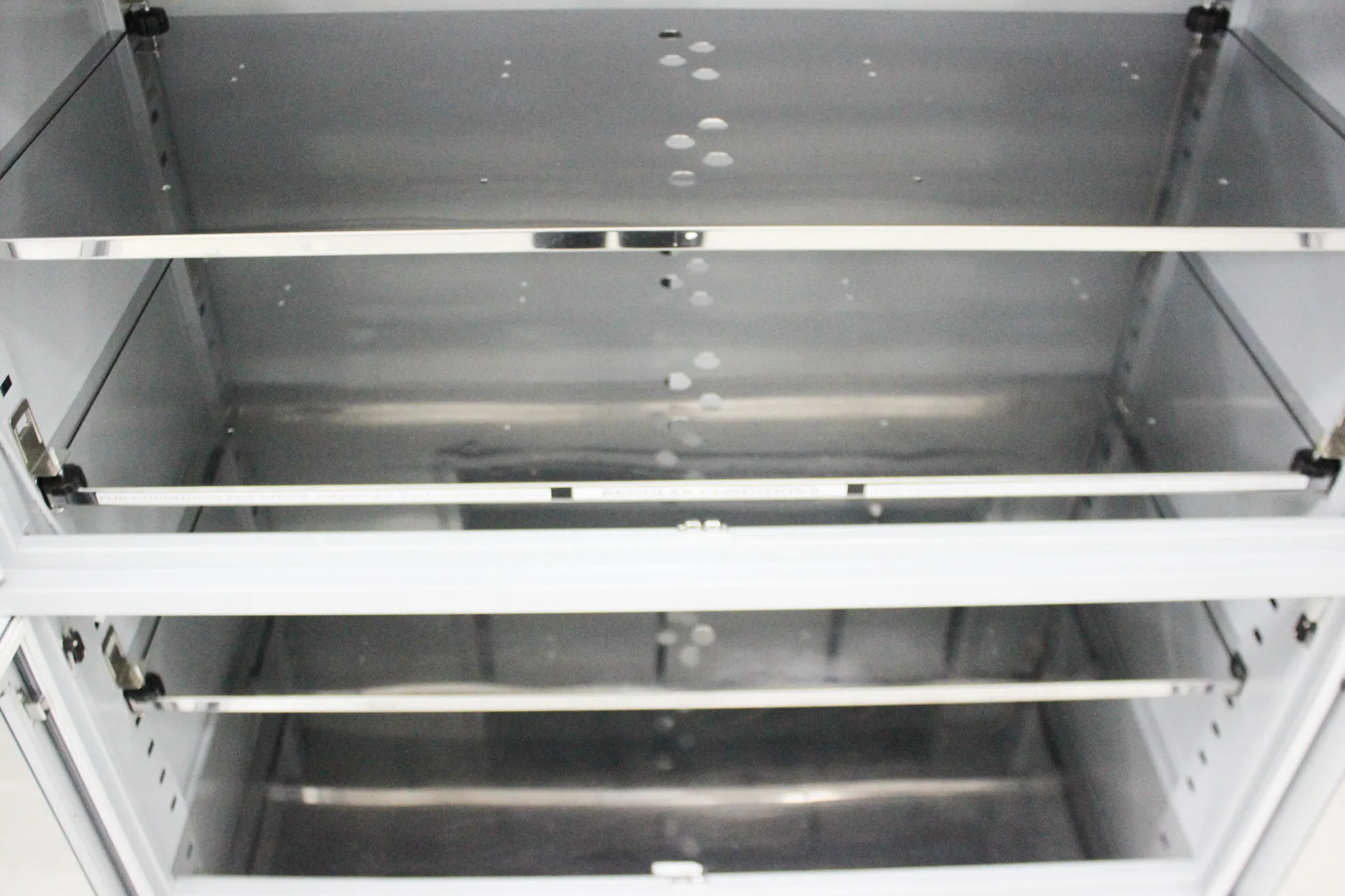

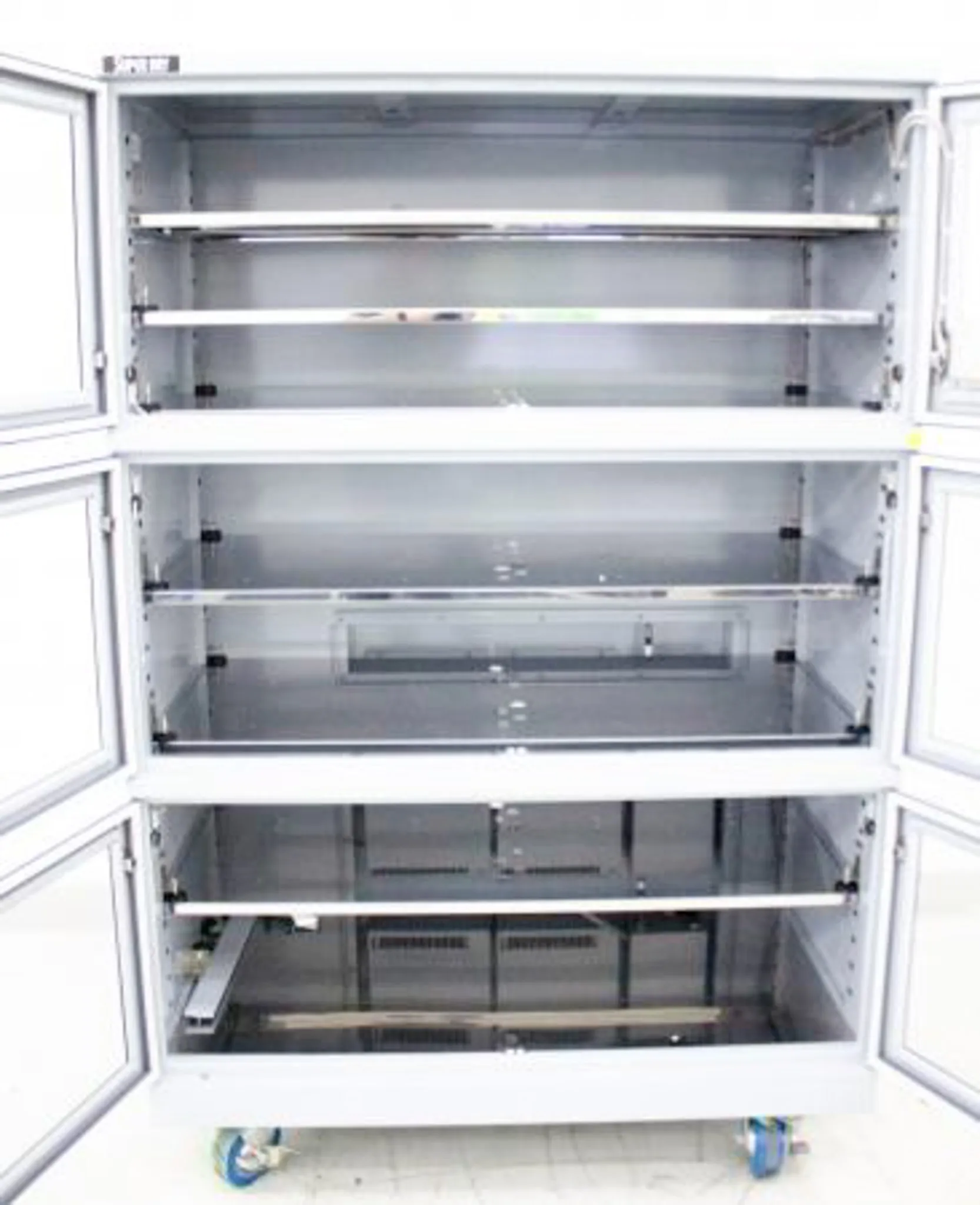

• Steel body with conductive coating, adjustable chrome steel shelves, and U-5003 drying unit
• Large total capacity of 1179 L, compatible with 230 VAC and optional 120 VAC supply

• External Dimensions: 1200 x 1675/(1840) x 658(768) mm
• Internal Dimensions: 1190 x 1533 x 630 mm
• Weight: 189 kg
• Capacity: 1179 L

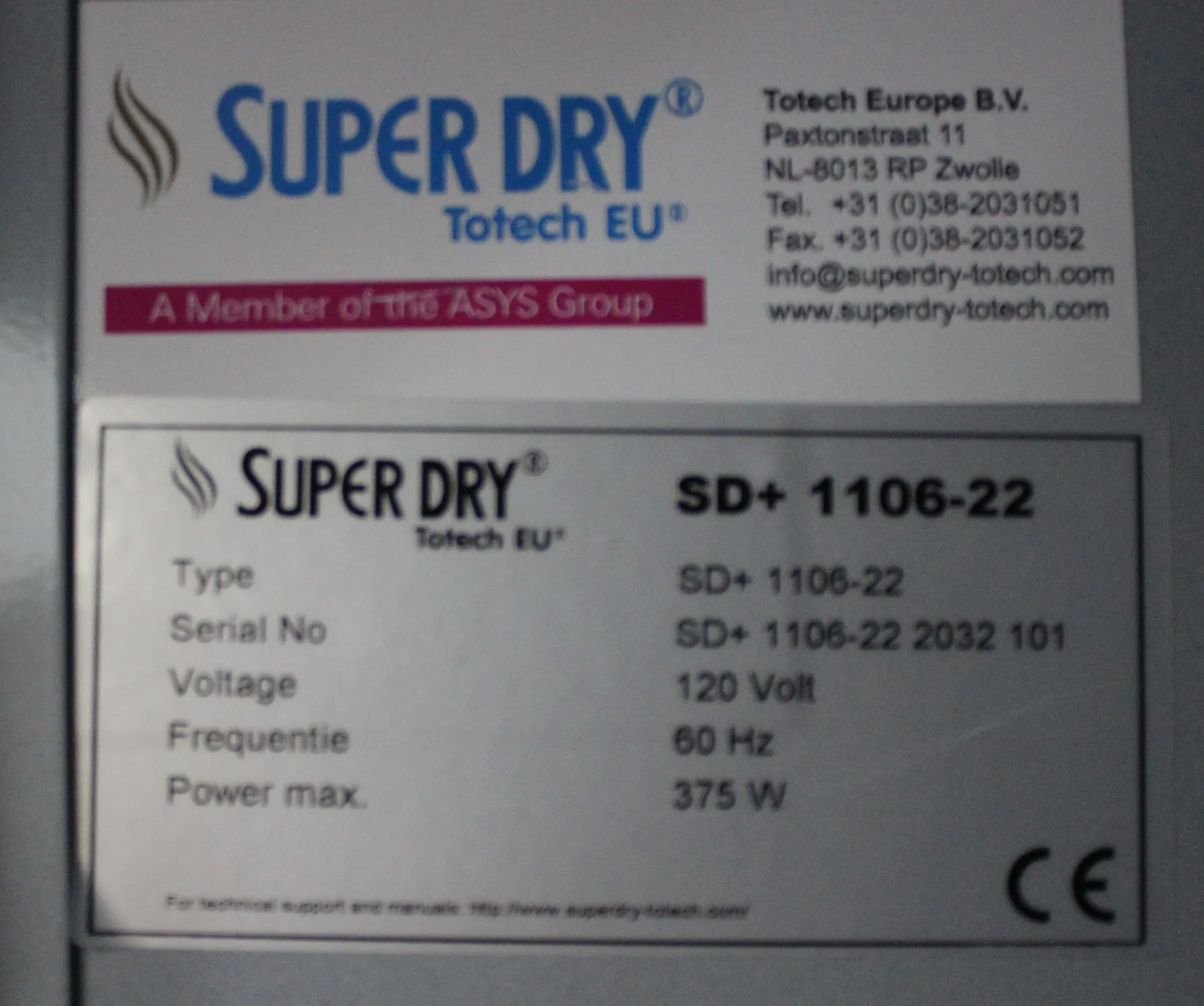

• Electric Supply: 230 VAC (120 VAC optional)
• Humidity Level: 0.5% RH with U-5003 drying unit
• Sensor Accuracy: +/- 0.8% RH, +/- 0.3C

Metric: 189 kg
Imperial: 416.67 lbs

Metric: 120 cm x 184 cm x 77 cm
Imperial: 47.24 in x 72.44 in x 30.31 in

9403200000

9403.20.00 - Metal furniture of a kind used in offices, storage cabinets and the like, nesoi
