HUBER Unichiller 180TW-H18 with Pilot ONE Circulator

Product Information

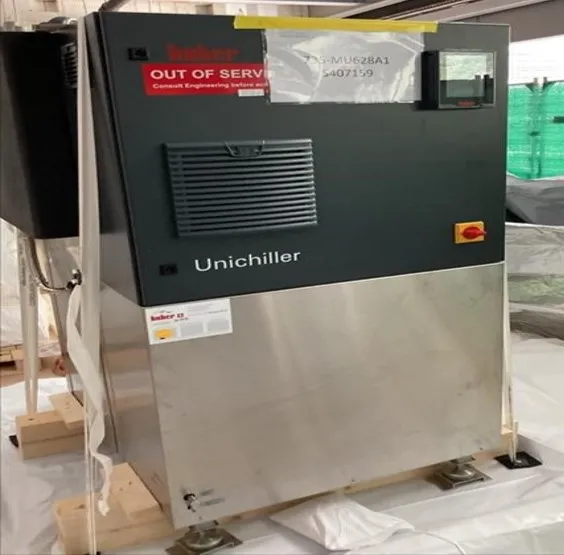

The HUBER Unichiller 180TW-H18 with Pilot ONE is a pre-owned unit from a working environment and is in very good condition. The buyer can expect a working system with a 30-day warranty. The chiller features a water-cooled refrigerating unit and circulation pump made of stainless steel. The Pilot ONE controller offers pioneering technology and advanced control functions, including a 5.7" TFT touchscreen display, USB and network connections, and language support in multiple languages. It boasts TAC (True Adaptive Control) with a self-optimizing internal and cascade control. This versatile system has a cooling power of 18 kW at 15°C and refrigerant R449A (A1, H280), making it ideal for a wide range of laboratory applications. The overall dimensions are 760x800x1615 mm, with a sound pressure level of 59 dB(A). The unit is powered by a 460V 3~ 60Hz power supply. The perfectly integrated technical components and powerful performance make it an excellent choice for laboratories and research facilities.

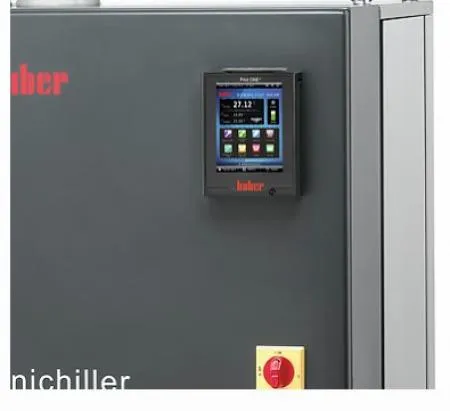

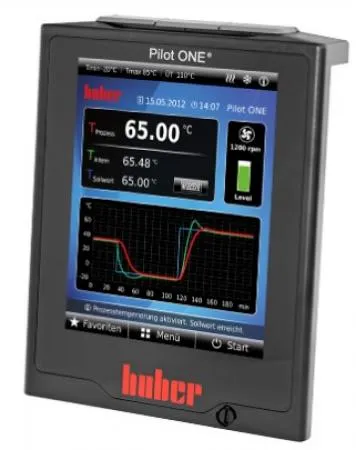

• 5.7" TFT touchscreen display with USB and network connections
• True Adaptive Control (TAC) for self-optimizing internal and cascade control
• 18 kW cooling power at 15°C and refrigerant R449A (A1, H280)
• Operates on a 460V 3~ 60Hz power supply

• Operating temperature range: -20...40°C
• Refrigerant: R449A (A1, H280), quantity - 2.6 kg
• Cooling power: 18 kW at 15°C, 6 kW at -20°C
• Circulation pump delivery: 210 l/min at max. pressure of 4.7 bar
• Refrigeration machine: Water-cooled, CFC- and HCFC-free
• Internal temperature sensor: Pt100, external sensor connection: Pt100
• Power supply: 460V 3~ 60Hz, Degree of Protection: IP20
• Overall dimensions: 760x800x1615 mm, sound pressure level: 59 dB(A)

Metric: 992.47 kg
Imperial: 2187.45 lb

Metric: 200.66 cm x 203.2 cm x 411.48 cm
Imperial: 79 in x 80 in x 162 in

84186900

The harmonized code 84186900 is used for 'Refrigerating or freezing equipment; heat pumps other than air conditioning machines of heading 8415.' This code is appropriate as the Unichiller 180TW-H18 is a refrigerating unit with a circulation pump.
