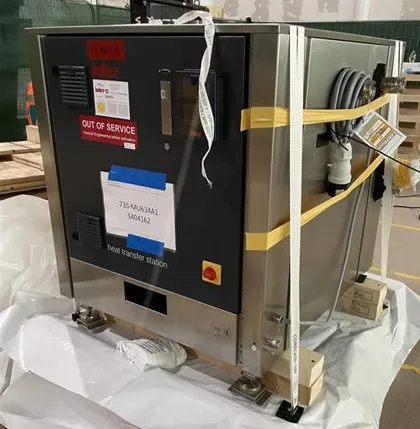

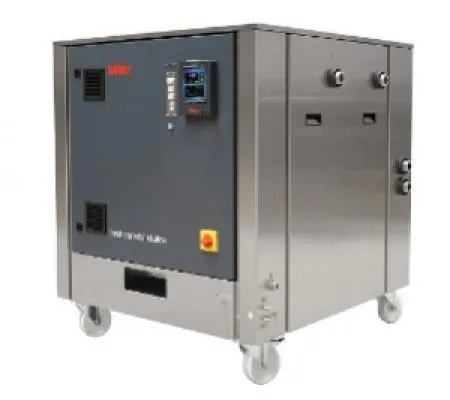

Huber HTS 30-H12 Heat Transfer Unit

Product Information

The Huber HTS 30-H12 Heat Transfer Unit is a pre-owned, very good condition unit with a 30-day warranty. The unit functions as intended and was previously in a working environment. It features a heat exchanger unit with a circulation pump (stainless steel), a digital level indicator, and adjustable overtemperature protection as per DIN 12876. The unit also includes the new Pilot ONE controller with leading technology and advanced control functions, boasting a 5.7 TFT touchscreen display, USB and network connections, an integrated technical glossary, and language support in 13 languages.

• Heat exchanger unit with circulation pump (stainless steel)
• Digital level indicator
• Pilot ONE controller with pioneering technology and advanced control functions

• Cooling power: 22kW / 30kW
• Temperature range: 5...90°C
• Secondary side- outlet: 20°C, recirculation: 160 l/min
• Primary side- temperature range: 0...90°C
• Delivery at different pressure differentials
• Cooling water connection G1 1/4 male, Cooling water pressure: max 6 bar
• Overall dimensions: 940x1050x1130 mm
• Net weight: 270 kg
• Voltage: 415V, Hertz: 50Hz UK

Metric: 270 kg
Imperial: 595.24 lb

Metric: 940 cm x 1050 cm x 1130 cm
Imperial: 370.078 in x 413.386 in x 445.669 in

841989

Machinery, plant or laboratory equipment whether or not electrically heated (excluding furnaces, ovens and other equipment of heading 85.14), for the treatment of materials by a process involving a change of temperature such as heating, cooking, roasting, distilling, rectifying, sterilising, pasteurising, steaming, drying, evaporating, vaporising, condensing or cooling, other than machinery or plant of a kind used for domestic purposes; instantaneous or storage water heaters, non-electric.
