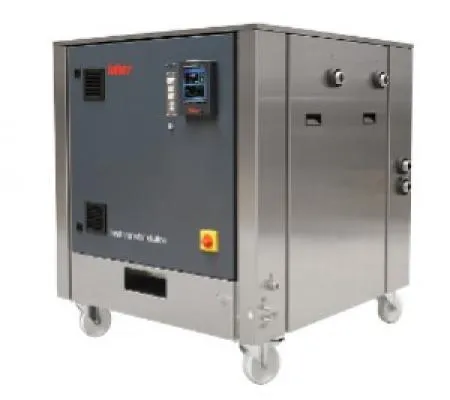

Huber HTS 30-H12 Heat Transfer Unit

Product Information

The Huber HTS 30-H12 Heat Transfer Unit is a sophisticated piece of laboratory equipment capable of precisely controlling heat exchange processes in a wide variety of laboratory applications. It is a used unit with a 30-day warranty, the condition is very good and it was in a working environment. It is equipped with a circulation pump and features a sophisticated digital controller, the Pilot ONE, with advanced control functions and a brilliant 5.7 inch TFT touchscreen display. This controller offers language support in 13 languages, USB and network connections, an integrated technical glossary, and a range of expansion functions. The cooling power at 22kW/30 kW and the circulation pump with a maximum delivery of 240 l/min make it a powerful and versatile piece of equipment. The temperature range and stability, design, and functionality make this heat transfer unit indispensable for various laboratory applications.

• Digital level indicator
• E-grade upgrade capability
• Adjustable overtemperature protection

• Cooling power: 22kW / 30kW
• Primary side inlet: 10C / flow 50 l/min / 100 l/min
• Secondary side outlet: 20C / recirculation 160 l/min / 160 l/min
• Temperature range: 5...90C
• Power supply requirement: 3 phase 400V 3~ 50Hz
• Maximum current: 5 A
• Fuse: 3x10 A
• Dimensions: W x D x H 940 x 1050 x 1130 mm
• Net weight: 270 kg

Metric: 270 kg
Imperial: 595.2 lb

Metric: 113 cm x 105 cm x 940 cm
Imperial: 44.49 in x 41.34 in x 370.08 in

8419899890

This code corresponds to machinery, plant or laboratory equipment; for the treatment of material by a process involving heating, such as electric ovens, other industrial or laboratory equipment for the heat treatment of materials by induction or dielectric loss.
