Cole Parmer 07522-20 Peristaltic Pump with 600 RPM Digital Drive

Product Information

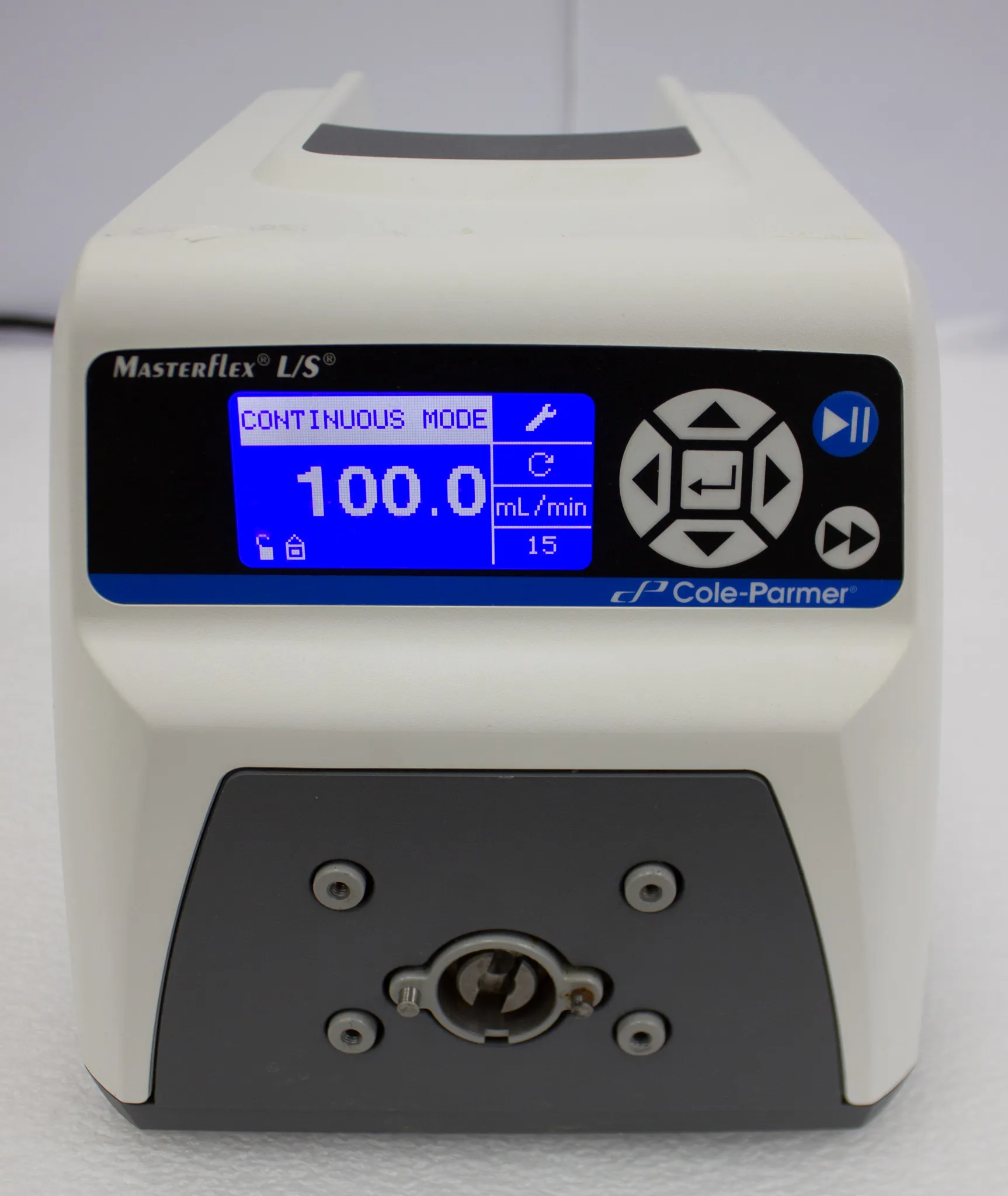

Introducing the Cole Parmer 07522-20 Peristaltic Pump with 600 RPM Digital Drive - the perfect solution for precision dispensing in automated process applications. This advanced pump features a digital interface with a graphical LCD, allowing you to monitor pump performance and select operating modes. The brushless, maintenance-free motor offers exceptional speed control accuracy and a maximum speed of 600 rpm. The digital drive also supports dispensing by volume, copy dispense, and timed intervals, providing convenience, accuracy, and flexibility in your laboratory processes. With a comprehensive range of accepted pump heads and customizable dispense settings, this pump is ideal for a variety of laboratory applications. Powered by 120V/220V and 50Hz/60Hz, this used equipment comes with a 30-Day Warranty and 100% Parts and Labor coverage, providing peace of mind for buyers.

• Digital interface with graphical LCD for monitoring pump performance
• Dispensing by volume, copy dispense, and timed intervals for flexible operation
• Brushless motor with 600 rpm maximum speed and 0.1% speed control accuracy
• Supports a wide range of pump heads and customizable dispense settings

• Model: 07522-20
• Plug type: US
• Max. flow rate: 3400 ml/min
• No. of Pump Heads Accepted: 2
• Housing material: ABS plastic and aluminium
• Max. RPM: 600 rpm
• Power: 90 - 260 VAC; 50/60 Hz; 2.2 A
• Control Type: Digital
• Digital dispensing: Yes
• Drive height: 216 mm (8.5")
• Drive IP rating: IP 33
• Drive length: 254 mm (10")
• Drive width: 216 mm (8.5")
• Min. RPM: 0.1 rpm
• Motor: 75 W, 1/10 hp
• Remote I/O: 0 to 20 mA, 4 to 20 mA, 0 to 10 V, start/stop, direction, and prime via contact closure
• Reversible motor: Yes
• Speed control: 0.1% (0.1 rpm at 600 rpm)
• Type of pump heads accepted: Standard, Easy-Load, Easy-Load II, Easy-Load 3, High Performance, Cartridge, Multichannel, PTFE Tubing, PTFE Diaphragm, Cytoflow
• Current: 2.2 A
• Frequency: 50/60 Hz
• Voltage: 90 - 260 VAC

Metric: 11.34 kg
Imperial: 25 lbs

Metric: 27.94 cm x 20.32 cm x 21.59 cm
Imperial: 11 in x 8 in x 8.5 in

841381

Pumps for liquids, whether or not fitted with a measuring device; Liquid elevators - Harmonized System Code for Peristaltic Pumps. This code best describes the product as it specifically relates to pumps for liquids and includes those fitted with a measuring device, making it the relevant harmonized code for this equipment.
