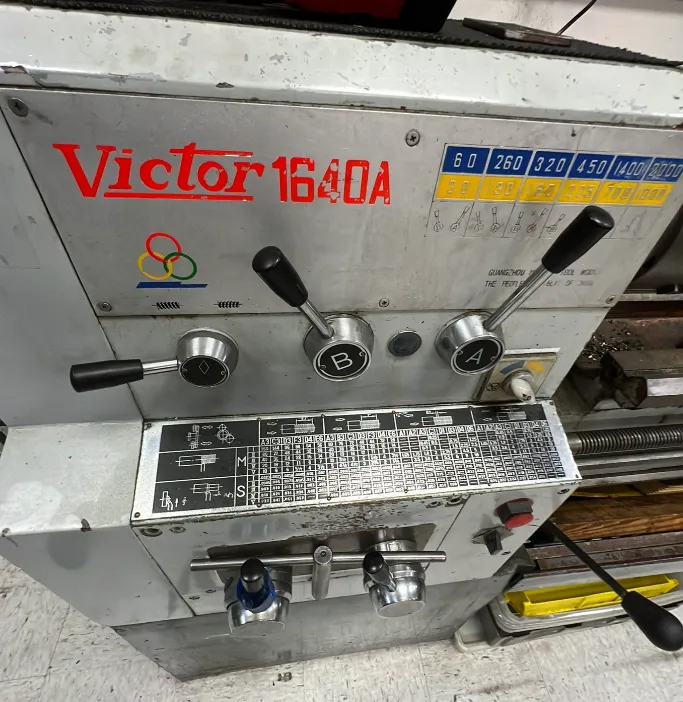

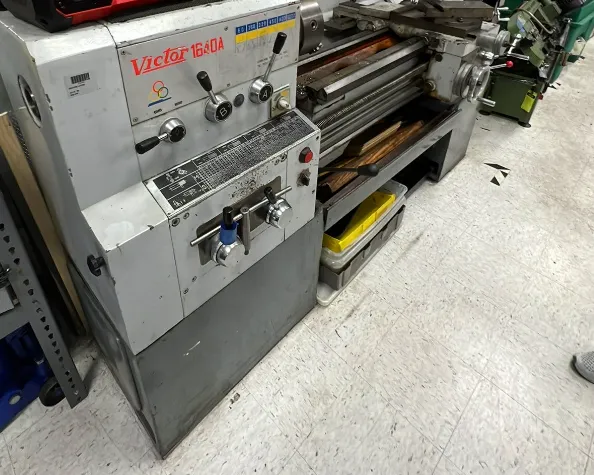

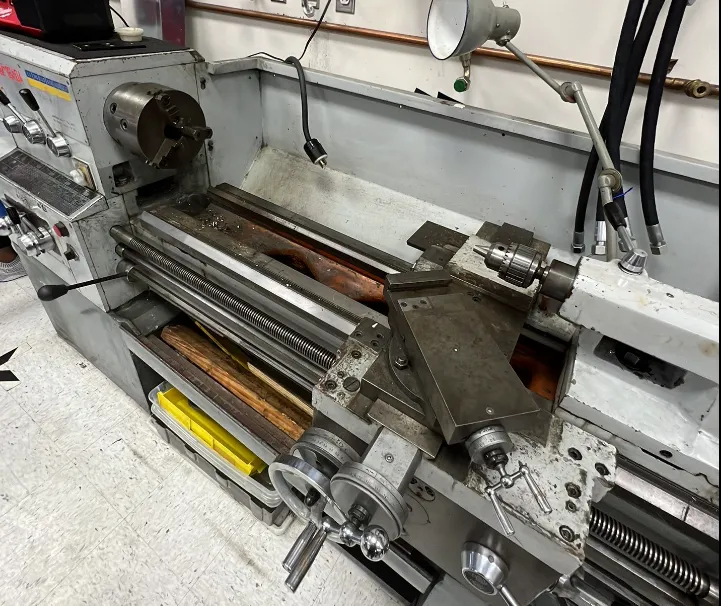

Victor Lathe 1640A by Victor

Product Information

Introducing the Victor Lathe 1640A by Victor, a high-performance precision high-speed heavy-duty lathe with rigid one-piece Meehanite casting bed. This exceptional piece of equipment delivers superior accuracy, durability, and reliability, making it an essential addition to any laboratory or manufacturing facility. Its one-piece heavy-duty cast iron base with a special exit for chips removal, oversized rigid compound rest for heavy cutting, and hardened and precision ground gears and bedways are just a few of the features that set this lathe apart. The Victor Lathe 1640A also boasts a 7.5 HP main motor that delivers full power at all 12 speeds, providing stability, consistency, and exceptional machining capabilities. This precision high-speed heavy-duty lathe is suitable for a wide range of applications including precision machining, metalworking, and manufacturing.

• One-piece heavy-duty cast iron base with a special chip removal design
• Oversized rigid compound rest for heavy cutting
• Hardened and precision ground gears and bedways
• 7.5 HP main motor that delivers full power at all 12 speeds
• Exceptional stability, consistency, and machining capabilities

• Model: 1640A
• Type: Precision High-Speed Heavy-Duty Lathe
• Swing over bed: 16 inches
• Swing over cross slide: 9.44 inches
• Swing over gap: 23-7/16 inches
• Bed width: 11-13/16 inches
• Distance between centers: 40-60 inches
• Spindle bore diameter: 2.03 inches
• Spindle bore taper: M.T. #6
• Number of spindle speeds: 12 Steps
• Range of spindle speeds (rpm): 30 ~ 2,000 rpm
• Range of longitudinal feeds: 0.0012" ~ 0.0352"/rev.
• Range of cross feeds: 0.0006" ~ 0.0176"/rev.
• Main motor: 7.5 HP 3 Phase
• Coolant pump: 1/8 HP
• Shipping dimensions (LxWxH): 89"x38"x65"110"x38"x65"
• Gross weight: 4,290 lb. - 4,950 lb.

Metric: 1941 kg
Imperial: 4290 - 4950 lbs

Metric: 279.4 cm x 96.52 cm x 165.1 cm
Imperial: 110 in x 38 in x 65 in

8458.11.0000

Machine tools for drilling, boring or milling metal, nesoi
