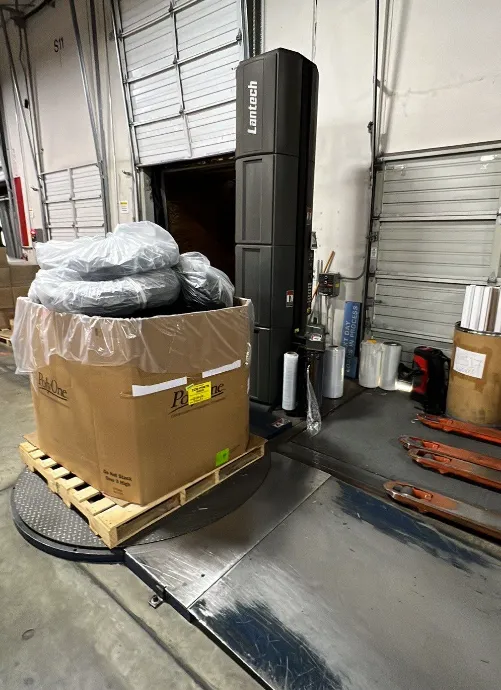

Lantech - Q300 Stretch Wrapper with Extended Wrap Height

Product Information

The Lantech - Q300 is a stretch wrapper designed to increase the wrap heights of loads by replacing the 2032 cm (80") mast with a 2794 cm (110") mast. It also features a Pallet Grip to create a film 'cable' that locks the load to the pallet, thereby reducing the risk of damage during shipment. Its Power Roller Stretch Plus - Film Delivery System senses and adjusts the wrap force to changes in tension on the film. The machine can operate in cold environments, has an EZ Weigh Integrated Scale, and can be used in corrosive environments. The 'Non Powered' Turntable Conveyor with a maximum load weight of 1814 kg (4000 lb) and maximum load dimensions of 1702 mm L x 1321 mm W x 1905 mm H (67 x 52 x 75") is also available.

• Extended wrap height for loads
• Pallet grip feature to lock loads to the pallet
• Power Roller Stretch Plus - Film Delivery System
• Can operate in cold and corrosive environments
• EZ Weigh integrated scale
• 'Non Powered' Turntable Conveyor with heavy load capability

• Performance: Peak Production Speed - Up to 25-35 Loads/Hr, Maximum Load Wrap Height - 2032 mm (80"), Maximum Load Weight - 1814 kg (4000 lbs)
• Turntable Size - 1651 mm (65") Diameter, Turntable Drive - 3/4 HP TEFC
• Performance Features: Auto Film Cut-Off, Pallet Grip, Standard Pre-Stretch 200%, NEMA Type 1 Enclosure
• Approx. Shipping Weight - 658 kg (1450 lbs), Size - 3023 mm L x 1702 mm W x 2337 mm H (119" L x 67" W x 92" H)
• Service Requirements: Dedicated Electric Service Req. US120 VAC, 20 AMP, EU1L-220V-16AMP-50Hz
• Specifications for the 'Non Powered' Turntable Conveyor: Maximum load weight - 1814 kg (4000 lb), Maximum load dimensions - 1702 mm L x 1321 mm W x 1905 mm H (67" x 52" x 75")

Metric: 658 kg
Imperial: 1450 lbs

Metric: 302.3 cm x 170.2 cm x 233.7 cm
Imperial: 119 in x 67 in x 92 in

84798997

Machinery for the industrial preparation of fruits, nuts or vegetables
