Workhorse Odyssey Custom Conveyor Dryer 11205 Dispenser w/ Atomizer & PHD Ultra (Storage)

Product Information

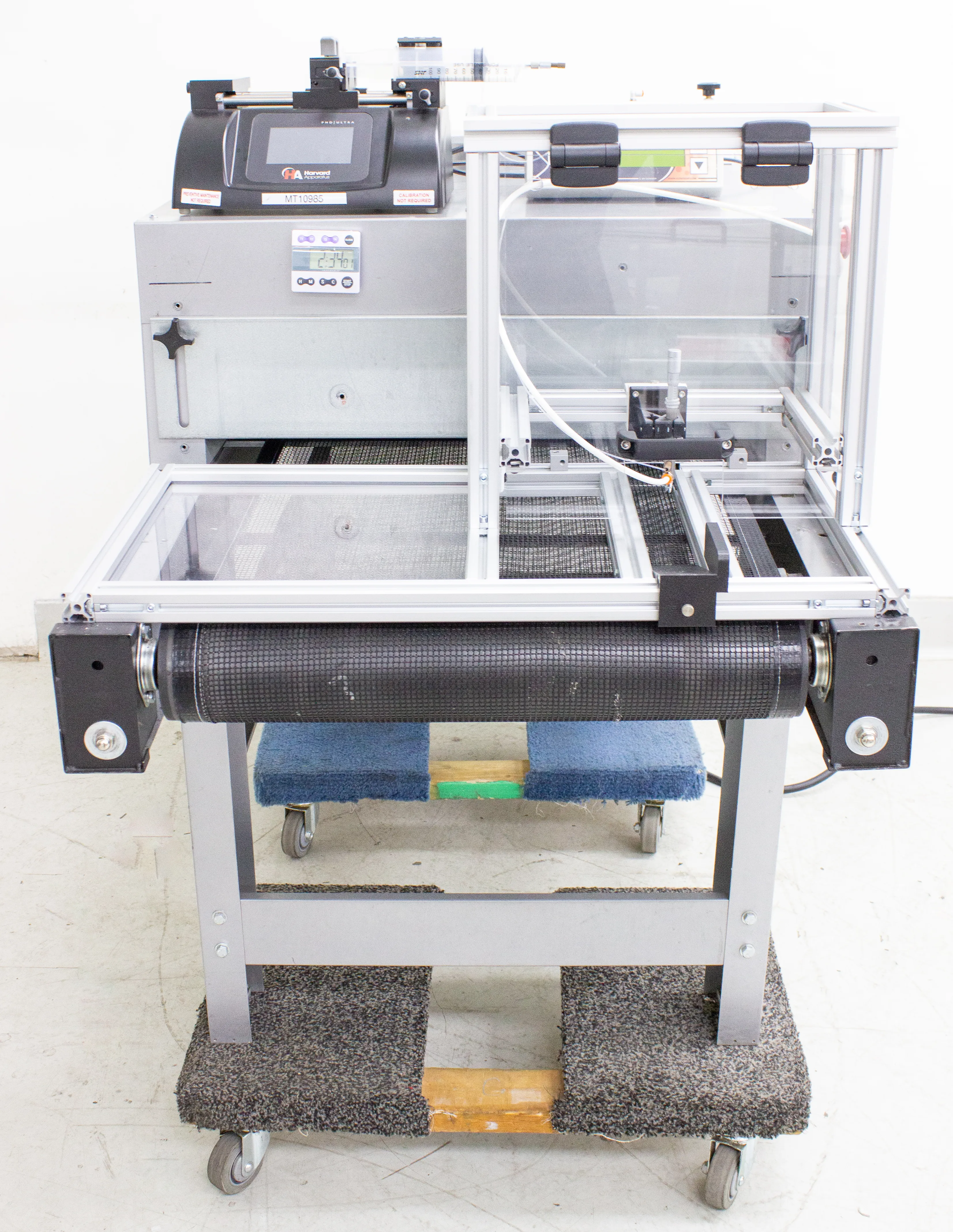

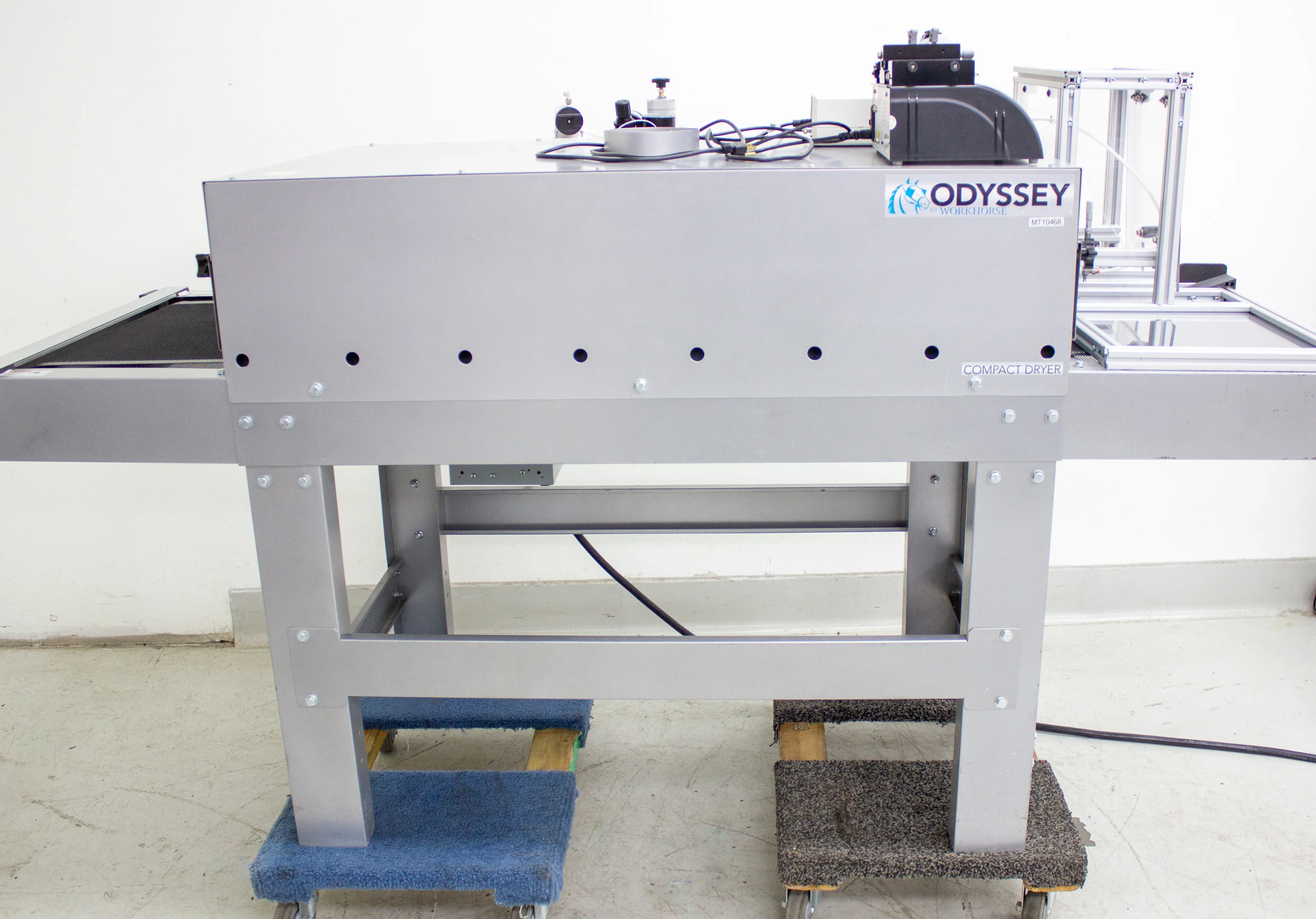

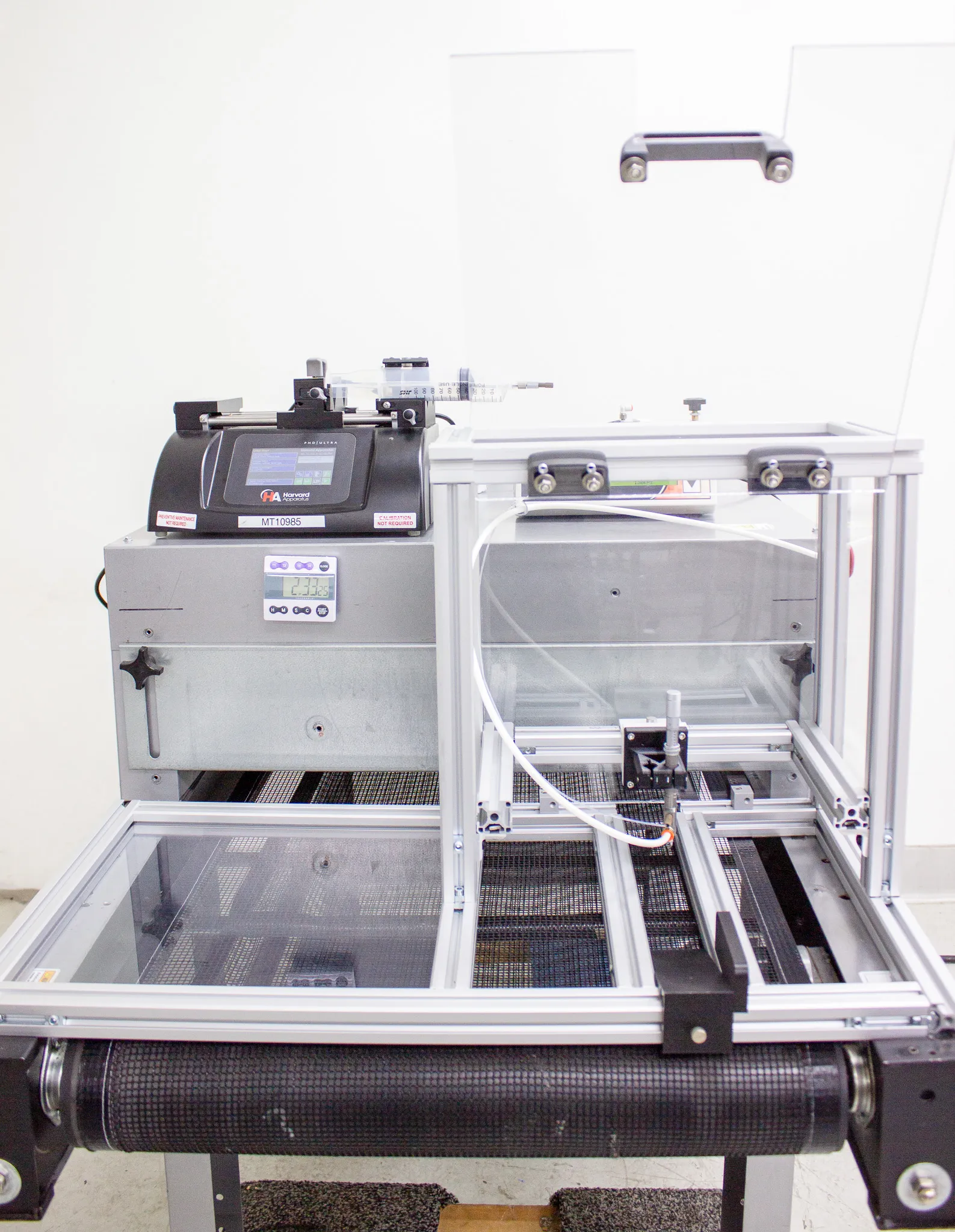

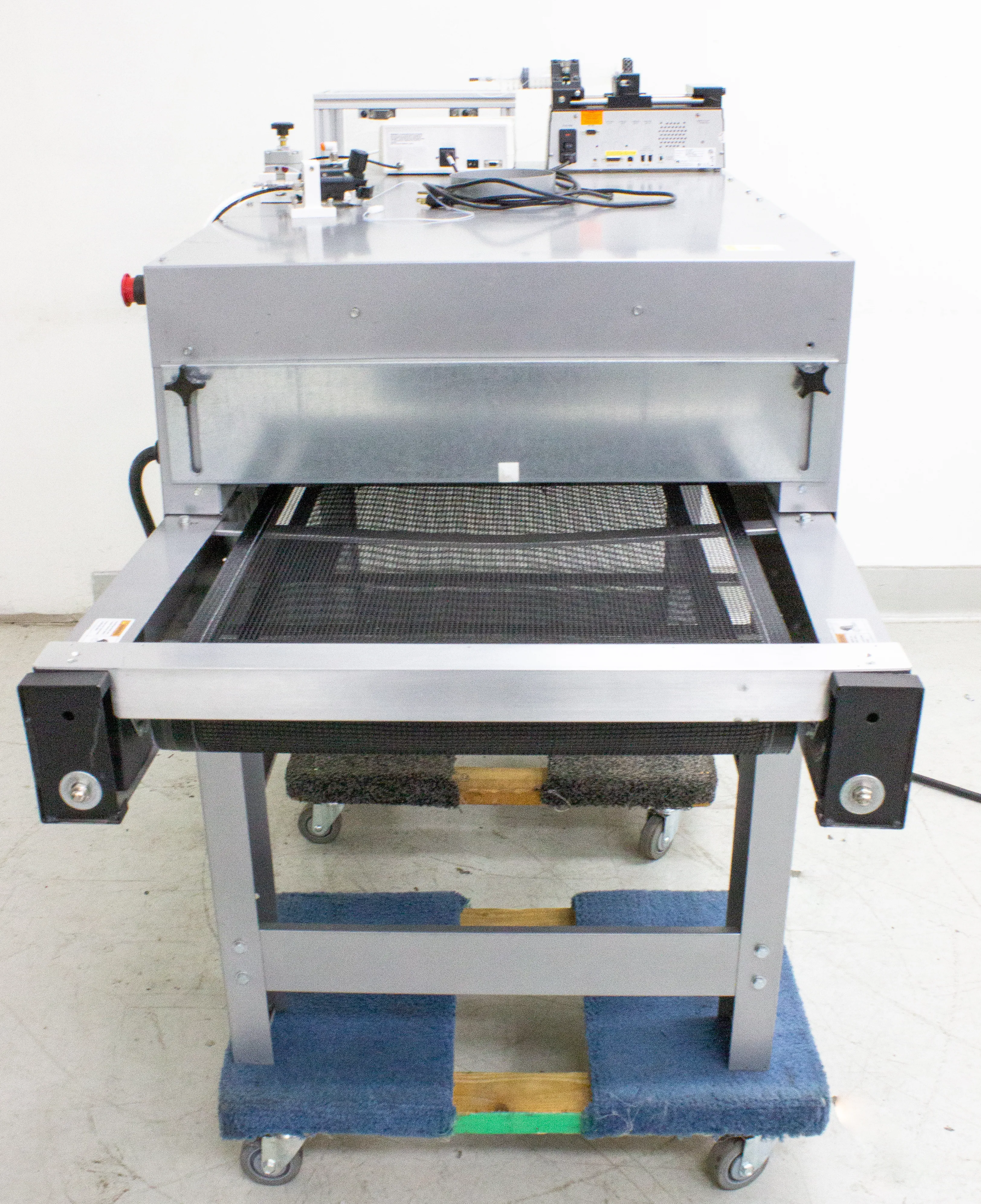

The Workhorse Odyssey Conveyor Dryer Model 11205, along with the Harvard Apparatus Model PHD Ultra Syringe Pump and Sonaer Sonozap Ultra Sonic Atomizer, is designed for small-scale garment production, offering fast curing of plastisol shirts. The conveyor dryer's features include an IR heat panel for quick curing, a digital display for precise temperature monitoring, and an industrial-strength sheet metal construction. The PHD Ultra syringe pump is suitable for demanding fluidics applications and offers superior performance, versatile preprogrammed methods, and advanced connectivity options. The Sonozap Ultra Sonic Atomizer utilizes a flow-through design for the fine atomization of liquids without the use of air pressure, with various applications in coating, burning, moisturizing, and other processes.

• Wide 22" belt for easy garment loading
• Large and powerful IR heat panel for fast curing
• Industrial Strength Sheet Metal construction for durability

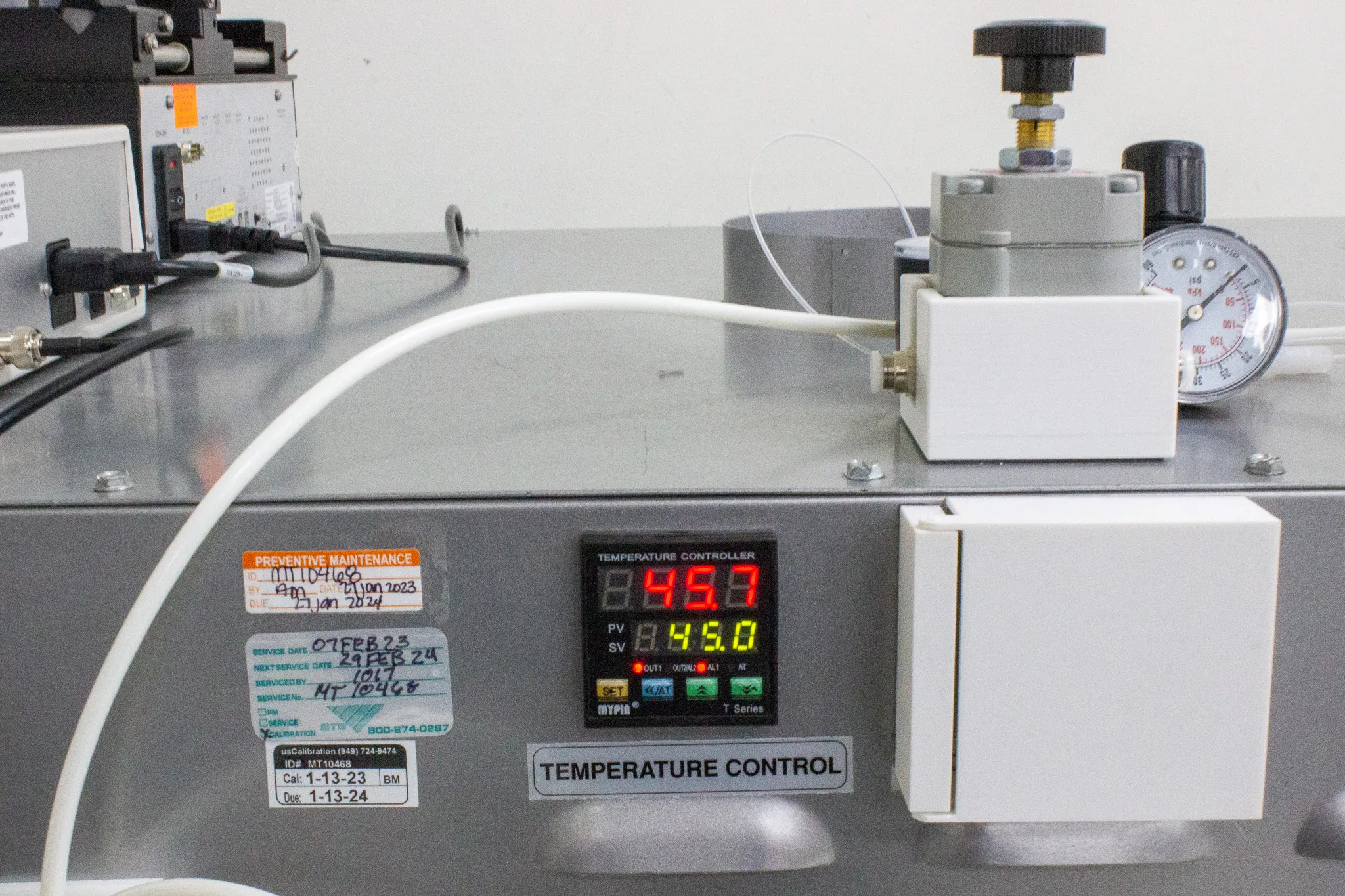

• Precise temperature accuracy and digital display for monitoring
• Integrated EZ PRO Software and versatile connectivity options for PHD Ultra Syringe Pump

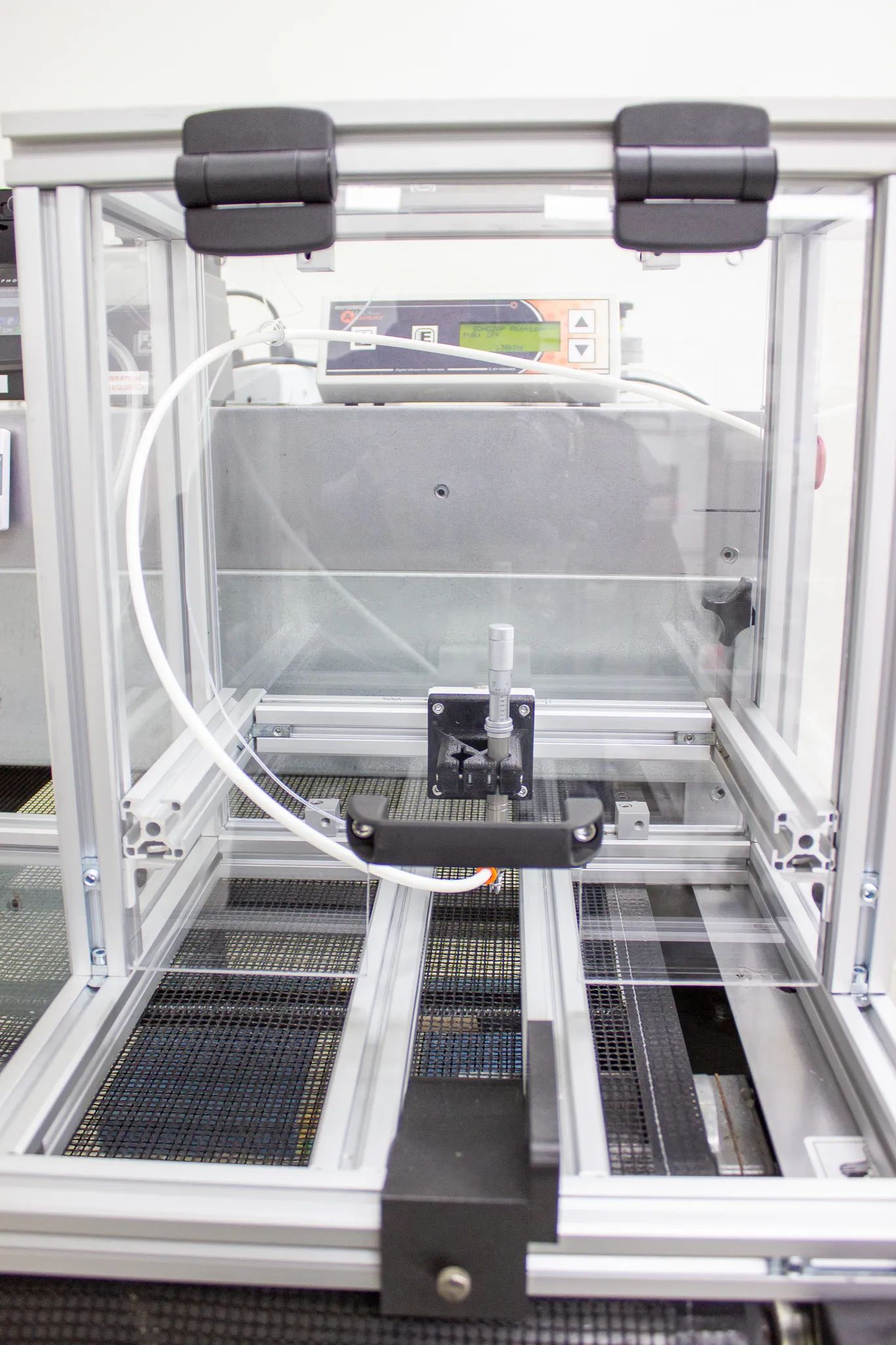

• Sonaer Sonozap Ultra Sonic Atomizer with flow-through design for liquid atomization

• Two 18"x20" heating elements
• 105 CFM air circulation fan

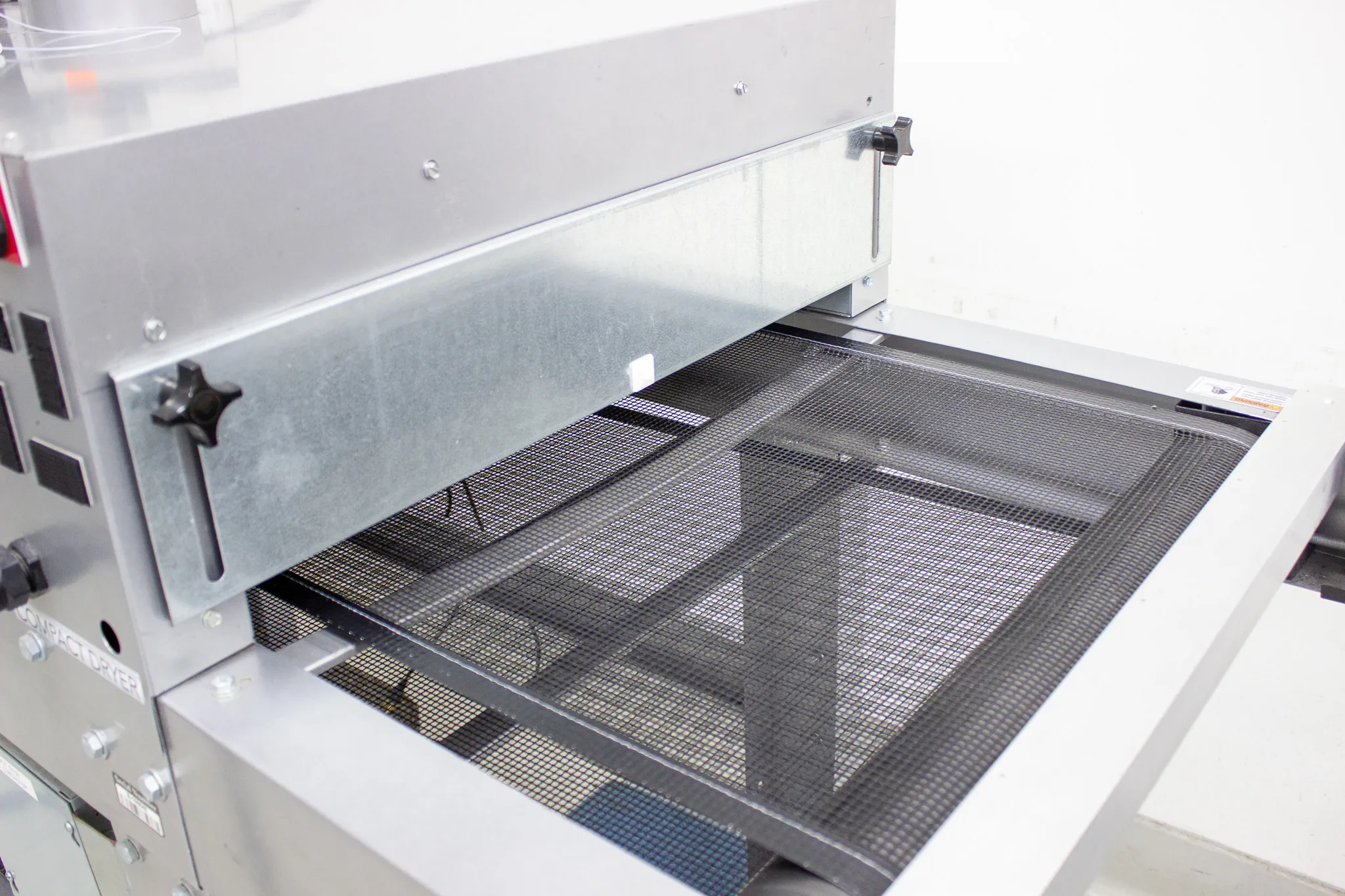

• 22" wide conveyor belt with 22" x 7' belt size
• 4-foot chamber length, 18-inch infeed and exit length
• 90 V DC belt drive motor, single-phase, 220V, 50-60Hz electrical requirement for conveyor dryer

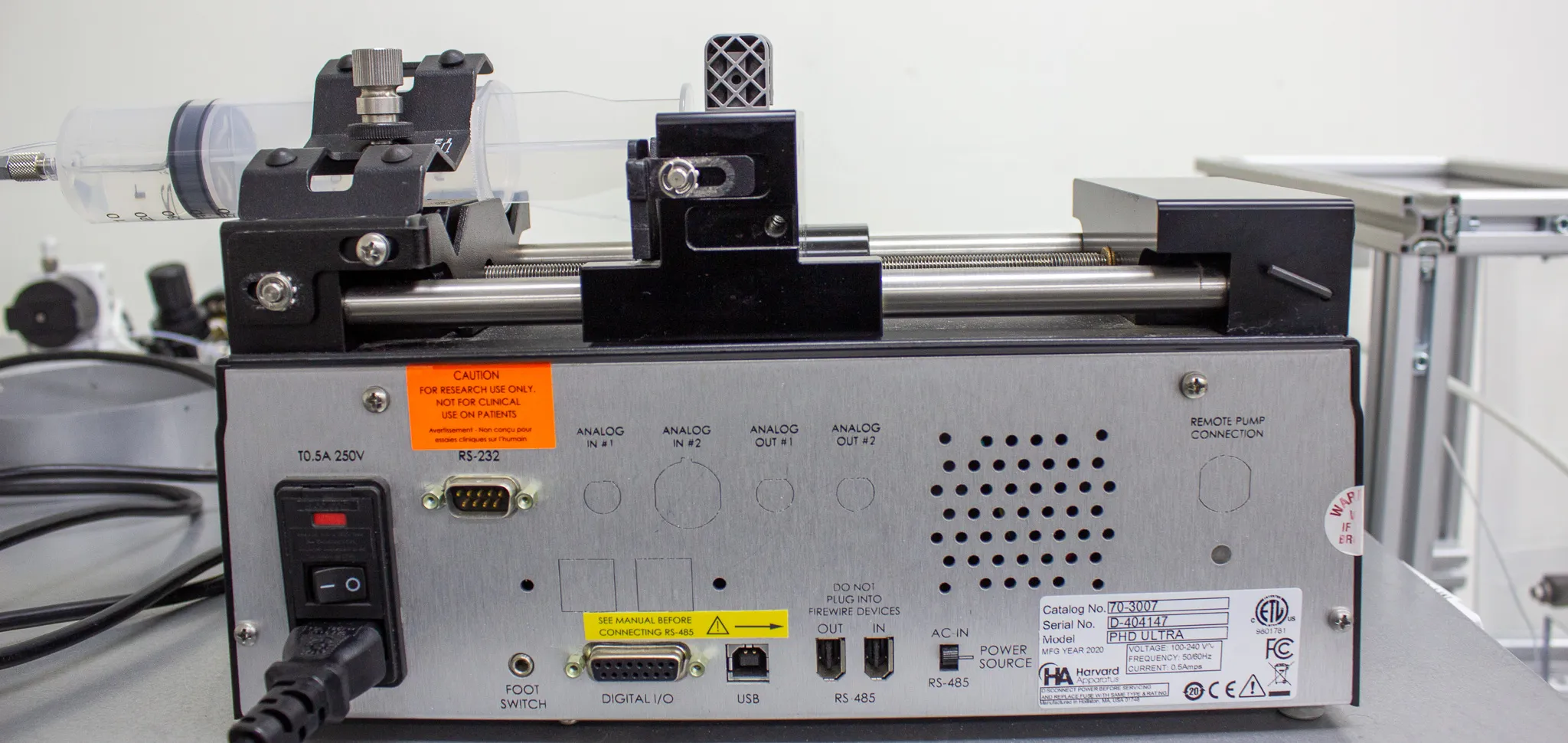

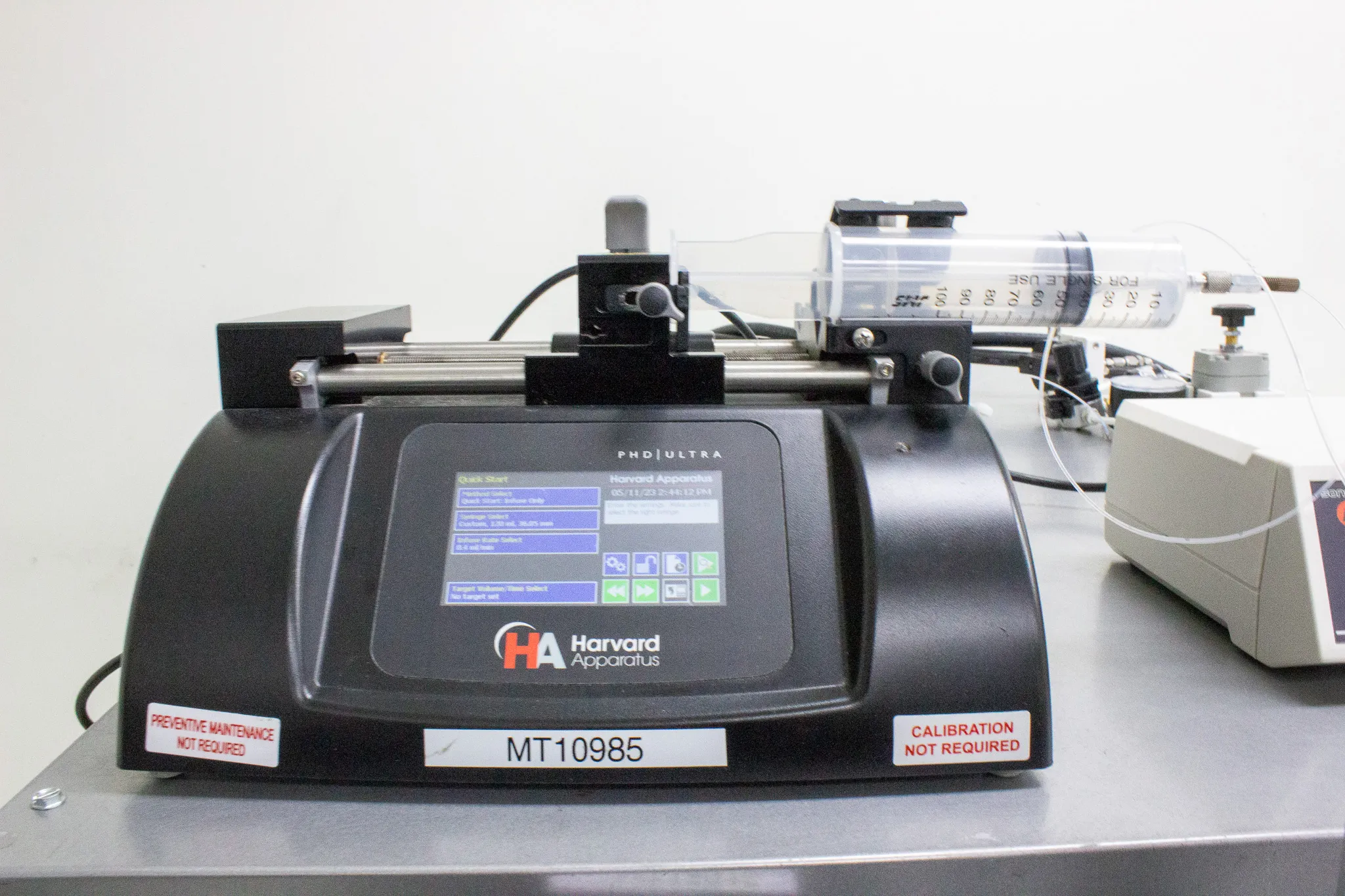

• PHD Ultra syringe pump with accuracy of 0.25%, maximum flow rate of 216 ml/min using a 140 ml syringe, and various connectivity options

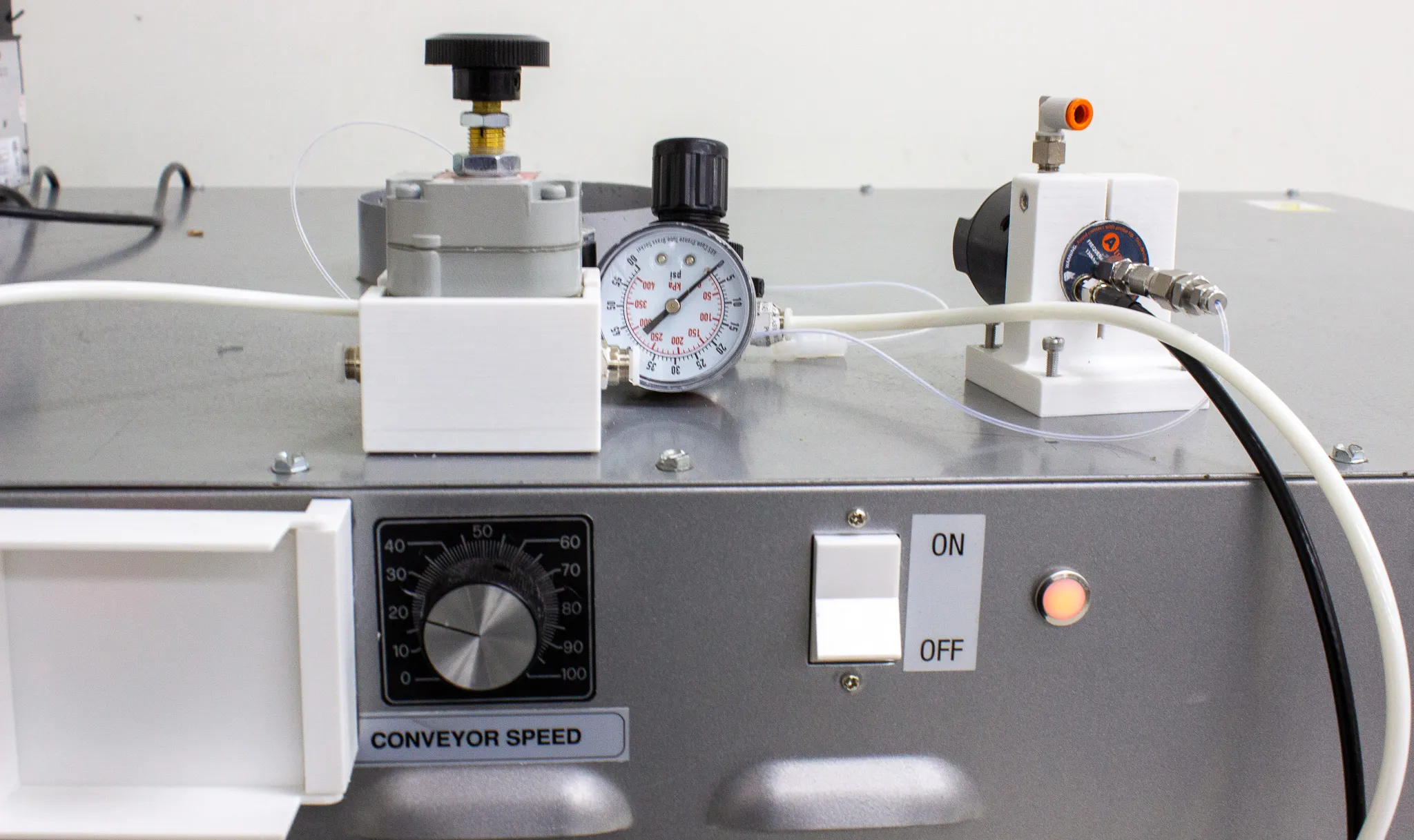

• Sonaer Sonozap Ultra Sonic Atomizer for atomizing fine particles from liquids without air pressure

Metric: 158.76 kg
Imperial: 350 lb

Metric: 91.44 cm x 228.6 cm x 152.4 cm
Imperial: 36 in x 90 in x 60 in

842211

842211 - Other Dish Washing Machines, Machinery for Cleaning or Drying Bottles or Other Containers
