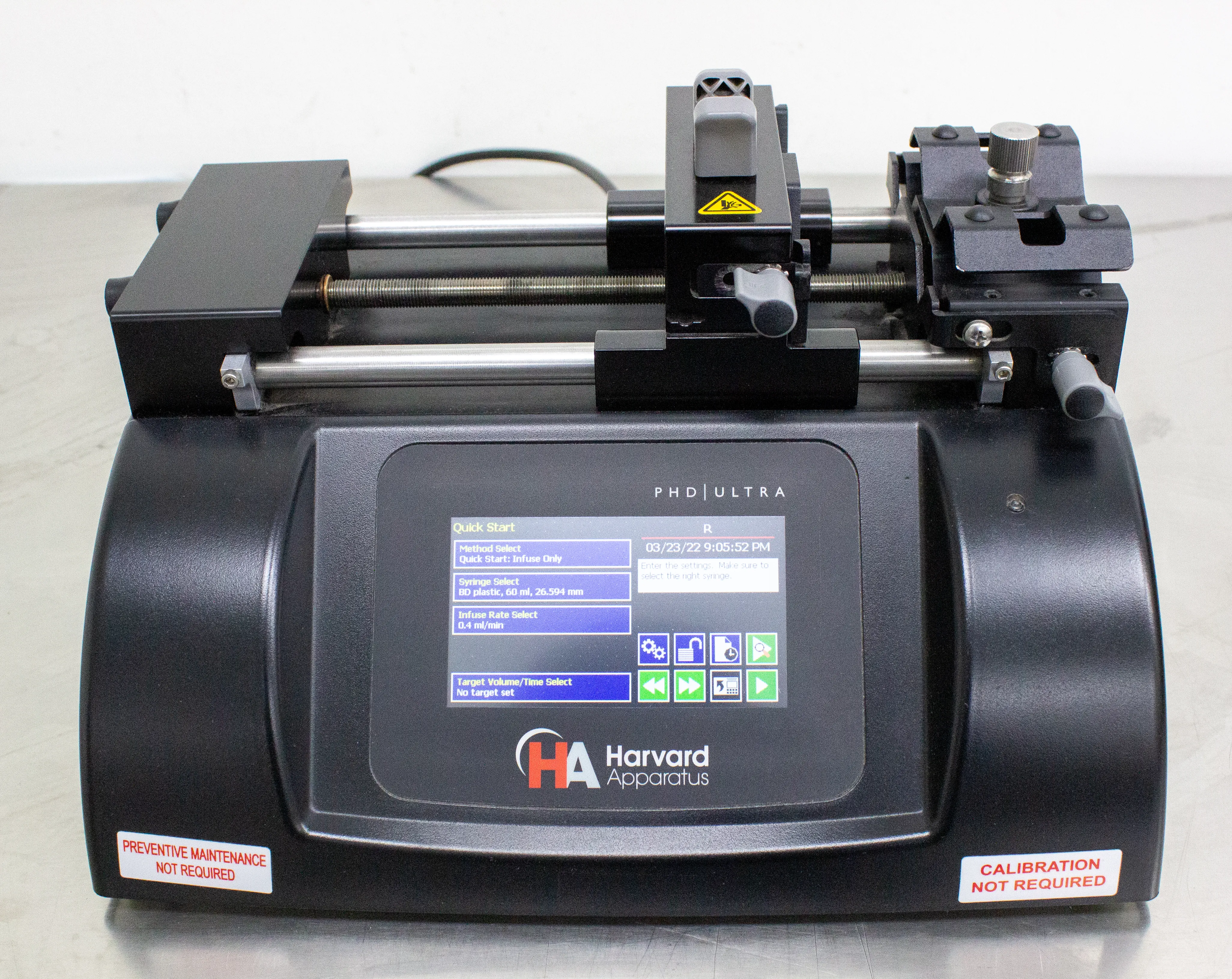

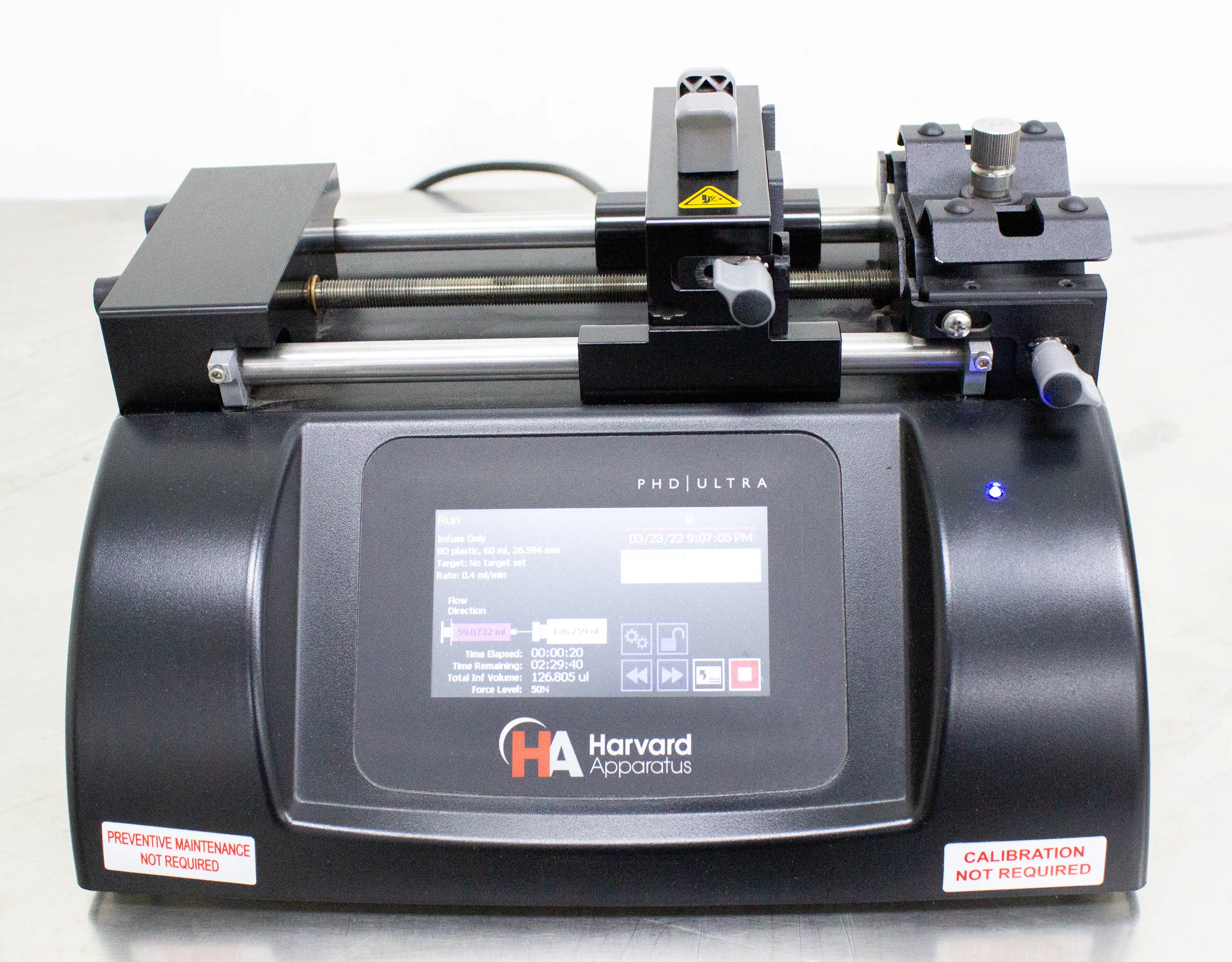

Harvard Apparatus PHD ULTRA Syringe Pump 70-3007

Product Information

The Harvard Apparatus PHD ULTRA Syringe Pump 70-3007 is a versatile pumping system that meets the demands of various fluidics applications. With an improved mechanical drive mechanism, integrated EZ PRO Software, and exceptional precision, this pump has set new standards in the industry. It is best suited for applications such as nanofluidics, drug/nutritional infusions, electro-spinning, reaction chamber addition, mass spec calibration, feeding cells, low pressure chromatography, continuous flow, and more. Designed for ease of use and high performance, this syringe pump maintains smoother and more accurate flow rates, offering flow rates as low as 1.56 pl/min and a maximum of 216 ml/min using a 140 ml syringe. With versatile configurations and connectivity options, it's a top choice for laboratories worldwide.

• Integrated EZ PRO Software for easy programming
• Superior mechanical drive mechanism for unmatched smooth flow
• Advanced programming for true multi-method operations

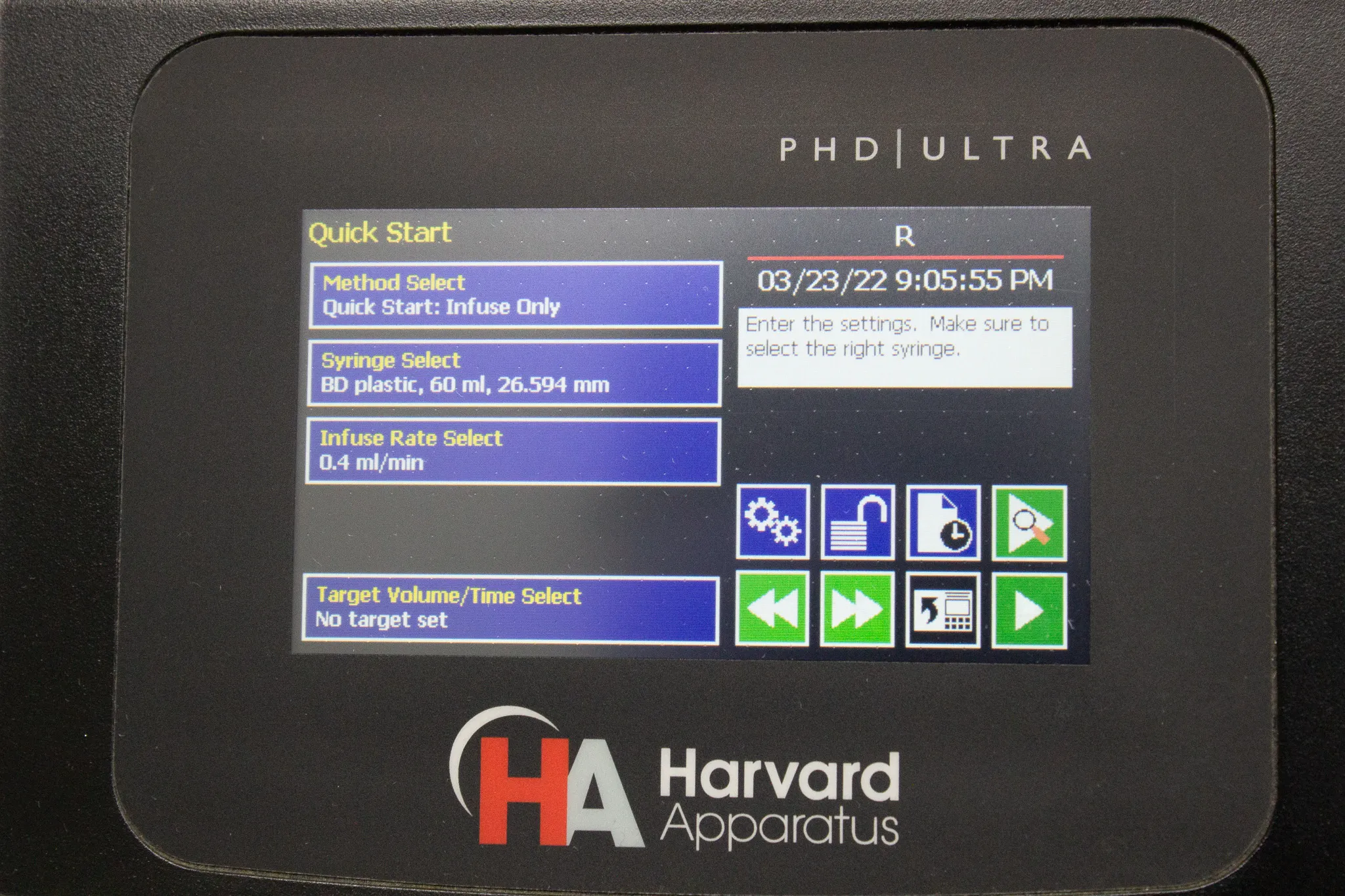

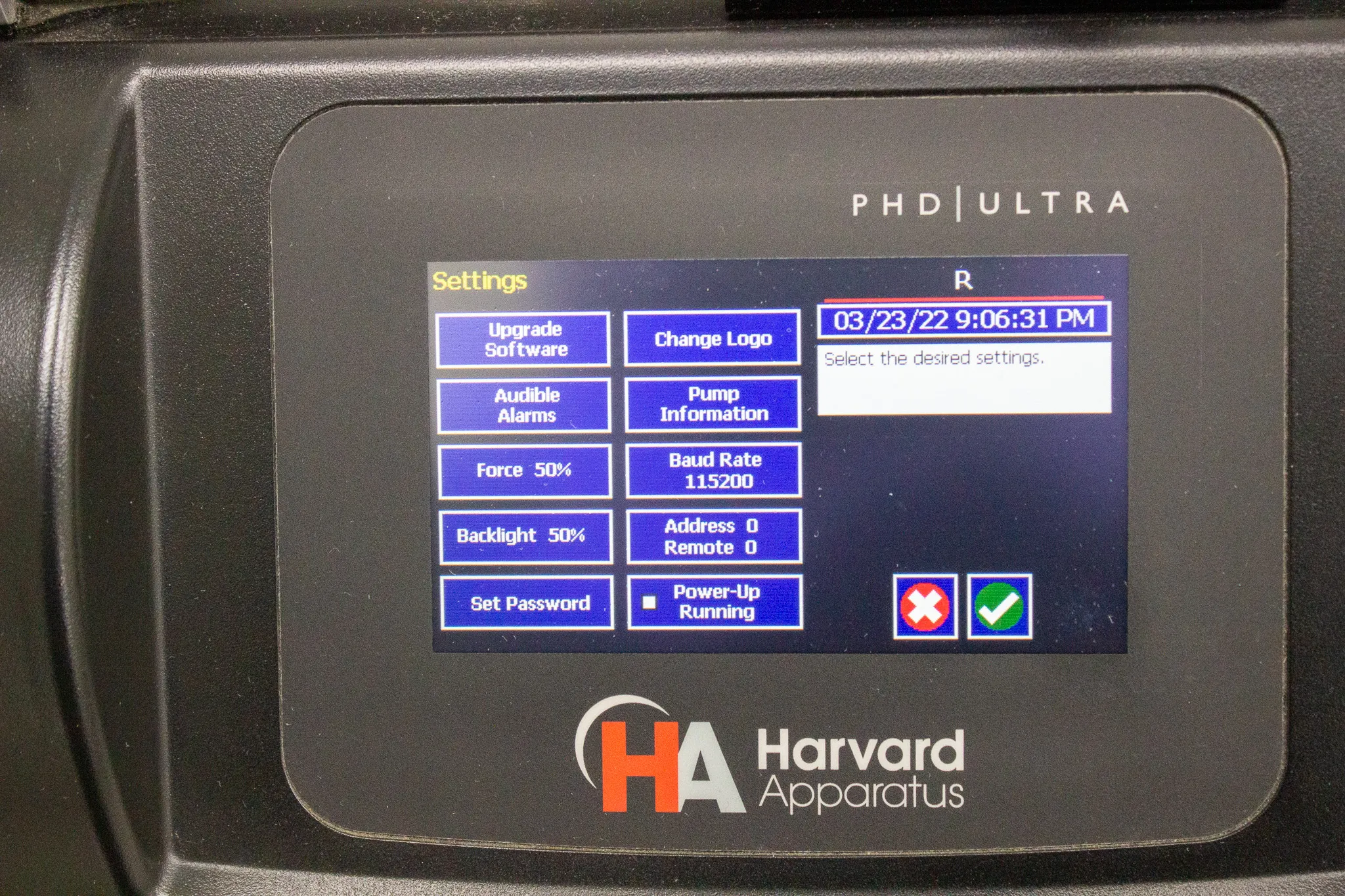

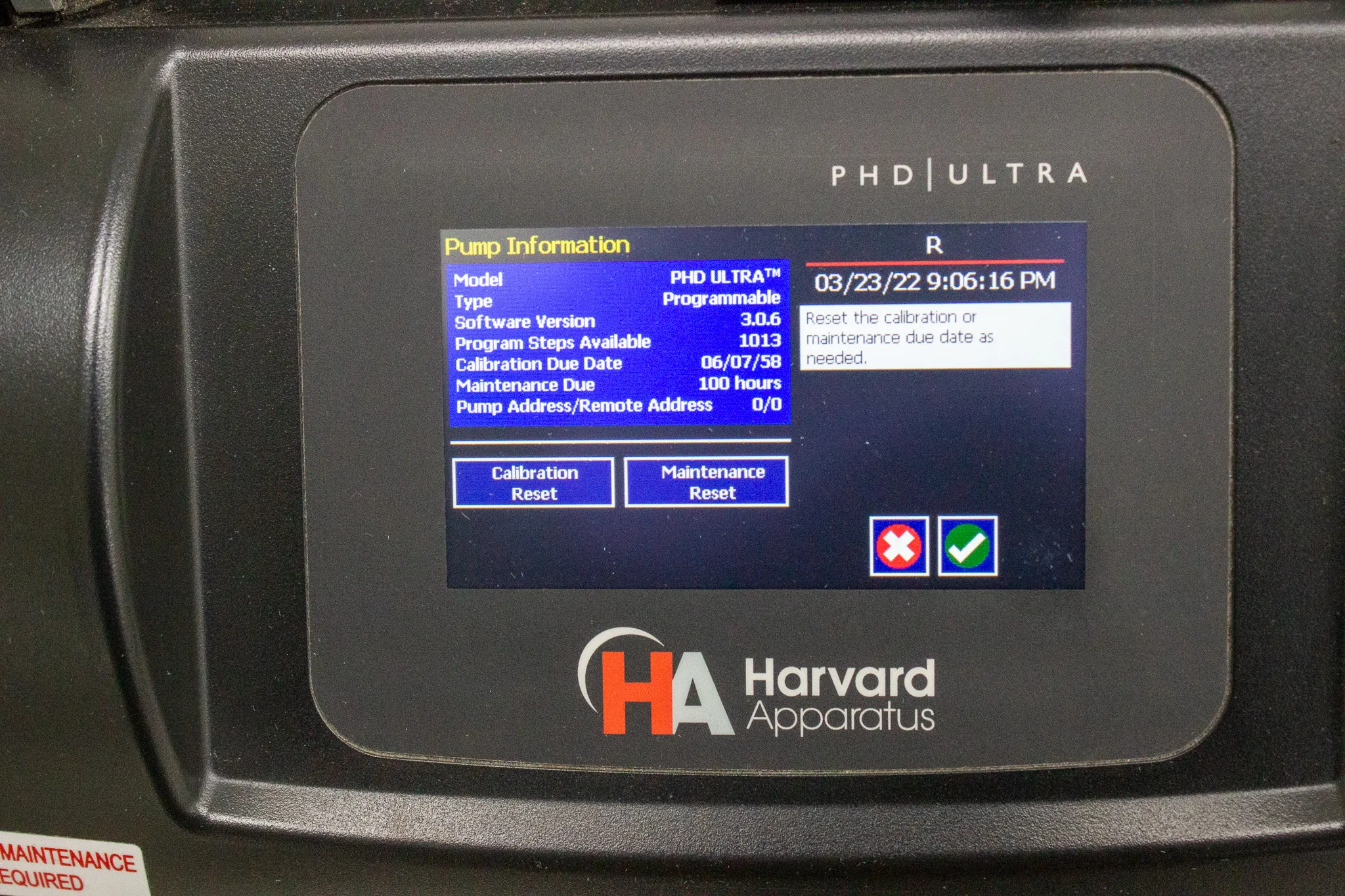

• Color LCD touch screen for powerful functionality
• Configurations: push-pull, standard, remote, high pressure, multi racks

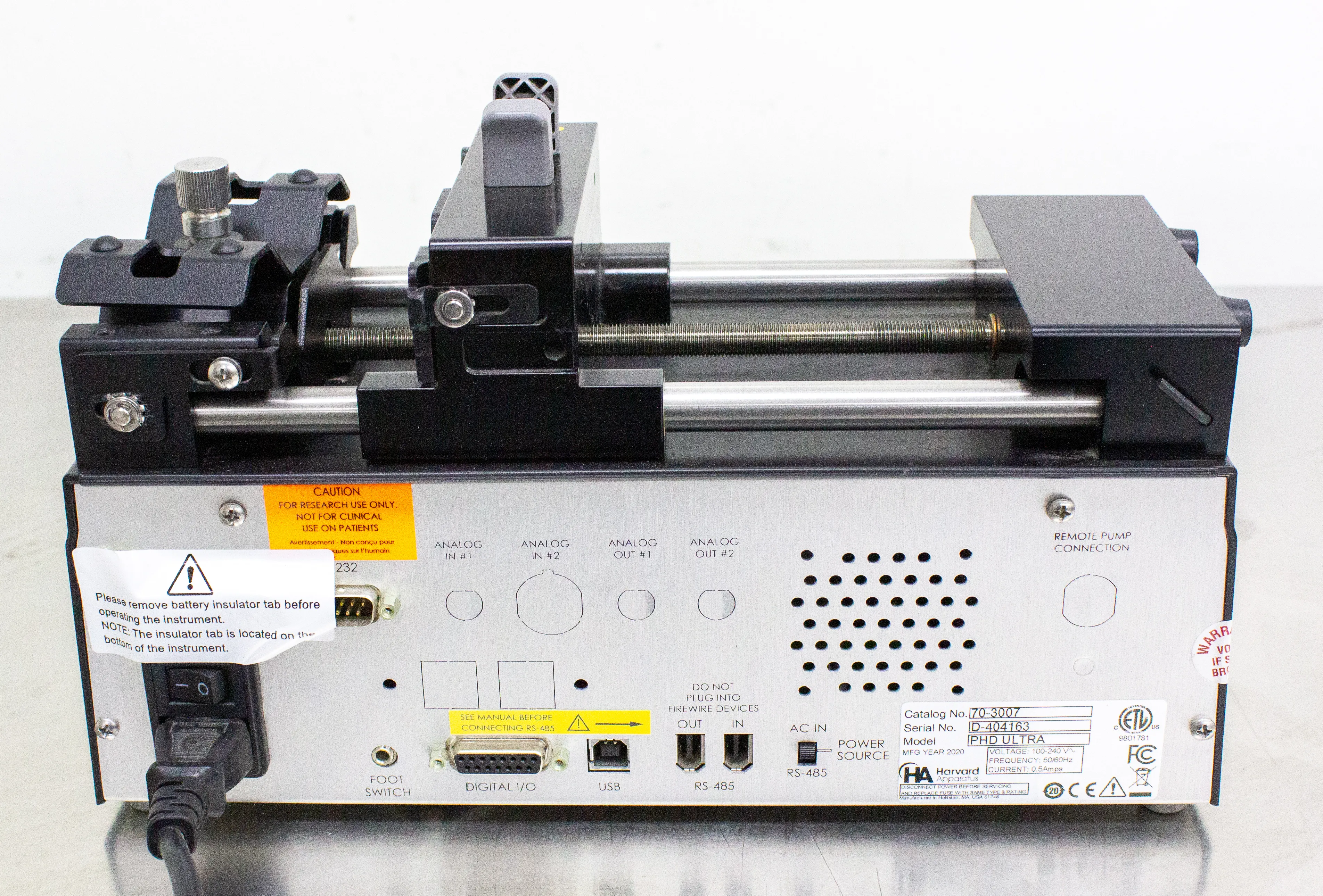

• Connectivity: RS-232 and USB for PC; RS-485 for pump-to-pump daisy chain

• Accuracy: 0.25%
• Dimensions, Control Box (L x D x H): 12.0 x 8.5 x 7.25 in (30.48 x 21.59 x 18.42 cm)
• Flow Rate Maximum: 216 ml/min using 140 ml syringe
• Flow Rate Minimum: 1.56 pl/min using 0.5 µl syringe
• Net Weight: 10 lb (4.5 kg)
• Voltage Range: 100-240 VAC, 50/60 Hz

Metric: 4.5 kg
Imperial: 10 lbs

Metric: 30.48 cm x 21.59 cm x 18.42 cm
Imperial: 12.0 in x 8.5 in x 7.25 in

902790

The harmonized code 902790 applies to instruments and apparatus for physical or chemical analysis, as well as syringes, needles, and catheters. This code is applicable due to the syringe pump's nature as a precision apparatus for fluidics applications and analysis.
