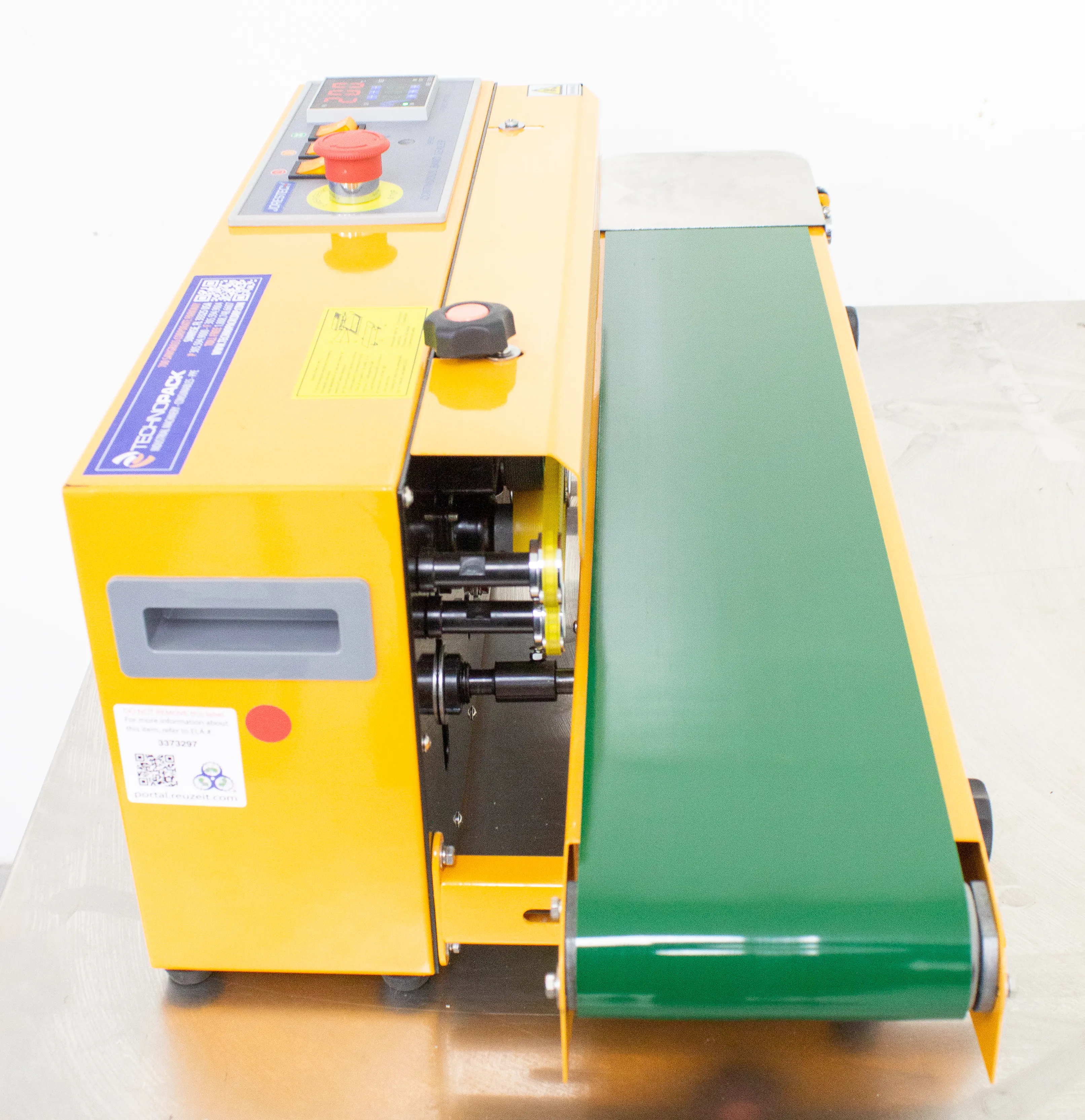

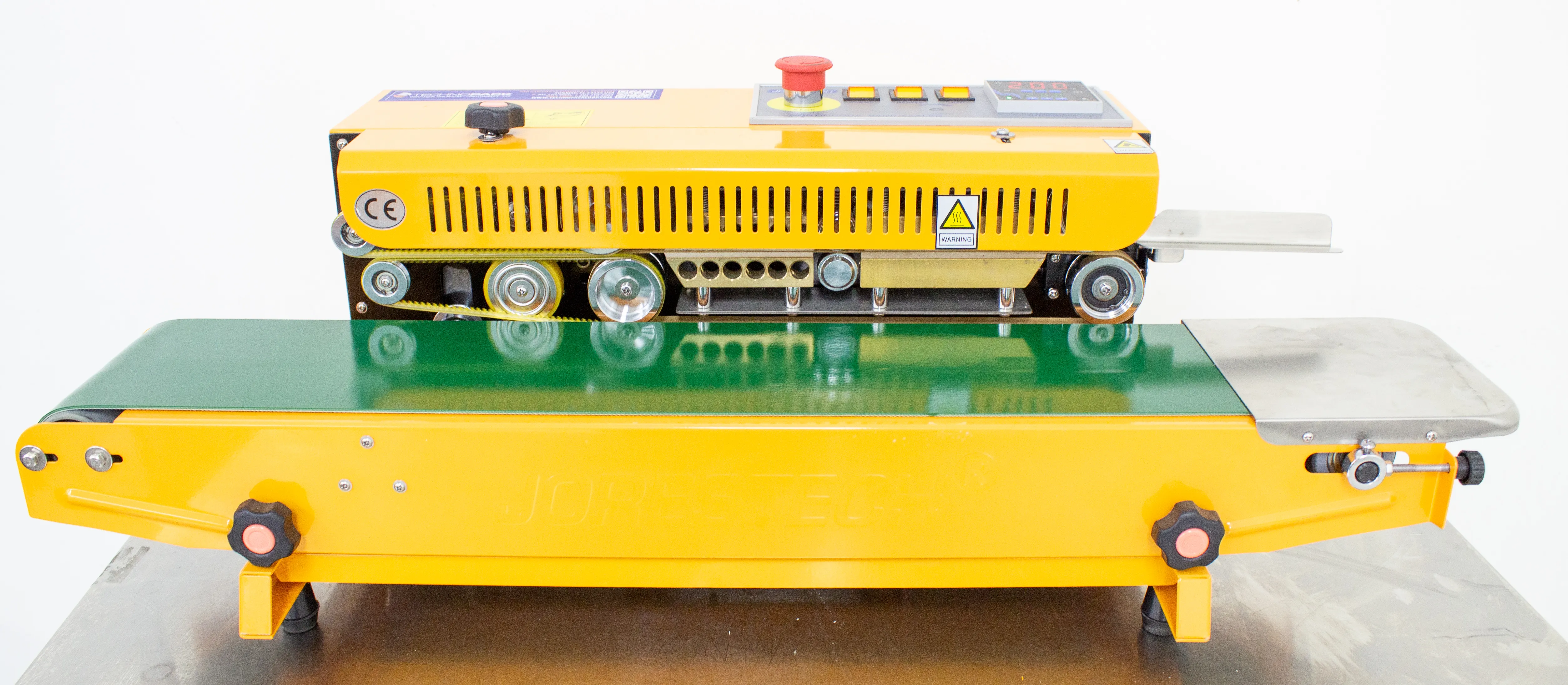

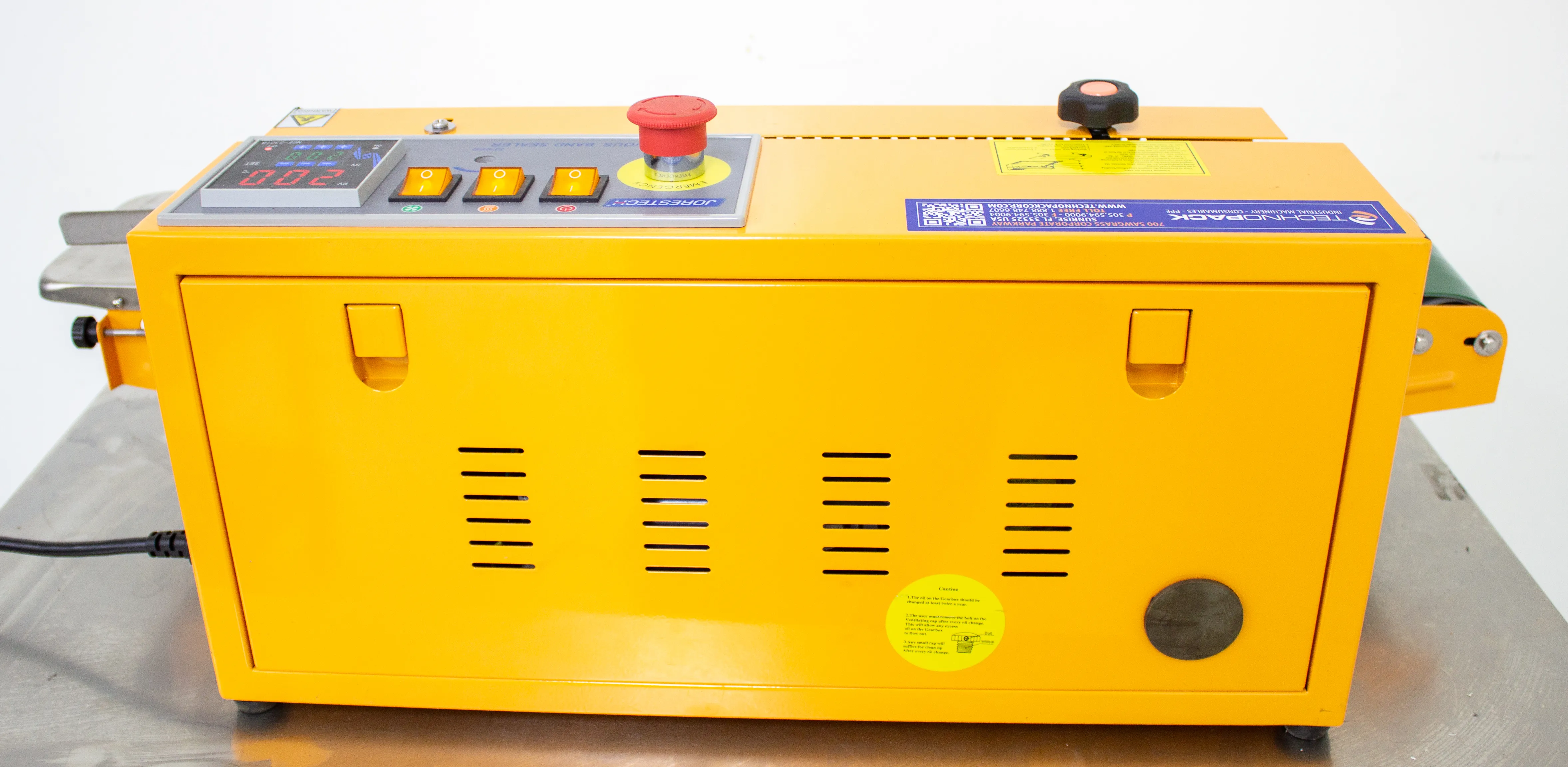

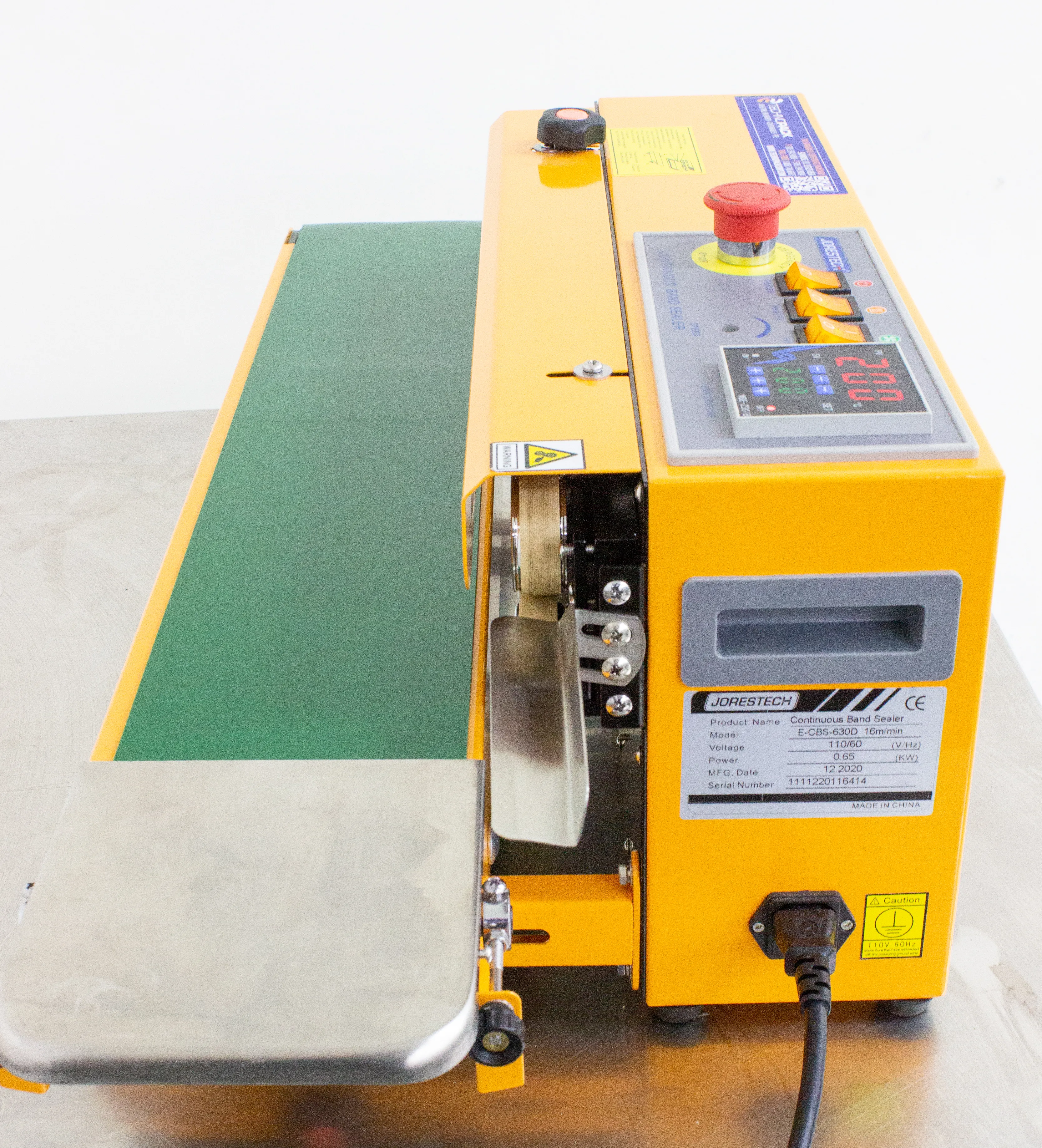

Jorestech Continuous Band Sealer Model E-CBS-630D

Product Information

The Jorestech Continuous Band Sealer Model E-CBS-630D is a versatile and efficient digital bag closer. This sealer has been tested to specifications and can reach target temperatures in minutes, delivering strong, professional-looking airtight seals. It features a PID digital temperature controller, a motorized belt conveyor, and is capable of speeds of up to 54 ft/min. The unit is suitable for sealing a wide range of bags made with thermoplastic materials, including Polyethylene (PE), Polypropylene (PP), and Bo PET (Mylar). This sealer is designed for various applications such as sealing food, coffee, and medicine bags.

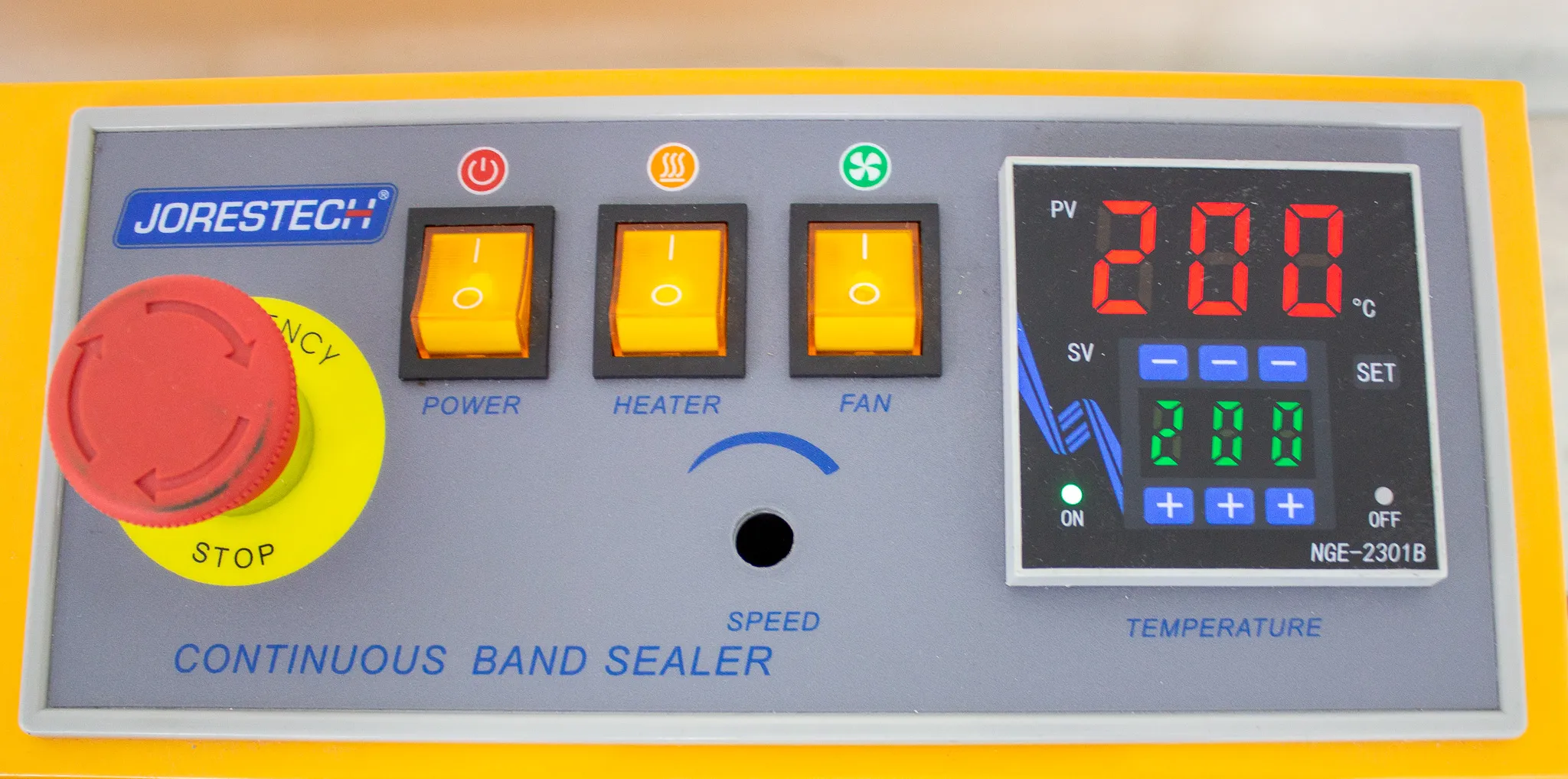

• Digital control panel for precise temperature control
• Capable of horizontal and vertical operation
• Seals a wide range of bag formats including stand-up pouches, gusseted bags, pillow-type bags

• Operation: Semi-Automatic
• Power Type: Constant Heat
• Seal Head Orientation: Dual Fit System (Vertical & Horizontal)
• Seal Width: 10 mm / 3/8 in
• Compatible with Most Bag Formats: Pillow, Pouch, Sack, Open Mouth, Stand-up, Doy pack, Gusseted, Multi-Ply, Flat Bottom
• Recommended Bag Height (Vertical Machines): 125 - 280 mm / 4.9 - 11 in
• Max Distance from Bag Opening to Top of Seal (Bag Leftover or Excess): 12 mm / 1/2 in

Metric: 20.87 kg
Imperial: 46 lb

Metric: 38.1 cm x 48.26 cm x 45.72 cm
Imperial: 15 in x 19 in x 18 in

842230

842230 - Machinery for filling, closing, sealing or labelling bottles, cans, boxes, bags or other containers; machinery for capsuling bottles, jars, tubes and similar containers; machinery for aerating beverages
