Jorestech Continuous Band Sealer Model E-CBS-630D

Product Information

Jorestech Continuous Band Sealer Model E-CBS-630D is a versatile digital bag closer capable of sealing a wide range of plastic bags, including stand-up pouches, gusseted bags, pillow-type bags, and sachets. Equipped with a digital panel for precise temperature control, it can be used in various industries such as food, coffee, and pharmaceuticals. The machine is capable of speeds of up to 54 ft/min and creates professional-looking airtight seals. The PID Digital Temperature Controller offers a wide temperature range of 0 - 300C (572F), making it suitable for a variety of thermoplastic materials. This sealer operates in both horizontal and vertical positions, providing flexibility for different types of bag formats. The unit has been tested to specifications and is in very good condition, with slight wear from normal use. It comes with a 30-day warranty, guaranteeing its functionality and performance. The technology behind continuous band sealers has revolutionized the packaging industry, providing efficient and reliable solutions for sealing various products.

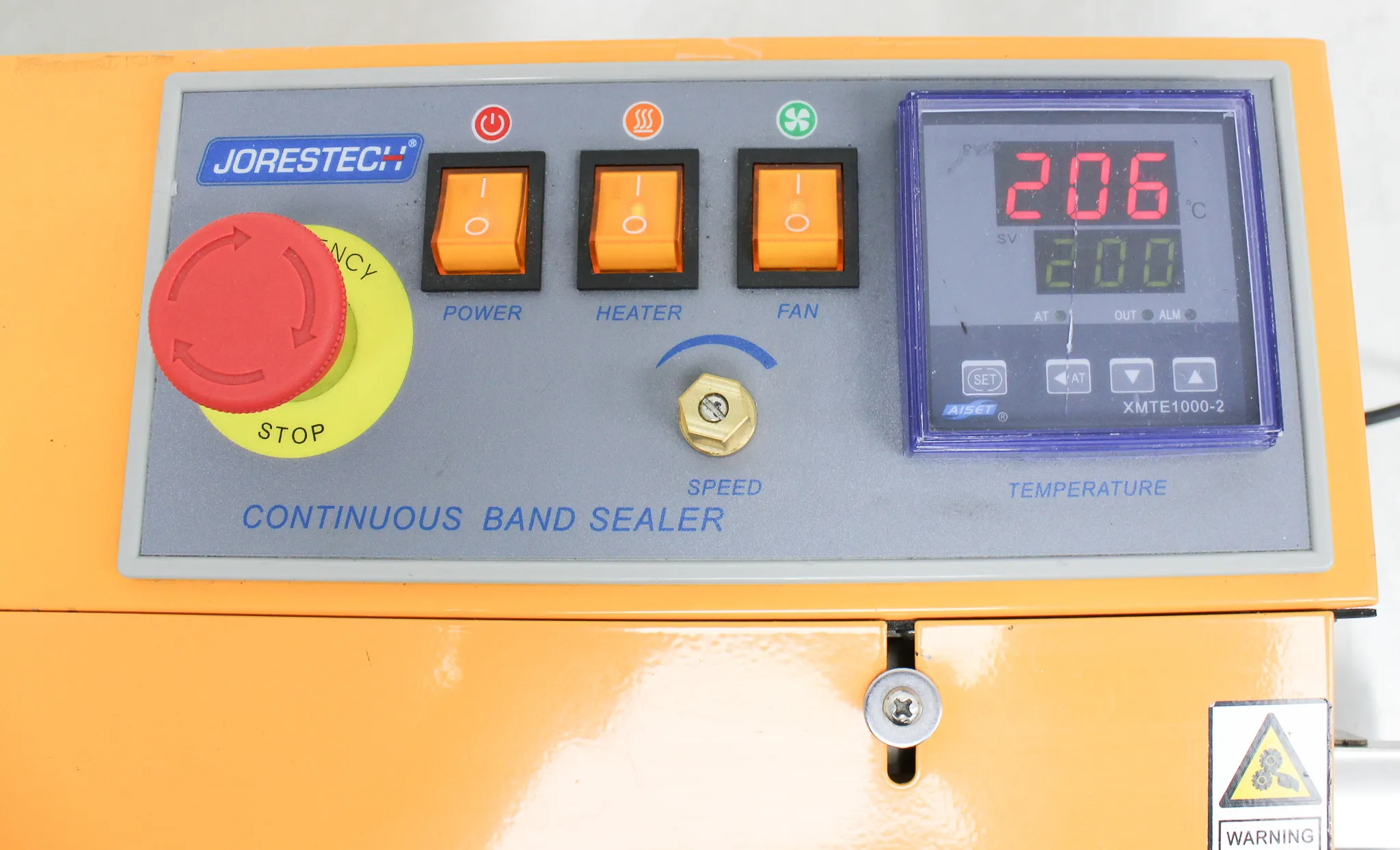

• Digital panel for precise temperature control
• Capable of sealing a wide range of plastic bags
• Operates in both horizontal and vertical positions
• Speeds of up to 54 ft/min
• PID Digital Temperature Controller with a wide temperature range of 0 - 300C (572F)

• Operation: Semi-Automatic
• Power Type: Constant Heat
• Seal Head Orientation: Dual Fit System (Vertical & Horizontal)
• Seals: Most Heat Sealable Bags, BOPP, PVC, PE, PU, Bo PET, Cello, Laminated bags
• Seal Width: 10 mm / 3/8 in
• Compatible with Most Bag Formats: Pillow, Pouch, Sack, Open Mouth, Stand-up, Doy pack, Gusseted, Multi-Ply, Flat Bottom
• Recommended Bag Height (Vertical Machines): 125 - 280 mm / 4.9 - 11 in
• Max Distance from Bag Opening to Top of Seal (Bag Leftover or Excess): 12 mm / 1/2 in

Metric: 19.96 kg
Imperial: 44.0 lb

Metric: 38 cm x 34 cm x 11 cm
Imperial: 15 in x 13.4 in x 4.3 in

842230

The harmonized code 842230 is used for machinery for filling, closing, sealing, or labeling bottles, cans, boxes, bags, or other containers; machinery for capsuling bottles, jars, tubes and similar containers; machinery for aerating beverages.
