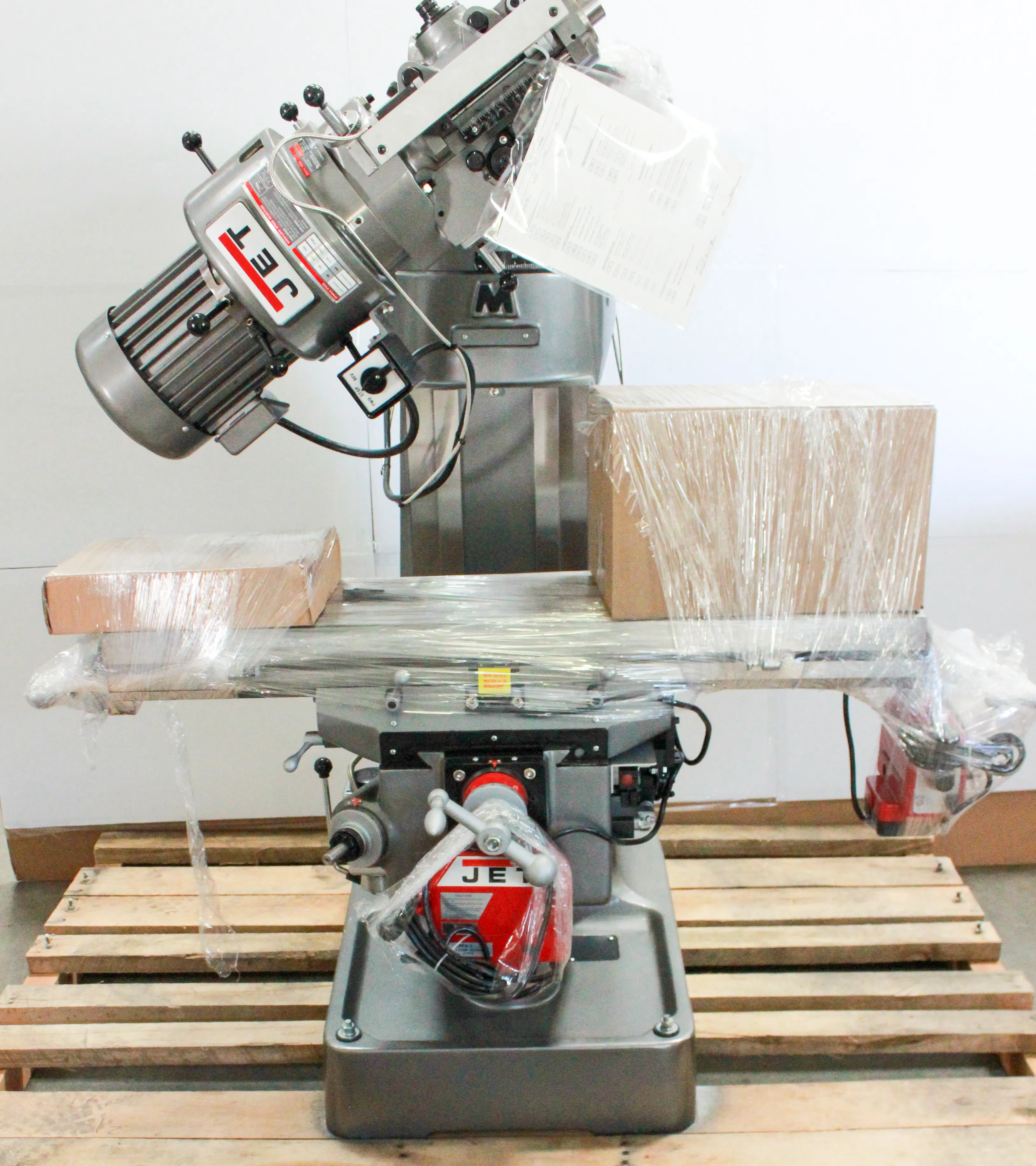

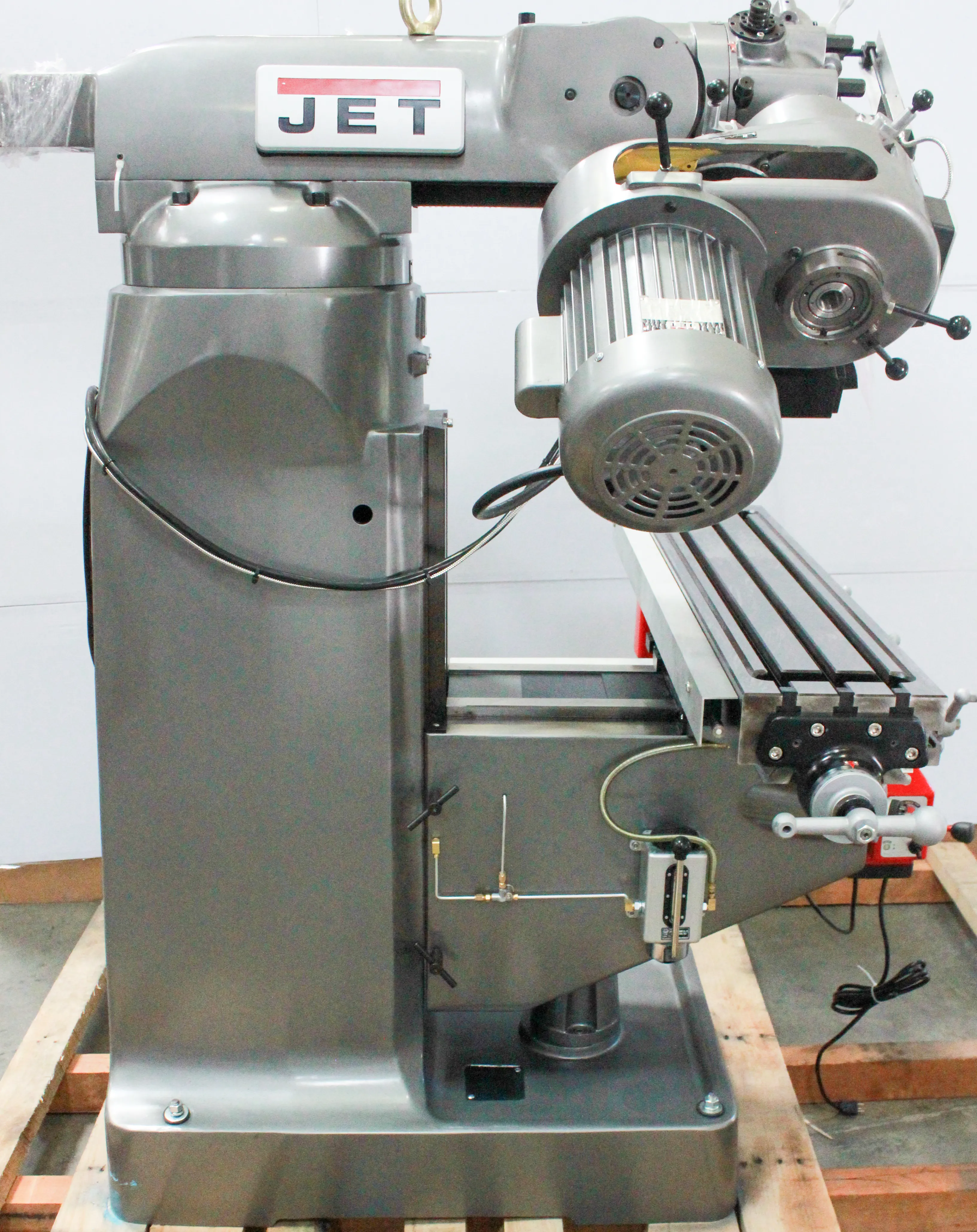

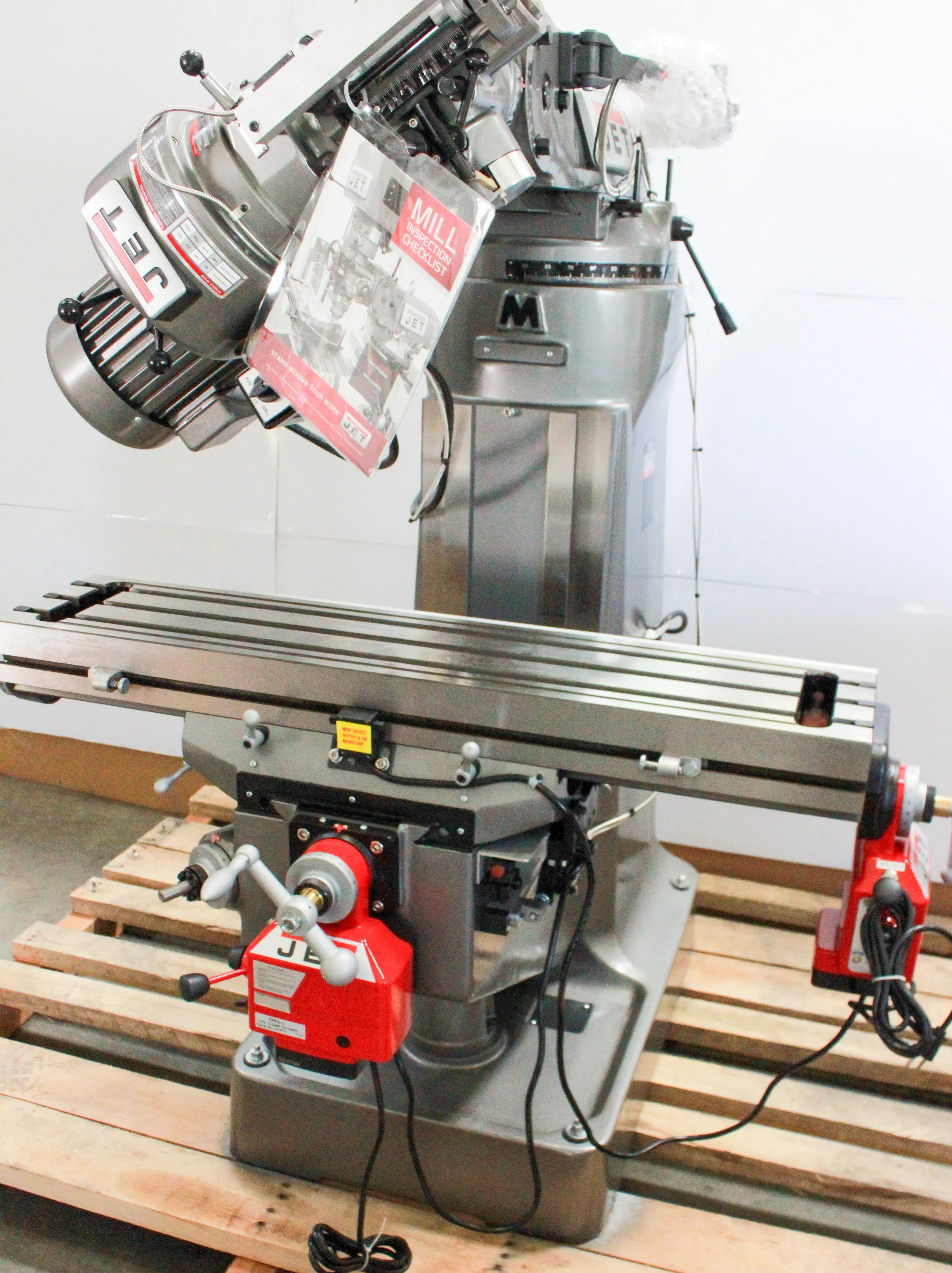

JET Step Pulley Milling Machine 9 x 42in Model JTM-2

Product Information

The JET Step Pulley Milling Machine 9 x 42in Model JTM-2 is a brand new, high precision instrument that offers superior stability and results. The Meehanite castings, internally cooled spindle head, and heavy-duty splined motor drive provide the rugged stability and precision necessary for a wide range of milling applications. With a 30-Day Warranty and 100% Parts and Labor coverage, this milling machine is a reliable and efficient addition to any laboratory or manufacturing setup. The JTM-2 model is designed to cater to applications such as metalworking, woodworking, and prototyping, ensuring precision and quality results every time.

• Brand new and never used
• High precision Class 7 spindle bearings
• Meehanite castings for rugged stability
• Heavy duty splined motor drive
• Certified internally cooled spindle head
• Three-stage power downfeed with automatic stop

• Collet Capacity: 1/8 - 7/8
• Distance Spindle to Column (Max.): 19 inches
• Max Distance Spindle to Table: 17-1/2 inches
• Motor (HP): 2 HP, 115/230V, 1Ph
• Number of Spindle Speeds: 8
• Overall Dimensions (L x W x H): 57 x 64 x 82 inches
• Quill Diameter: 3-3/8 inches
• Range of Spindle Speeds: 80 - 2,720 RPM
• Spindle Taper (In. x TPI): R-8
• Spindle Travel: 5 inches
• Table Cross Travel: 12-1/2 inches
• Table Longitudinal Travel: 23-7/8 inches

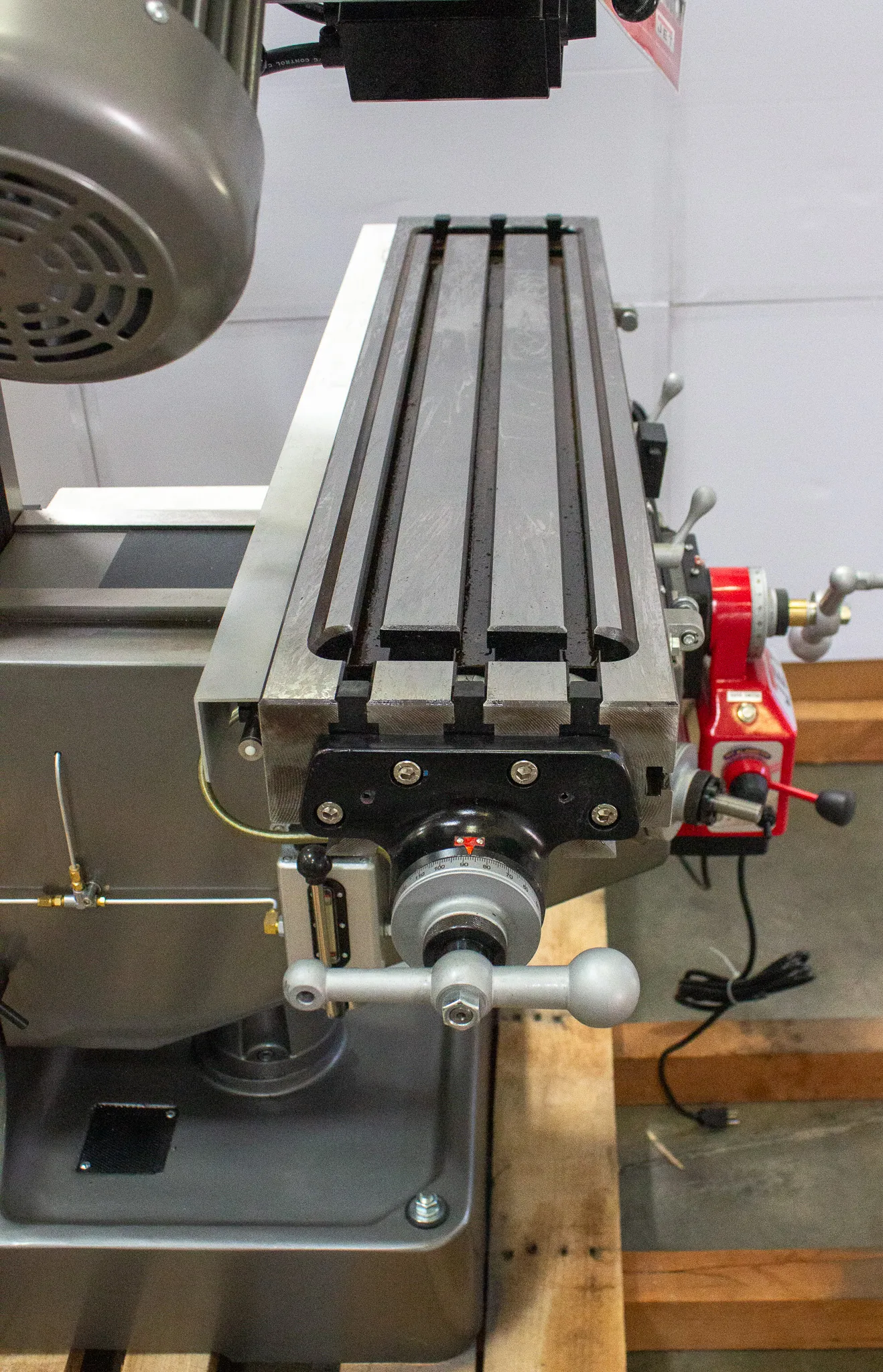

• Table Size (L x W): 9 x 42 inches
• Work Table Weight Capacity: 550 lbs

Metric: 1043 kg
Imperial: 2300 lb

Metric: 144 cm x 163 cm x 208 cm
Imperial: 56.7 in x 64 in x 81.9 in

845961

Machine-tools; for milling by removing metal, other than lathes, not numerically controlled
