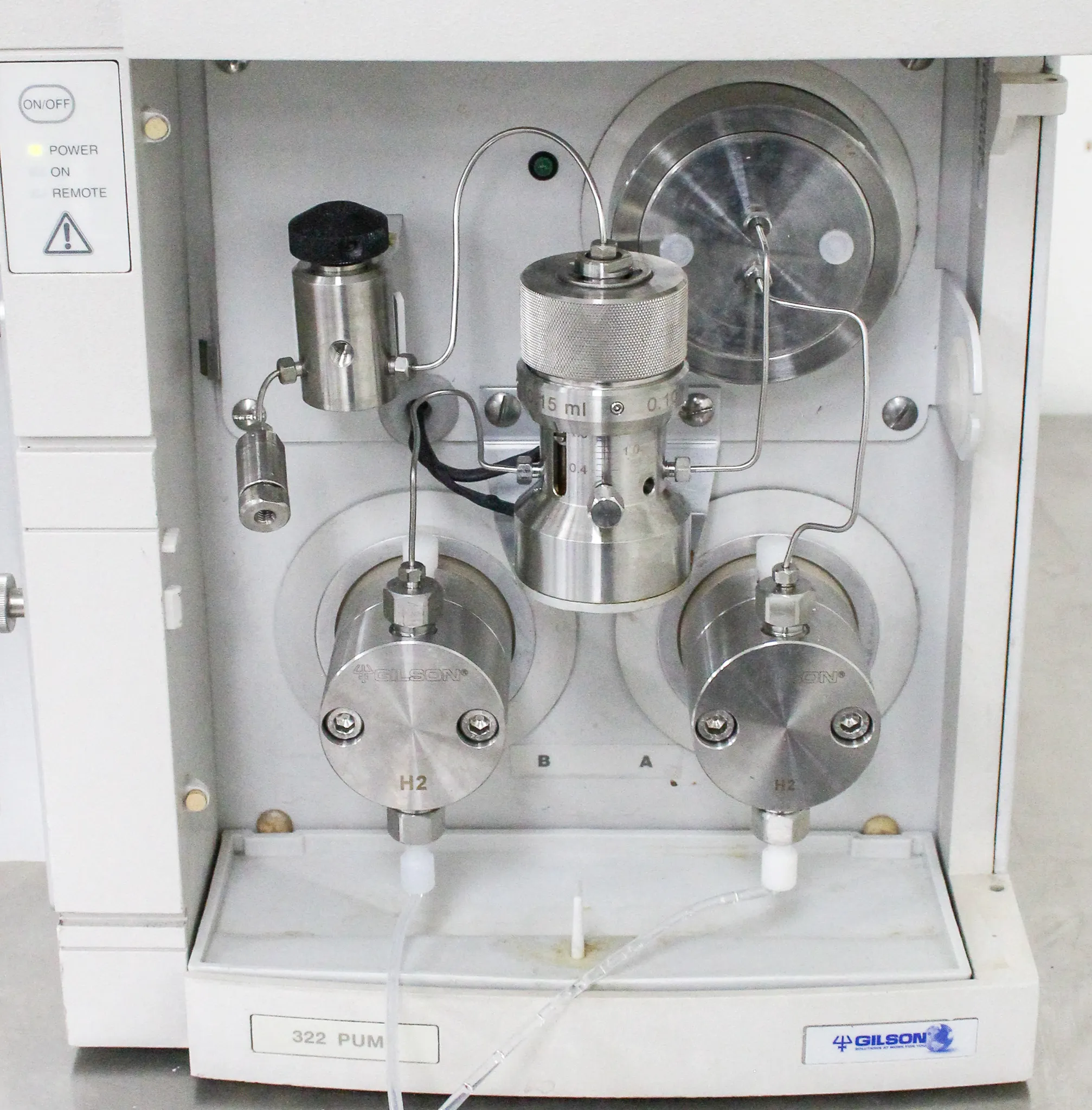

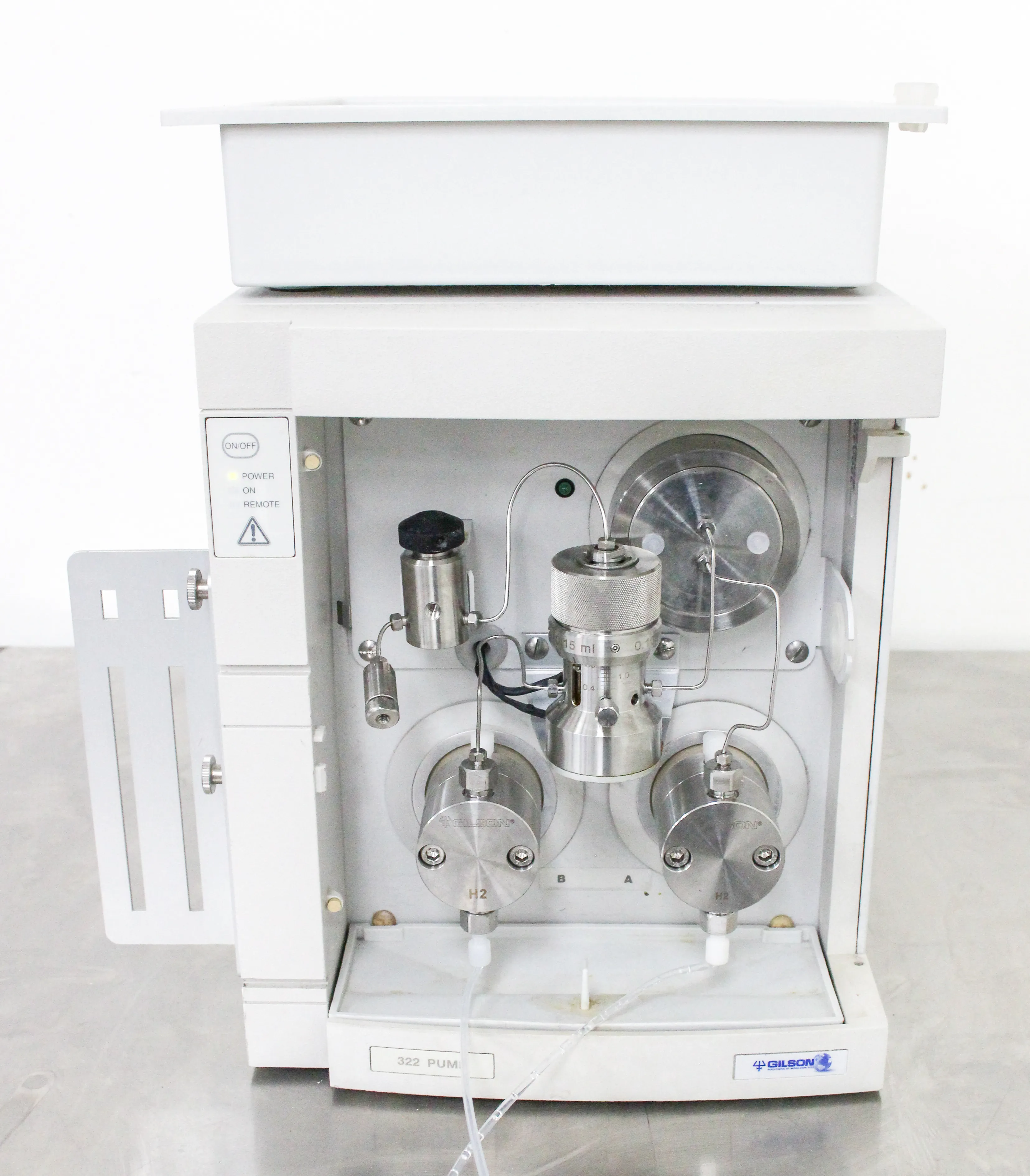

Gilson 322 HPLC Pump with H2 (Compact Version)
- Make Gilson
- Hertz 50Hz/60Hz
- Model 322 Pump
- Serial N/A
- Weight 64.0 Lb
- Voltage 120V/220V
- Includes Power cord included |
- Warranty 30-Day Warranty, 100% Parts and Labor
- Dimensions 22.0in x 15.0in x 22.0in
- Shipping Type FedEx Ground
- Item Condition Good
- Manufacturing Date Does Not Apply
Product Information
Introducing the Gilson 322 HPLC Pump with H2 (Compact Version). This used laboratory equipment has undergone thorough testing and powers on without errors. While there is slight wear from normal use, buyers can expect a fully operational machine with a 30-day warranty. The 322 HPLC Pump is a binary solvent pump designed for analytical to semi-preparative high performance liquid chromatography (HPLC). It offers flow rates from 0.15 mL/min up to 30 mL/min at pressures up to 8700 psi (600 bar). The pump's front panel controls power and indicates pump status. With a high-pressure Adjustable Volume Dynamic Mixer (AVDM), this versatile pump enables quick gradient response times and homogeneous mixtures. It also supports two interchangeable pump head types - H1 and H2 - to meet diverse application needs. The 322 Pump is controlled by external software such as TRILUTION LC, offering seamless operational control. Manufacturer's specifications can be found in the detailed section below.
Key Features- Binary solvent pump for analytical to semi-preparative HPLC
- Flow rates from 0.15 mL/min to 30 mL/min at pressures up to 8700 psi (600 bar)
- High-pressure Adjustable Volume Dynamic Mixer (AVDM) for fast gradient response times and homogeneous mixtures
- Two interchangeable pump head types - H1 and H2
- Controlled by external software such as TRILUTION LC
- Front Panel Control: No
- Flow Rate Range - Single Head: 0.03030 mL/min | Range (Recommended) - Two Heads: 0.3030 mL/min
- Purification Technique: HPLC
- Max Pressure: 300 bar
- Hydraulic System: Reciprocating Piston Pump
- Operating Pressure: Up to 5300 bar (704350 psi)
- Pump Type: Binary Gradient Pump
Metric: 28.12 kg
Imperial: 61.98 lbs
Metric: 45.72 cm x 38.1 cm x 55.88 cm
Imperial: 18 in x 15 in x 22 in
8413.91.9080
Harmonized Code DetailsPumps for liquids, whether or not fitted with a measuring device; liquid elevators. Other pumps; other
