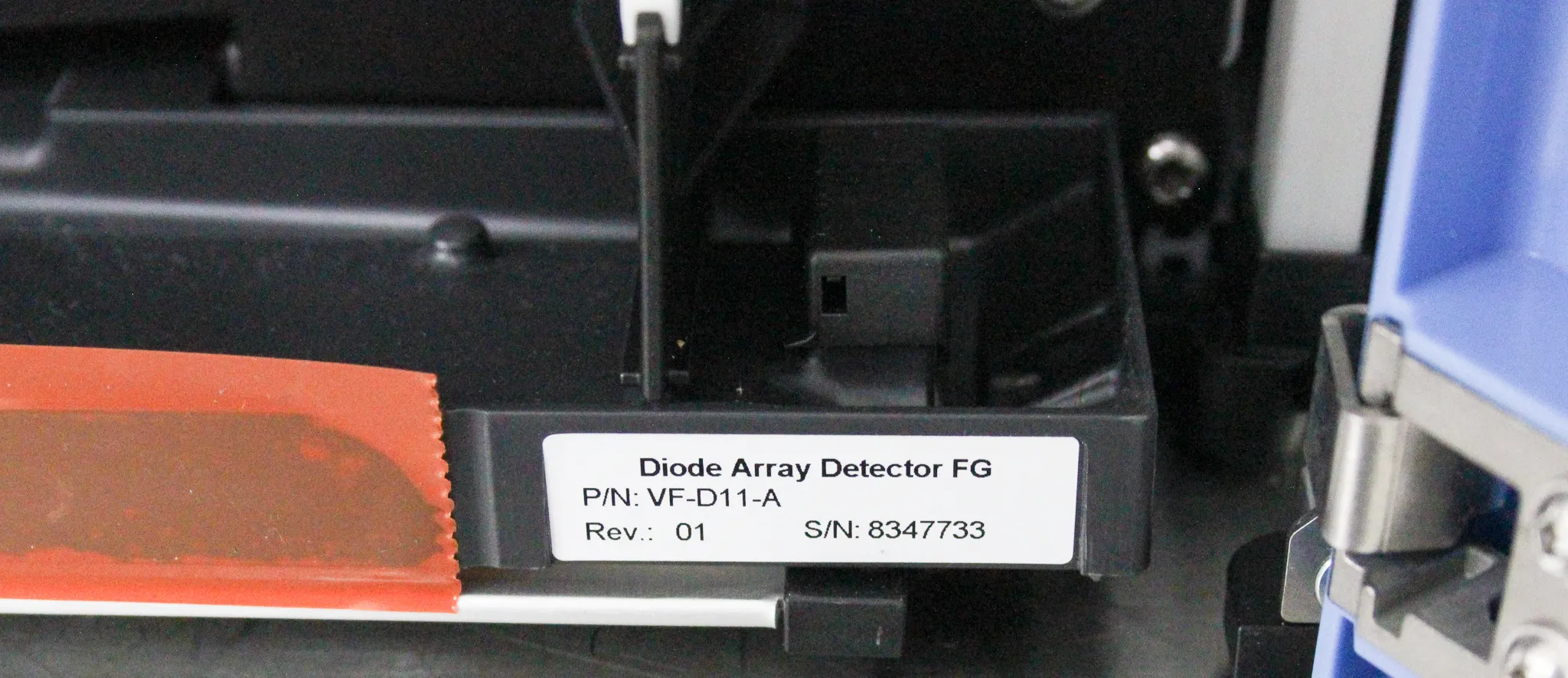

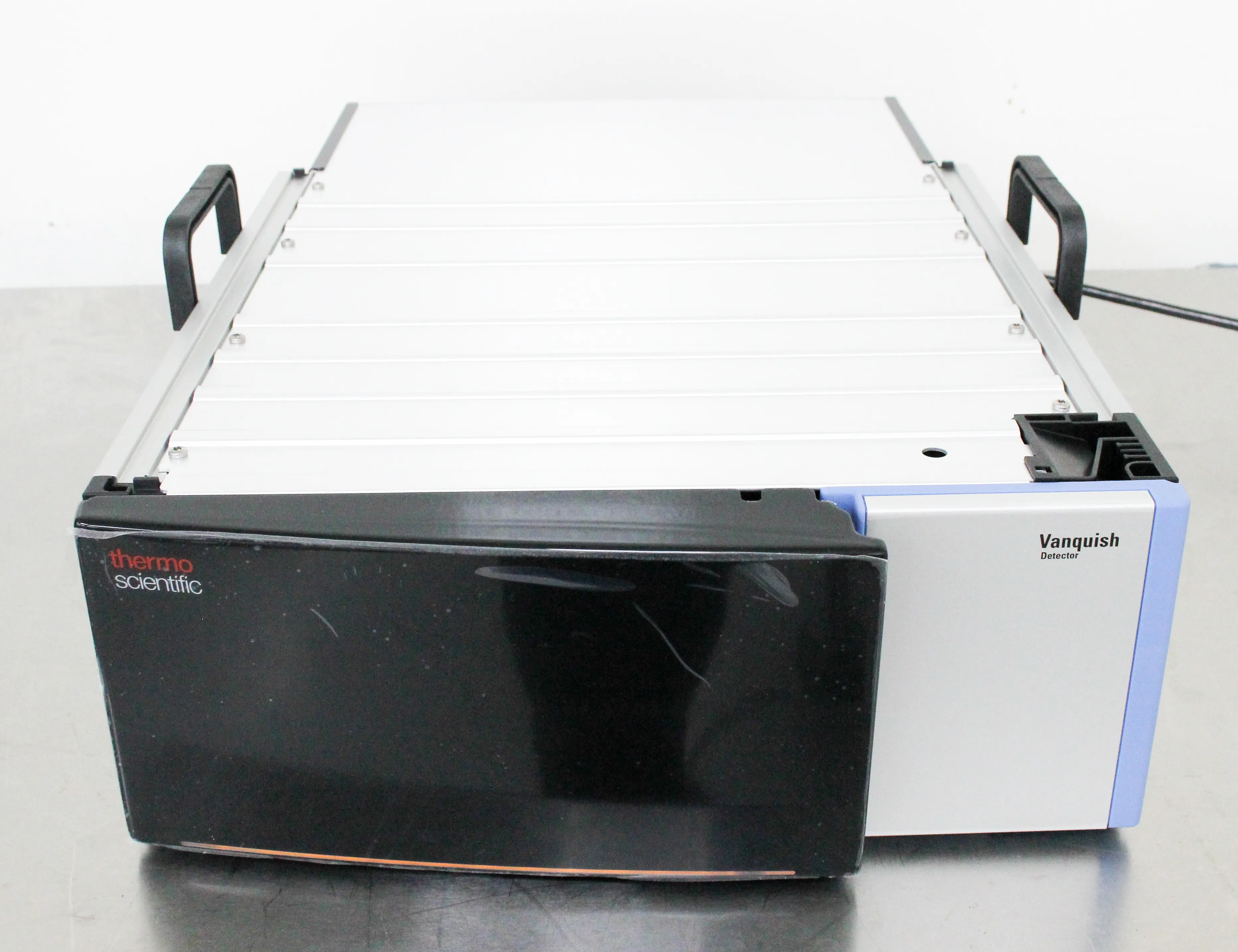

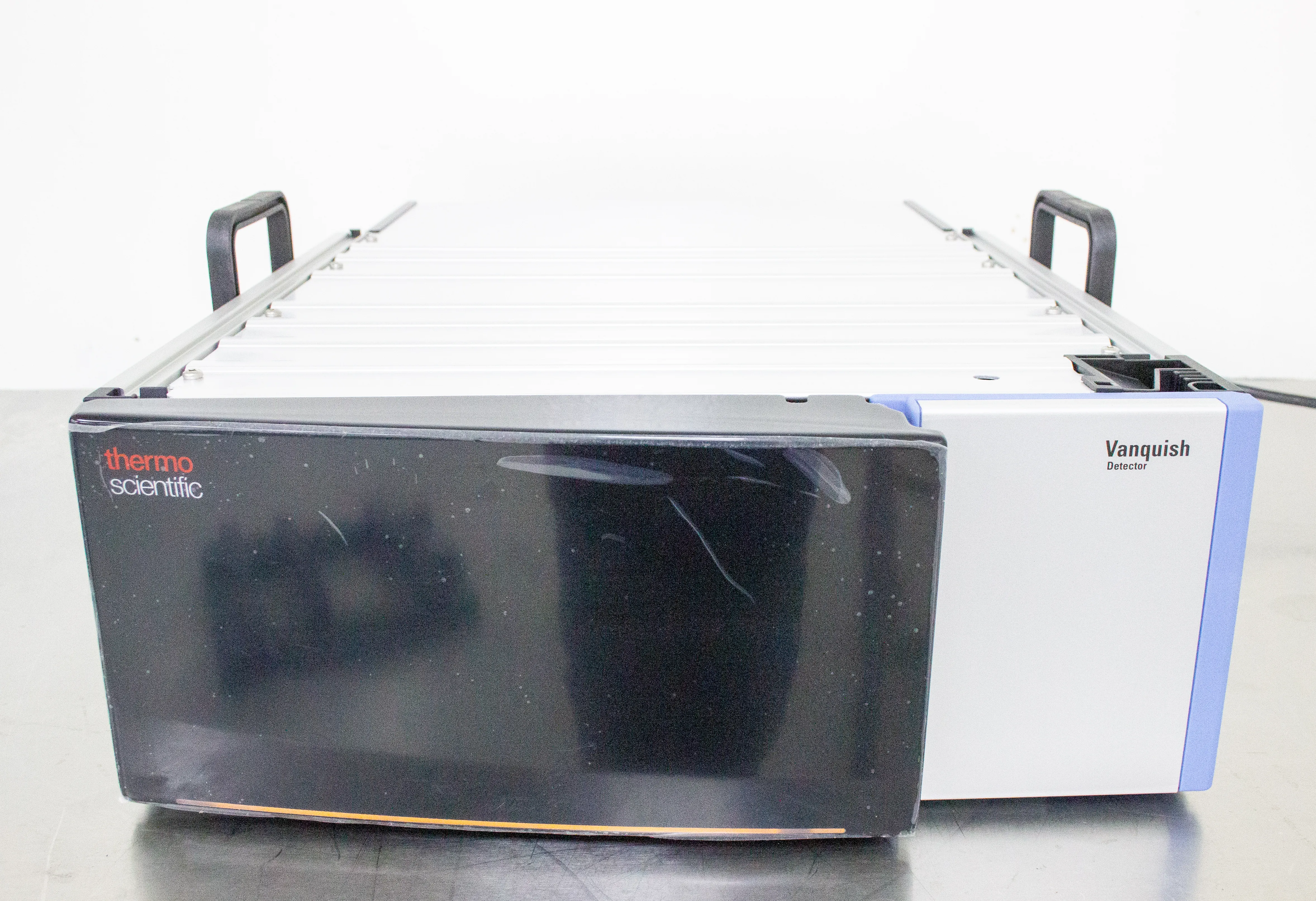

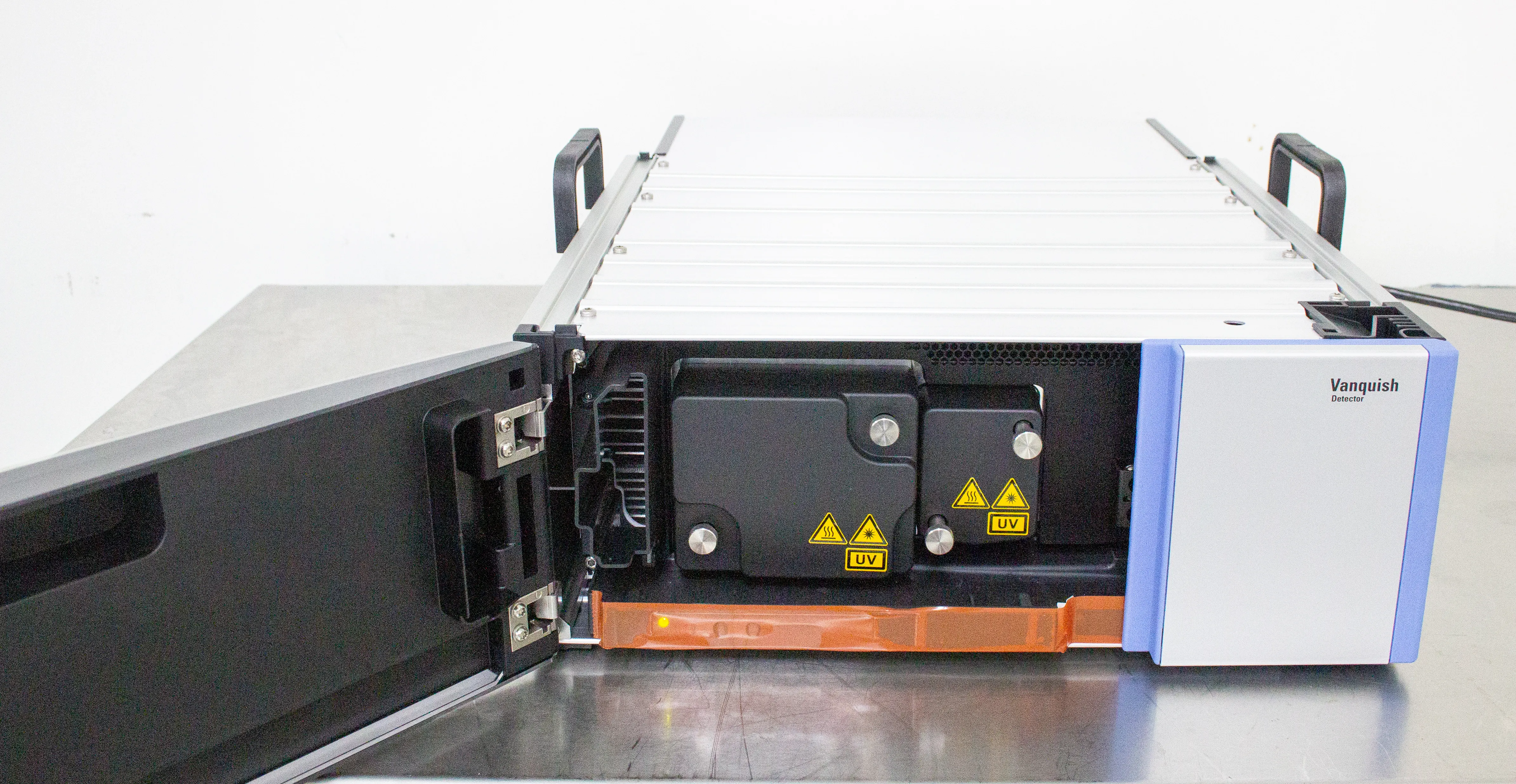

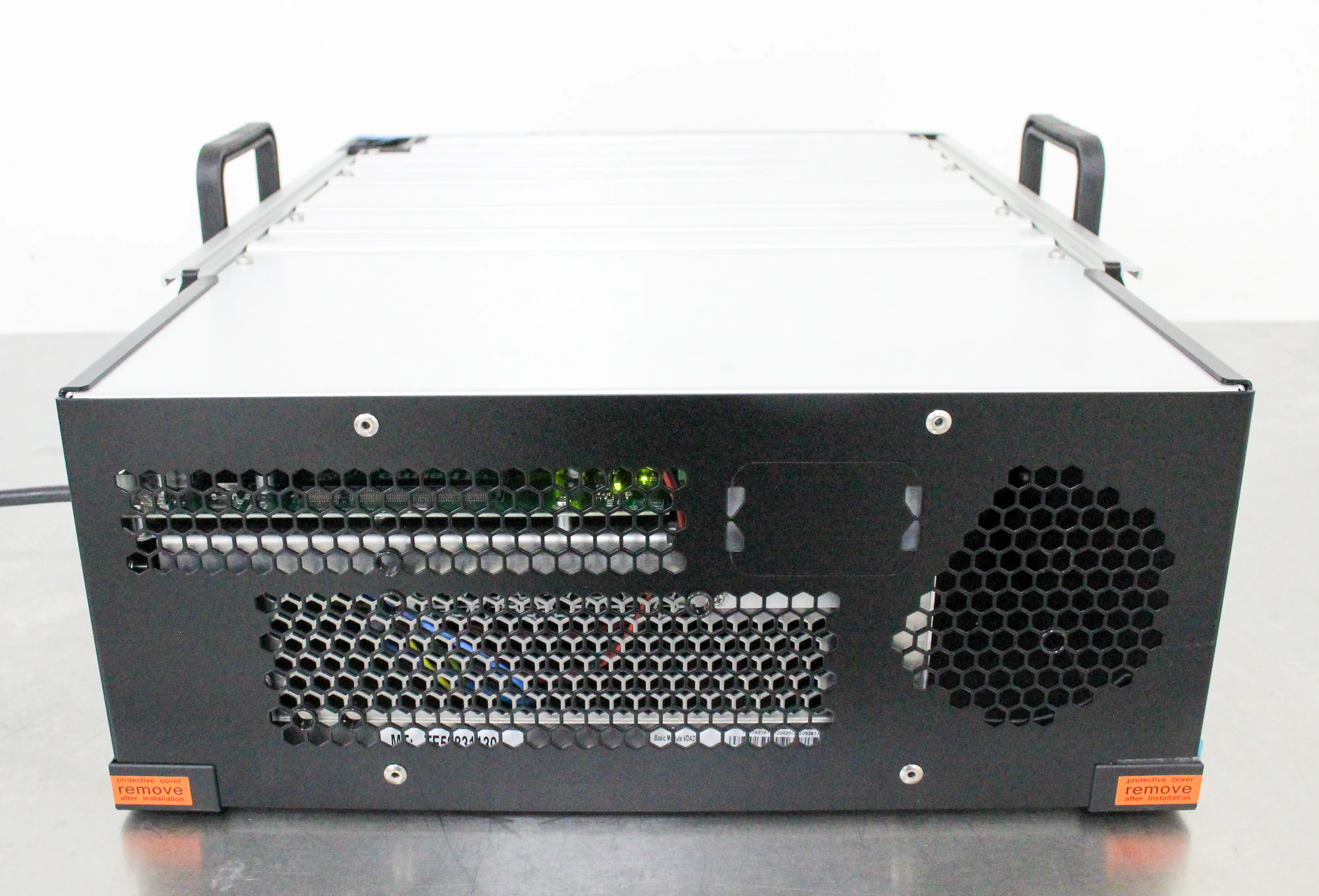

Thermo Scientific Vanquish Diode Array Detector FG P/N VF-D11-A

Product Information

As a quirky, intelligent laboratory scientist, I'd like to introduce you to the Thermo Scientific Vanquish Diode Array Detector FG P/N VF-D11-A. This top-of-the-line detector offers superior performance, reliability, and flexibility for HPLC and UHPLC detection. With industry-leading linearity, optimized noise performance, and an ultra-wide dynamic range, it can detect highly concentrated main compounds alongside trace-level impurities. The Vanquish DAD HL uses Thermo Scientific LightPipe technology to achieve the best signal-to-noise performance through low baseline noise, a long light path, and minimal dispersion. This easy-to-use detector supports ultrafast separations with data acquisition rates up to 250 Hz using up to 10 absorption channels and one spectral field. The integrated wavelength validation and GLP features ensure precise and reliable results. It's a trustworthy partner for any modern laboratory.

• Industry-leading linearity with up to 2.7 AU
• Ultra-wide dynamic range for detecting highly concentrated compounds and trace-level impurities
• Thermo Scientific LightPipe technology for superior signal-to-noise performance
• Data acquisition at rates up to 250 Hz using up to 10 absorption channels and one spectral field
• Integrated wavelength validation through holmium oxide filter

• Description: Vanquish Diode Array Detector FG
• Data Collection Rate: Up to 250 Hz
• Detection Mode: UV-vis Detection (Up to 10 Channels)
• Drift: < 1 mAU/hour at 254 nm
• Noise: < 6 AU at 254 nm (standard flow cell, bandwidth: 4 nm, slit width: wide, time constant: 2 sec)

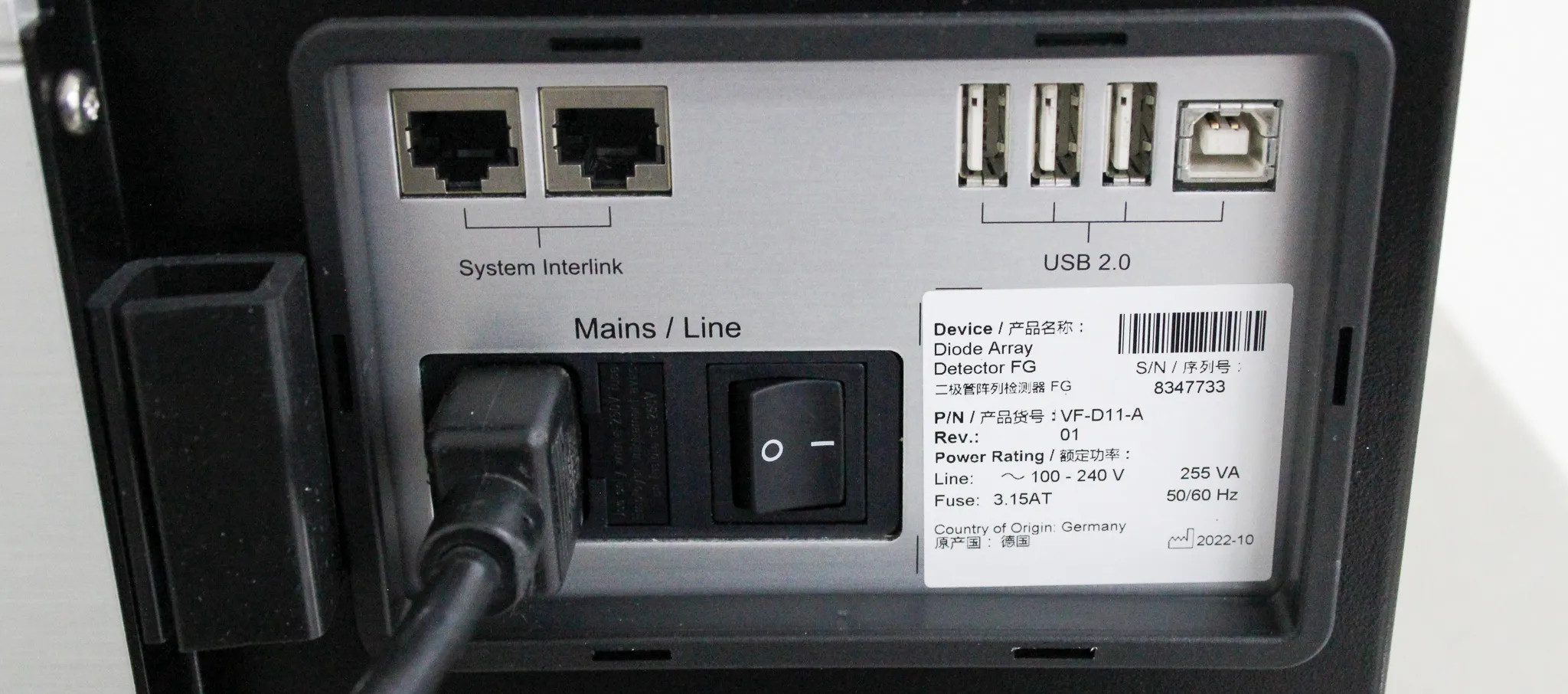

• PC Connection: USB 2.0; 3-port HUB to connect further Vanquish modules
• Photodiode Array: 1024 element
• Temperature Range: 5 to 35°C; 20 to 80% RH (non-condensing)
• Wavelength Range: 190-800 nm
• Wavelength Repeatability: 0.1 nm
• Weight (Metric): 16.3 kg
• Electrical Requirements: 100-240 V AC, 50/60 Hz, max. 245 W / 255 VA
• Unit Size: Each

Metric: 16.3 kg
Imperial: 36 lbs

Metric: 31.75 cm x 23.5 cm x 40.64 cm
Imperial: 12.5 in x 9.25 in x 16 in

9027300000

The most likely harmonized code for this product is 9027300000, which refers to liquid chromatography instruments. It encompasses devices for separating chemicals and biochemicals based on their absorption and detection properties, fitting for the Vanquish Diode Array Detector FG.
