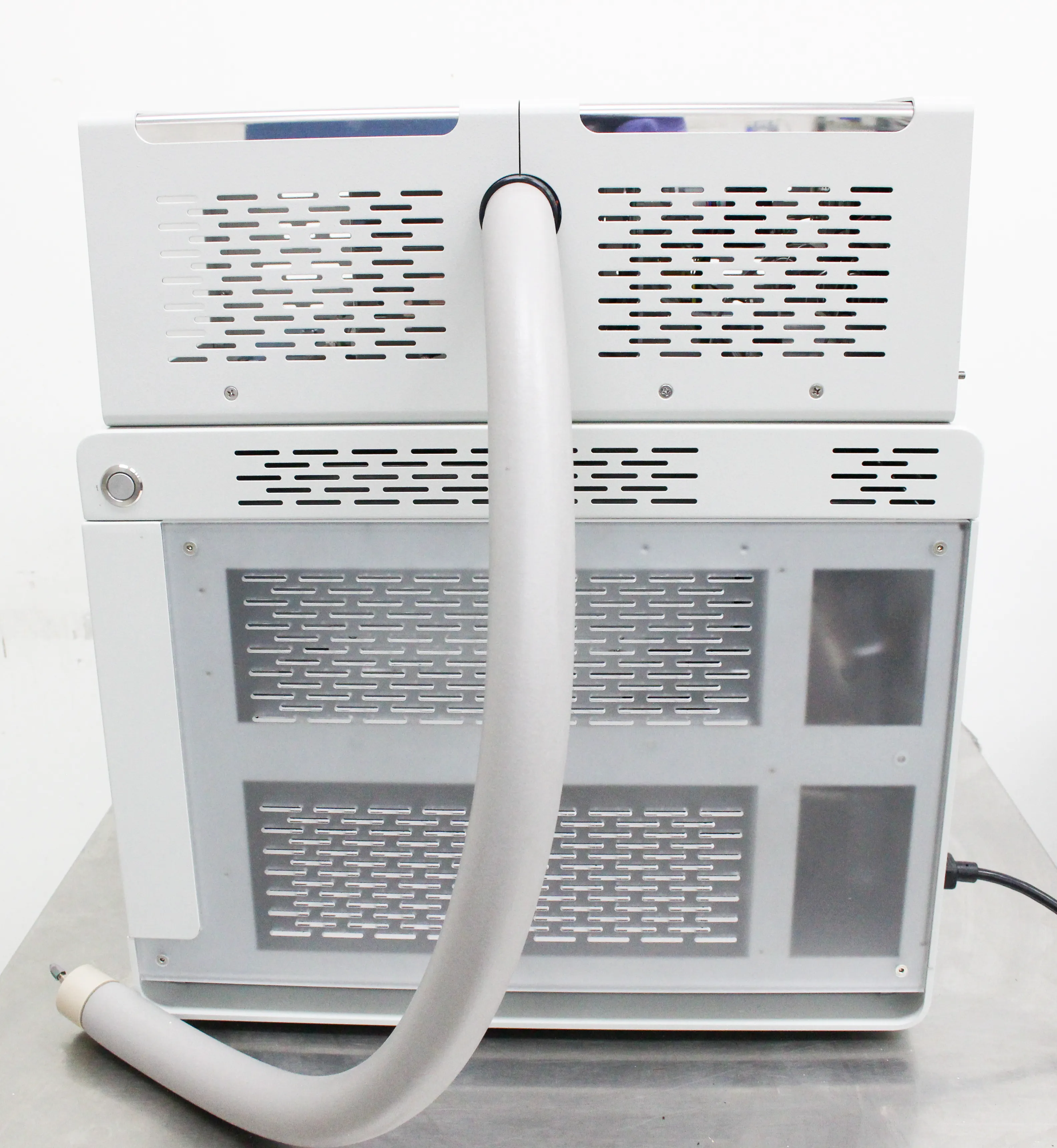

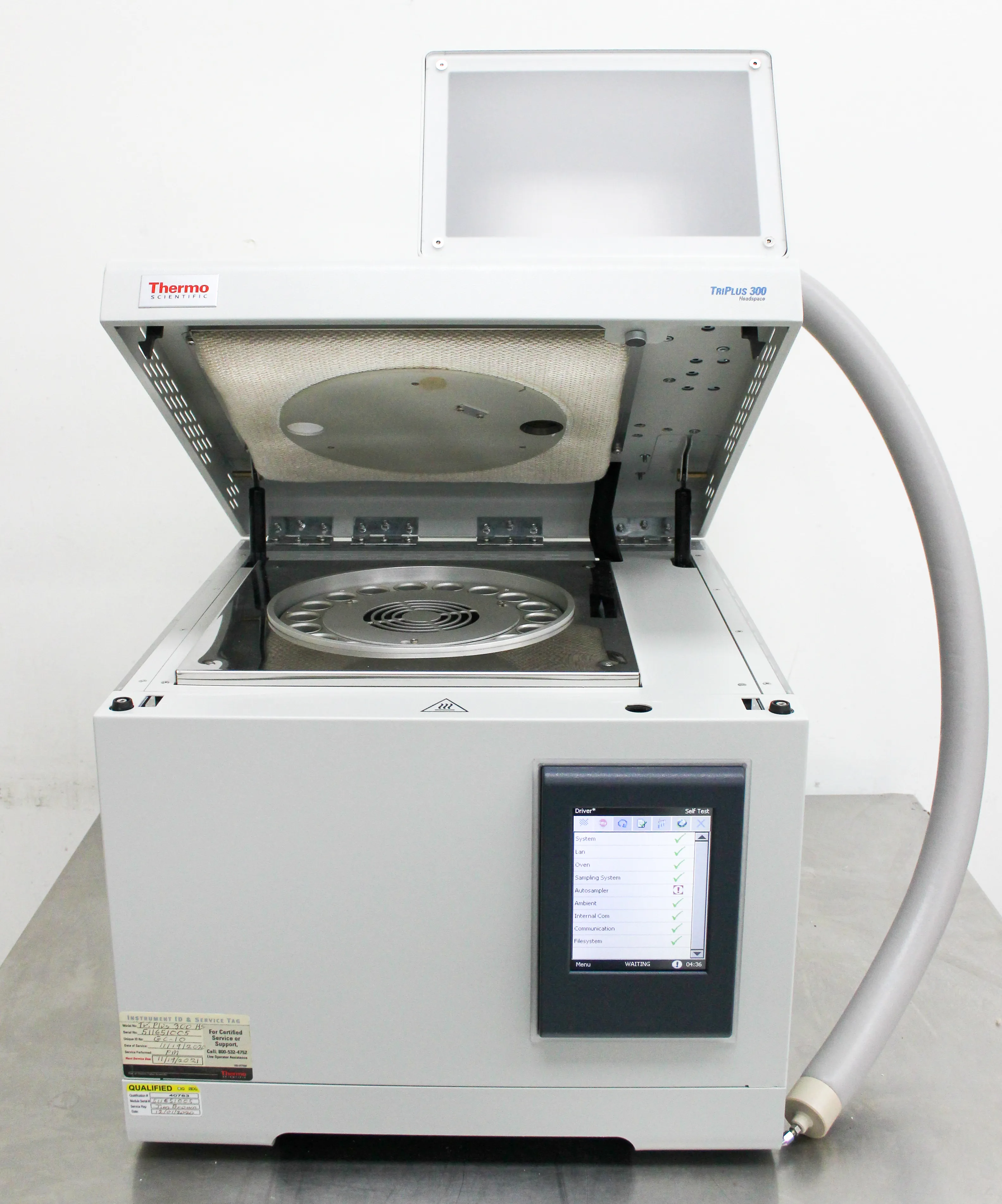

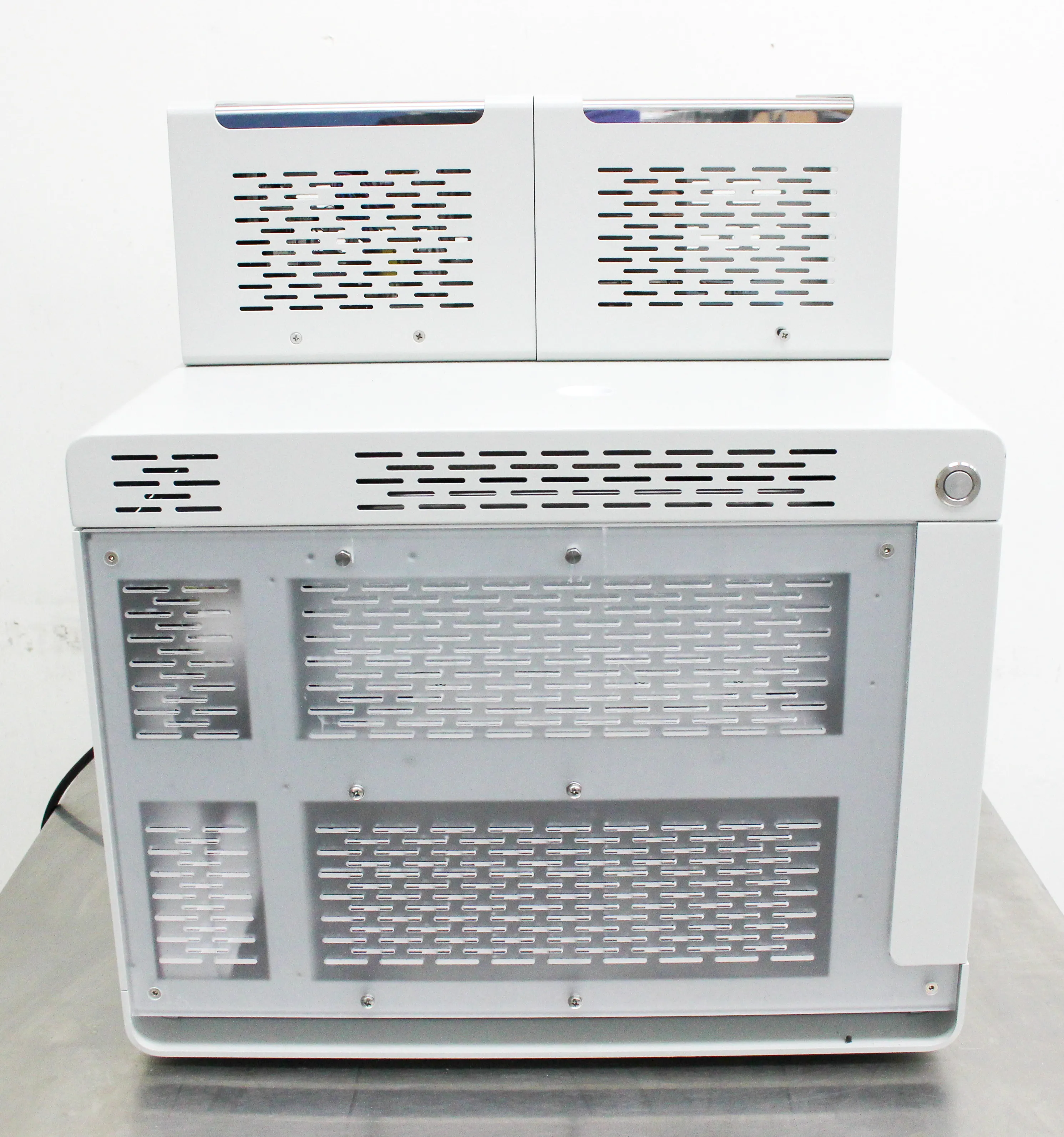

Thermo Scientific TriPlus 300 Headspace Master SHS (Main Unit only)

Product Information

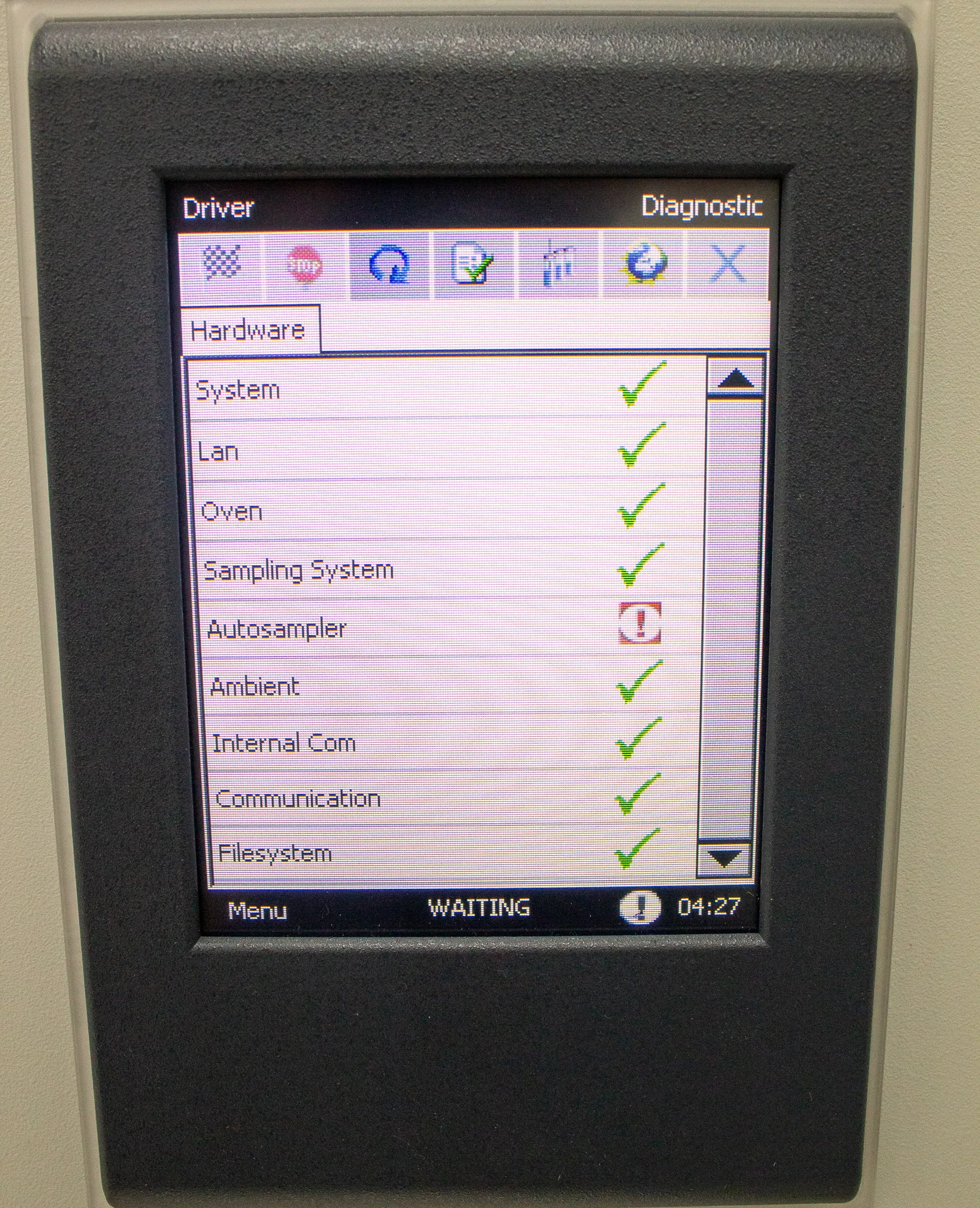

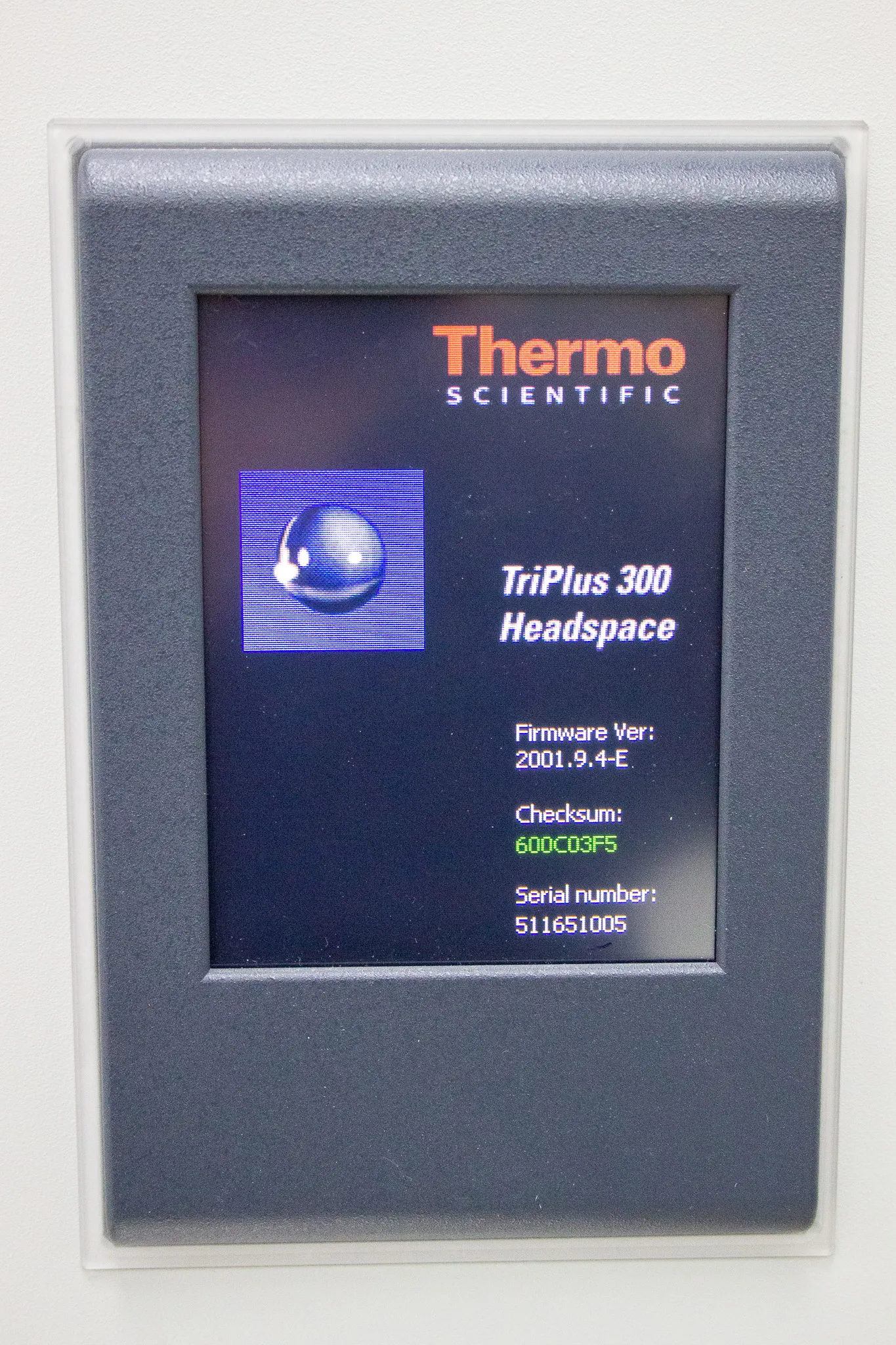

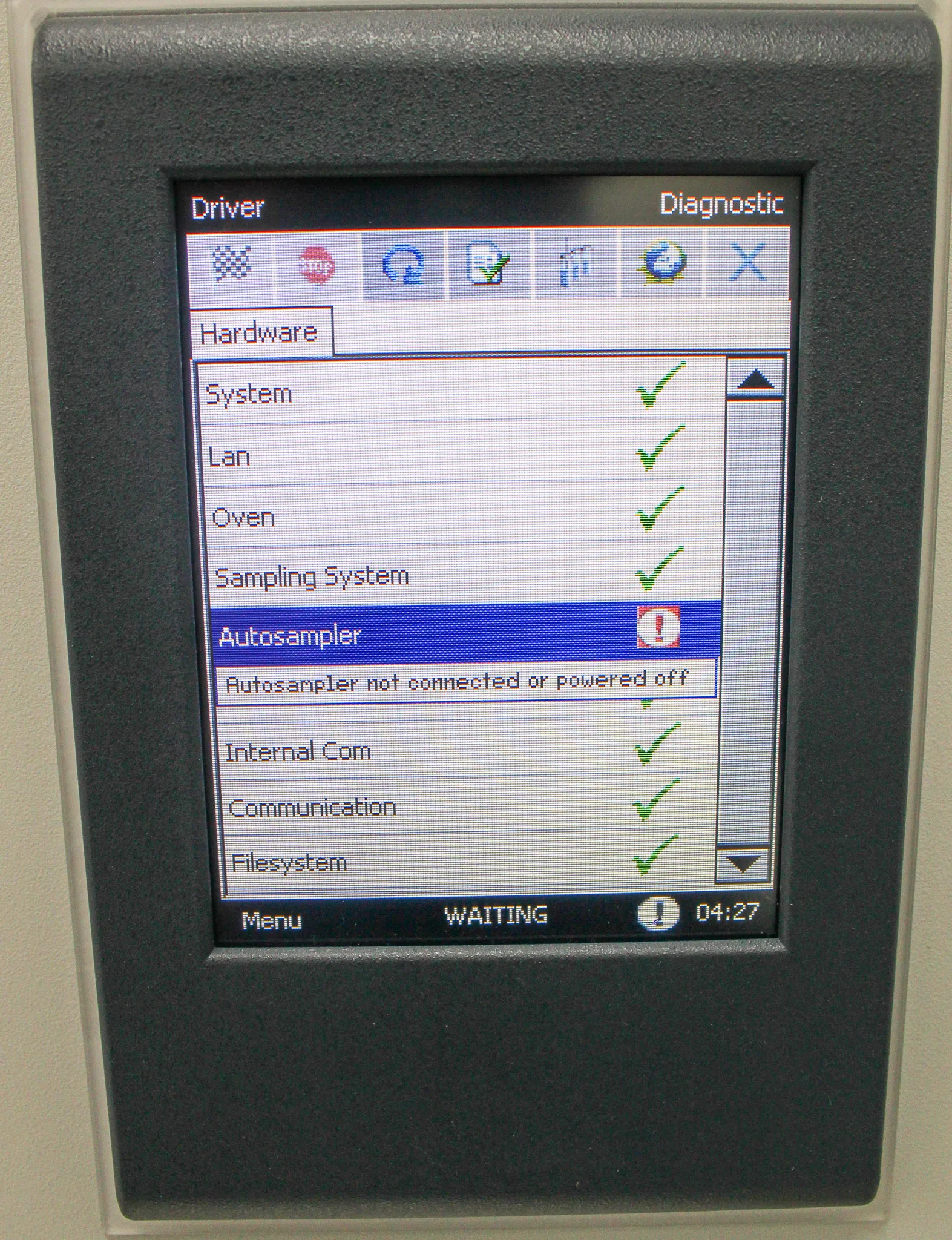

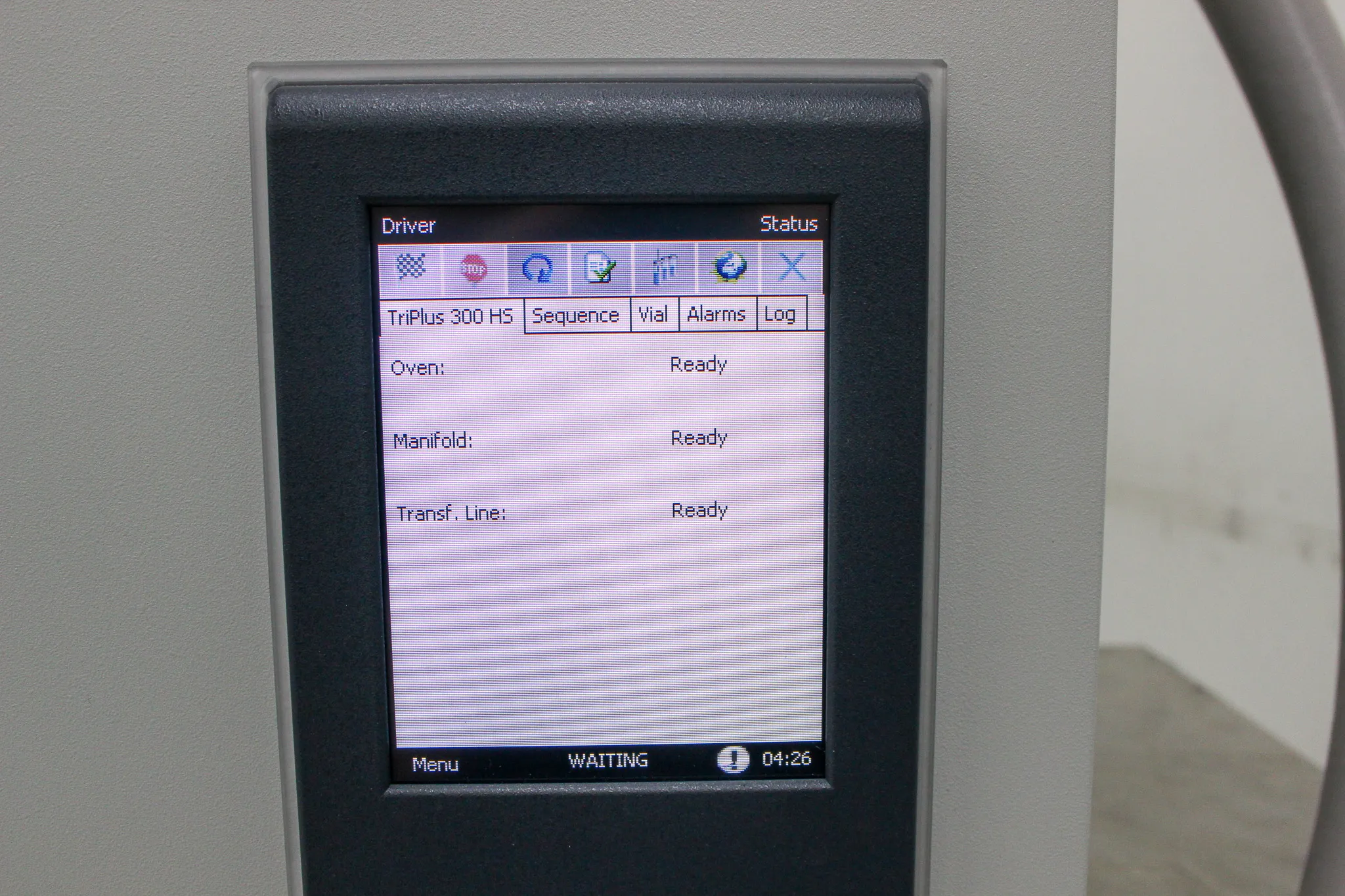

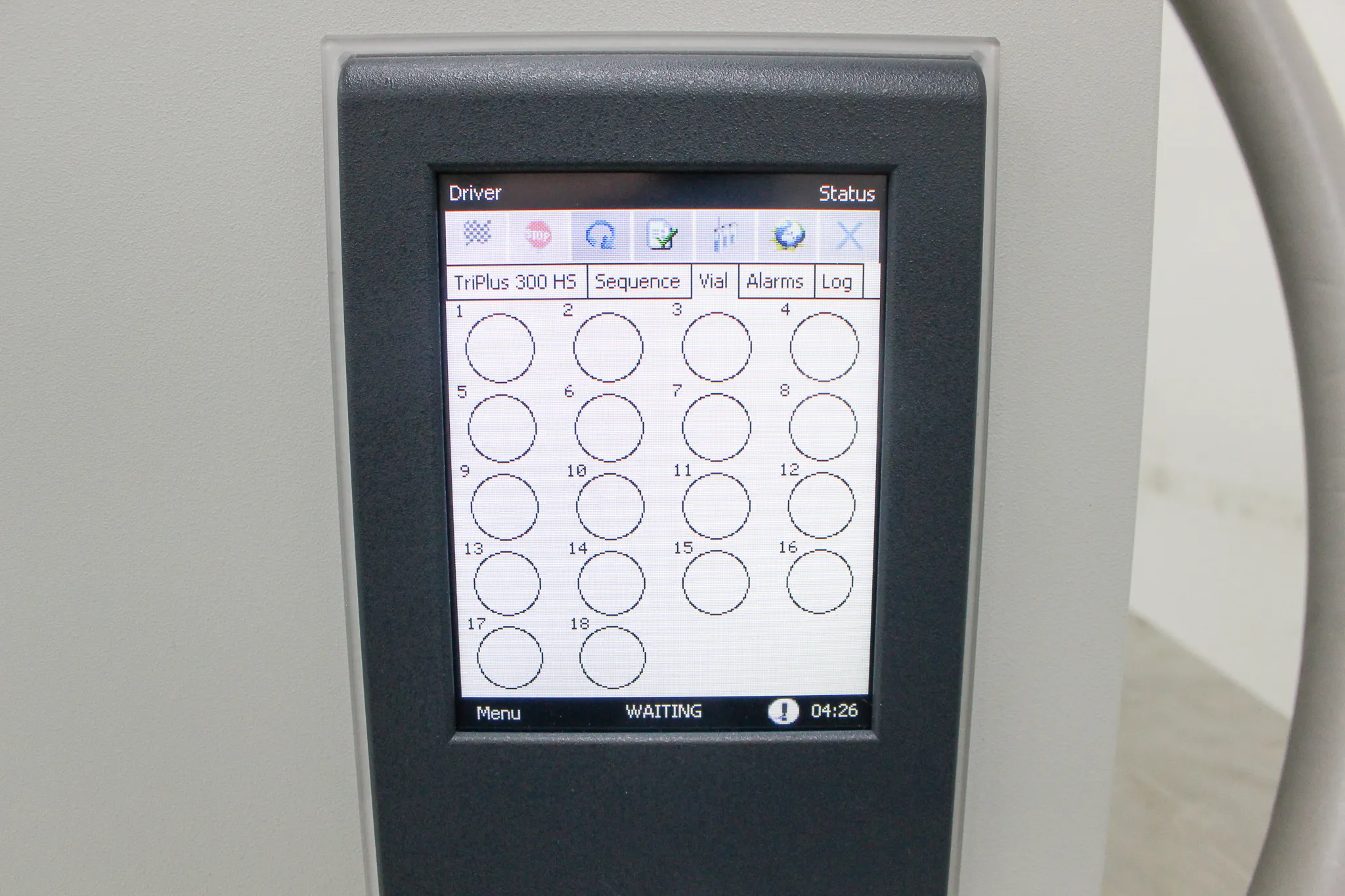

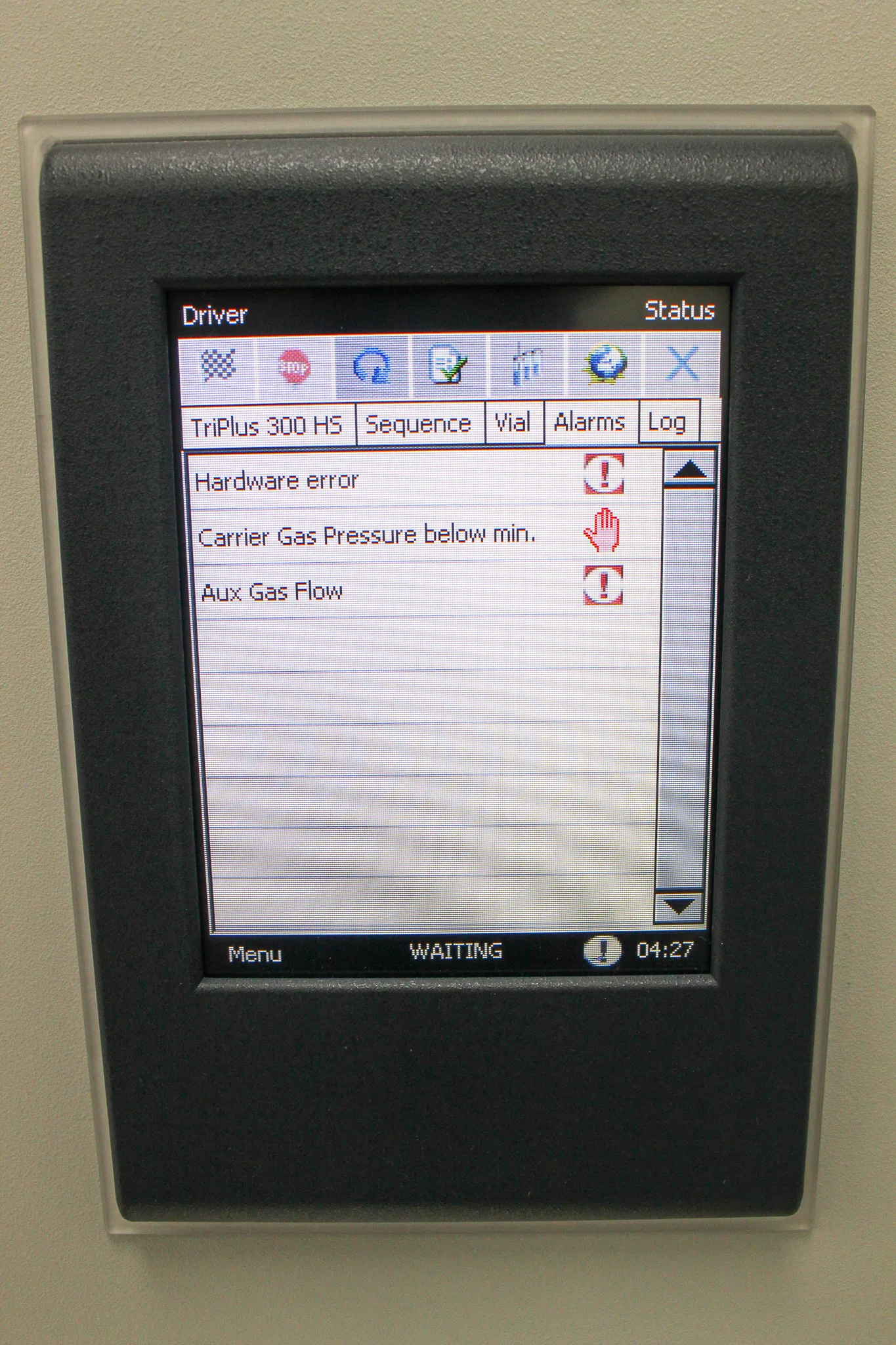

The Thermo Scientific TriPlus 300 Headspace Master SHS is a versatile and reliable component, powers on and touchscreen working. It offers quick start-up and unattended high throughput operations, with expanded sample capacity. This autosampler is compatible with standard gas chromatographs (GC) and GC/MS systems, including those using packed and capillary columns, facilitating organic volatiles determination workflow. It guarantees superior sample integrity and traceability, sample path inertness, and reliable performance for organic volatiles determinations in pharmaceutical, forensic, and environmental laboratories. Its wide range of settable temperatures enables delicate analysis of biological samples and labile analytes for the fastest growing high-temperature headspace applications. The Thermo Scientific TriPlus 300 Headspace Master SHS is a comprehensive, flexible solution that accelerates organic volatiles determination workflow while complying with existing methods. Key features include multiple injection modes (STANDARD, MHE, MHI, MDO) to optimize headspace methods, precise and controllable carrier and auxiliary gas flow, and seamless integration into multiple chromatography data systems. It supports a wide range of carrier and auxiliary gases, offering programmable pressure and flow control, and synchronizes with GC ovens, making it suitable for a variety of chromatographic applications.

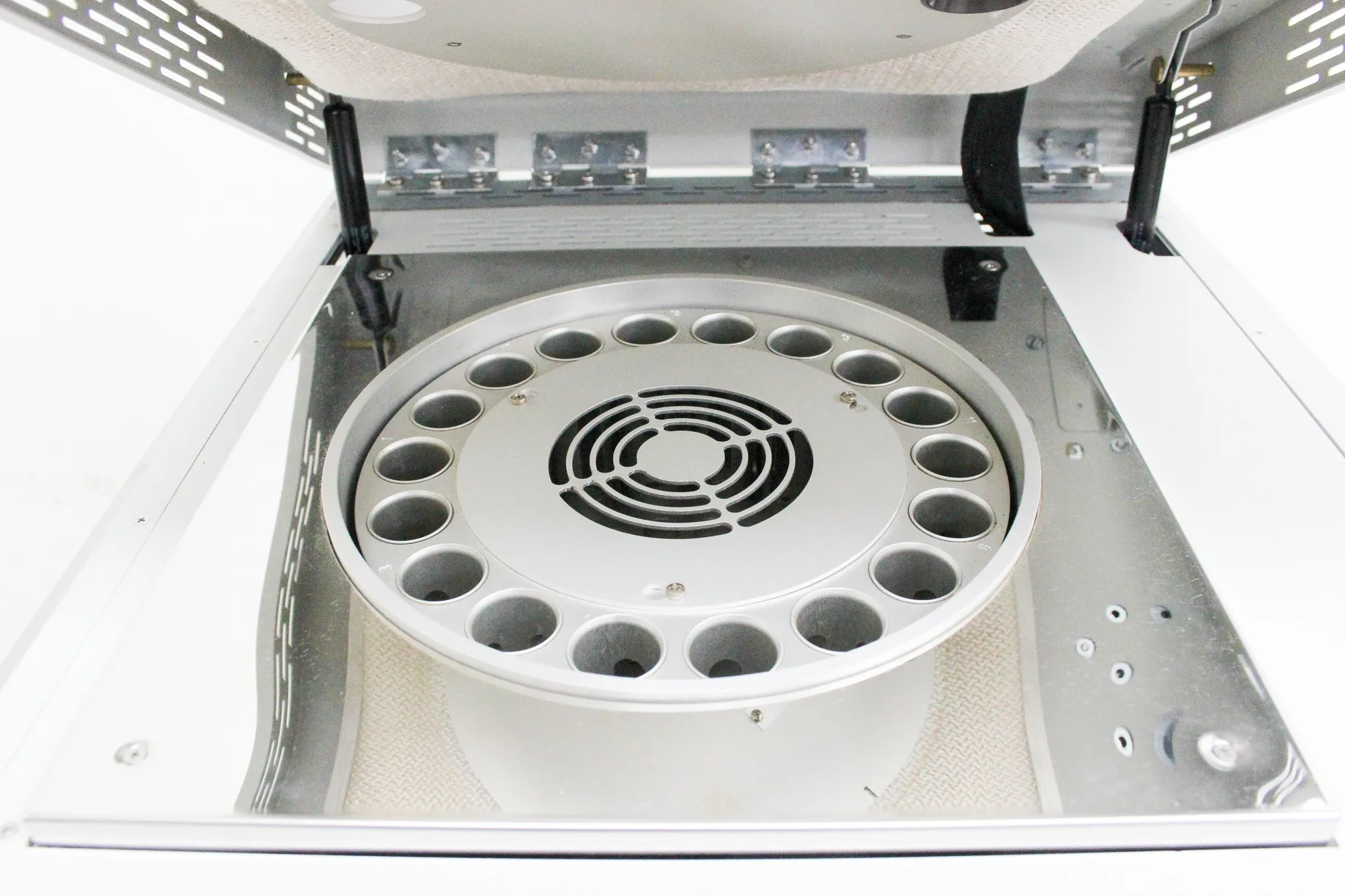

• Offers quick start-up and reliable unattended high throughput operations with expanded sample capacity
• Compatible with standard gas chromatographs (GC) and GC/MS systems, including those using packed and capillary columns
• Wide range of settable temperatures for delicate analysis of biological samples and labile analytes
• Supports multiple injection modes to optimize headspace methods
• Precise and controllable carrier and auxiliary gas flow with flow and pressure programming
• Seamless integration into multiple chromatography data systems with immediate local user interface
• Complies with existing methods in pharmaceutical, forensic, and environmental laboratories

• Compatible carrier gas: Hydrogen, helium, nitrogen
• Auxiliary gas: User-selectable helium and nitrogen
• Auxiliary gas electronic flow control: Flow rate: 10 to 300 mL/min, Precision: +/- 0.1 mL/min, Safety control: On auxiliary gas presence
• Maximum inlet pressure: 9 bar, Vial pressure: Up to 4 bar, Pressure settings: bar, psi, kPa
• Carrier gas electronic control option: Pressure range: 0-120 psi, Carrier gas flow rate: max 1000 mL/min (He), Compatible gas types: He, N2H2, Ar, Ar+5%CH4
• Compatible columns: Packed columns, wide-bore and capillary columns
• Synchronization with GC oven: Up to 25 oven ramps and 26 isotherms
• Atmospheric pressure and temperature compensation: Yes
• Pressure/flow programming: Constant or programmed flow, constant or programmed pressure
• Flow programming: 24 ramps, Pressure programming: 24 ramps, Pressure setpoint increment: 0.01 psi, Flow setpoint increment: 0.1 mL/min

Metric: 0.45 kg
Imperial: 1.0 lb

Metric: 29.0 cm x 24.0 cm x 22.0 cm
Imperial: 11.42 in x 9.45 in x 8.66 in

902780

902780 - Gas or smoke analysis apparatus
