Thermo Scientific Lindberg Blue Vacuum Oven VO914A

Product Information

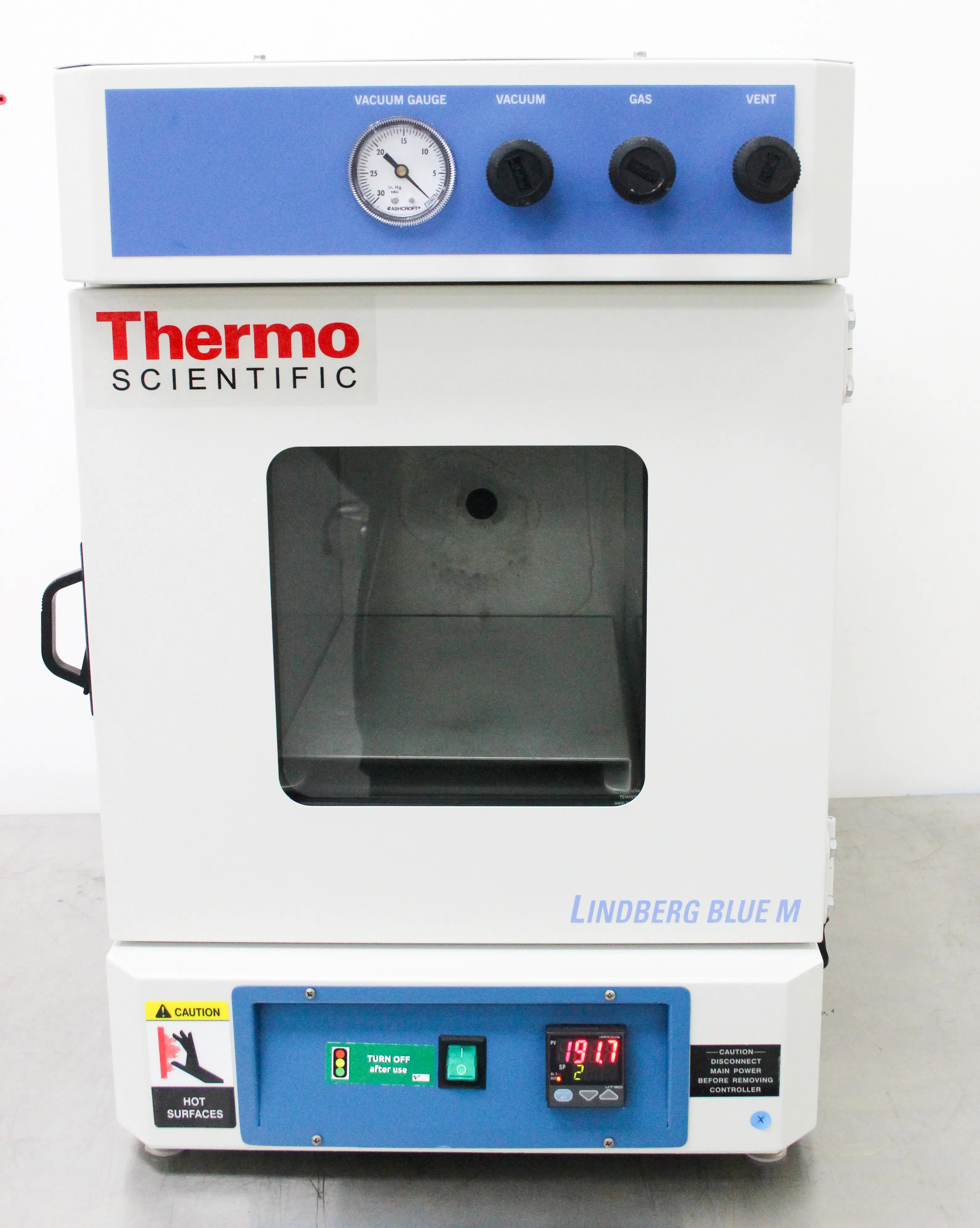

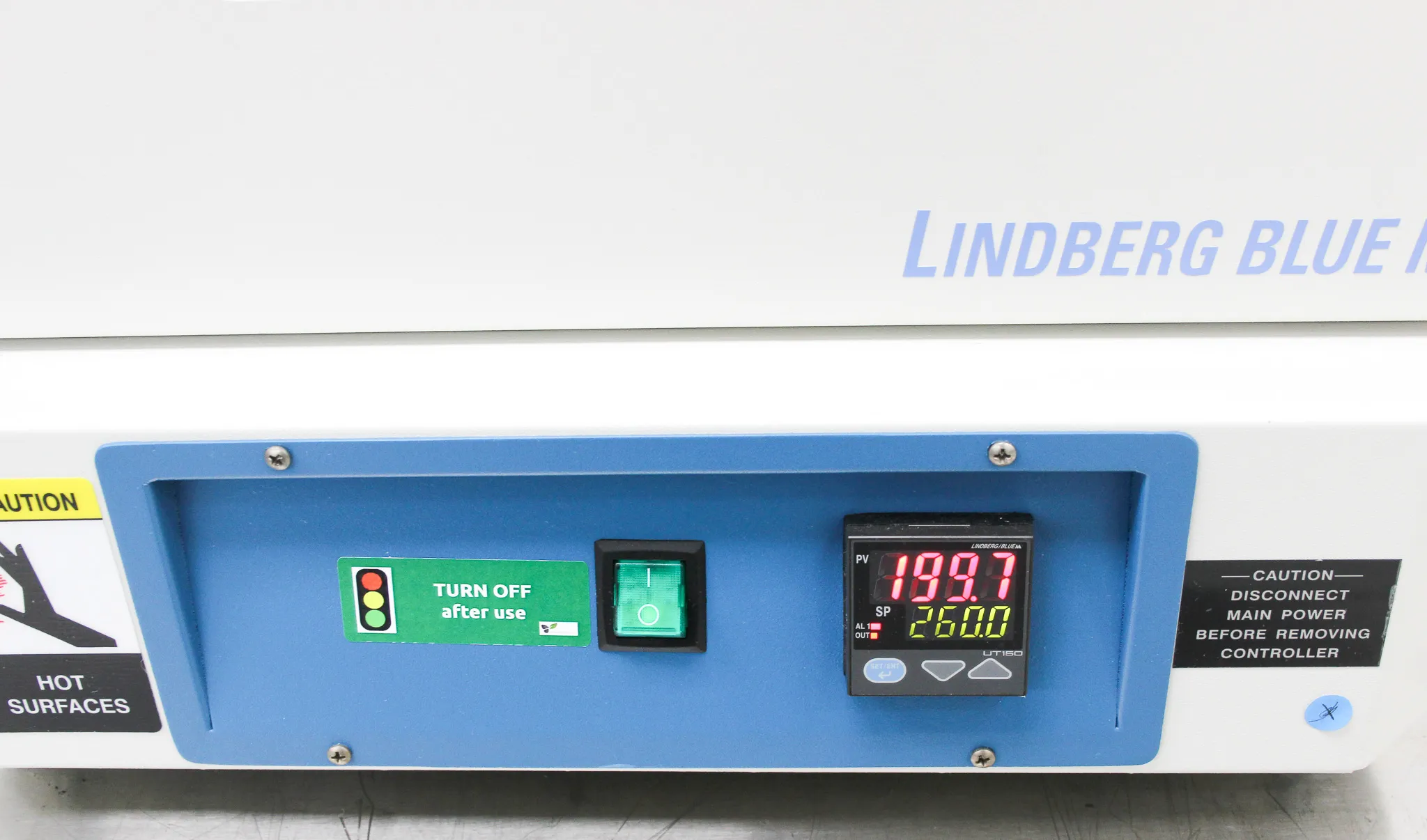

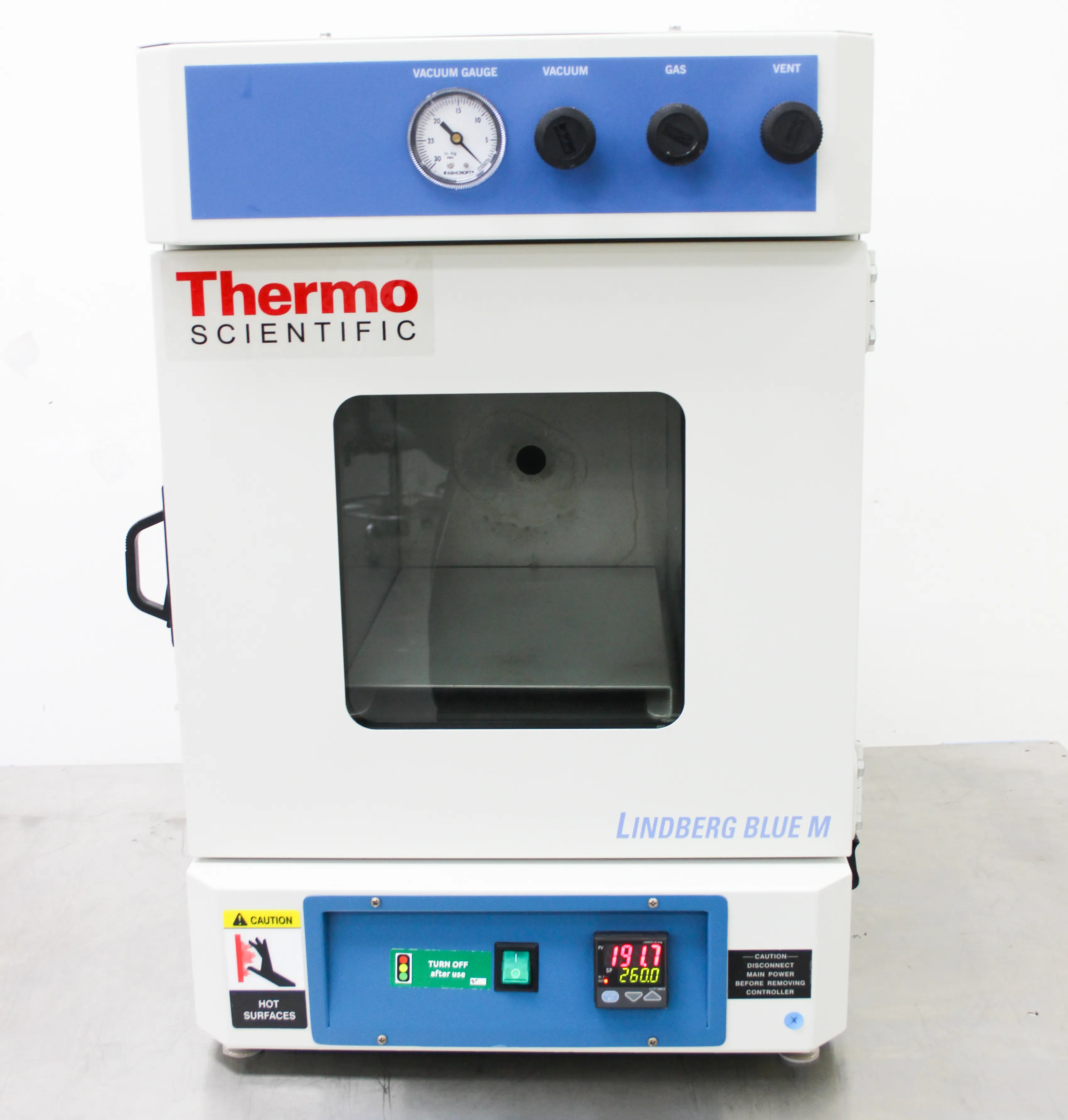

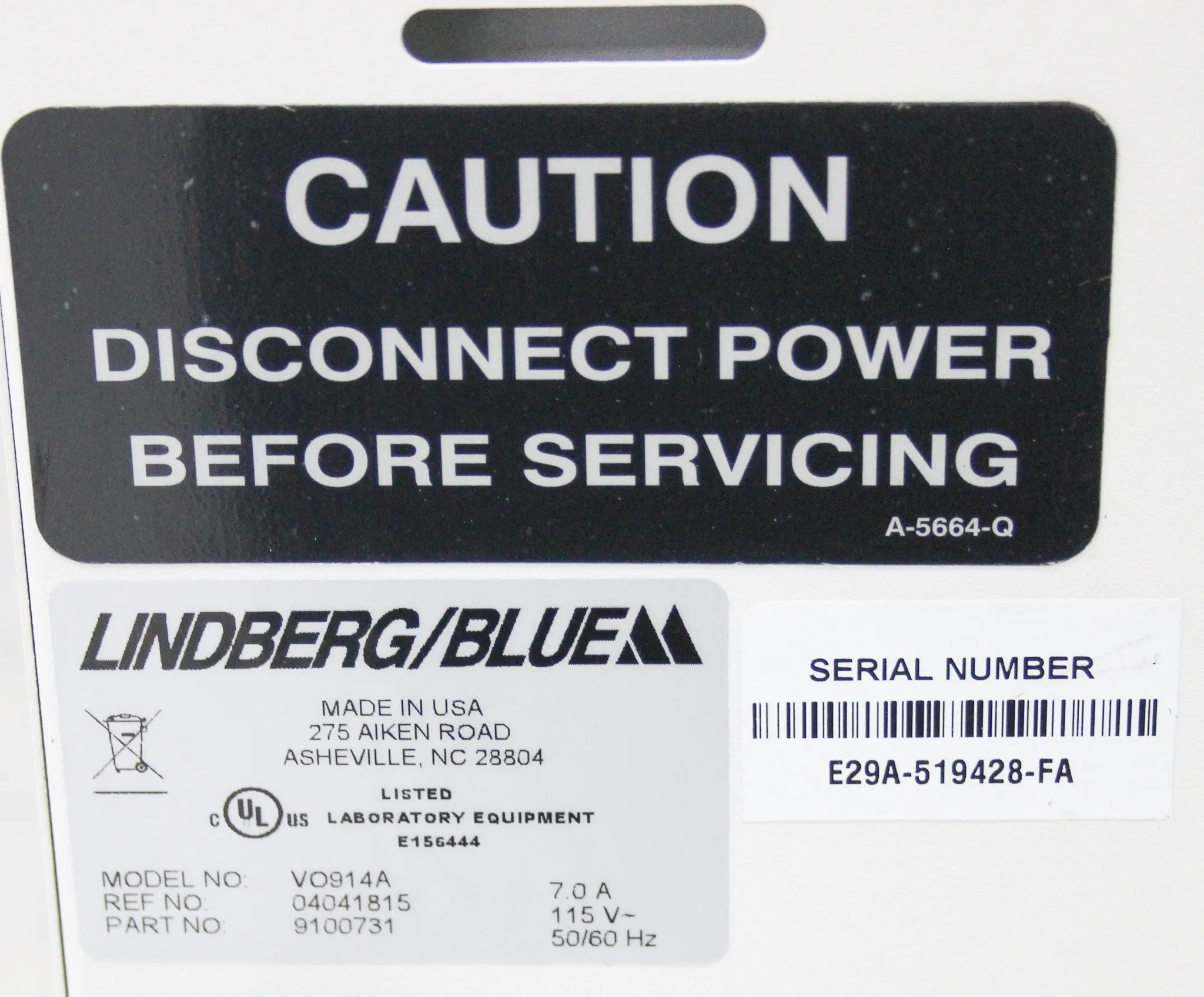

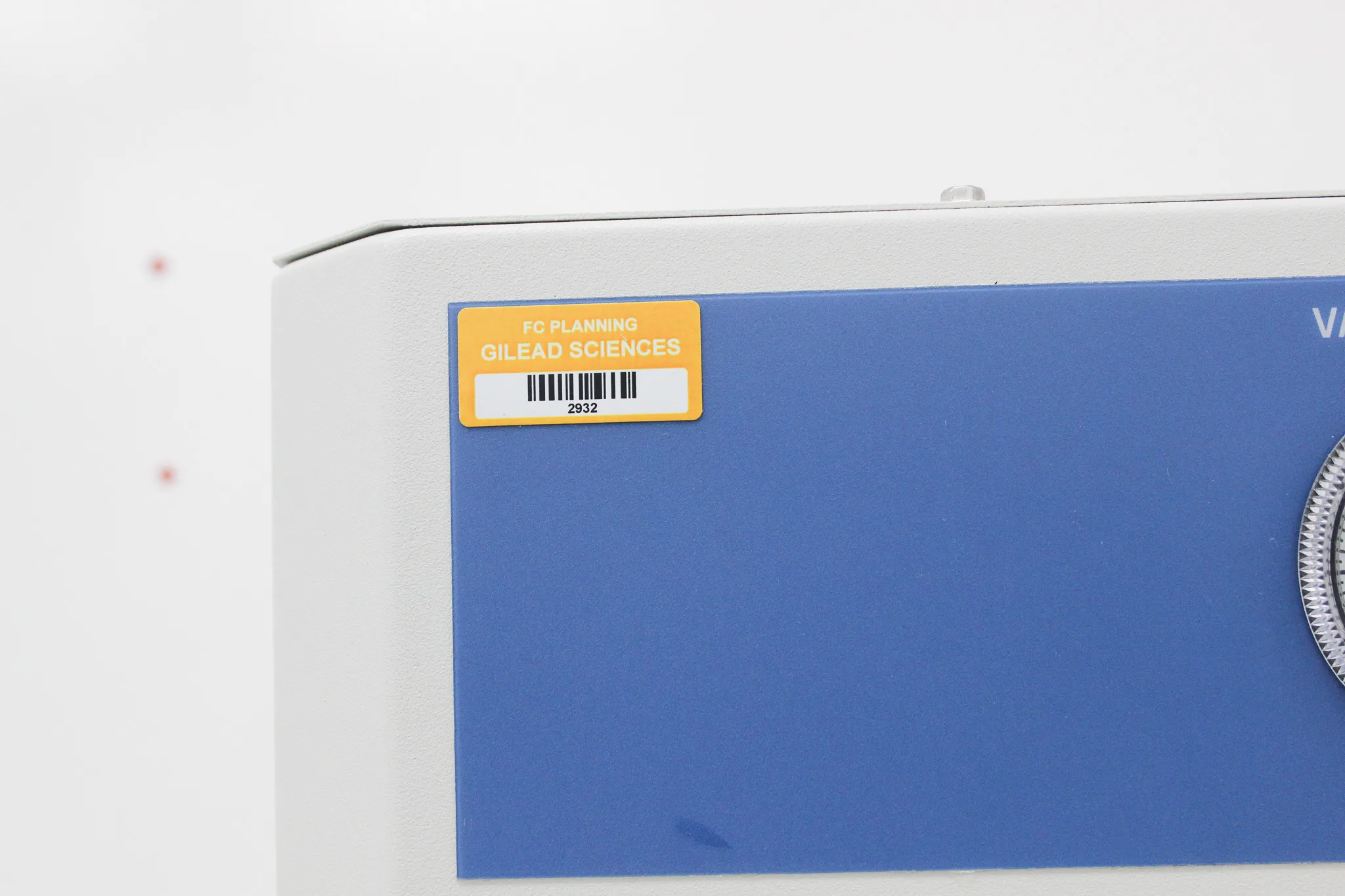

Thermo Scientific Lindberg Blue Vacuum Oven VO914A" ***Oven was tested to specifications. Unit was able to reach 199C, in just a few hours. VO914A is preowned with slight wear from normal use. 30-day warranty included with purchase. See photos for details. Benefit from a digital control, built-in over-temperature protection and a flexible vacuum/purge/release system with Thermo Scientific Lindberg/Blue M Vacuum Ovens. These ovens work well with a range of applications including drying, curing, outgassing, aging, process control and other applications requiring elevated temperature in reduced atmospheres or vacuum/purge with nonflammable and inert atmospheres. Single-Setpoint Digital Microprocessor Control Maximum temperature: 260C (500F) with nominal uniformity of 3.5% of setpoint Simultaneous LED display of setpoint and actual temperature with push-button view; resolution to within 1C Keypad data entry and pull-out control module for easy service Independent overtemperature safety system factory set with reset pushbutton Vacuum System 1 in.(2.54cm) manifold, chamber rear, exterior, connects to pump or in-house vacuum source With inert gas injection valve, fresh air inlet, vacuum exhaust port, controllable vacuum release vent port 1000 microns (1 torr) capacity Vacuum gauge, vacuum, gas and inlet valves located on front Construction Corrosion-resistant stainless-steel cabinet includes three aluminum shelves with painted or stainless-steel finish Rear-mounted vacuum manifold connects to pump (not included) or in-house vacuum source Low-watt heating element extends oven life Heavy-gauge steel, dual-wall construction with fiberglass insulation for minimum heat loss in walls and door High-temperature silicone gasket is specially molded for a positive seal Magnetic latch for positive door seal (4.5 cu. ft. capacity models include mechanical latches) Viewing windows: 0.5 in.(1.3cm) thick in two smaller capacity models or 0.75 in.(1.9cm) thick in 4.5 cu. ft. model; permit observation of work in progress without loss of heat Stainless-steel exterior models come with double doora solid outer door over inner window door Specifications: Capacity (English) - 0.65 cu.ft. Certifications/Compliance - UL listed Chamber Material - Corrosion-resistant Stainless Steel Controller Type - Digital Microprocessor Control Description - 18.6L; 120V; 750w; Painted cabinet; 1 door, 3 shelves Capacity (Metric) - 18.6 L Temperature (Metric) - 6C to 260C Type - Digital, OTP Display - LED Material - Painted Steel No. of Shelves - 3 Ports - Inert gas port, vacuum port and vent port Safety Features - Overtemperature Safety System Temperature Resolution - 1C Temperature Uniformity - 3.5C Vacuum Range - 1 x 10-2torr (10 microns) Dimensions (D x W x H) Interior - 14 x 9 x 9 in. (36 x 23 x 23 cm) Dimensions (L x W x H) - 23 x 18 x 26 in. (58 x 46 x 66 cm) Length - 23 in. Width - 18 in. Height - 26 in. Shipping Weight - 150 lb. Electrical Requirements - 120 V 50/60 Hz Voltage - 120 V Wattage - 750 w Frequency - 50/60 Hz Unit Size - Each

• Digital control with a single-setpoint microprocessor
• Corrosion-resistant stainless-steel cabinet
• Adjustable vacuum/purge/release system
• Simultaneous LED display of setpoint and actual temperature
• Independent overtemperature safety system
• Low-watt heating element extends oven life

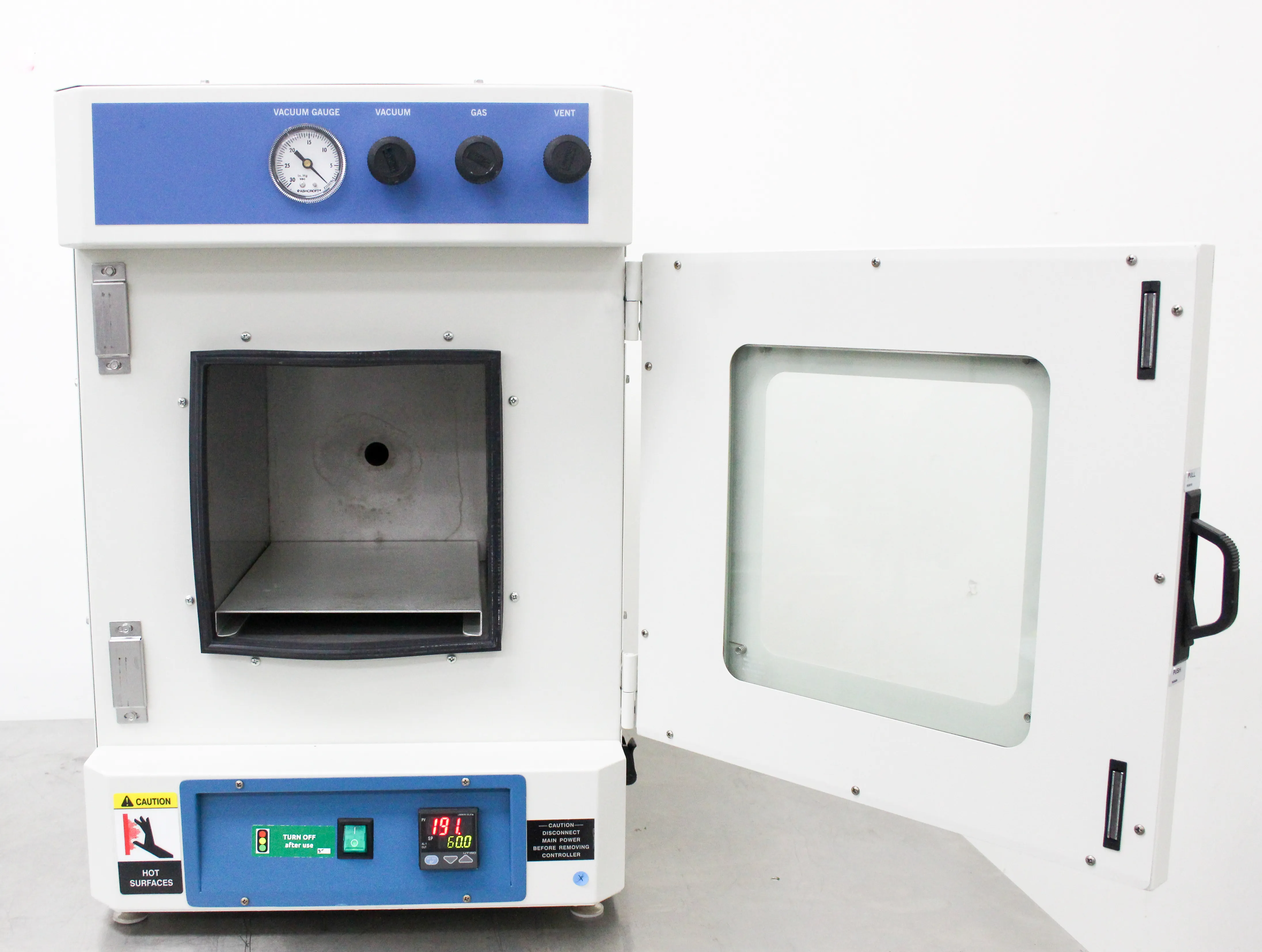

• Multiple viewing windows for observing work in progress
• Compliant with UL standards
• Flexibility to connect to pump or in-house vacuum source

• Capacity (English) - 0.65 cu.ft.
• Certifications/Compliance - UL listed
• Chamber Material - Corrosion-resistant Stainless Steel
• Controller Type - Digital Microprocessor Control
• Description - 18.6L; 120V; 750w; Painted cabinet; 1 door, 3 shelves
• Capacity (Metric) - 18.6 L
• Temperature (Metric) - 6C to 260C
• Type - Digital, OTP
• Display - LED
• Material - Painted Steel
• No. of Shelves - 3

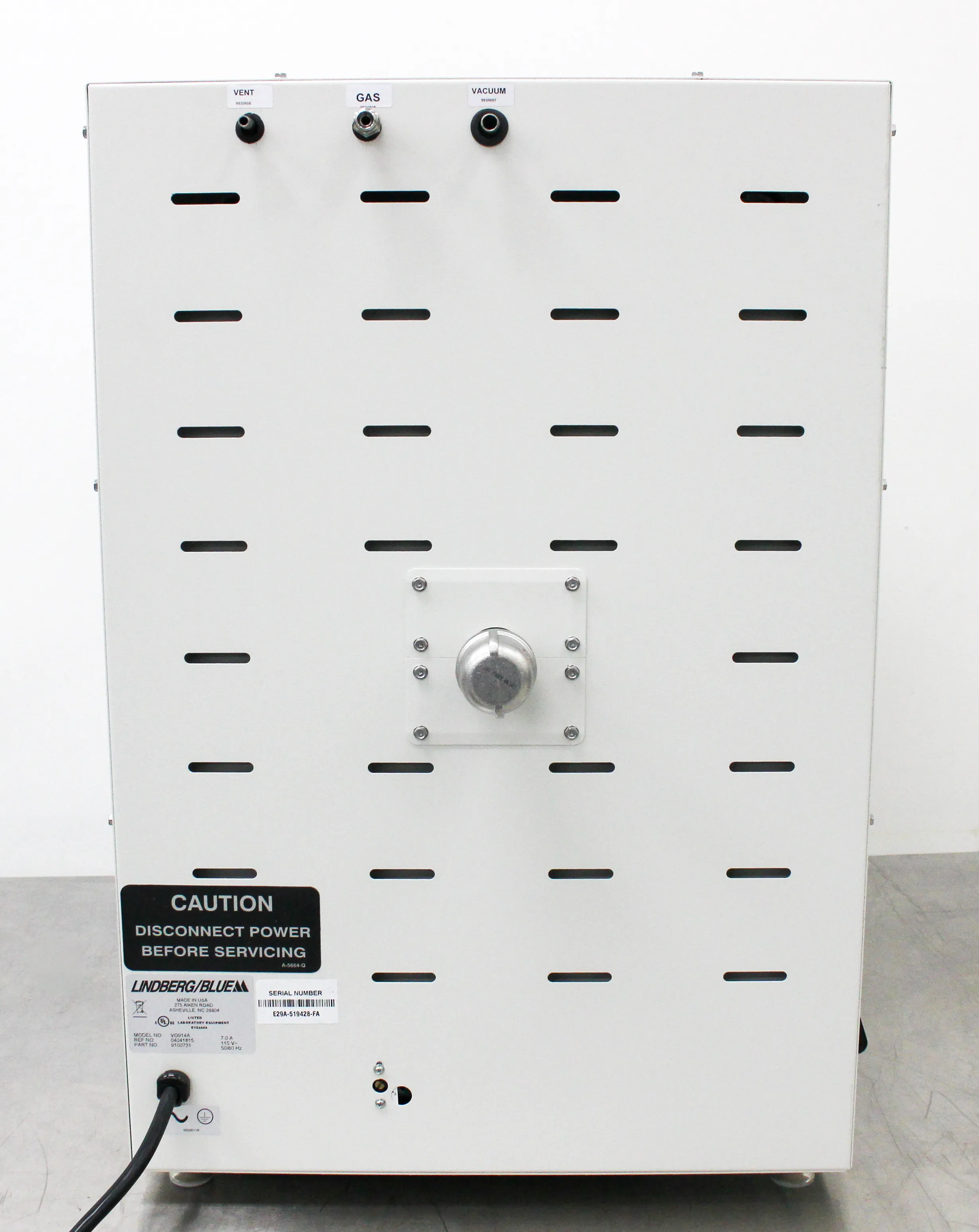

• Ports - Inert gas port, vacuum port and vent port
• Safety Features - Overtemperature Safety System
• Temperature Resolution - 1C
• Temperature Uniformity - 3.5C
• Vacuum Range - 1 x 10-2torr (10 microns)

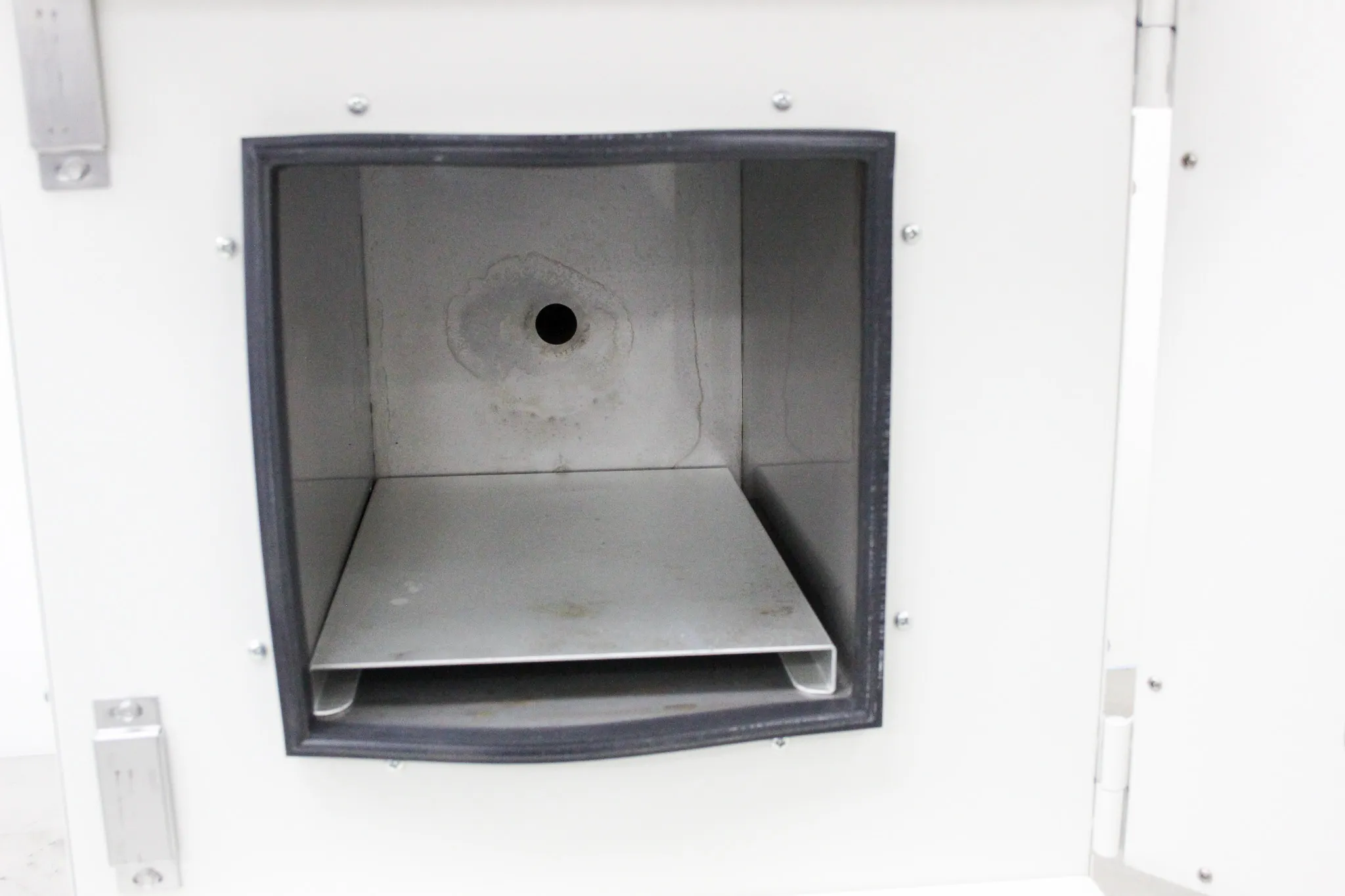

• Dimensions (D x W x H) Interior - 14 x 9 x 9 in. (36 x 23 x 23 cm)
• Dimensions (L x W x H) - 23 x 18 x 26 in. (58 x 46 x 66 cm)
• Length - 23 in.
• Width - 18 in.
• Height - 26 in.
• Shipping Weight - 150 lb.
• Electrical Requirements - 120 V 50/60 Hz
• Voltage - 120 V
• Wattage - 750 w
• Frequency - 50/60 Hz
• Unit Size - Each

Metric: 68 kg
Imperial: 150 lb

Metric: 58 cm x 46 cm x 66 cm
Imperial: 23 in x 18 in x 26 in

841989

841989 - Machinery, plant or laboratory equipment, whether or not electrically heated, for the treatment of materials by a process involving a change of temperature, nesoi.
